Electrolux EFT 601-2, EFT 701-2 User Manual
Bruksan visning, Brugsan visning
EFT 601-2
EFT 701-2
Käyttöohje, User Manual
UK
NS
FIN
DK
38
Contents
Safety instructions .............................................................................................................39
At installation and service...................................................................................................................39
At use of cooker hood ........................................................................................................................3 9
At disposal ..........................................................................................................................................39
Description of the appliance ............................................................................................. 40
Standard accessories included: .........................................................................................................40
Function ..............................................................................................................................................40
Exhausting ..........................................................................................................................................40
Recycling ............................................................................................................................................ 40
Special accessories ........................................................................................................... 41
Installation .......................................................................................................................... 41
Unpacking...........................................................................................................................................41
Placement...........................................................................................................................................41
Electrical connection .......................................................................................................... ................. 4 1
Mounting under cupboard ...................................................................................................................4 1
Mounting of hood on wall ...................................................................................................................4 2
Exhausting mode................................................................................................................ ................ 42
Recirculation mode (with carbon filter) ............................................................................................... 42

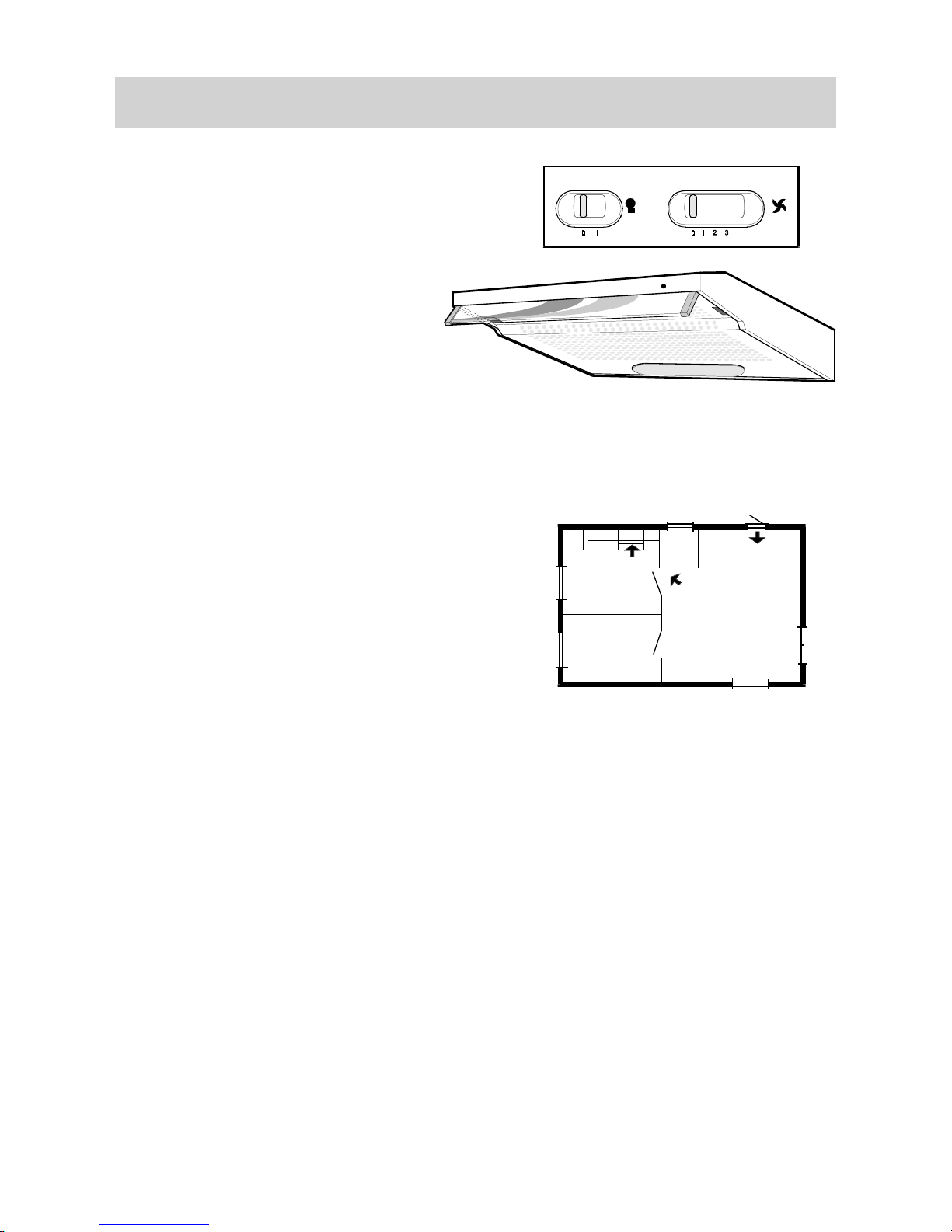

Using the hood ................................................................................................................... 43
Speed regulation ................................................................................................................................ 4 3
Work light............................................................................................................................................ 43
Correct ventilation............................................................................................................................... 43
Important to know ...............................................................................................................................4 3
Maintenance........................................................................................................................ 44
Grease filter ........................................................................................................................................ 4 4
Carbon filter ........................................................................................................................................ 4 4
Attention .............................................................................................................................................. 4 4
Cleaning.............................................................................................................................................. 4 4
Changing the lighting elements ................................................................................................. .........4 4
If the hood does not function............................................................................................ 45
Service and spare parts..................................................................................................... 45

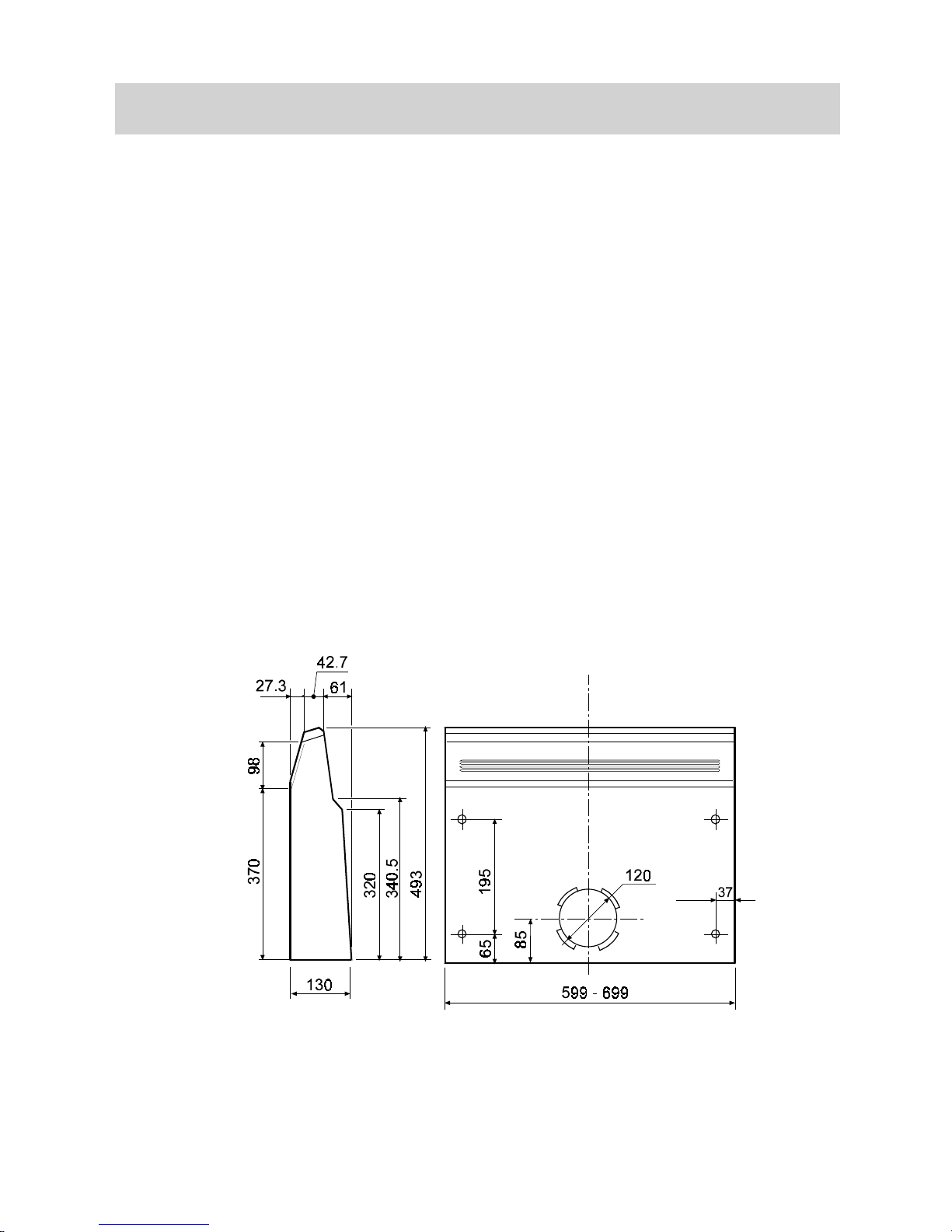

Technical data .................................................................................................................... 46
39
Thank you for your choice of an Electrolux product. We are convinced that you will have
great use and pleasure from your new cooker hood.
Before you use the cooker hood we recommend that you read through the whole user
manual giving a direct description of the cooker hood and its functions.
To avoid the risks, that are always present when you use a product driven by electricity,
it is important that the cooker hood is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazard.
Save the instruction manual and keep it available at use of the cooker hood
Congratulations to your new Cooker Hood
Safety instructions
At installation and service
l The cooker hood is made for normal
households with normal cooking. If it is
used for other purposes there is a risk of
damage which is not covered by the warranty.
l All eventual electric installation has to be
carried out by a qualified electrician. The
installation of the hood should be made by
a person with enough knowledge. Installation made otherwise could lead to loss of
performance and even injuries and /or
damage on properties.
l The hood cannot be connected to flues of
other appliances that run on energy
sources other than electricity.
Please, keep to the provisions of official
directives regarding the question of fumes
discharge.
l When the hood is used at the same time of
other appliances that run on energy
sources other than electricity, provision
must be made for an adequate supply of
air.

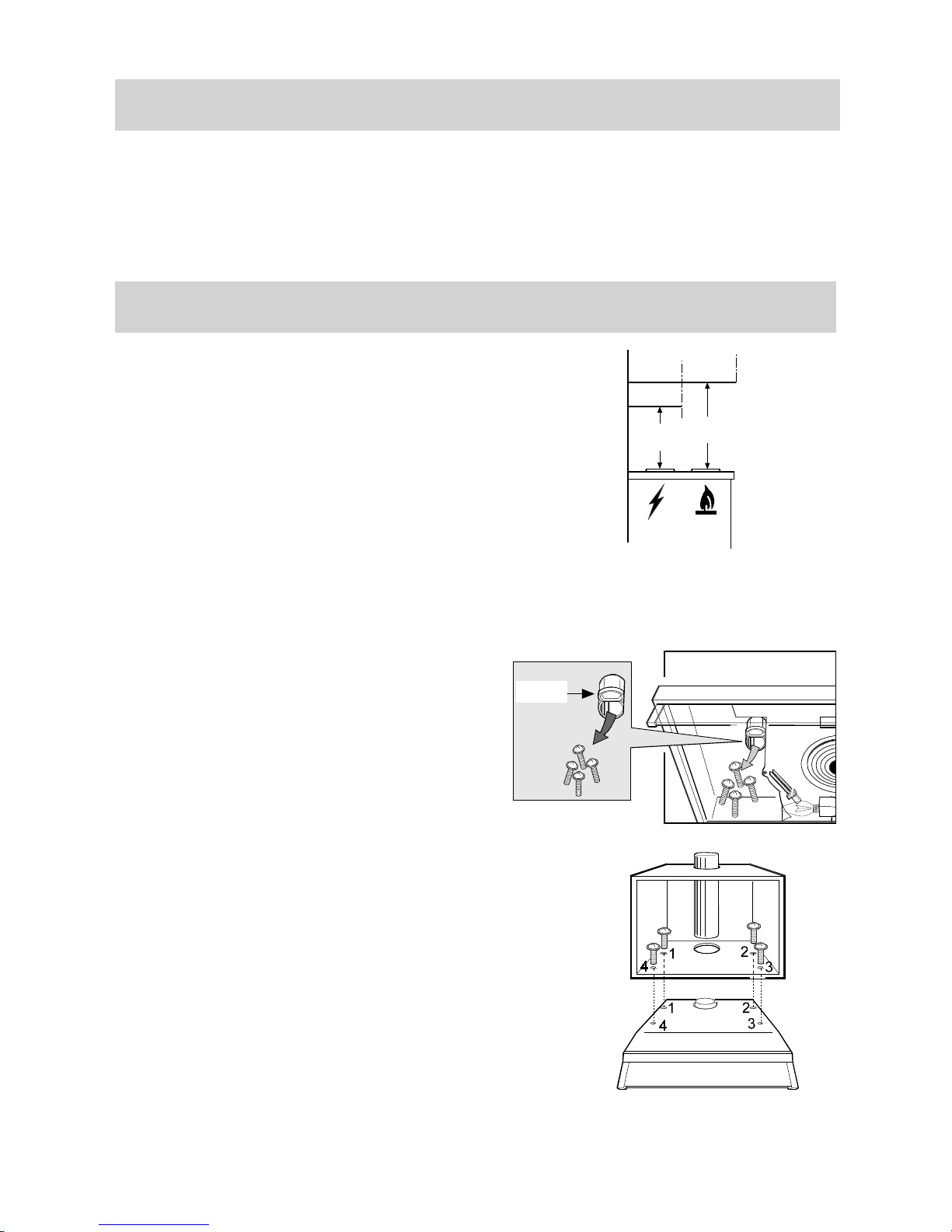

l When installed, the hood must be not less
than 50 cm. above electric burners or 70
cm. above gas or mixed-fuel burners. (Fig.
4).
l The power cord should be drawn so that
there is no risk of damage. Hazard!
At use of cooker hood
l No food must be cooked flambé under-
neath the hood.
l The use of an unprotected flame is danger-
ous for the filters and could cause fires.
l Never leave the deep-frying or frying pan
over a cooker/hob. The oil contained in the
pan may spontaneously ignite through
overheating.
l Observe the filter change or cleaning
intervals. Failure to observe these intervals
may cause the risk of fire through fat deposition.
Note! If a fire starts; Switch of the cooker
hood and the heating zone; Cover the fire ,
Never use water.
At disposal
l Help to avoid damages even when the
cooker hood should be disposed. Disconnect the power plug and cut the power cord
at hood inlet. Check with the authorities for
information of how to proceed for disposal.
40
1. Light switch
2. Motor speed switch
3. Work light
4. Suction grid with grease filter
Standard accessories included:
l Screws
l Duct with no return valve
l Plug for unused outlet hole
Function
The hood may be used as follows:
- For air exhausting
- For air recycling
Exhausting
The appliance has two exhaust outlets; D and E
(Fig. 2).
Connect the hood to the smoke exhaust hose by
using the connecting ring G with no return valve
(bayonet coupling).
Insert plug H in the unused exhaust hole (bayonet coupling).
Plug H is for closing the unused hole.
Attention!
In the horizontal runs the duct must be
slightly slanted (about 10°) and directed upwards
to vent the air easily from the room to the outside.
The hood cannot be connected
to flues f other appliances that
run on energy sources other
than electricity.
Recycling
The air is filtered through a carbon filter and
recirculated into the room through the front grid
(fig. 3).
This version is used when there is no exhaust
duct for venting outdoors or when it is impossible
to install one.
Description of the appliance
Fig. 2
Fig. 3
Fig. 1
1
2
4
3
