Electrolux ETE4600, ETE5400, ETE5407, EBE4500, EBE5307 User Manual
...
User manualRefrigeration
ETE4600, ETE4607,
ETE5400, ETE5407,
EBE4500, EBE4507,
EBE5300, EBE5307,
EBE5367, EHE5267,
EFE4227, ERE5047
2 electrolux.com.au
CONTENTS
Important safety instructions ....................................3
Refrigerator features .................................................4
Top mount refrigerator features .......................4
Bottom mount refrigerator features ..................5
Standard ...........................................................5
Ice & Water .......................................................7
French door features ..................................... 7
All refrigerator features .....................................8
All freezer features ............................................9
Installing your new refrigerator ...............................10
Unpacking your refrigerator ...........................10
Locating your refrigerator. ..............................10
Installing your refrigerator...............................10
Fitting the handles ..........................................11
Ice & Water models ................................................11

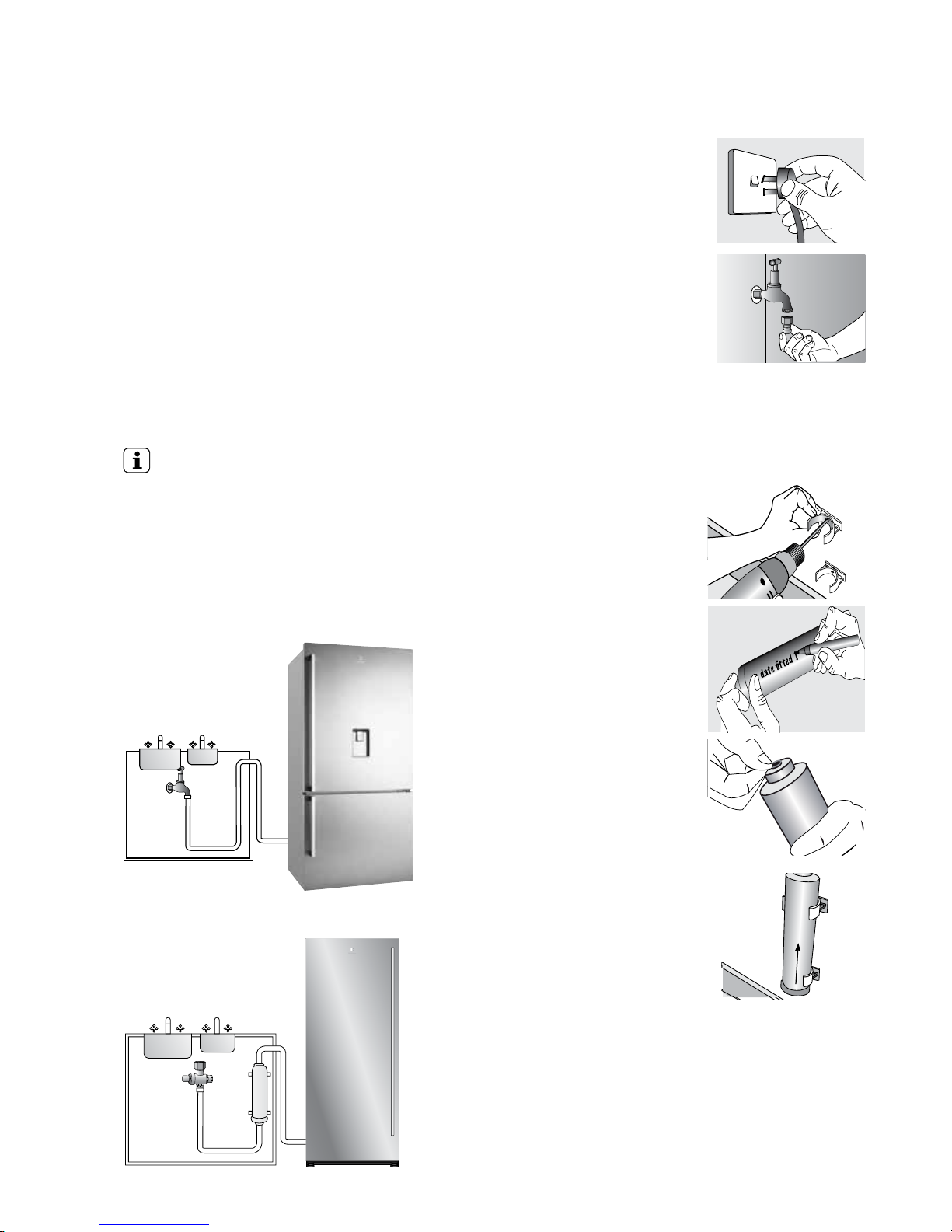

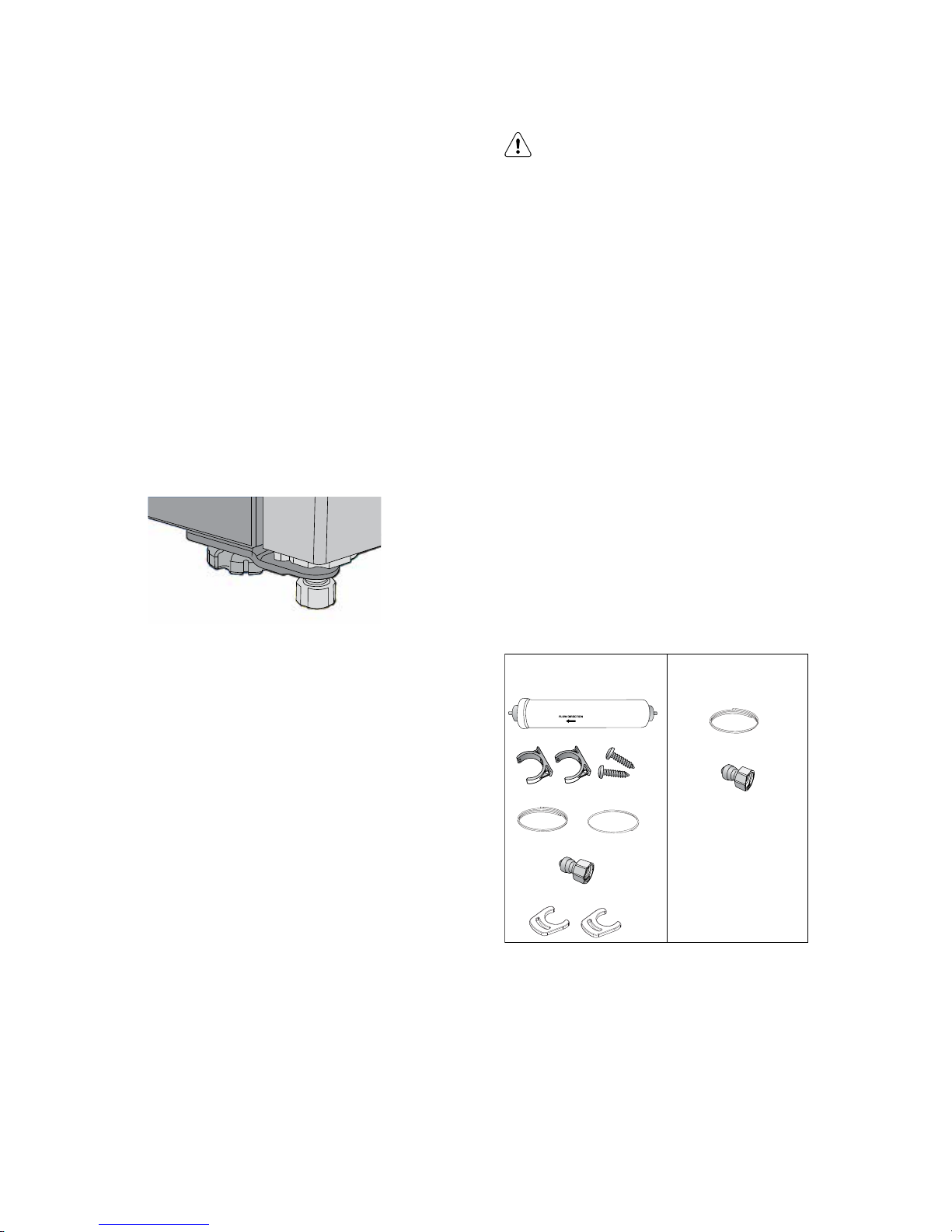

Installation ......................................................12

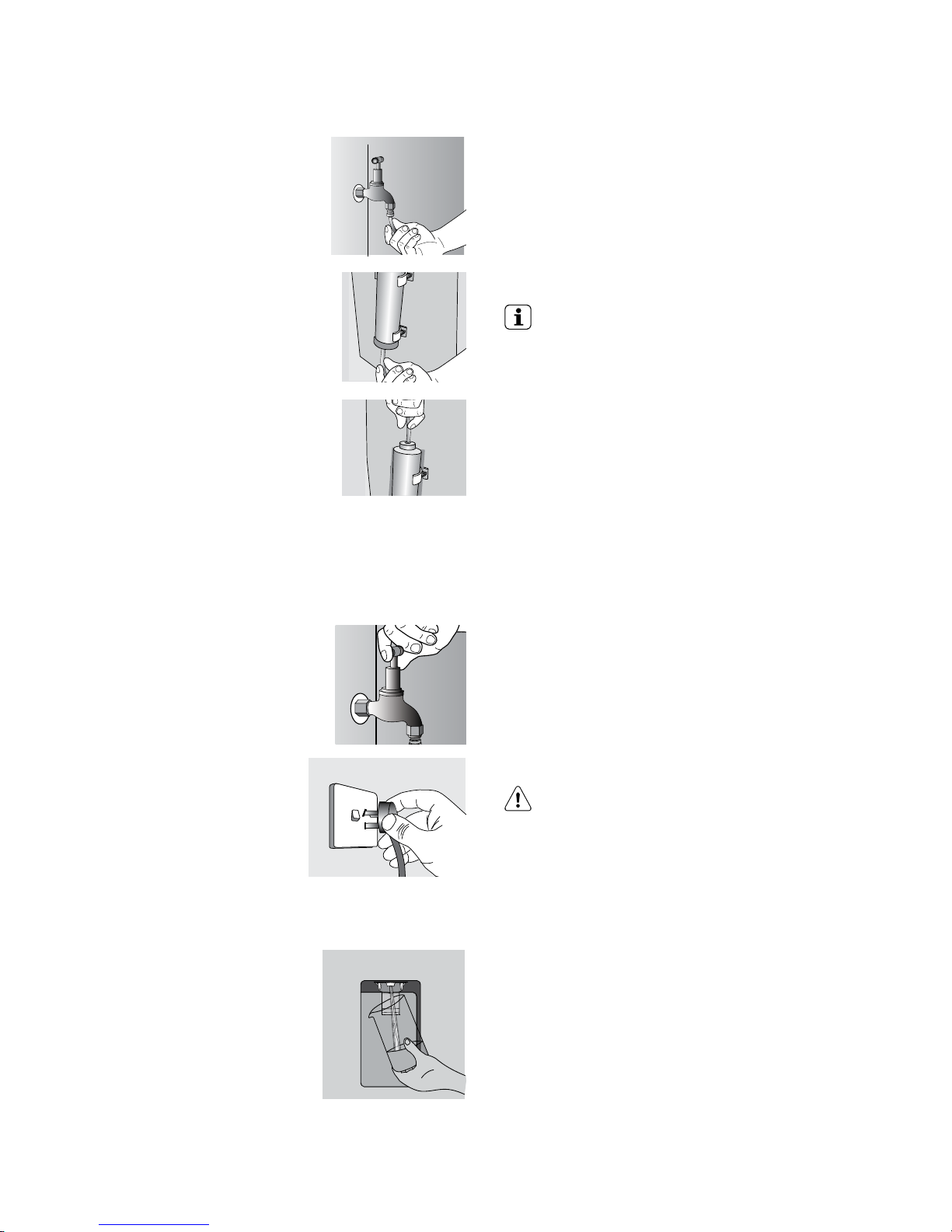

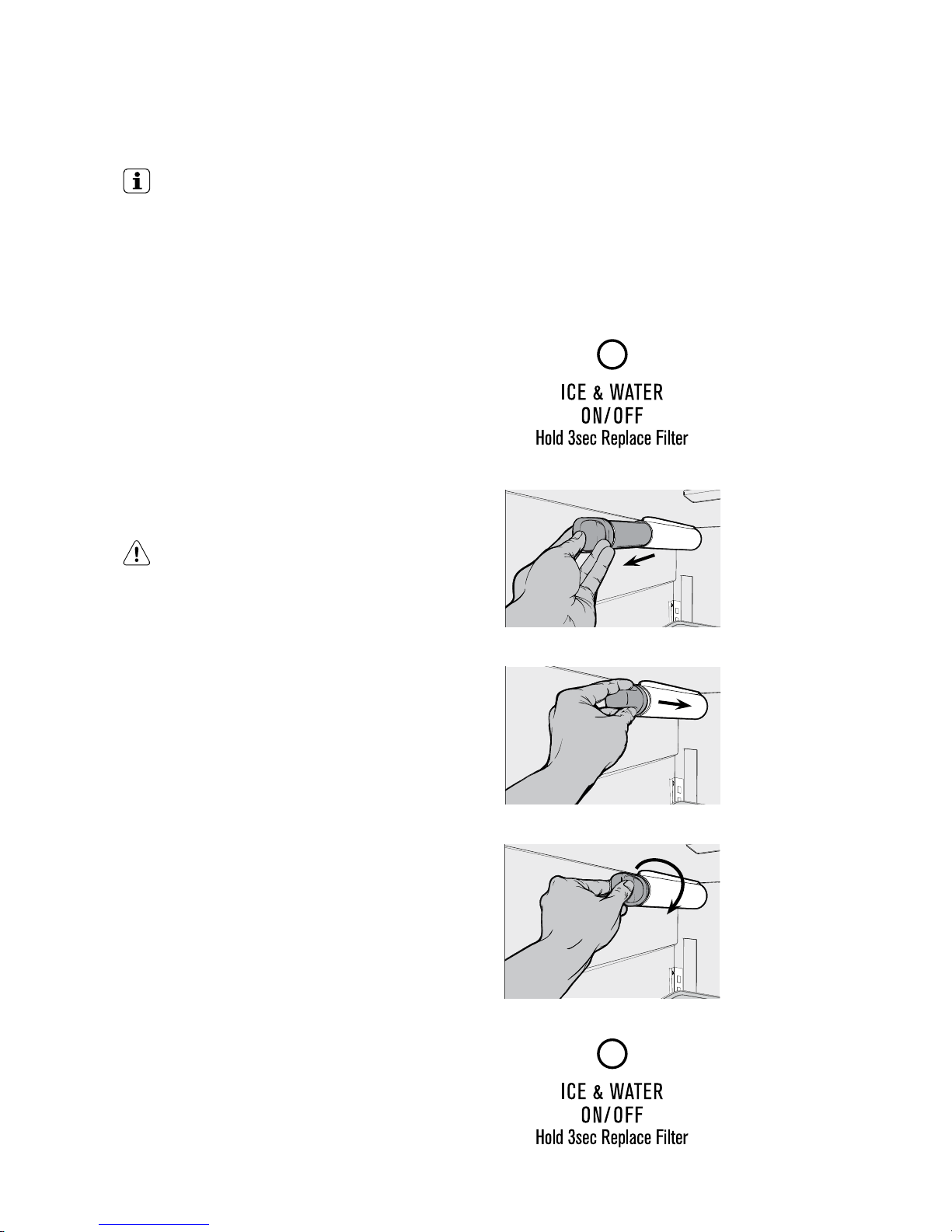

Changing the water filter ................................14
Using your refrigerator ............................................15

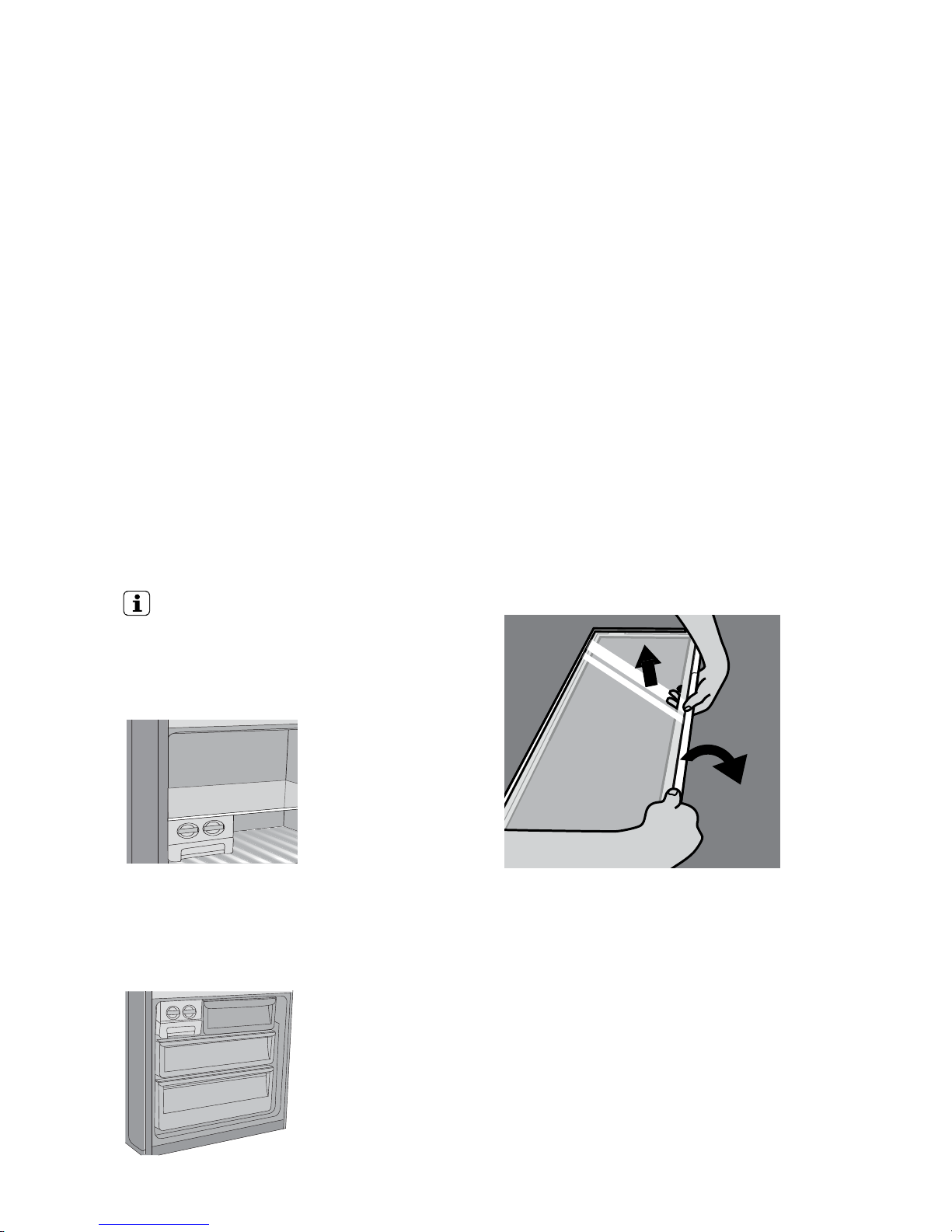

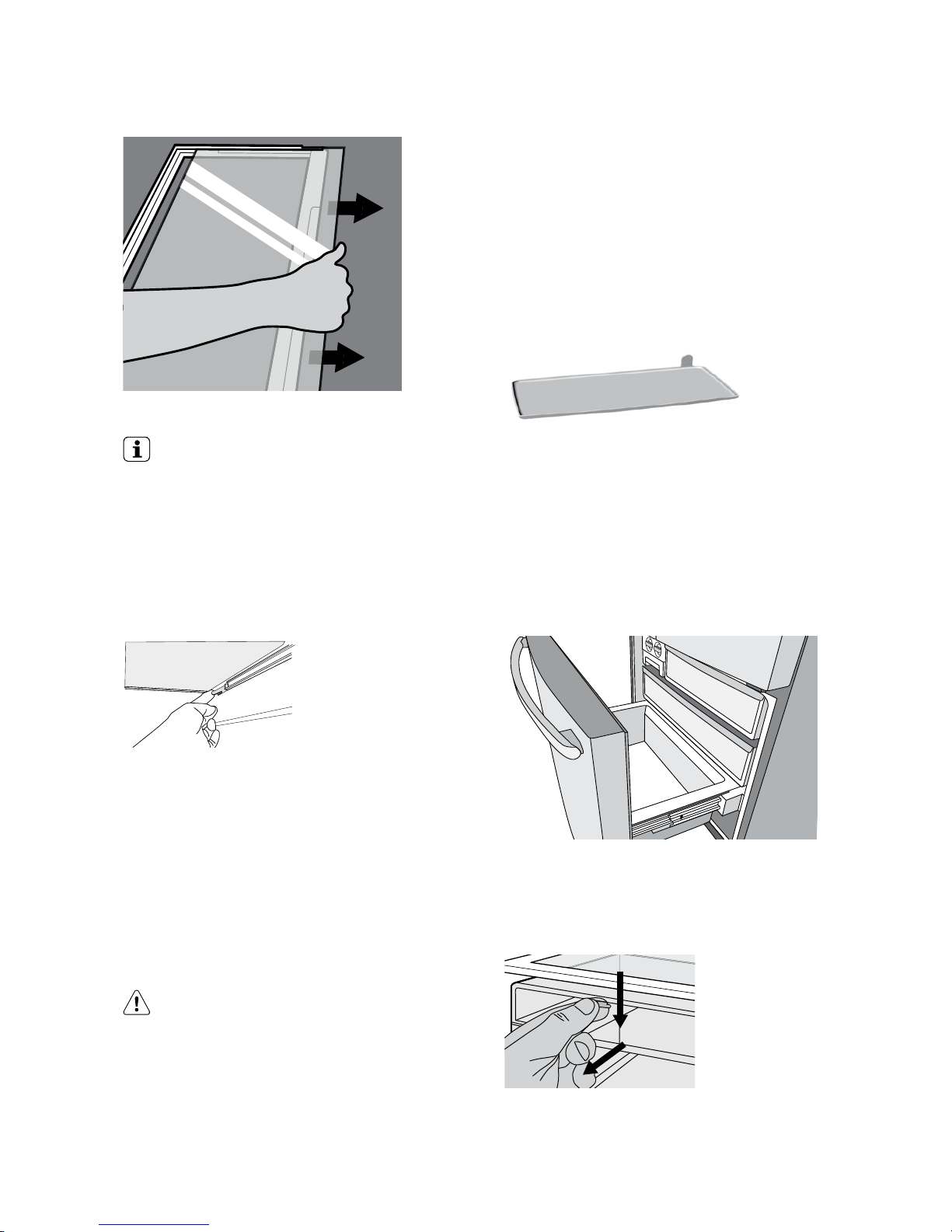

Removing Features ........................................15
Crisper Bin ......................................................15
Freezer Shelves ..............................................15
Drawers with telescopic slides .......................15
Twist & Serve ice ............................................16
LED Lighting ...................................................16
Controlling ..............................................................17

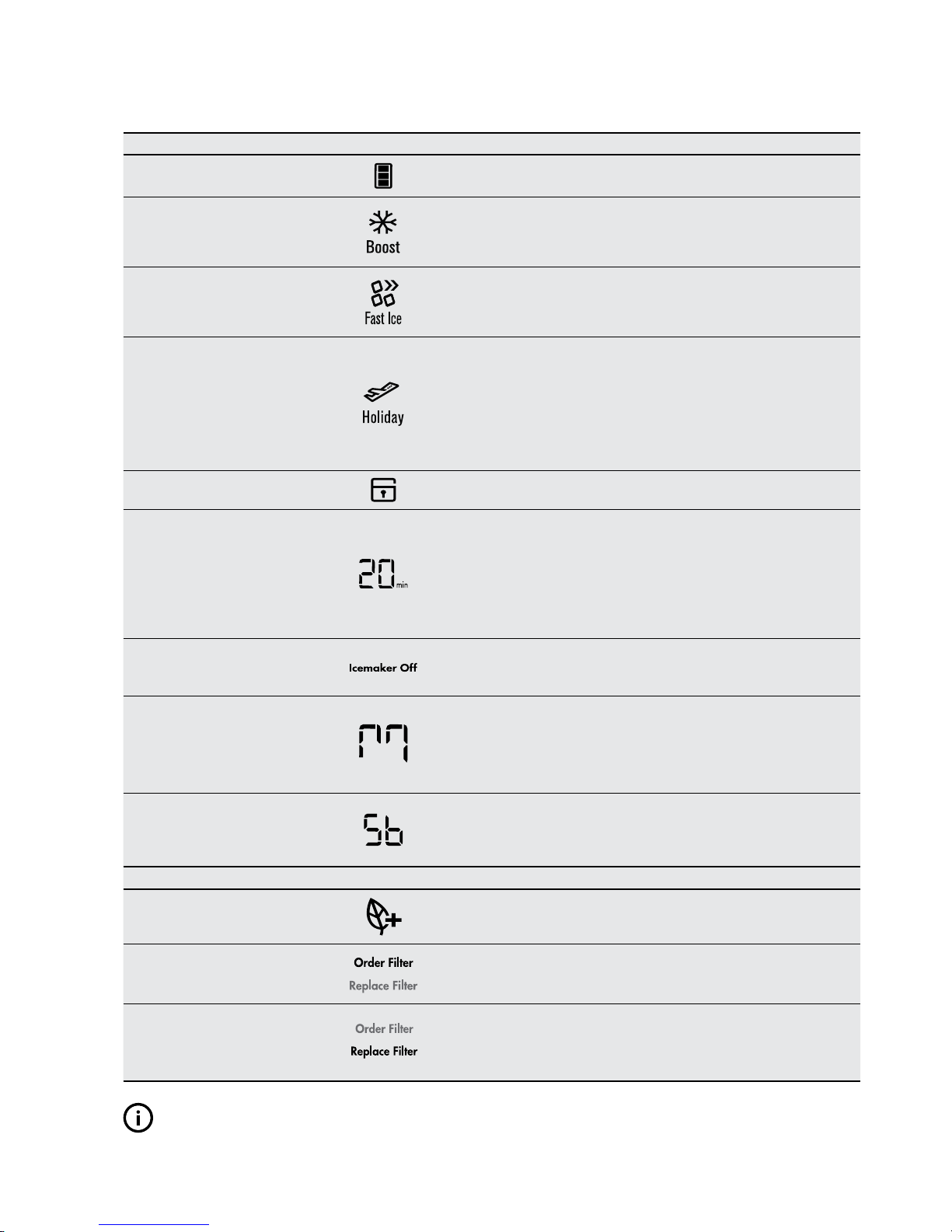

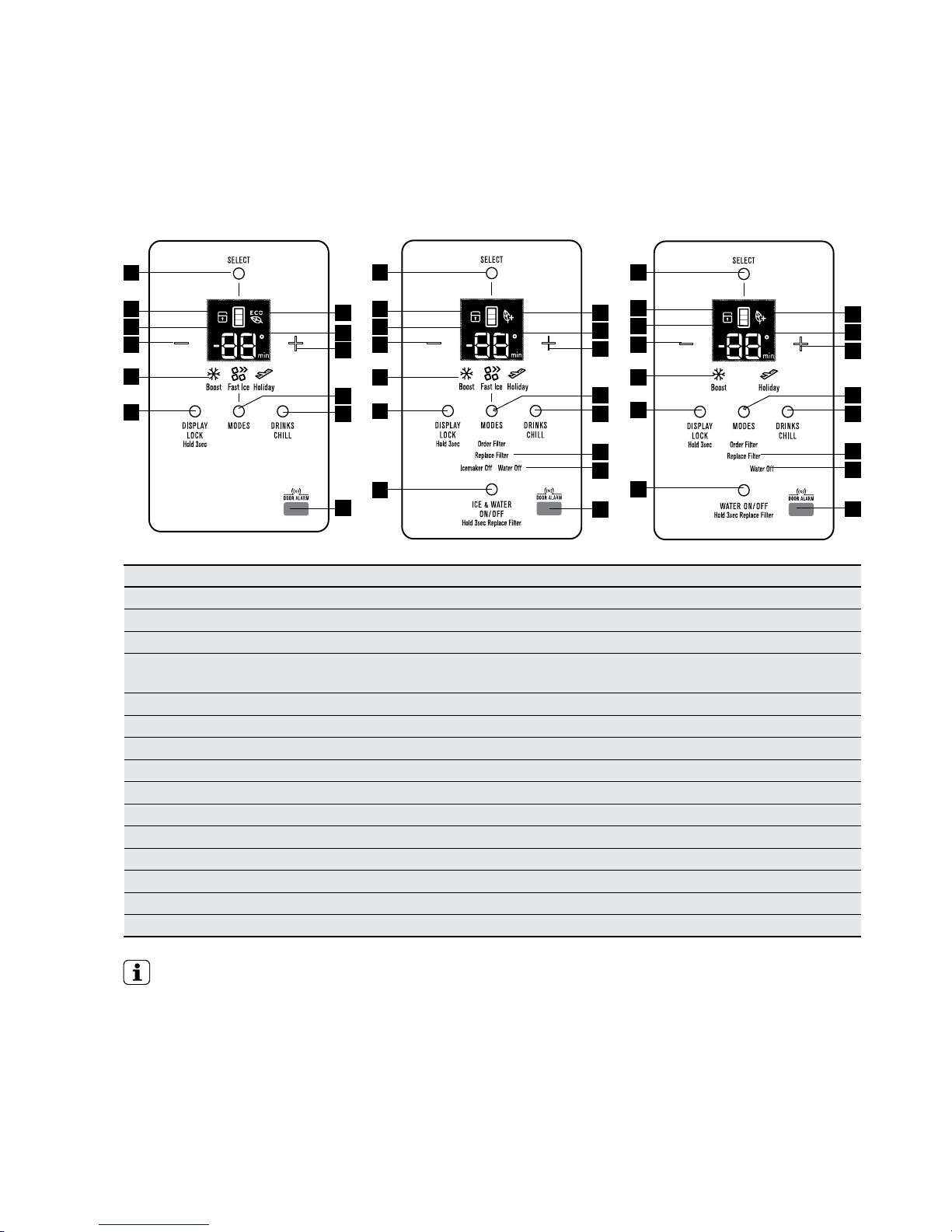

About the User Interface ................................17
Functions of the user interface .......................18

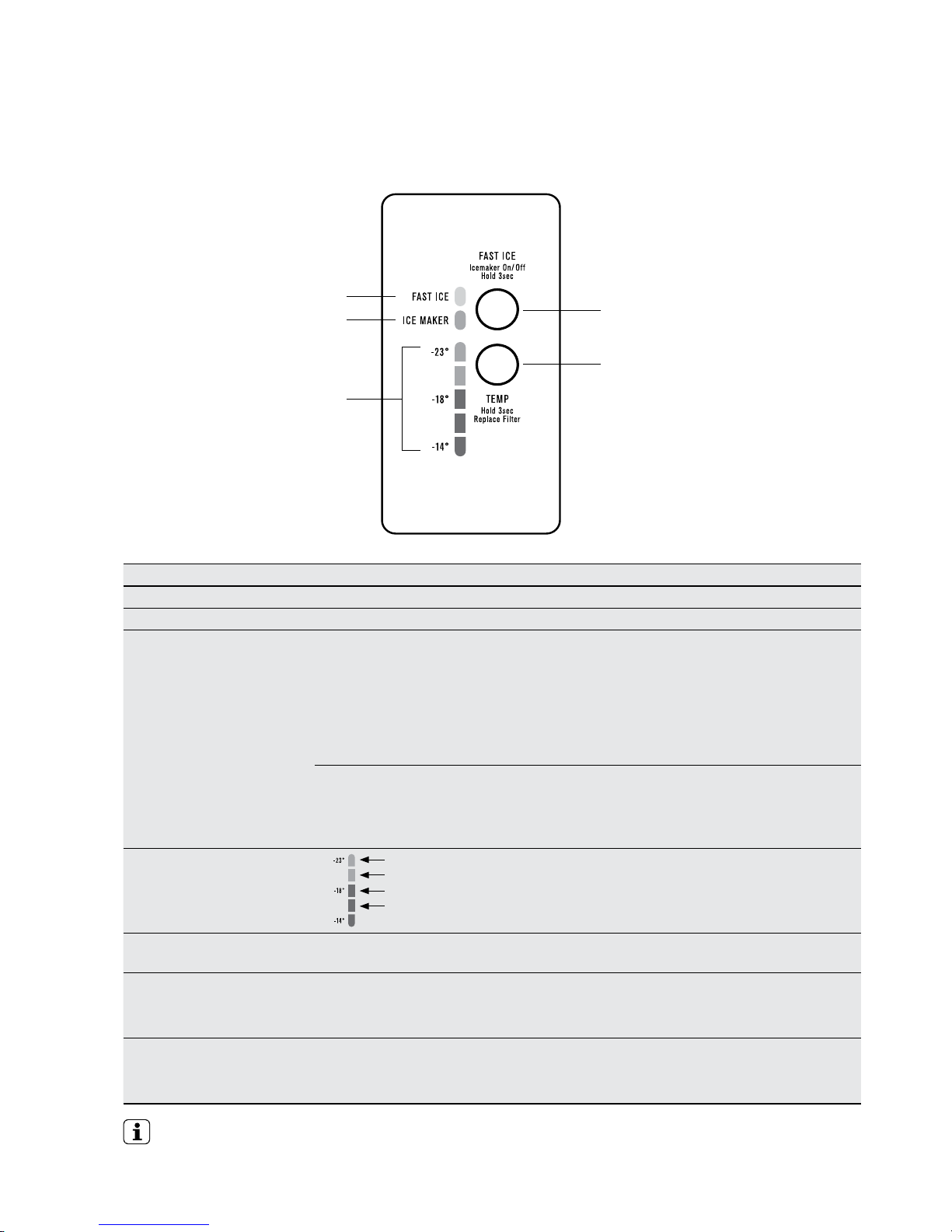

The freezer user interface ...............................20

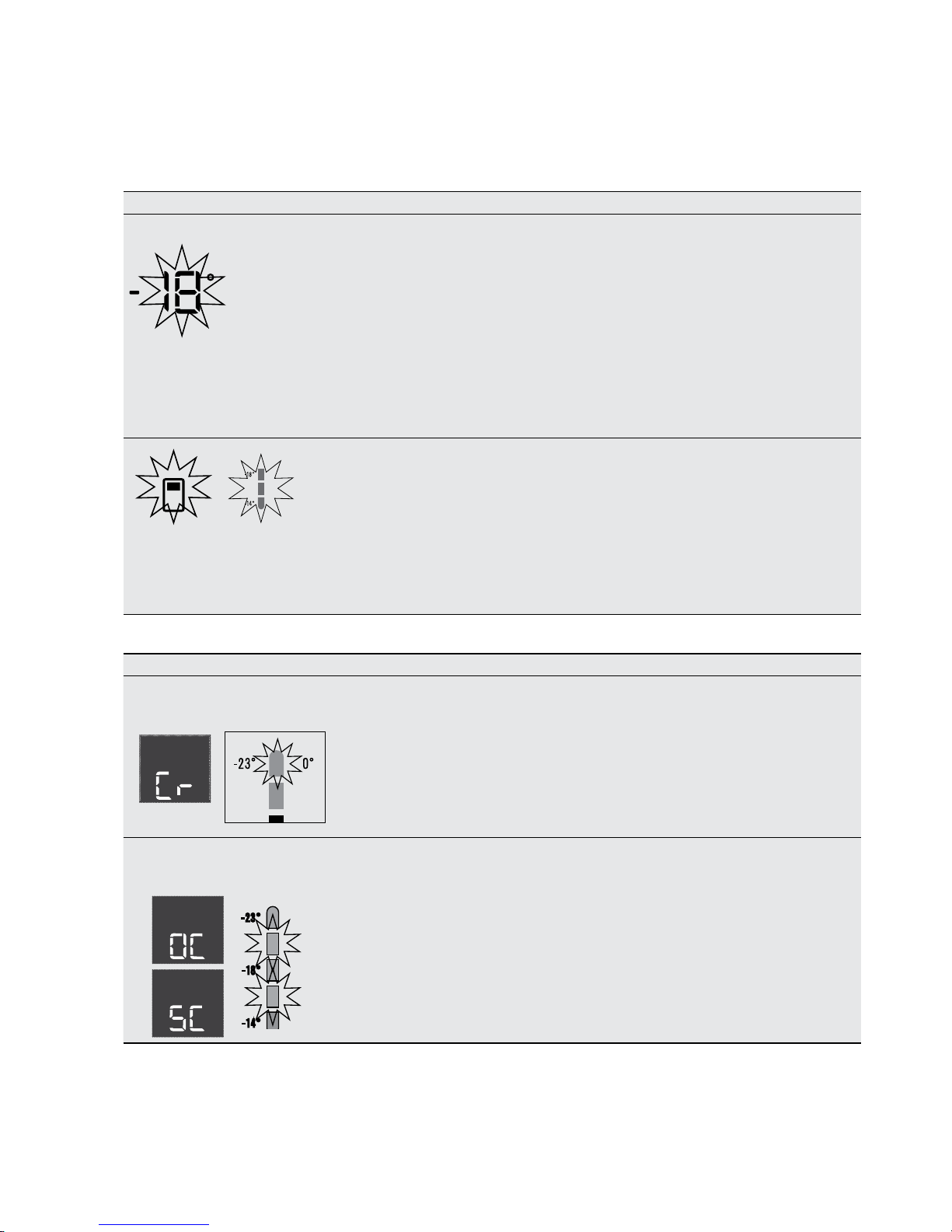

Error Codes ....................................................21
General information ................................................22
Cleaning the refrigerator .................................22
Food storage guide ........................................23
Troubleshooting ..............................................24
Ice maker troubleshooting ..............................26

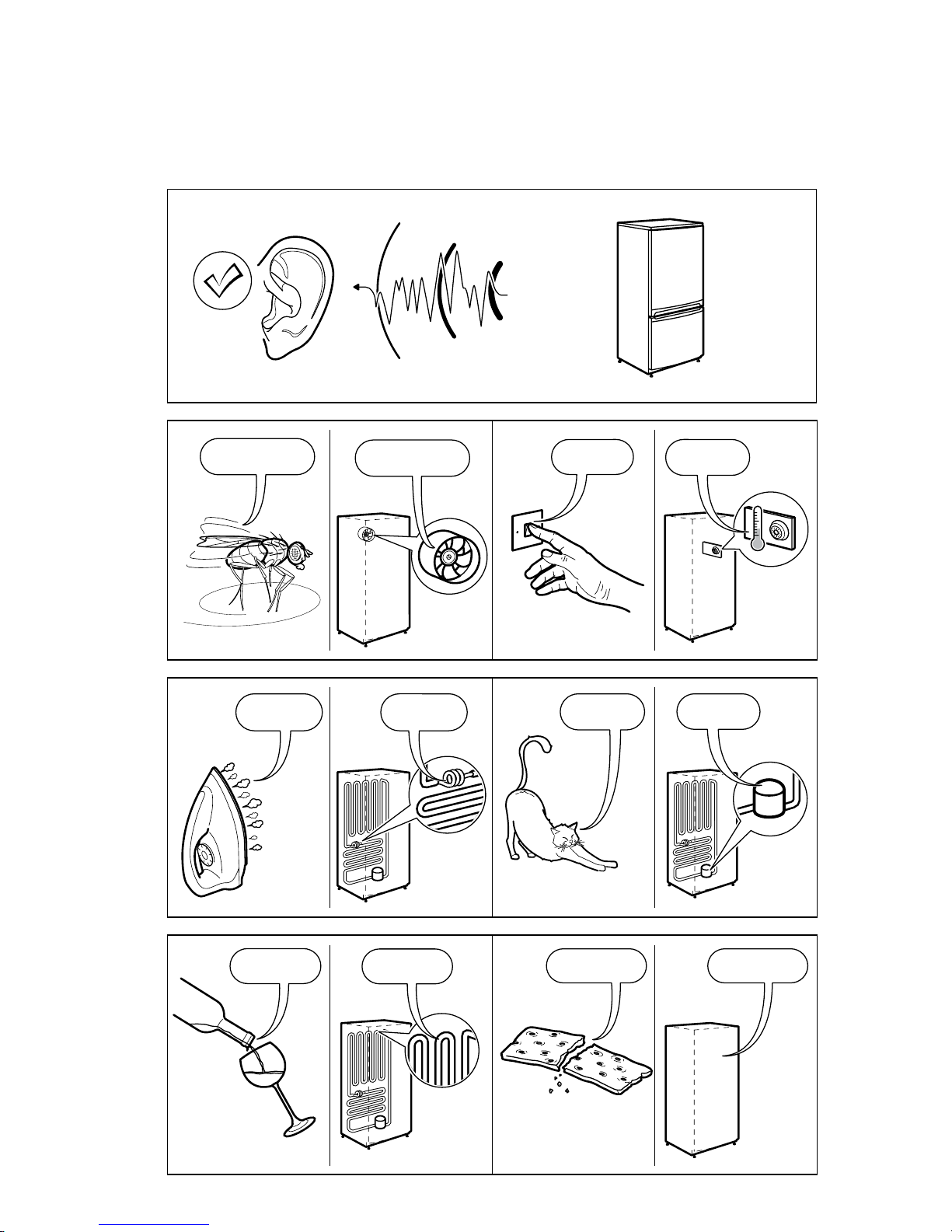

Noises ............................................................27
Warranty Information ..............................................31
CONGRATULATIONS
Dear customer,
Congratulations and thank you for choosing our
refrigerator. We are sure you will find your new refrigerator
a pleasure to use. Before you use the refrigerator we
recommend that you read through the relevant sections
of this manual, which provides a description of your
refrigerator and its functions.
To avoid the risks that are always present when you use
an electric appliance, it is important that the refrigerator is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the refrigerator, please check it is not
damaged. If in doubt, do not use the refrigerator but
contact your local customer care centre.
The symbols you will see in this booklet have these
meanings:
WARNING
This symbol indicates information concerning your
personal safety.
CAUTION
This symbol indicates information on how to avoid
damaging the refrigerator.
IMPORTANT
This symbol indicates tips and information about
use of the refrigerator.
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the refrigerator.
CONDITIONS OF USE
This refrigerator is designed and intended to be used in
normal domestic applications only.
Record model and serial number here:
Model number: ....................................................................
Serial number: .....................................................................
3
NOTE: You must read these warnings carefully before
installing or using the refrigerator. If you need assistance,
contact your customer care centre. The manufacturer will
not accept liability, should these instructions or any other
safety instructions incorporated in this book be ignored.
WARNING
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• It is essential the power point is properly earthed to
ground. Consult a qualified electrician if you
are unsure.
• Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or moving it to
avoid electric shock.
• Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
• If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Don’t use a steam cleaner. If live components come
into contact with condensing steam, they may shortcircuit or cause an electric shock.
• Do not store explosive substances
such as aerosol cans with a flammable
propellant in this appliance. If
pressurised aerosol containers bear
the word ‘flammable’ and/or a small
flame symbol, do not store them inside
any refrigerator or freezer. If you do so
you may cause an explosion.
• Do not damage the refrigerant circuit.
• This appliance contains insulation formed with
flammable blowing gases. Avoid safety hazards by
carefully disposing of this appliance.
• If you wish to discard this refrigerator, please contact
your local authorities and ask for the correct method
of disposal.
• When you dispose of your old refrigerators and
freezers, remove any doors. Children can suffocate if
they get trapped inside.
• The plug must be accessible when the appliance is
in position.
• Never try to repair the refrigerator yourself, only use a
qualified or authorised service person for repairs.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
R600a refrigerant warning
This appliance contains flammable R600a
refrigerant. Avoid safety hazards by carefully
installing, handling, servicing and disposing of this
appliance.
• Ensure that the tubing of the refrigerant circuit is not
damaged during transportation and installation.
• Leaking refrigerant may cause eye injuries or ignite.
• The room for installing appliance must be at least
1m
3
per 8g of refrigerant. The amount of refrigerant in
the appliance can be found on the rating plate inside
the appliance.
• If you are unsure of the refrigerant check the rating
plate inside the refrigerator compartment.
• It is hazardous for anyone other than an Authorised
Service Person to service this appliance. In
Queensland Australia the Authorisation Service
Person MUST hold a Gas Work Authorisation for
hydrocarbon refrigerants to carry out servicing or
repairs which involve the removal of covers.
• Keep ventilation openings in the appliance enclosure
or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
4 electrolux.com.au
Features may vary depending on model. Not all models will have features listed.
REFRIGERATOR FEATURES
MultiZone™ deli drawer
Use the MultiZone™ deli drawer to store
foods like small goods, fresh or cooked
meat and cheese, or as an additional
crisper. The drawer will prevent strong
food odours from impacting the rest
of the refrigerator. To remove the deli
drawer, pull it forward, then lift it up and
pull it further forward.
FreshZone™ double
insulated crisper
Use the crisper to store vegetables,
fruit or small goods.
Bottle storage bin
Use the bottle bin for tall bottle
storage. The bottle bin can be
removed by lifting it up over the
support lugs. To replace, push down
over the support lugs to lock in place.
Twist & Serve Ice
Refer to the section “Using your
Refrigerator” for details on removing,
relocating and using this feature.
LED lighting
Your refrigerator is fitted
with LED lighting.
ETE4607 illustrated
Glass shelves
The glass shelves improve visibility.
Door storage bin
The door bin can be removed by
lifting it up over the support lugs.
To replace, push down over the
support lugs to lock in place.
LED light
Dairy compartments
These compartments can be used
to store dairy.
FlexStor™ door bins
Slide the bins to meet different
storage needs. To remove, lift and
tilt. To replace, tilt the top and
push down until locked in place.
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Wine caddy
FreshSense™
deodoriser
FreshSense™
deodoriser
Door bin mats
Prevent items placed in the bins
from sliding around, catch small
spills in the door bins and allow
small spills to be cleaned up by
simply putting the mats in the
dishwasher.
TOP MOUNT
5
EBE5300 illustrated
Twist & Serve ice
Refer to the section “Using
your Refrigerator” for details on
removing and using this feature.
LED lighting
Your refrigerator is fitted with
LED lighting.
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Freezer storage bin
Refer to the section “Using your
Refrigerator” for details on removing,
and using this feature.
FlexStor™ door bins
Slide the bins to meet different
storage needs. To remove, lift and tilt.
To replace, tilt the top and push down
until locked in place.
Bottle storage bin
Use the bottle bin for tall bottle
storage. The bottle bin can be
removed by lifting it up over the
support lugs. To replace, push down
over the support lugs to lock in place.
MultiZone™
deli drawer
Use the deli drawer to store foods
like small goods, fresh or cooked
meat and cheese, or as an additional
crisper. The drawer will prevent
strong food odours from impacting
the rest of the refrigerator. To remove
the deli drawer, pull it forward, then
lift it up and pull it further forward.
Glass shelves
The glass shelves improve visibility.
Wine caddy
Crisper divider
Use the crisper divider to keep
vegetables, fruit or small goods
separated. (selected models only)
Dairy compartments
These compartments can be
used to store dairy.
FreshZone™ double
insulated crisper
Use the crisper to store vegetables,
fruit or small goods.
FreshSense™ deodoriser
Door bin mats
Prevent items placed in the bins from
sliding around, catch small spills in the
door bins and allow small spills to be
cleaned up by simply putting the mats
in the dishwasher.
BOTTOM MOUNT
Door storage bin
The door bin can be removed by
lifting it up over the support lugs.
To replace, push down over the
support lugs to lock in place.
6 electrolux.com.au
EBE5367 illustrated
REFRIGERATOR FEATURES
LED lighting
Your refrigerator is fitted with
LED lighting.
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function controlling the Ice Maker or resetting
the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Features may vary depending on model. Not all models will have features listed.
Freezer storage bin
Refer to the section “Using your
Refrigerator” for details on removing,
and using this feature.
Door storage bin
The door bin can be removed by
lifting it up over the support lugs.
To replace, push down over the
support lugs to lock in place.
Bottle storage bin
Use the bottle bin for tall bottle
storage. The bottle bin can be
removed by lifting it up over the
support lugs. To replace, push down
over the support lugs to lock in place.
LED lighting
Automatic ice maker
Refer to the section “Using your
Refrigerator” for details on using
this feature.
Replaceable water filter
FreshZone™ double
insulated crisper
Use the crisper to store vegetables,
fruit or small goods.
MultiZone™ deli drawer
Use the deli drawer to store foods like
small goods, fresh or cooked meat and
cheese, or as an additional crisper. The
drawer will prevent strong food odours
from impacting the rest of the refrigerator.
To remove the deli drawer, pull it forward,
then lift it up and pull it further forward.
Glass shelves
The glass shelves improve visibility.
Crisper divider
Use the crisper divider to
keep vegetables, fruit or
small goods separated.
Dairy compartments
These compartments can be used
to store dairy.
Wine caddy
FreshSense™ deodoriser
FlexStor™ door bins
Slide the bins to meet different
storage needs. To remove, lift and
tilt. To replace, tilt the top and push
down until locked in place.
Door bin mats
Prevent items placed in the bins from
sliding around, catch small spills in the
door bins and allow small spills to be
cleaned up by simply putting the mats
in the dishwasher.
ICE & WATER
7
7
FEATURES
EHE5267S illustrated
FRENCH DOOR ICE & WATER
Automatic ice maker
Refer to the section “Using your
Refrigerator” for details on using
this feature.
LED lighting
Your refrigerator is fitted
with LED lighting.
Features may vary depending on model. Not all models will have features listed.
Freezer storage bin
Refer to the section “Using your
Refrigerator” for details on using
this feature.
Bottle storage bin
Use the bottle bin for tall bottle
storage. The bottle bin can be
removed by lifting it up over the
support lugs. To replace, push
down over the support lugs to
lock in place.
Refrigerator/freezer control panel
From this panel you can control the temperature of the
refrigerator and freezer compartments as well as setting
the Boost function controlling the Ice Maker or resetting
the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
Dairy compartments
These compartments can be used
to store dairy.
Wine caddy
Glass shelves
The glass shelves improve visibility.
Crisper divider
Use the crisper divider to keep
vegetables, fruit or small goods
separated.
Replaceable
water filter
FreshSense™ deodoriser
MultiZone™
deli drawer
Use the deli drawer to store
foods like small goods, fresh or
cooked meat and cheese, or as an
additional crisper. The drawer will
prevent strong food odours from
impacting the rest of the refrigerator.
To remove the deli drawer, pull it
forward, then lift it up and pull it
further forward.
FreshZone™ double
insulated crisper
Use the crisper to store vegetables,
fruit or small goods.
FlexStor™ door bins
Slide the bins to meet different storage
needs. To remove, lift and tilt. To
replace, tilt the top and push down until
locked in place.
Door bin mats
Prevent items placed in the bins from
sliding around, catch small spills in the
door bins and allow small spills to be
cleaned up by simply putting the mats
in the dishwasher.
8 electrolux.com.au
Features may vary depending on model. Not all models will have features listed.
SINGLE DOOR
ERE5047 illustrated
Door storage bin
The door bin can be removed by lifting
it up over the support lugs. To replace,
push down over the support lugs to
lock in place.
Bottle storage bin
Use the bottle bin for tall bottle storage.
The bottle bin can be removed by lifting
it up over the support lugs. To replace,
push down over the support lugs to
lock in place.
Refrigerator control panel
From this panel you can control the temperature of the
refrigerator compartments as well as setting the Boost
function or resetting the door alarm.
For further information on how to use this feature refer to
the section “About the User Interface”.
8 FEATURES
LED lighting
Your refrigerator is fitted
with LED lighting.
Glass shelves
The glass shelves improve visibility.
Wine caddy
Dairy compartments
These compartments can be used to
store dairy.
Replaceable
water filter
FreshZone™ double
insulated crisper
Use the crisper to store vegetables,
fruit or small goods.
MultiZone™ Deli drawer
Use the deli drawer to store foods
like small goods, fresh or cooked
meat and cheese, or as an additional
crisper. The drawer will prevent
strong food odours from impacting
the rest of the refrigerator. To remove
the deli drawer, pull it forward, then lift
it up and pull it further forward.
FreshSense™ deodorisor
FlexStore™ door bins
Slide the bins to meet different storage
needs. To remove, lift and tilt. To
replace, tilt the top and push down until
locked in place.
Door bin mats
Prevent items placed in the bins from
sliding around, catch small spills in the
door bins and allow small spills to be
cleaned up by simply putting the mats
in the dishwasher.
REFRIGERATOR FEATURES
9
Features may vary depending on model. Not all models will have features listed.
SINGLE DOOR
Storage bins
Refer to the section “Using your
Refrigerator” for details on removing, and
using this feature.
LED lighting
Your freezer is fitted with LED lighting.
Freezer control panel
From this panel you can control the temperature of the
freezer as well as setting the fast ice function or reset the
door alarm.
For further information on how to use this feature refer to the
section “About the User Interface”.
EFE4227 illustrated
Automatic ice maker
Refer to the section “Using your
Refrigerator” for details on using
this feature.
9
FEATURES
Glass shelves
The glass shelves improve visibility.
FREEZER FEATURES
10 electrolux.com.au
UNPACKING
ENVIRONMENTAL TIPS
ENVIRONMENT
Most of the packing materials are recyclable.
Please dispose of those materials through your
local recycling depot or by placing them in
appropriate collection containers.
Important – check for any damages or marks. If you find
the refrigerator is damaged or marked, you must report it
within 7 days should you wish to claim for damage/ marks
under the manufacturers warranty. This does not affect
your statutory rights.
Clean your refrigerator thoroughly following the instructions
in the “Cleaning” section and wipe off any dust that has
accumulated during shipping.
LOCATING THE REFRIGERATOR
CAUTION
Automatic aerosol systems (such as insect control)
should not be located adjacent to the product as
the spray may cause long term damage to the
external surfaces of the appliance.
Do not put the refrigerator in a location that is too cold or is
unprotected, for example in a garage or on a veranda. The
ambient temperature should be above 10°C.
Put the refrigerator in a dry place avoiding areas of high
moisture or humidity.
Ensure the refrigerator is located on an even surface.
Adequate ventilation around your refrigerator
The diagram below shows the recommended airspace to
allow for ventilation of your refrigerator.
350mm
50mm
Recommended
airspace
CABINET
DOOR
30mm
30mm
X
Y
If you have a cupboard above the refrigerator with a rear gap
of less than 100 mm (Y), recommended clearance at the top of
the refrigerator increases from 50mm to 90mm (X) minimum.
When positioned in a corner area, spacing of at least
350mm (300mm for multi-door models) on the hinge side
will allow the doors to open enough to enable the removal
of bins and shelves.
NOTE: Doors are designed to sit proud of cabinetry (not
flush). The clearances shown above are the recommended
minimum clearances.
The clearance at the rear must not exceed 75mm.
INSTALLING YOUR NEW APPLIANCE
INSTALLING YOUR REFRIGERATOR
1. Roll the refrigerator into place.
10 - 15mm
Fixed rear rollers
Height adjusting nut
The rollers are designed for forward or backward
movement only. They are not castors. Moving the
refrigerator sideways may damage your floor and the
rollers. Before moving your refrigerator ensure height
adjusting nut and the stability foot are fully wound up
off the floor.
2. Wind the large height adjusting nut under door hinge
down until the refrigerator is tilted back by 10mm
(see diagram).
3. Wind the large height adjusting nut on the handle
side down until the refrigerator is level and stable. If
you have difficulty winding the nut or height adjusting
foot down, have someone tilt the refrigerator back so
you have better access.
stability foot
wound up
4. Check the alignment of the refrigerator to the
surrounding cupboards to see if it is level. You can
adjust the level as detailed in step 2 and 3.
adjust front feet for
uneveness of oor
eg. wind this foot
down or up.
top of refrigerator is
level ie horizontal.
aligned to
cupboards
ie even gap.
Loading...
