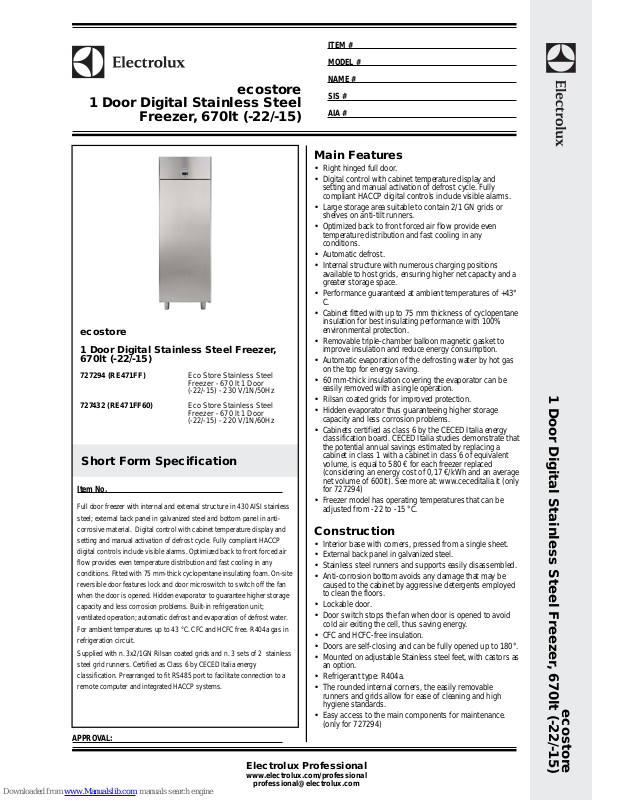

Page 1
ecostore
1 Door Digital Stainless Steel
Freezer, 670lt (-22/-15)
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
ecostore
1 Door Digital Stainless Steel Freezer, 670lt (-22/-15)
ecostore
1 Door Digital Stainless Steel Freezer,
670lt (-22/-15)
727294 (RE471FF)Eco Store Stainless Steel
Freezer - 670 lt 1 Door
(-22/-15) - 230 V/1N/50Hz
727432 (RE471FF60)Eco Store Stainless Steel
Freezer - 670 lt 1 Door
(-22/-15) - 220 V/1N/60Hz
Full door freezer with internal and external structure in 430 AISI stainless
steel; external back panel in galvanized steel and bottom panel in anticorrosive material. Digital control with cabinet temperature display and
setting and manual activation of defrost cycle. Fully compliant HACCP
digital controls include visible alarms. Optimized back to front forced air
flow provides even temperature distribution and fast cooling in any
conditions. Fitted with 75 mm-thick cyclopentane insulating foam. On-site
reversible door features lock and door microswitch to switch off the fan
when the door is opened. Hidden evaporator to guarantee higher storage
capacity and less corrosion problems. Built-in refrigeration unit;
ventilated operation; automatic defrost and evaporation of defrost water.
For ambient temperatures up to 43 °C. CFC and HCFC free. R404a gas in
refrigeration circuit.
Supplied with n. 3x2/1GN Rilsan coated grids and n. 3 sets of 2 stainless
steel grid runners. Certified as Class 6 by CECED Italia energy
classification. Prearranged to fit RS485 port to facilitate connection to a
remote computer and integrated HACCP systems.
Main Features
•Right hinged full door.
•Digital control with cabinet temperature display and
setting and manual activation of defrost cycle. Fully
compliant HACCP digital controls include visible alarms.
•Large storage area suitable to contain 2/1 GN grids or
shelves on anti-tilt runners.
•Optimized back to front forced air flow provide even
temperature distribution and fast cooling in any
conditions.
•Automatic defrost.
•Internal structure with numerous charging positions
available to host grids, ensuring higher net capacity and a
greater storage space.
•Performance guaranteed at ambient temperatures of +43°
C.
•Cabinet fitted with up to 75 mm thickness of cyclopentane
insulation for best insulating performance with 100%
environmental protection.
•Removable triple-chamber balloon magnetic gasket to
improve insulation and reduce energy consumption.
•Automatic evaporation of the defrosting water by hot gas
on the top for energy saving.
•60 mm-thick insulation covering the evaporator can be
easily removed with a single operation.
•Rilsan coated grids for improved protection.
•Hidden evaporator thus guaranteeing higher storage
capacity and less corrosion problems.
•Cabinets certified as class 6 by the CECED Italia energy
classification board. CECED Italia studies demonstrate that
the potential annual savings estimated by replacing a
cabinet in class 1 with a cabinet in class 6 of equivalent
volume, is equal to 580 € for each freezer replaced
(considering an energy cost of 0,17 €/kWh and an average
net volume of 600lt). See more at: www.ceceditalia.it (only
for 727294)
•Freezer model has operating temperatures that can be
adjusted from -22 to -15 °C.
Construction
•Interior base with corners, pressed from a single sheet.
•External back panel in galvanized steel.
•Stainless steel runners and supports easily disassembled.
•Anti-corrosion bottom avoids any damage that may be
caused to the cabinet by aggressive detergents employed
to clean the floors.
•Lockable door.
•Door switch stops the fan when door is opened to avoid
cold air exiting the cell, thus saving energy.
•CFC and HCFC-free insulation.
•Doors are self-closing and can be fully opened up to 180°.
•Mounted on adjustable Stainless steel feet, with castors as
an option.
•Refrigerant type: R404a.
•The rounded internal corners, the easily removable
runners and grids allow for ease of cleaning and high
hygiene standards.
•Easy access to the main components for maintenance.
(only for 727294)
Page 2
ecostore
1 Door Digital Stainless Steel
Freezer, 670lt (-22/-15)
ecostore
1 Door Digital Stainless Steel Freezer, 670lt (-22/-15)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Included Accessories
•3 of 2/1GN grey rilsan grid with 2 runnersPNC 881020
Optional Accessories
•Grids support with 50 positions for Ecostore
cabinets
PNC 880236 ❑
•2 stainless steel runners for refrigerated
cabinets - (Marine)
PNC 880242 ❑
•Set of 8 GN1/1 PVC containers for fish (only for
727294)
PNC 880243 ❑
•Spacer for 670 lt and 1430 lt refrigerated
cabinets
PNC 880248 ❑
•Kit integrated HACCP for digital refrigerators
(IR33)
PNC 880252 ❑
•Pedal opening for cabinetsPNC 880324 ❑
•1/1GN plastic container with false bottomPNC 880705 ❑
•4 swivelling wheels (2 with brake) for
refrigerators, diam 125 mm, NOT for Glass
Door and remote models
PNC 881002 ❑
•Kit of 10 pairs of runners and 4 tray supports to
fit pastry trays (400x600mm)
PNC 881003 ❑
•2/1GN grey rilsan gridPNC 881004 ❑
•2/1GN aisi 304 stainless steel gridPNC 881016 ❑
•2/1GN 304 AISI stainless steel grid with 2
runners
PNC 881018 ❑
•2/1GN grey rilsan grid with 2 runnersPNC 881020 ❑
•Set of 2 stainless steel runners for 670/1430lt
refrigerators and freezers
PNC 881021 ❑
•2/1GN pvc container with lid and 2 runners
(only for 727294)
PNC 881039 ❑
•2/1GN perforated shelfPNC 881042 ❑
•1/1GN rilsan steel wire basket h=150mmPNC 881043 ❑
•2/1GN grey rilsan basket+2 runners h=150mm
(only for 727294)
PNC 881047 ❑
•Printer for HACCP basic version (digital control)PNC 881457 ❑
Page 3
ecostore
1 Door Digital Stainless Steel
Freezer, 670lt (-22/-15)
ecostore
1 Door Digital Stainless Steel Freezer, 670lt (-22/-15)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Front
Top
ED
=Remote electrical
connection
EI=Electrical connection
RI=Refrigerant Inlet
RO=Refrigerant Outlet
Side
Electric
Supply voltage:
727294 (RE471FF)230 V/1 ph/50 Hz
727432 (RE471FF60)220 V/1 ph/60 Hz
Connected load:
727294 (RE471FF)0.618 kW
727432 (RE471FF60)0.583 kW
Key Information:
Door hinges:Right Side
External dimensions, Height:2050 mm
External dimensions, Width:710 mm
External dimensions, Depth:837 mm
External dimensions, Depth with
Doors Open:
1480 mm
Number and type of doors:1Full
Gross capacity:670 lt
Number and type of grids
(included):3 - GN 2/1
Type of external material:Stainless Steel
Type of internal material:Stainless Steel
Internal panels material:Stainless Steel
Number of positions & pitch:44; 30 mm
CECED Energy Classification:
727294 (RE471FF)Class 6
Refrigeration Data
Control type:Digital
Refrigerant type:R404a
Refrigeration power:
727294 (RE471FF)707 W
727432 (RE471FF60)530 W
Refrigeration power at
evaporation temperature:-30 °C
Refrigerant weight:220 g
Operating temperature min.:-15 °C
Operating temperature max.:-22 °C
Operating mode:Ventilated
