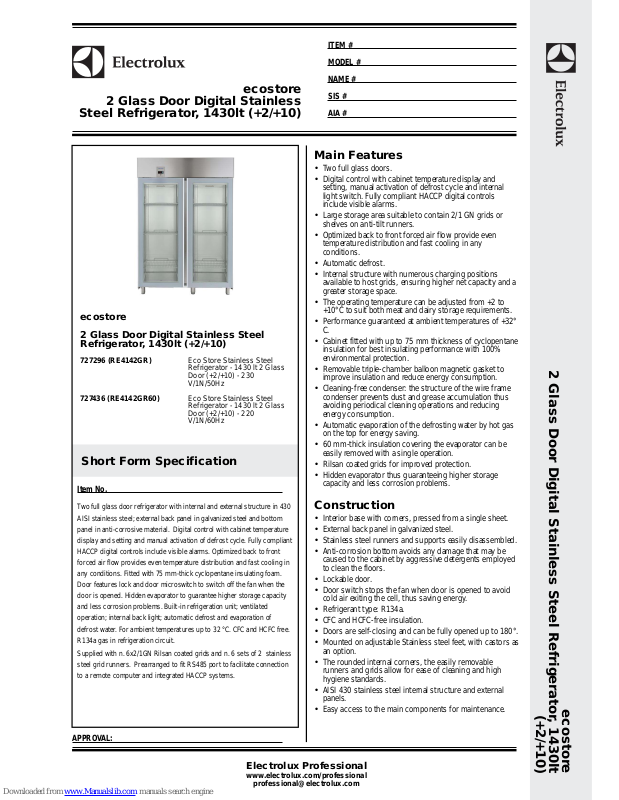

Page 1
ecostore
2 Glass Door Digital Stainless
Steel Refrigerator, 1430lt (+2/+10)
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
ecostore
2 Glass Door Digital Stainless Steel Refrigerator, 1430lt
(+2/+10)
ecostore
2 Glass Door Digital Stainless Steel
Refrigerator, 1430lt (+2/+10)
727296 (RE4142GR)Eco Store Stainless Steel
Refrigerator - 1430 lt 2 Glass
Door (+2/+10) - 230
V/1N/50Hz
727436 (RE4142GR60)Eco Store Stainless Steel
Refrigerator - 1430 lt 2 Glass
Door (+2/+10) - 220
V/1N/60Hz
Two full glass door refrigerator with internal and external structure in 430
AISI stainless steel; external back panel in galvanized steel and bottom
panel in anti-corrosive material. Digital control with cabinet temperature
display and setting and manual activation of defrost cycle. Fully compliant
HACCP digital controls include visible alarms. Optimized back to front
forced air flow provides even temperature distribution and fast cooling in
any conditions. Fitted with 75 mm-thick cyclopentane insulating foam.
Door features lock and door microswitch to switch off the fan when the
door is opened. Hidden evaporator to guarantee higher storage capacity
and less corrosion problems. Built-in refrigeration unit; ventilated
operation; internal back light; automatic defrost and evaporation of
defrost water. For ambient temperatures up to 32 °C. CFC and HCFC free.
R134a gas in refrigeration circuit.
Supplied with n. 6x2/1GN Rilsan coated grids and n. 6 sets of 2 stainless
steel grid runners. Prearranged to fit RS485 port to facilitate connection
to a remote computer and integrated HACCP systems.
Main Features
•Two full glass doors.
•Digital control with cabinet temperature display and
setting, manual activation of defrost cycle and internal
light switch. Fully compliant HACCP digital controls
include visible alarms.
•Large storage area suitable to contain 2/1 GN grids or
shelves on anti-tilt runners.
•Optimized back to front forced air flow provide even
temperature distribution and fast cooling in any
conditions.
•Automatic defrost.
•Internal structure with numerous charging positions
available to host grids, ensuring higher net capacity and a
greater storage space.
•The operating temperature can be adjusted from +2 to
+10°C to suit both meat and dairy storage requirements.
•Performance guaranteed at ambient temperatures of +32°
C.
•Cabinet fitted with up to 75 mm thickness of cyclopentane
insulation for best insulating performance with 100%
environmental protection.
•Removable triple-chamber balloon magnetic gasket to
improve insulation and reduce energy consumption.
•Cleaning-free condenser: the structure of the wire frame
condenser prevents dust and grease accumulation thus
avoiding periodical cleaning operations and reducing
energy consumption.
•Automatic evaporation of the defrosting water by hot gas
on the top for energy saving.
•60 mm-thick insulation covering the evaporator can be
easily removed with a single operation.
•Rilsan coated grids for improved protection.
•Hidden evaporator thus guaranteeing higher storage
capacity and less corrosion problems.
Construction
•Interior base with corners, pressed from a single sheet.
•External back panel in galvanized steel.
•Stainless steel runners and supports easily disassembled.
•Anti-corrosion bottom avoids any damage that may be
caused to the cabinet by aggressive detergents employed
to clean the floors.
•Lockable door.
•Door switch stops the fan when door is opened to avoid
cold air exiting the cell, thus saving energy.
•Refrigerant type: R134a.
•CFC and HCFC-free insulation.
•Doors are self-closing and can be fully opened up to 180°.
•Mounted on adjustable Stainless steel feet, with castors as
an option.
•The rounded internal corners, the easily removable
runners and grids allow for ease of cleaning and high
hygiene standards.
•AISI 430 stainless steel internal structure and external
panels.
•Easy access to the main components for maintenance.
Page 2
ecostore
2 Glass Door Digital Stainless
Steel Refrigerator, 1430lt (+2/+10)
ecostore
2 Glass Door Digital Stainless Steel Refrigerator, 1430lt (+2/+10)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Included Accessories
•6 of 2/1GN grey rilsan grid with 2 runnersPNC 881020
Optional Accessories
•2 stainless steel runners for refrigerated
cabinets - (Marine)
PNC 880242 ❑
•Set of 8 GN1/1 PVC containers for fish (only for
727296)
PNC 880243 ❑
•Spacer for 670 lt and 1430 lt refrigerated
cabinets
PNC 880248 ❑
•Kit integrated HACCP for digital refrigerators
(IR33)
PNC 880252 ❑
•KIT TO FIT PASTRY TRAYS (400X600 MM) WITPNC 880333 ❑
•1/1GN plastic container with false bottomPNC 880705 ❑
•2/1GN grey rilsan gridPNC 881004 ❑
•2/1GN aisi 304 stainless steel gridPNC 881016 ❑
•2/1GN 304 AISI stainless steel grid with 2
runners
PNC 881018 ❑
•Meat rail for 670/1430lt refrigerators with 4
hooks
PNC 881019 ❑
•2/1GN grey rilsan grid with 2 runnersPNC 881020 ❑
•Set of 2 stainless steel runners for 670/1430lt
refrigerators and freezers
PNC 881021 ❑
•Pedal opening for 1430lt refrigeratorPNC 881033 ❑
•Kit of 4 small swivelling wheels, 2 with brake,
diam 50 mm, not for remote models
PNC 881035 ❑
•2/1GN pvc container with lid and 2 runnersPNC 881039 ❑
•2/1GN perforated shelfPNC 881042 ❑
•1/1GN rilsan steel wire basket h=150mmPNC 881043 ❑
•2/1GN grey rilsan basket+2 runners h=150mmPNC 881047 ❑
•Printer for HACCP basic version (digital control)PNC 881457 ❑
Page 3
ecostore
2 Glass Door Digital Stainless
Steel Refrigerator, 1430lt (+2/+10)
ecostore
2 Glass Door Digital Stainless Steel Refrigerator, 1430lt (+2/+10)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Front
Top
ED
=Remote electrical
connection
EI=Electrical connection
RI=Refrigerant Inlet
RO=Refrigerant Outlet
Side
Electric
Supply voltage:
727296 (RE4142GR)230 V/1 ph/50 Hz
727436 (RE4142GR60)220 V/1 ph/60 Hz
Connected load:
727296 (RE4142GR)0.34 kW
727436 (RE4142GR60)0.328 kW
Key Information:
Door hinges:1 Left+1 Right
External dimensions, Height:2050 mm
External dimensions, Width:1441 mm
External dimensions, Depth:837 mm
External dimensions, Depth with
Doors Open:
1480 mm
Number and type of doors:2Glass
Gross capacity:1430 lt
Number and type of grids
(included):6 - GN 2/1
Type of external material:Stainless Steel
Type of internal material:Stainless Steel
Internal panels material:Stainless Steel
Number of positions & pitch:44; 30 mm
Refrigeration Data
Control type:Digital
Refrigerant type:R134a
Refrigeration power:
727296 (RE4142GR)398 W
727436 (RE4142GR60)417 W
Refrigeration power at
evaporation temperature:-10 °C
Refrigerant weight:170 g
Operating temperature min.:2 °C
Operating temperature max.:10 °C
Operating mode:Ventilated
