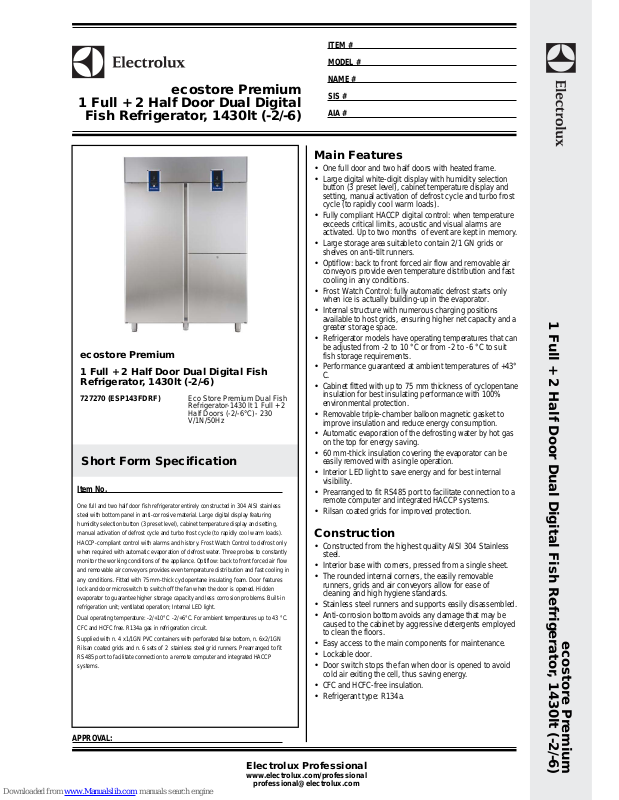

Page 1
ecostore Premium
1 Full + 2 Half Door Dual Digital
Fish Refrigerator, 1430lt (-2/-6)
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/professional
ecostore Premium
1 Full + 2 Half Door Dual Digital Fish Refrigerator, 1430lt (-2/-6)
ecostore Premium
1 Full + 2 Half Door Dual Digital Fish
Refrigerator, 1430lt (-2/-6)
727270 (ESP143FDRF)Eco Store Premium Dual Fish
Refrigerator-1430 lt 1 Full + 2
Half Doors (-2/-6°C)- 230
V/1N/50Hz
One full and two half door fish refrigerator entirely constructed in 304 AISI stainless
steel with bottom panel in anti-corrosive material. Large digital display featuring
humidity selection button (3 preset level), cabinet temperature display and setting,
manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
HACCP-compliant control with alarms and history. Frost Watch Control to defrost only
when required with automatic evaporation of defrost water. Three probes to constantly
monitor the working conditions of the appliance. Optiflow: back to front forced air flow
and removable air conveyors provides even temperature distribution and fast cooling in
any conditions. Fitted with 75 mm-thick cyclopentane insulating foam. Door features
lock and door microswitch to switch off the fan when the door is opened. Hidden
evaporator to guarantee higher storage capacity and less corrosion problems. Built-in
refrigeration unit; ventilated operation; Internal LED light.
Dual operating temperature: -2/+10°C -2/+6°C. For ambient temperatures up to 43 °C.
CFC and HCFC free. R134a gas in refrigeration circuit.
Supplied with n. 4 x1/1GN PVC containers with perforated false bottom, n. 6x2/1GN
Rilsan coated grids and n. 6 sets of 2 stainless steel grid runners. Prearranged to fit
RS485 port to facilitate connection to a remote computer and integrated HACCP
systems.
Main Features
•One full door and two half doors with heated frame.
•Large digital white-digit display with humidity selection
button (3 preset level), cabinet temperature display and
setting, manual activation of defrost cycle and turbo frost
cycle (to rapidly cool warm loads).
•Fully compliant HACCP digital control: when temperature
exceeds critical limits, acoustic and visual alarms are
activated. Up to two months of event are kept in memory.
•Large storage area suitable to contain 2/1 GN grids or
shelves on anti-tilt runners.
•Optiflow: back to front forced air flow and removable air
conveyors provide even temperature distribution and fast
cooling in any conditions.
•Frost Watch Control: fully automatic defrost starts only
when ice is actually building-up in the evaporator.
•Internal structure with numerous charging positions
available to host grids, ensuring higher net capacity and a
greater storage space.
•Refrigerator models have operating temperatures that can
be adjusted from -2 to 10 °C or from -2 to -6 °C to suit
fish storage requirements.
•Performance guaranteed at ambient temperatures of +43°
C.
•Cabinet fitted with up to 75 mm thickness of cyclopentane
insulation for best insulating performance with 100%
environmental protection.
•Removable triple-chamber balloon magnetic gasket to
improve insulation and reduce energy consumption.
•Automatic evaporation of the defrosting water by hot gas
on the top for energy saving.
•60 mm-thick insulation covering the evaporator can be
easily removed with a single operation.
•Interior LED light to save energy and for best internal
visibility.
•Prearranged to fit RS485 port to facilitate connection to a
remote computer and integrated HACCP systems.
•Rilsan coated grids for improved protection.
Construction
•Constructed from the highest quality AISI 304 Stainless
steel.
•Interior base with corners, pressed from a single sheet.
•The rounded internal corners, the easily removable
runners, grids and air conveyors allow for ease of
cleaning and high hygiene standards.
•Stainless steel runners and supports easily disassembled.
•Anti-corrosion bottom avoids any damage that may be
caused to the cabinet by aggressive detergents employed
to clean the floors.
•Easy access to the main components for maintenance.
•Lockable door.
•Door switch stops the fan when door is opened to avoid
cold air exiting the cell, thus saving energy.
•CFC and HCFC-free insulation.
•Refrigerant type: R134a.
Page 2
ecostore Premium
1 Full + 2 Half Door Dual Digital
Fish Refrigerator, 1430lt (-2/-6)
ecostore Premium
1 Full + 2 Half Door Dual Digital Fish Refrigerator, 1430lt (-2/-6)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.06.18
Front
681
724
1291
560
1441
77128877
1321
2050
500
715
D
D
661
661 60
60
707
763
110-165
827
835
EI
D
614
148.5
7673
1544
10
163
Top
Doc.Nr.IDR-598R500
681
724
1291
560
1441
77128877
1321
2050
500
715
D
D
661
661 60
60
707
763
110-165
827
835
EI
D
614
148.5
7673
1544
10
163
1480
10
EI
2020
100
ED
=Remote electrical
connection
EI=Electrical connection
RI=Refrigerant Inlet
RO=Refrigerant Outlet
Side
707
763
110-165
827
835
EI
D
614
148.5
7673
1544
10
163
Electric
Supply voltage:
727270 (ESP143FDRF)230 V/1 ph/50 Hz
Connected load:0.531 kW
Key Information:
Door hinges:1 Left+2 Right
External dimensions, Height:2050 mm
External dimensions, Width:1441 mm
External dimensions, Depth:837 mm
External dimensions, Depth with
Doors Open:1480 mm
Number and type of doors:1-2x1/2Full
Gross capacity:1430 lt
Number and type of grids
(included):6 - GN 2/1
Type of external material:304 AISI
Type of internal material:304 AISI
Internal panels material:304 AISI
Number of positions & pitch:44; 30 mm
Refrigeration Data
Control type:Digital
Refrigerant type:R134a
Second Unit - Refrigerant Type:R134a
Refrigeration power at
evaporation temperature:-10 °C
Operating temperature - First Unit
(min-max): -2°C / 10°C
Operating temperature - Second
Unit (min-max):-2°C / -6°C
Operating mode:Ventilated
Page 3
ecostore Premium
1 Full + 2 Half Door Dual Digital
Fish Refrigerator, 1430lt (-2/-6)
ecostore Premium
1 Full + 2 Half Door Dual Digital Fish Refrigerator, 1430lt (-2/-6)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.06.18
Included Accessories
•4 of 1/1GN plastic container with false
bottom
PNC 880705
•6 of 2/1GN grey rilsan grid with 2 runnersPNC 881020
Optional Accessories
•2 stainless steel runners for refrigerated
cabinets - (Marine)
PNC 880242 ❑
•Set of 8 GN1/1 PVC containers for fishPNC 880243 ❑
•Spacer for 670 lt and 1430 lt refrigerated
cabinets
PNC 880248 ❑
•1/1GN plastic container with false bottomPNC 880705 ❑
•4 swivelling wheels (2 with brake) for
refrigerators, diam 125 mm, NOT for Glass
Door and remote models
PNC 881002 ❑
•2/1GN grey rilsan gridPNC 881004 ❑
•2/1GN aisi 304 stainless steel gridPNC 881016 ❑
•2/1GN 304 AISI stainless steel grid with 2
runners
PNC 881018 ❑
•2/1GN grey rilsan grid with 2 runnersPNC 881020 ❑
•Set of 2 stainless steel runners for
670/1430lt refrigerators and freezers
PNC 881021 ❑
•Pedal opening for 1430lt refrigeratorPNC 881033 ❑
•2/1GN pvc container with lid and 2 runnersPNC 881039 ❑
•2/1GN perforated shelfPNC 881042 ❑
•1/1GN rilsan steel wire basket h=150mmPNC 881043 ❑
•3 grey rilsan central grids for 1430lt (not
for glass door)
PNC 881044 ❑
•2/1GN grey rilsan basket+2 runners
h=150mm
PNC 881047 ❑
•Printer for HACCP basic version (digital
control)
PNC 881457 ❑
