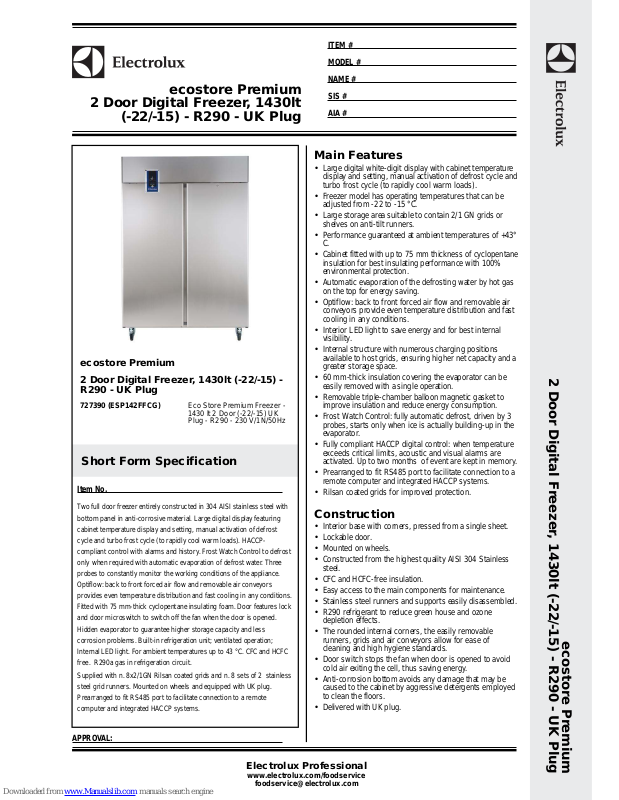

Page 1
ecostore Premium
2 Door Digital Freezer, 1430lt
(-22/-15) - R290 - UK Plug
ITEM #
MODEL #
NAME #
SIS #
AIA #
Short Form Specification
Item No.
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
ecostore Premium
2 Door Digital Freezer, 1430lt (-22/-15) - R290 - UK Plug
ecostore Premium
2 Door Digital Freezer, 1430lt (-22/-15) -
R290 - UK Plug
727390 (ESP142FFCG)Eco Store Premium Freezer -
1430 lt 2 Door (-22/-15) UK
Plug - R290 - 230 V/1N/50Hz
Two full door freezer entirely constructed in 304 AISI stainless steel with
bottom panel in anti-corrosive material. Large digital display featuring
cabinet temperature display and setting, manual activation of defrost
cycle and turbo frost cycle (to rapidly cool warm loads). HACCPcompliant control with alarms and history. Frost Watch Control to defrost
only when required with automatic evaporation of defrost water. Three
probes to constantly monitor the working conditions of the appliance.
Optiflow: back to front forced air flow and removable air conveyors
provides even temperature distribution and fast cooling in any conditions.
Fitted with 75 mm-thick cyclopentane insulating foam. Door features lock
and door microswitch to switch off the fan when the door is opened.
Hidden evaporator to guarantee higher storage capacity and less
corrosion problems. Built-in refrigeration unit; ventilated operation;
Internal LED light. For ambient temperatures up to 43 °C. CFC and HCFC
free. R290a gas in refrigeration circuit.
Supplied with n. 8x2/1GN Rilsan coated grids and n. 8 sets of 2 stainless
steel grid runners. Mounted on wheels and equipped with UK plug.
Prearranged to fit RS485 port to facilitate connection to a remote
computer and integrated HACCP systems.
Main Features
•Large digital white-digit display with cabinet temperature
display and setting, manual activation of defrost cycle and
turbo frost cycle (to rapidly cool warm loads).
•Freezer model has operating temperatures that can be
adjusted from -22 to -15 °C.
•Large storage area suitable to contain 2/1 GN grids or
shelves on anti-tilt runners.
•Performance guaranteed at ambient temperatures of +43°
C.
•Cabinet fitted with up to 75 mm thickness of cyclopentane
insulation for best insulating performance with 100%
environmental protection.
•Automatic evaporation of the defrosting water by hot gas
on the top for energy saving.
•Optiflow: back to front forced air flow and removable air
conveyors provide even temperature distribution and fast
cooling in any conditions.
•Interior LED light to save energy and for best internal
visibility.
•Internal structure with numerous charging positions
available to host grids, ensuring higher net capacity and a
greater storage space.
•60 mm-thick insulation covering the evaporator can be
easily removed with a single operation.
•Removable triple-chamber balloon magnetic gasket to
improve insulation and reduce energy consumption.
•Frost Watch Control: fully automatic defrost, driven by 3
probes, starts only when ice is actually building-up in the
evaporator.
•Fully compliant HACCP digital control: when temperature
exceeds critical limits, acoustic and visual alarms are
activated. Up to two months of event are kept in memory.
•Prearranged to fit RS485 port to facilitate connection to a
remote computer and integrated HACCP systems.
•Rilsan coated grids for improved protection.
Construction
•Interior base with corners, pressed from a single sheet.
•Lockable door.
•Mounted on wheels.
•Constructed from the highest quality AISI 304 Stainless
steel.
•CFC and HCFC-free insulation.
•Easy access to the main components for maintenance.
•Stainless steel runners and supports easily disassembled.
•R290 refrigerant to reduce green house and ozone
depletion effects.
•The rounded internal corners, the easily removable
runners, grids and air conveyors allow for ease of
cleaning and high hygiene standards.
•Door switch stops the fan when door is opened to avoid
cold air exiting the cell, thus saving energy.
•Anti-corrosion bottom avoids any damage that may be
caused to the cabinet by aggressive detergents employed
to clean the floors.
•Delivered with UK plug.
Page 2
ecostore Premium
2 Door Digital Freezer, 1430lt
(-22/-15) - R290 - UK Plug
ecostore Premium
2 Door Digital Freezer, 1430lt (-22/-15) - R290 - UK Plug
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Included Accessories
•8 of 2/1 GN GREY RILSAN GRID W/ 2
RUNNERS
PNC 881020
Optional Accessories
•Set of 8 GN1/1 PVC containers for fishPNC 880243 ❑
•1/1GN plastic container with false bottomPNC 880705 ❑
•4 SWIVELLING WHEELS (2 W/ BRAKE)PNC 881002 ❑
•2/1 GN GREY "RILSAN" GRIDPNC 881004 ❑
•2/1 GN AISI 304 S/S GRIDPNC 881016 ❑
•304 AISI S/S GRID GN 2/1 WITH 2
RUNNERS
PNC 881018 ❑
•2/1 GN GREY RILSAN GRID W/ 2
RUNNERS
PNC 881020 ❑
•2 S/S RUNNERS FOR 670/1430L REFPNC 881021 ❑
•PEDAL OPENING FOR 1430 L REFRIGER.PNC 881033 ❑
•2/1 GN PVC CONTAINER W/LID AND 2
RUNNERS
PNC 881039 ❑
•2/1GN perforated shelfPNC 881042 ❑
•1/1GN rilsan steel wire basket h=150mmPNC 881043 ❑
•3 GREY RILSAN CENTRAL GRIDS FOR
1430L
PNC 881044 ❑
•GN 2/1 WIRE BASKET-H-150 MM+SIDE
RUNNERS
PNC 881047 ❑
•Printer for HACCP basic version
refrigerator
PNC 881457 ❑
Page 3
ecostore Premium
2 Door Digital Freezer, 1430lt
(-22/-15) - R290 - UK Plug
ecostore Premium
2 Door Digital Freezer, 1430lt (-22/-15) - R290 - UK Plug
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
2013.05.28
Front
Top
ED
=Remote electrical
connection
EI=Electrical connection
RI=Refrigerant Inlet
RO=Refrigerant Outlet
Side
Electric
Supply voltage:
727390 (ESP142FFCG)230 V/1 ph/50 Hz
Connected load:0.7 kW
Key Information
Door hinges:1 Left+1 Right
External dimensions, Height2010 mm
External dimensions, Width1441 mm
External dimensions, Depth837 mm
External dimensions, Depth with
Doors Open:1480 mm
Number and type of doors:2Full
Gross capacity1430 lt
Number and type of grids
(included):8 - GN 2/1
Type of external material:304 AISI
Type of internal material:304 AISI
Internal panels mateial:304 AISI
Number of positions & pitch:44; 30 mm
Refrigeration Data
Control type:Digital
Refrigerant type:R290
Refrigeration power:833 W
Refrigeration power at
evaporation temperature:-30 °C
Operating temperature min.:-22 °C
Operating temperature max.:-15 °C
Operating modeVentilated
