I N S T R U C T I O N B O O K
CHEST FREEZER
ECM 1957 ECM 2257 ECM 3057 ECM 3857
GB
820 41 72 30
Important Safety Information
These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.
Prior to Installation
Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
Installation
This appliance is heavy. Care should be taken when moving it.
It is dangerous to alter the specifications or attempt to modify this product in any way.
Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.
The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or play with the product.
There is a risk of suffocation! Keep packaging material away from children!
During Use
This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.
Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers of flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.
Frozen food should not be refrozen once it has thawed out.
Do not place carbonated or fizzy drinks in the freezer compartment
Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer
Do not remove items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
Bottles and cans must not be placed in the freezer compartment they can burst when the contents freeze.
Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance and disconnect from the electrical supply.
When unplugging always pull the plug from the mains socket, do not pull on the cable.
Servicing
This product should be serviced by an authorised engineer and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.
Disposing of the Appliance
When disposing of your appliance use an authorised disposal site. Check with your local Council or Environmental Health Office to see if there are facilities in your area to recycle the appliance.
Make the appliance unusable by removing the plug and ensuring that any locks or catches are removed, to prevent young children being trapped inside.
2
Contents
Instructions for the User
Important Safety Information |
2 |
Description of the Appliance |
4 |
Control Panel |
4 |
Digital temperature display |
5 |
Temperature warning |
5 |
Temperature adjustment |
5 |
Freezing |
6 |
Freezing Fresh Food |
6 |
Frozen Food Storage |
6 |
Thawing |
7 |

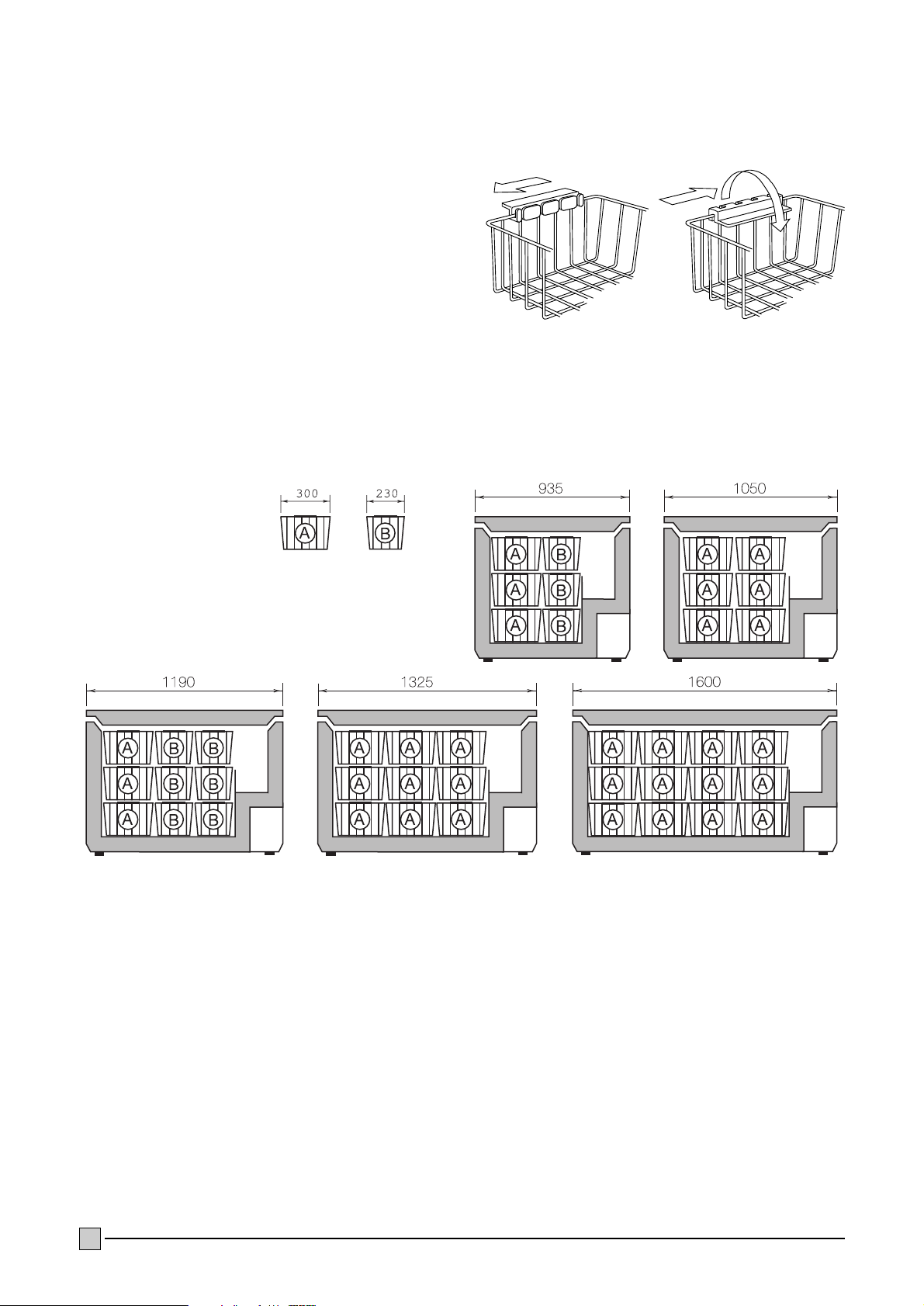

Baskets |
8 |
Hints and Tips |
9 |
Normal Operating Sounds |
9 |
Food Storage |
9 |
Energy Saving Advice |
9 |
In the Event of a Power Failure |
9 |
Defrosting |
10 |
Maintenance and Cleaning |
11 |
Internal Cleaning |
11 |
External Cleaning |
11 |
When the Appliance is not in Use |
11 |
To change the Light Bulb |
11 |
Something not Working |
12 |
Service and Spare Parts |
13 |
Customer Care |
12 |
Instructions for the installer
Technical Specifications |
16 |
Installation |
|
Positioning |
16 |
Electrical Connections |
17 |
Guarantee Conditions |
14 |
3
Description of the Appliance
A - Frozen food storage
B - Freezer calendar (recommended storage times for frozen foods)
C - Compartment for freezing fresh foods
D - Dividing wall
E - Defrost water drain
Control Panel
(various models)
1.Temperature controller knob and mains on pilot light (green)
2.FROSTMATIC button for the super-freeze function
and FROSTMATIC pilot light (yellow)
3. WARNING OFF button (to switch off the warning buzzer) and warning pilot light (red)
4.Digital temperature display (not included with all models)
4
Digital temperature display
(not included with all models)
Some models have a digital temperature display integrated in the handle of the lid. In normal operation, it shows the temperature of the frozen products in centigrade (°C). There are however the following exceptions:
-After switching on the freezer "- -" is shown briefly.
-If the temperature inside the freezer is higher than 0 °C, "+" appears.
-If the storage temperature cannot be measured due to a malfunction, "+" or "-36", appear and at the same time the warning buzzer and the red warning light indicate an alarm condition. (Also see section "Something Not Working").
The temperature display indicates the temperature of the frozen food and therefore changes relatively slowly, if you put fresh goods in for example. If you leave the lid open for a long time, the temperature warning may respond, the temperature display may however remain unchanged. In this case there is no malfunction. Press the WARNING OFF button, to switch the warning buzzer off. The
red warning light goes out automatically after a short time.
TEMPERATURE WARNING
If the temperature in the freezer is too high, the warning buzzer sounds and the red warning light flashes.
The warning buzzer and red warning light are triggered:
-if the storage temperature required has not yet been reached when starting the freezer; if the storage temperature is no longer maintained (malfunction);
-after inserting fresh foodstuffs in a greater quantity than permitted by the freezing capacity (see section on "Freezing";
-if the lid is left open too long.
You can switch off the warning buzzer with the WARNING OFF button. The red warning light continues to flash until it is sufficiently cold again inside the freezer.
The warning buzzer and red warning light are not triggered:
-if the power supply is interrupted;
-if the electronic thermostat is faulty.
TEMPERATURE ADJUSTMENT
A coin has to be used to turn the temperature control knob. This makes it more difficult to inadvertently adjust the temperature (child protection).
Position "1" means: warmest internal temperature Position "4" means: coldest internal temperature Recommended position: "2 " or "3"
Turn the temperature control knob to position "2" or "3" using a coin.
The internal temperature will be affected by the following:
-ambient temperature
-quantity of food stored;
-frequent or prolonged opening of the lid.
5
