CHEST FREEZER
INSTRUCTION BOOK
EC 2309S EC 2609S EC 3309S
Page 2
2
Prior to Installation
Check the appliance for transport damage. Under no
circumstances should a damaged appliance be installed. In
the event of damage please contact your retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from your local Service Force Centre.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Containers with flammable gases or liquids can
leak at low temperatures. Do not store any
containers of flammable materials, such as spray
cans, fire extinguisher refill cartridges etc. in the
freezer.
Frozen food should not be refrozen once it has
thawed out.
Do not place carbonated or fizzy drinks in the
freezer compartment
Ice lollies can cause 'frost/freezer burns' if
consumed straight from the freezer
Do not remove items from the freezer
compartment if your hands are damp/wet, as
this could cause skin abrasions or frost/freezer
burns.
Bottles and cans must not be placed in the
freezer compartment they can burst when the
contents freeze.
Manufacturers' recommended storage times
should be adhered to. Refer to relevant
instructions.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
Servicing
This product should be serviced by an
authorised engineer and only genuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried
out by inexperienced persons may cause injury
or serious malfunctioning. Contact your local
Service Force Centre.
Disposing of the Appliance
When disposing of your appliance use an
authorised disposal site. Check with your local
Council or Environmental Health Office to see if
there are facilities in your area to recycle the
appliance.
Make the appliance unusable by removing the
plug and ensuring that any locks or catches are
removed, to prevent young children being
trapped inside.
Important Safety Information
These warnings are provided in the interests of your safety. Ensure that you understand them
all before installing or using this appliance. Your safety is of paramount importance. If you are
unsure about any of the meanings or these warnings contact the Customer Care Department.
Page 3
3
Instructions for the User
Important Safety Information 2
Description of the Appliance 4
Control Panel 4
Operation 5
Before use 5
Starting the Appliance 5
Temperature Control 5
Opening/Closing the Lid 5
Freezing Fresh Food 6
Frozen Food Storage 6
Thawing 6
Baskets 7
Hints and Tips 8
Normal Operating Sounds 8
Food Storage 8
Energy Saving Advice 8
In the Event of a Power Failure 8
Defrosting 9
Maintenance and Cleaning 10
Internal Cleaning 10
External Cleaning 10
When the Appliance is not in Use 10
To change the Light Bulb 10
Something not Working 11
Service and Spare Parts 12
Customer Care 12
Service Force 13
Guarantee Conditions 15
Instructions for the installer
Technical Specifications 16
Installation
Positioning 16
Electrical Connections 17
Contents
Page 4
4
Description of the Appliance
Control Panel
A - Frozen food storage
B - Freezer calender (recommended storage times for frozen foods)
C - Compartment for freezing fresh foods
D - Dividing wall
E - Control panel
F - Defrost water drain
Amber light
Thermostat
control knob
Page 5
5
Before Use
Remove all packaging and securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of soda (5ml
to 0.5 litre of water). Do not use soap or detergent as the
smell may linger. Dry thoroughly.
Starting the Appliance
Insert the plug into the wall socket. When the appliance has
reached the correct storage temperature for frozen food, the
amber indicator light will illuminate.
Amber Indicator Light
The amber light remains illuminated to indicate that the internal
temperature of the appliance is correct for safe storage of
frozen food. If the temperature is too high in the appliance the
light will go out. The light may go out the following reasons:
There is a power failure
The lid has been recently opened
A large quantity of food has been added to the appliance
There is a fault
Temperature Control
The temperature within the freezer is controlled by the
thermostat situated on the lower front of the cabinet. To
operate the freezer, proceed as follows:
When you first start the freezer we suggest that you turn the
thermostat to a medium setting by using a coin that fits the
groove. The temperature can be measured by placing a
thermometer in the middle compartment. The reading must
be taken quickly as the thermometer temperature will rise
rapidly after removal. This should not have a temperature
higher than -18°C.
Min = Lowest setting, minimum cold
Fast Freeze = Highest setting, maximum cold
Allow the freezer to run for several hours before placing food
inside.
Do not fill the freezer to more than 5mm below the top edge.
Opening/Closing the Lid
The lid is fitted with a tightly closing sealing strip to prevent
moisture entering the freezer, decreasing the amount of frost
formed.
When the lid is opened the air inside the freezer becomes
slightly warmer and expands. When the lid is closed again the
air is cooled immediately. This may lead to the creation of a
vacuum which makes it hard to open the lid again immediately.
This is quite normal.
Wait for a few minutes until the vacuum has subsided and then
open gently. Never use excessive force on the handle.
Lock
The lock works as shown.
Keep the key out of the reach of children
Operation
Page 6
6
Freezing Fresh Food
It is important that fresh food placed in the freezer is frozen
quickly and that the food already in the freezer is heated as
little as possible.
If more than 3-4kg of food is to be frozen:
1. Turn the thermostat control knob to the highest setting
("Fast freeze"). The freezer will now run continously
creating a sufficient reserve of the temperature required.
2. Turn the thermostat control knob to 'fast freeze' position
6-24 hours before placing new food in the freezer
depending on how much food is to be frozen.
3. Place the food in the freezer and leave the thermostat set
at 'fast freeze' for a further 24 hours.
4. Then turn the thermostat control knob back again. The
freezer will return to normal storage temperature.
If you forget to turn the thermostat control knob
back, the freezer will not be damaged, but energy
will be wasted.
Frozen Food Storage
When first starting the freezer or if the freezer has been out
of use for some time, we advise you to run your appliance
for at least 2 hours before storing frozen food.
Do not exceed the storage period indicated by the
manufacturer.
Do not open the lid frequently or leave it open longer than
is necessary.
Important
Do not put carbonated liquids in the freezer.
Ice lollies, if consumed immediately after removal from
the freezer can cause a low temperature skin burn.
Do not remove items from the freezer if your hands are
damp/wet, as this could cause skin abrasions or
frost/freezer burns.
In the event of a power cut, do not open the lid. The food
in the freezer will not be affected if the power cut is short
and the freezer is full. Should the food begin to thaw it
must be consumed quickly and must not be re-frozen.
(See Hints and Tips)
Thawing
Frozen food, prior to being used, can be thawed in the
fridge or at room temperature, depending on the time
available. Small food items may even be cooked from
frozen, in this case cooking will take longer.
Any frozen food which is allowed to thaw accidentally
should either be eaten as soon as possible, or thrown
away. Alternatively, if the food is uncooked and has not
been completely defrosted it can be cooked and then
refrozen.
Defrosted cooked food must never be
refrozen.
Page 7
7

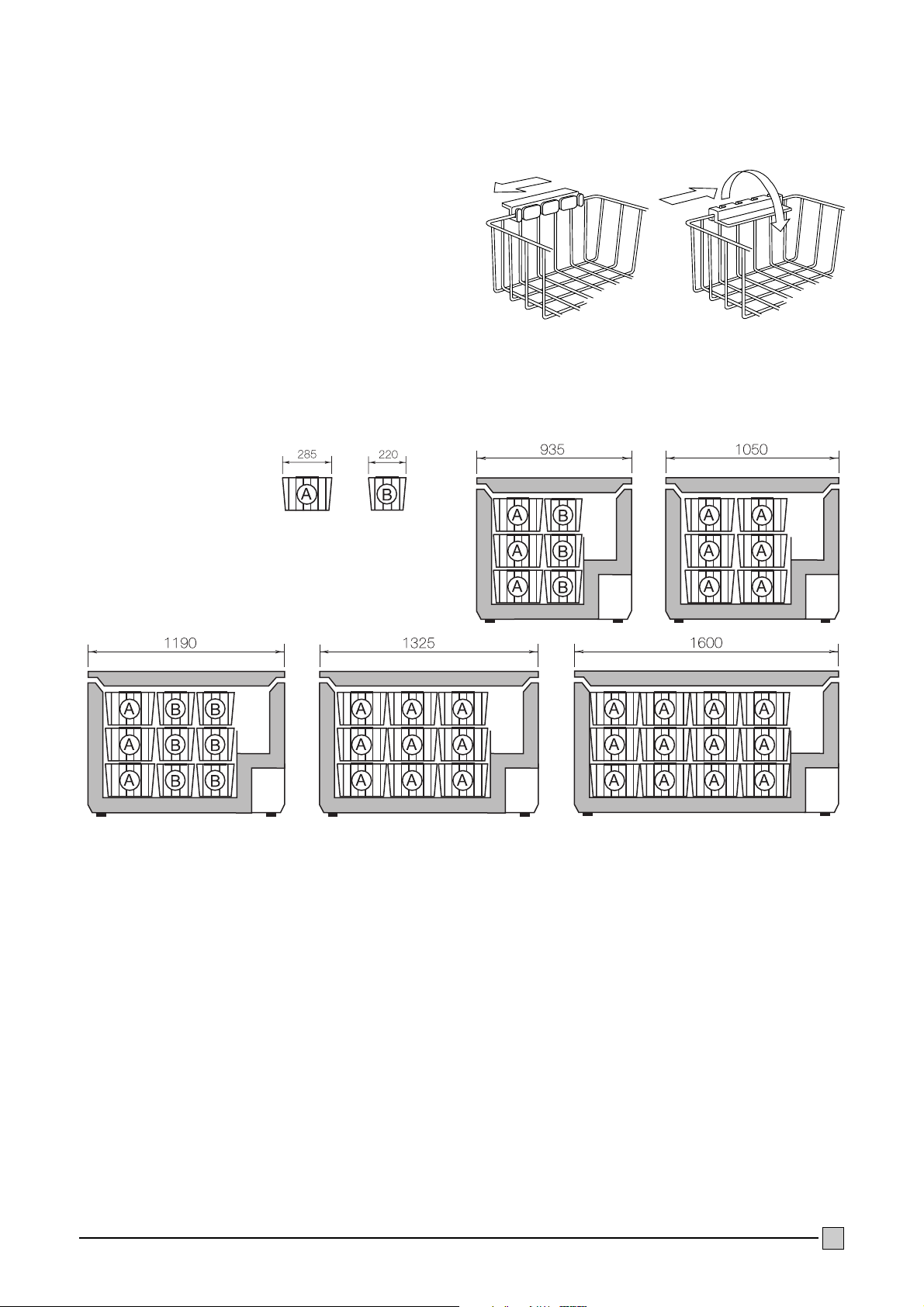

Baskets
The baskets are designed for the storage of food which has
already been frozen. The handles can be placed in two
positions, as shown.
The baskets can either be placed inside the freezer or hung
on the edge of the casing.
Spare baskets can be obtained from your local Service
Force Centre. The following illustrations show how many
baskets can be placed in various freezer models.
The number above each illustration shows the width of the
freezer in millimetres.
Page 8
8
Normal Operating Sounds
You may hear faint gurgling or bubbling sounds when the
refrigerant is pumped through the coils or tubing.
When the compressor is on, the refrigerant is being
pumped round and you will hear a whirring sound or
pulsating noise from the compressor.
A thermostat controls the compressor and you will hear
a faint 'click' when the thermostat cuts in and out.
Food Storage
To obtain the best performance from your freezer:
Do not store warm food or evaporating liquid.
Avoid buying frozen food if you cannot store it straight
away. The use of an insulated container is advisable.
When you arrive home, place the frozen food in the
freezer immediately.
Do not push food together too much, try to allow air to
circulate around each item.
Do not store food uncovered.
Ensure that food placed in the freezer is dated and
labelled and used in date order to ensure that food is
consumed at its best.
Lean food keeps better and longer than fatty food, salt
reduces the storage time.
Wrap the food in polythene or aluminium freezing bags
or foil so that they adhere to the food and provide an
airtight seal.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature and
that it may have lost its original quality. Partially thawed
food must not be refrozen, it must be consumed within
24 hours. Never exceed the storage times indicated by
the manufacturer.
Energy Saving Advice
Do not install the appliance close to sources of heat,
such as a boiler or radiator.
Locate the appliance in a cool well ventilated room and
make sure that the opening of the appliance is not
obstructed.
Avoid unnecessary frosting in the cabinet by packing all
foodstuffs into airtight packages before placing them in
the freezer.
Food which is to be frozen (when cool) should be placed
in the fridge before being transferred to the freezer.
Try to avoid keeping the lid open for long periods or
opening the lid too frequently as warm air will enter the
cabinet and cause the compressor to switch on
unnecessarily often.
Ensure there are no obstructions preventing the lid from
closing properly.
In the Event of a Power Failure
If there is a power failure during the storage of frozen
foods, keep the lid closed. If the temperature within your
freezer should rise, do not refreeze the food without
checking its condition. The following guidelines should
assist you:
Ice Cream: Once thawed should be
discarded.
Fruits & Vegetables: If soft should be cooked and
used up.
Breads & Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used
up quickly.
Cooked Dishes: i.e. casseroles should be
refrigerated and used up.
Large Pieces Can be refrozen providing there
of Meat: are still ice crystals remaining
within them.
Small Joints: Should be cooked and can then
be refrozen as cooked dishes.
Chicken: Should also be cooked and
refrozen as a fresh dish.
Hints & Tips
Page 9
9
Defrosting
The freezer compartment will become progressively
covered with frost. This should be removed with the
special plastic scraper provided, (Models EC2609S &
EC3309S only), whenever the thickness of frost
exceeds ¼".
During this operation it is not necessary to switch off the
power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the inner
liner, complete defrosting should be carried out and it is
advisable to perform this operation when the appliance is
empty.
To carry out complete defrosting:
1. Disconnect the appliance from the electrical supply.
2. Remove any stored food, wrap in several layers of
newspaper and store in a cool place.
3. Leave the lid open.
4. Remove the plug from the drip water drain.
5. To accelerate the defrosting process place a bowl of hot
(not boiling) water inside the freezer and close the lid.

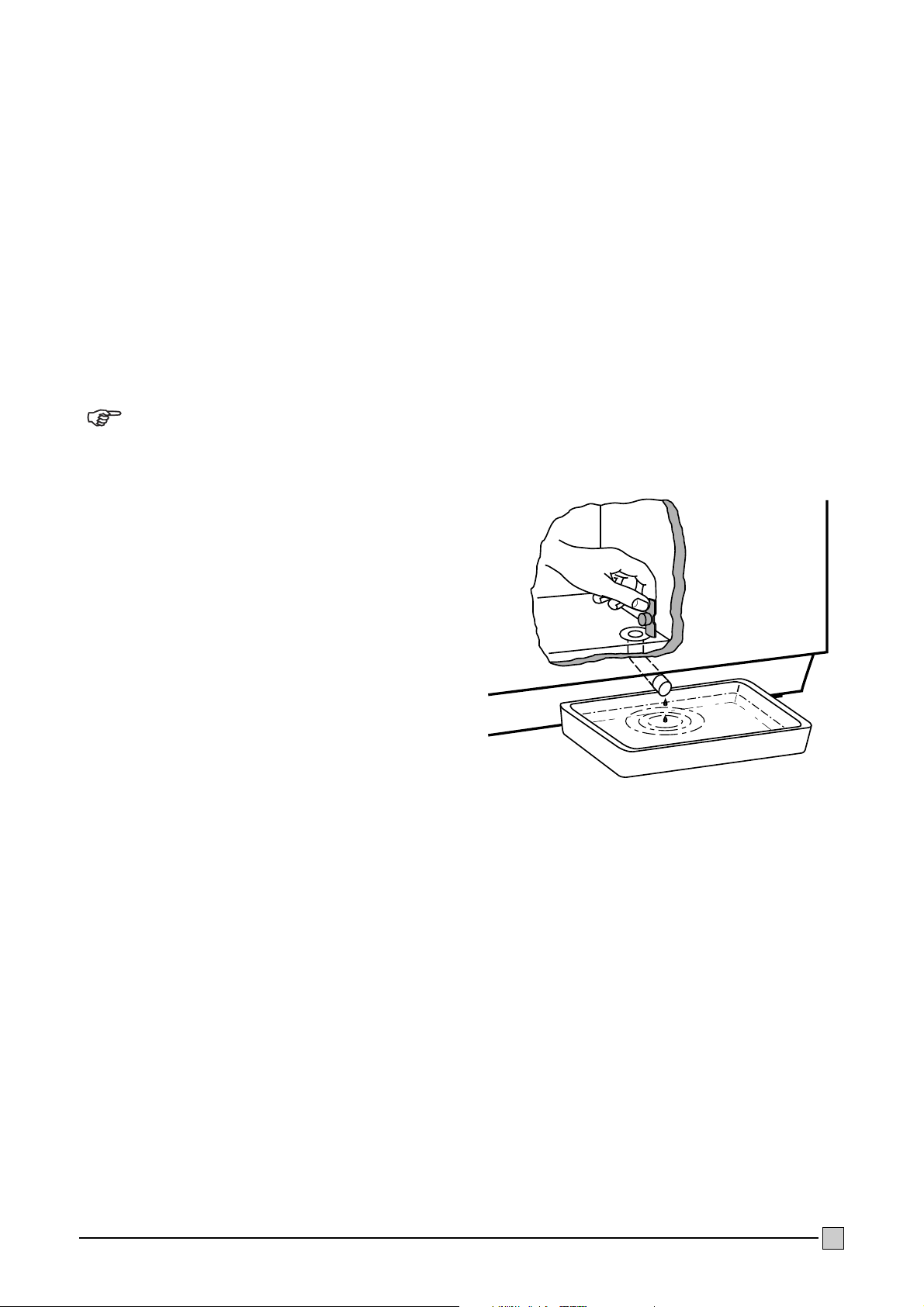

6. The defrost water can be collected in a bowl, as
shown.
7. When defrosting is completed, dry the interior
thoroughly and replace the plug on the drip water drain.
8. Turn the thermostat control back to a medium setting
and leave to run for at least 2 hours.
9. Replace the previously removed food.
Important
A temperature rise of the frozen food packs during
defrosting may shorten their safe storage life.
Never use sharp metal tools to scrape off frost from the
evaporator as this could damage the appliance beyond
repair.

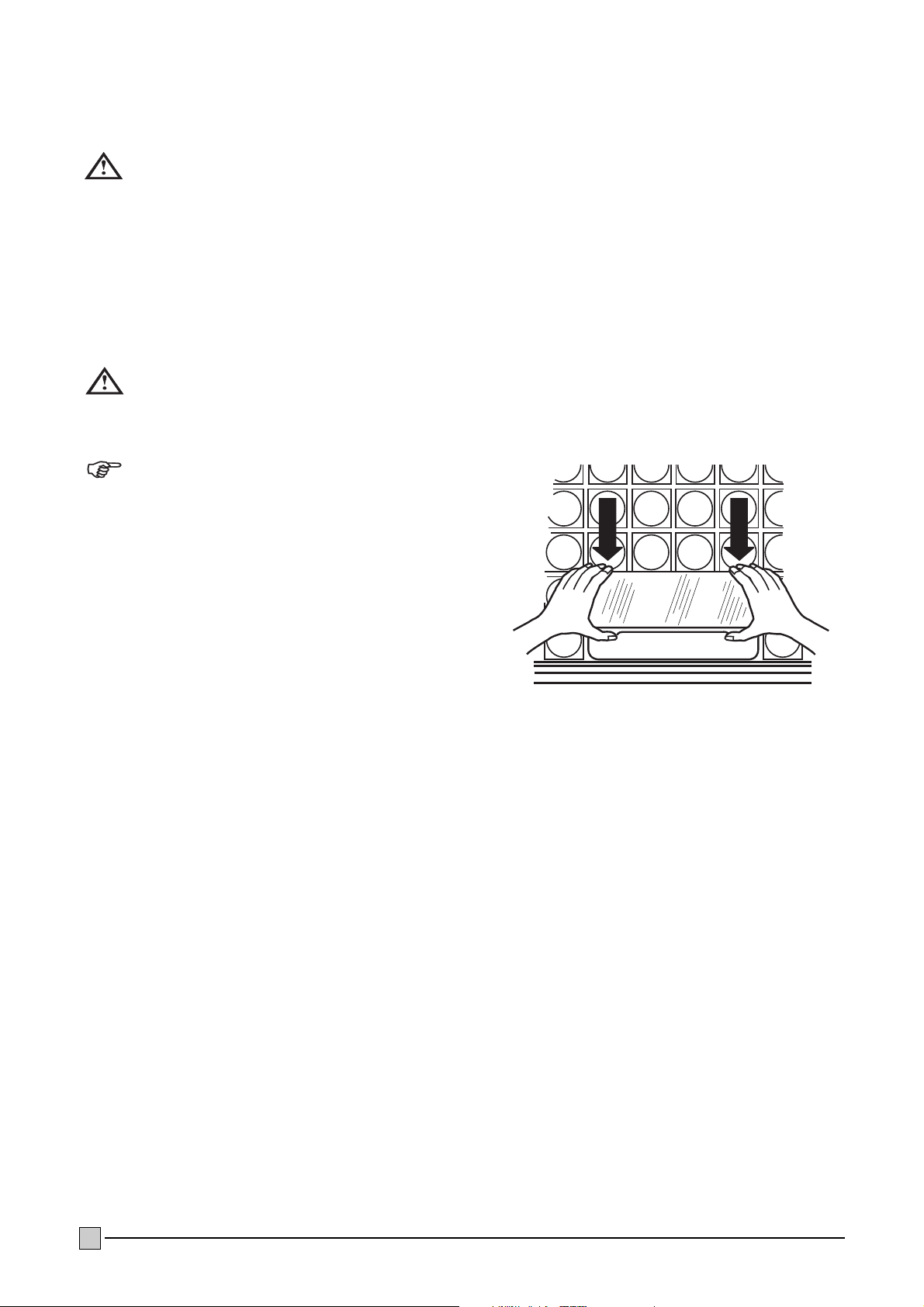

Page 10
10
Before any maintenance or cleaning is carried
out you must DISCONNECT the appliance from
the electricity supply
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong odour.
To Change the Light Bulb
(Not a standard accessory for all models)
1. Disconnect the appliance from the electrical supply.
2. Unscrew the bulb.
3. Replace with a new bulb (max. 15W)
4. Reconnect to the electrical supply.
Spare bulbs are available from your local Electrolux Service
Force Centre.
External Cleaning
Wash the outer cabinet with warm soapy water.
When the Appliance is not in Use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods and
clean the appliance, leaving the lid open to prevent
unpleasant smells.
Maintenance and Cleaning
Page 11
11
Something not Working
If the appliance is not working correctly, please carry out the following checks before contacting your local Electrolux
Service Force Centre
SYMPTOM
No power to the appliance
The temperature in the freezer is too high
The freezer lid will not open
Excessive frost and ice has built up
Noise
SOLUTION
Check there is power at the socket
Check there is not a power cut by checking the
household lights.
Check the mains fuse has not blown.
Check the thermostat is turned to the correct setting
relevant to ambient conditions.
Check the ambient temperature is within the
appliance's operating limits of 10° 32°C.
Has the lid just been opened? If so leave for a few
minutes to allow the air pressure to equalise.
Adjust the thermostat to give correct temperature
control. See 'Temperature Control'.
Large quantities of food have recently been placed in
the cabinet/and or the lid is frequently opened.
Check that air ventilation is not obstructed.Ensure the
lid has not been left open.
Check that nothing is preventing the lid from closing.
Is the lid gasket intact and clean?
Has advised periodic defrosting been carried out.
Refer to 'Normal Operating Sounds'
If after all these checks your appliance still does not operate
correctly, contact your local Electrolux Service Force
Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the above
checks have been made, as the engineer will make a
charge if the fault is not a mechanical or electrical
breakdown.
Page 12
12
Service and Spare Parts
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact you local Electrolux
Service Force Centre by telephoning:
0870 5 929929
Your call will be routed to the Service Force Centre covering your post code area. The address of your local Service
Force Centre is detailed on the following pages headed Electrolux Service Force.
Customer Care Department
For general enquiries concerning your Electrolux appliance or for further information on Electrolux products, you are
invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Electrolux
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 08705 950 950*
* calls to this number may be recorded for training purposes
Page 13
131415
Page 14
Page 15
Guarantee Conditions
We, Electrolux undertake that if within 12 months of the date of the purchase this Electrolux appliance or any part thereof
is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or
replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's
instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised
by us.
All service work under this guarantee must be undertaken by a Electrolux Service Force Centre.
Any appliance or defective part replaced shall become the Company's property.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in
which case a premium will be charged.
EXCLUSIONS
This Guarantee does not cover:
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable
parts of glass or plastic.
Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United
Kingdom.
Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
Products of Electrolux manufacture which are not marked by Electrolux.
This guarantee is in addition to your statutory and legal rights.
ELECTROLUX EUROPEAN GUARANTEE
If you should move to another country within Europe then your guarantee moves with you to your new home subject to
the following qualifications:
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use
for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal
household.
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, list below, to give them details of your new home.
They will then ensure that the local Service Organisation is aware of your move and able to look after you and your
appliances.
France Senlis +33 (0)3 44 62 22 22
Germany Nurenberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 55
UK Slough +44 (0)1753 219 898
Page 16
16

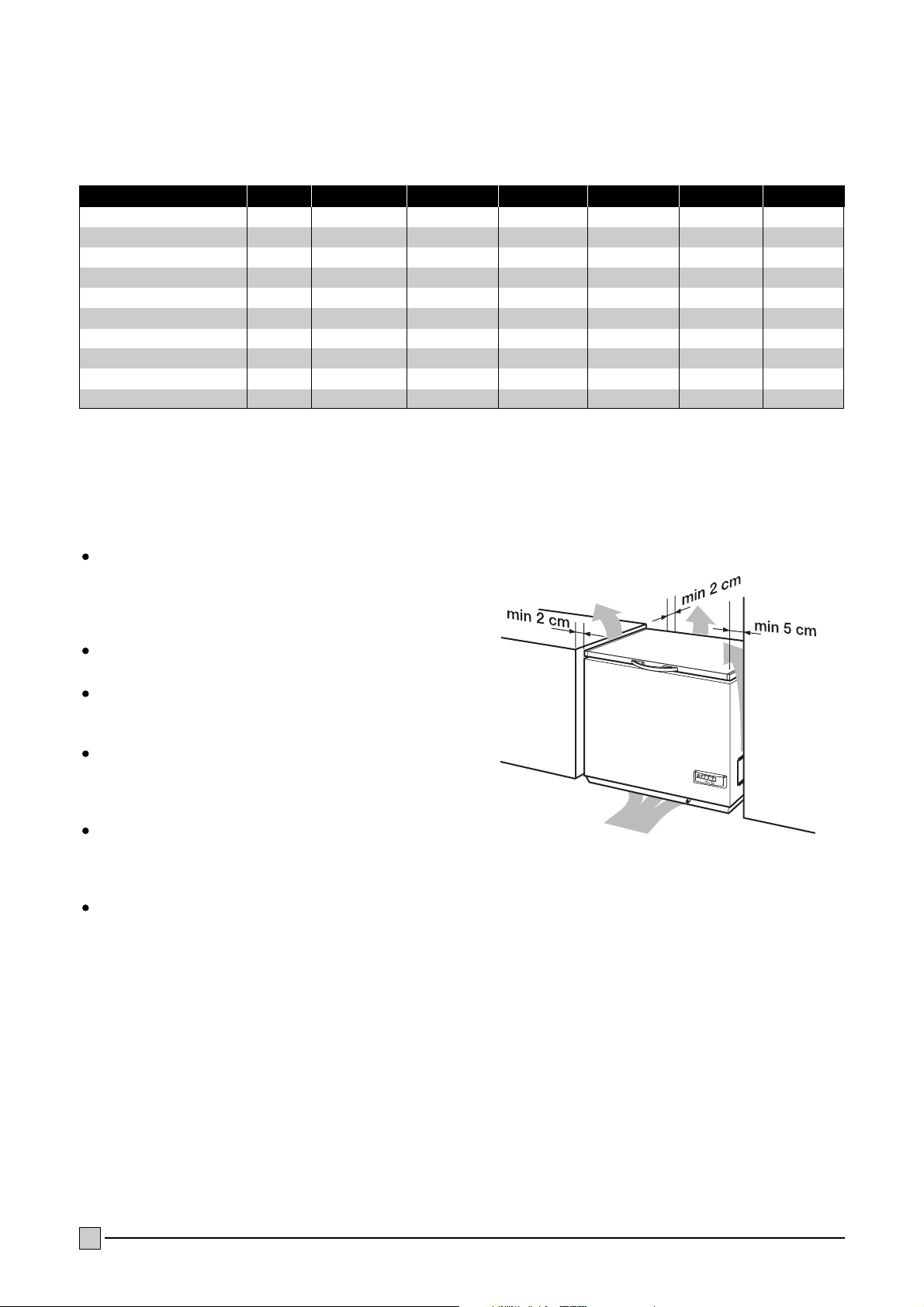

Positioning
Place the freezer horizontally on a firm surface, resting
on all four wheels. Use a wooden block or similar object
to compensate for any bumps/holes in the floor's
surface.
The room should be dry and adequately ventilated.
If the room temperature exceeds 32°C, or falls below
freezing point, the freezer will not function as it should.
Do not place the freezer close to sources of heat,
radiators, chimneys, etc. and do not place the freezer in
direct sunlight.
If the freezer has been handled standing on end, it
should be allowed to stand in the normal position for
about 12 hours before switching it on.
Ensure that the appliance is installed where it is easily
accessible for the engineer in the event of a breakdown.
Technical Specifications
Installation
Model EC 2309S EC 2609S EC 3309S
Volume (gross) litres
Volume (net) litres
Height without/with roller cm
Width cm
Depth cm
Weight kg
Energy consumpt./24h kWh
Freezing capacity kg/24h
Hold-over time hours
Rated power W
229
223
87,6/88,3
119
66,5
57
0,52
25
49
100
264
257
87,6/88,3
132,5
66,5
63
0,60
27
51
120
335
327
87,6/88,3
160
66,5
69
0,73
30
53
140
Page 17
17
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should these
safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance rating
plate.
The appliance is supplied with a 13amp plug fitted. In the
event of having to change the fuse in the plug supplied, a
13amp ASTA approved (BS1362) fuse must be
used.Should the plug need to be replaced for any reason.

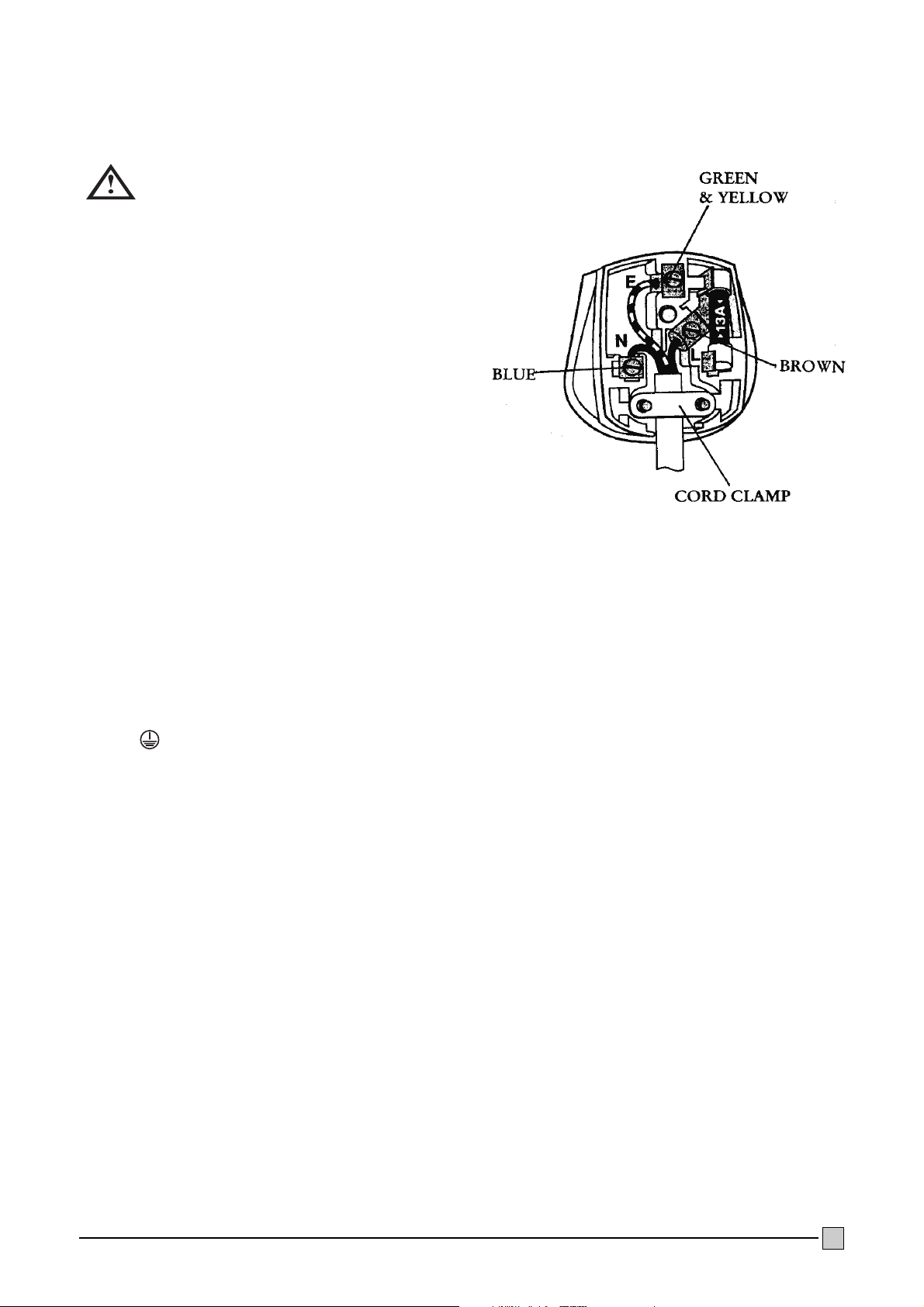

The wires in the mains lead are coloured in accordance with
the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to
the terminal marked with the letter "E" or by the earth
symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal
"N" or coloured black.
The wire coloured brown must be connected to the terminal
marked "L" or coloured red.
Upon completion there must be no cut, or stray strands of
wire present and the cord clamp must be secure over the
outer sheath.
Electrical Connection
Page 18
18
Page 19
19
Page 20
Printed by Xerox Hungary Ltd.
© Electrolux Household Appliances Limited 2000
Loading...
