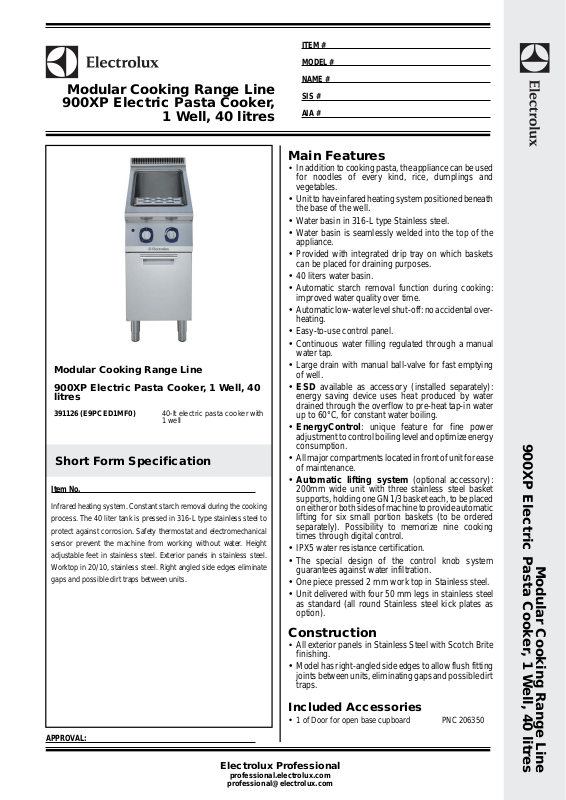

Electrolux E9PCED1MF0 Datasheet

Modular Cooking Range Line

900XP Electric Pasta Cooker,

1 Well, 40 litres

Modular Cooking Range Line
900XP Electric Pasta Cooker, 1 Well, 40

litres

391126 (E9PCED1MF0)40-lt electric pasta cooker with

Short Form Specification

Item No.

Infrared heating system. Constant starch removal during the cooking
process. The 40 liter tank is pressed in 316-L type stainless steel to
protect against corrosion. Safety thermostat and electromechanical
sensor prevent the machine from working without water. Height
adjustable feet in stainless steel. Exterior panels in stainless steel.
Worktop in 20/10, stainless steel. Right angled side edges eliminate
gaps and possible dirt traps between units.

1 well

ITEM #
MODEL #
NAME #
SIS #
AIA #

Main Features

•In addition to cooking pasta, the appliance can be used

for noodles of every kind, rice, dumplings and
vegetables.

•Unit to have infared heating system positioned beneath
the base of the well.

•Water basin in 316-L type Stainless steel.

•Water basin is seamlessly welded into the top of the

appliance.

•Provided with integrated drip tray on which baskets
can be placed for draining purposes.

•40 liters water basin.

•Automatic starch removal function during cooking:

improved water quality over time.

•Automatic low-water level shut-off: no accidental over­heating.

•Easy-to-use control panel.

•Continuous water filling regulated through a manual

water tap.

•Large drain with manual ball-valve for fast emptying
of well.

•ESD available as accessory (installed separately):
energy saving device uses heat produced by water
drained through the overflow to pre-heat tap-in water
up to 60°C, for constant water boiling.

•EnergyControl: unique feature for fine power
adjustment to control boiling level and optimize energy
consumption.

•All major compartments located in front of unit for ease
of maintenance.

•Automatic lifting system (optional accessory):
200mm wide unit with three stainless steel basket
supports, holding one GN 1/3 basket each, to be placed
on either or both sides of machine to provide automatic
lifting for six small portion baskets (to be ordered
separately). Possibility to memorize nine cooking
times through digital control.

•IPX5 water resistance certification.

•The special design of the control knob system

guarantees against water infiltration.

•One piece pressed 2 mm work top in Stainless steel.

•Unit delivered with four 50 mm legs in stainless steel

as standard (all round Stainless steel kick plates as
option).

900XP Electric Pasta Cooker, 1 Well, 40 litres

Modular Cooking Range Line

APPROVAL:

Construction

•All exterior panels in Stainless Steel with Scotch Brite

finishing.

•Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.

Included Accessories

•1 of Door for open base cupboardPNC 206350

Electrolux Professional

professional.electrolux.com

[e-mail]

Modular Cooking Range Line

900XP Electric Pasta Cooker, 1

Well, 40 litres

Optional Accessories

•Junction sealing kitPNC 206086 ❑

•Kit 4 wheels - 2 swivelling with brakePNC 206135 ❑

•Flanged feet kitPNC 206136 ❑

•Frontal kicking strip for concrete installation,

400mm

•Frontal kicking strip for concrete installation,
800mm

•Frontal kicking strip for concrete installation,
1000mm

•Frontal kicking strip for concrete installation,
1200mm

•Frontal kicking strip for concrete installation,
1600mm

•Pair of side kicking strips for concrete
installation

•Frontal kicking strip, 400mm (not for refr­freezer base)

•Frontal kicking strip, 800mm (not for refr­freezer base)

•Frontal kicking strip, 1000mm (not for refr­freezer base)

•Frontal kicking strip, 1200mm (not for refr­freezer base)

•Frontal kicking strip, 1600mm (not for refr­freezer base)

•Pair of side kicking strips (not for refr-freezer
base)

•2 panels for service duct for single installationPNC 206181 ❑

•Lid and lid holder for 40lt pasta cookersPNC 206190 ❑

•2 panels for service duct for back to back

installation

•Kit 4 feet for concrete installation (not for 900
line free standing grill)

•Set of ergonomic baskets for 40lt pasta cookersPNC 206233 ❑

•1 single portion square basket for 40lt pasta

cookers (max. 6 each 40lt well) 206238 must
be ordered together

•1 ergonomic basket for 40lt pasta cookersPNC 206237 ❑

•False bottom for 40lt pasta cooker square

baskets

•Water column with swivel arm (water column
extension not included)

•Chimney upstand, 400mmPNC 206303 ❑

•Energy saving device for pasta cookersPNC 206344 ❑

•Door for open base cupboardPNC 206350 ❑

•Automatic programmable basket lifting system

for 40lt pasta cookers, 3 lifters

•Base support for feet or wheels - 400mm
(700/900)

•Side handrail-right/left hand (900XP)PNC 216044 ❑

•Frontal handrail, 400mmPNC 216046 ❑

•Frontal handrail, 800mmPNC 216047 ❑

•Frontal handrail, 1200mmPNC 216049 ❑

•Frontal handrail, 1600mmPNC 216050 ❑

•2 side covering panels for free standing

appliances

•Large handrail - portioning shelf, 400mmPNC 216185 ❑

•Large handrail - portioning shelf, 800mmPNC 216186 ❑

•3x1/3GN baskets for 40lt pasta cookersPNC 927210 ❑

•2x1/2GN baskets for 40lt pasta cookersPNC 927211 ❑

PNC 206147 ❑
PNC 206148 ❑
PNC 206150 ❑
PNC 206151 ❑
PNC 206152 ❑
PNC 206157 ❑
PNC 206175 ❑
PNC 206176 ❑
PNC 206177 ❑
PNC 206178 ❑
PNC 206179 ❑
PNC 206180 ❑

PNC 206202 ❑
PNC 206210 ❑

PNC 206236 ❑

PNC 206238 ❑
PNC 206289 ❑

PNC 206353 ❑
PNC 206366 ❑

PNC 216134 ❑

•3 round baskets diam. 181mm for 40lt pasta
cookers (927219 must be ordered together)

•6 round baskets for 40-lt pasta cookers (927219
must be ordered together)

•1x1/1GN basket for 40lt pasta cookersPNC 927216 ❑

•Grid support for 40lt pasta cooker round basketsPNC 927219 ❑

•Upper support frame to hold 6 round baskets for

40lt pasta cookers (alternative to 927219 for 6
round baskets)

900XP Electric Pasta Cooker, 1 Well, 40 litres

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Modular Cooking Range Line

PNC 927212 ❑
PNC 927213 ❑

PNC 960644 ❑

2014.12.19
