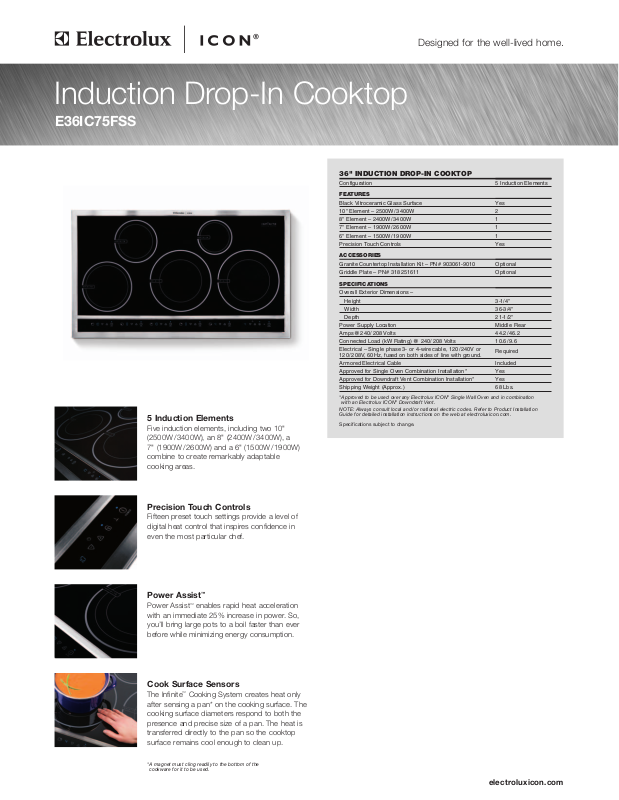

Induction Drop-In Cooktop
E36IC75FSS
5 Induction Elements
Five induction elements, including two 10" (2500W/3400W), an 8" (2400W/3400W), a 7" (1900W/2600W) and a 6" (1500W/1900W) combine to create remarkably adaptable cooking areas.
Precision Touch Controls
Fifteen preset touch settings provide a level of digital heat control that inspires confidence in even the most particular chef.
Power Assist™
Power Assist™ enables rapid heat acceleration with an immediate 25% increase in power. So, you’ll bring large pots to a boil faster than ever before while minimizing energy consumption.
Cook Surface Sensors
The Infinite™ Cooking System creates heat only after sensing a pan* on the cooking surface. The cooking surface diameters respond to both the presence and precise size of a pan. The heat is transferred directly to the pan so the cooktop surface remains cool enough to clean up.
*A magnet must cling readily to the bottom of the cookware for it to be used.
36" INDUCTION DROP-IN COOKTOP
Configuration |
5 Induction Elements |
|
FEATURES |
|
|
Black Vitroceramic Glass Surface |
Yes |
|
10" Element – 2500W/3400W |
2 |
|
8" Element – 2400W/3400W |
1 |
|
7" Element – 1900W/2600W |
1 |
|
6" Element – 1500W/1900W |
1 |
|
Precision Touch Controls |
Yes |
|
ACCESSORIES |
|
|
Granite Countertop Installation Kit – PN# 903061-9010 |
Optional |
|
Griddle Plate – PN# 318251611 |
Optional |
|
SPECIFICATIONS |
|
|
Overall Exterior Dimensions – |
|
|
Height |
3-1/4" |
|
Width |
36-3/4" |
|
Depth |
21-1/2" |
|
Power Supply Location |
Middle Rear |
|
Amps@240/208 Volts |
44.2/46.2 |
|
Connected Load (kW Rating) @ 240/208 Volts |
10.6/9.6 |
|
Electrical – Single phase 3- or 4-wire cable, 120/240V or |
Required |
|
120/208V, 60Hz, fused on both sides of line with ground. |
||
|
||
Armored Electrical Cable |
Included |
|
Approved for Single Oven Combination Installation* |
Yes |
|
Approved for Downdraft Vent Combination Installation* |
Yes |
|
Shipping Weight (Approx.) |
68 Lbs. |
*Approved to be used over any Electrolux ICON® Single Wall Oven and in combination with an Electrolux ICON® Downdraft Vent.
NOTE: Always consult local and/or national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
electroluxicon.com
Induction Drop-In Cooktop
E36IC75FSS

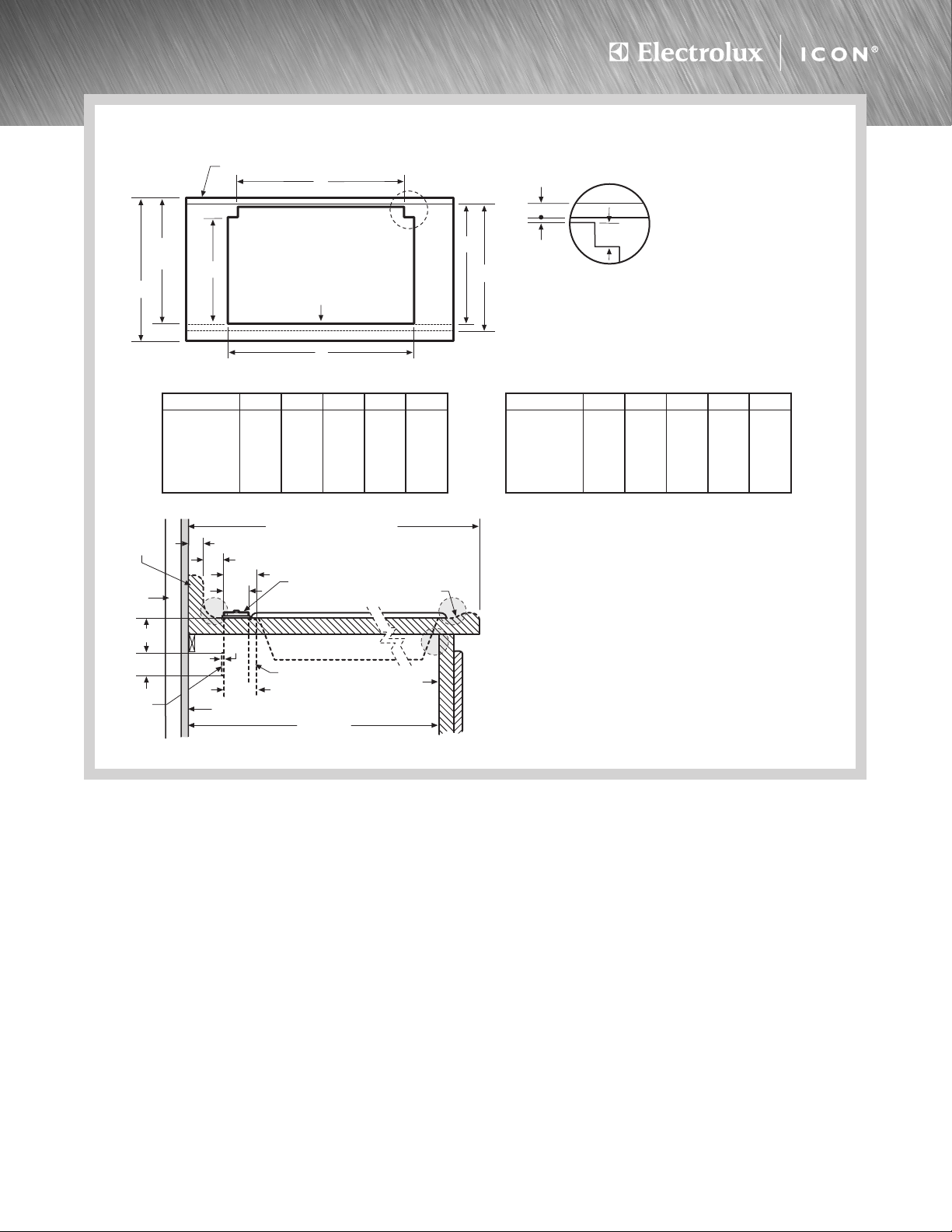

13" |
|
max. |
36 3/4" |
cabinet |
1/2" |
depth |
|
|
2 3/4" |
|
19 7/8" |
11/2" min. recommended |
|
distance between rear |
4" x 8" opening to route |
edge of cutout and |
armoured cable |
nearest combustible |
|
surface above countertop
20 3/8" min. 25" min. 20 1/2" max.
24"
2 1/2" min. from edge of cutout to front edge of countertop
36 3/4"
|
|
|
30" min. for |
|
|
|
unprotected cabinet |
|
|
|
24" min. for |
|
|
|
protected surface |
|
|
211/2" |
|
|
|
|
2" |
34 |
5/8" |
18" |
1 |
min. |
7 /2" min. to nearest |
||
|
|
combustible wall |
|
|
|
|
(either side of unit) |
10" |
|
4 1/2" |
|
12" |
|
|
|
35 7/8" min.
36" max.
Approximate location of junction box

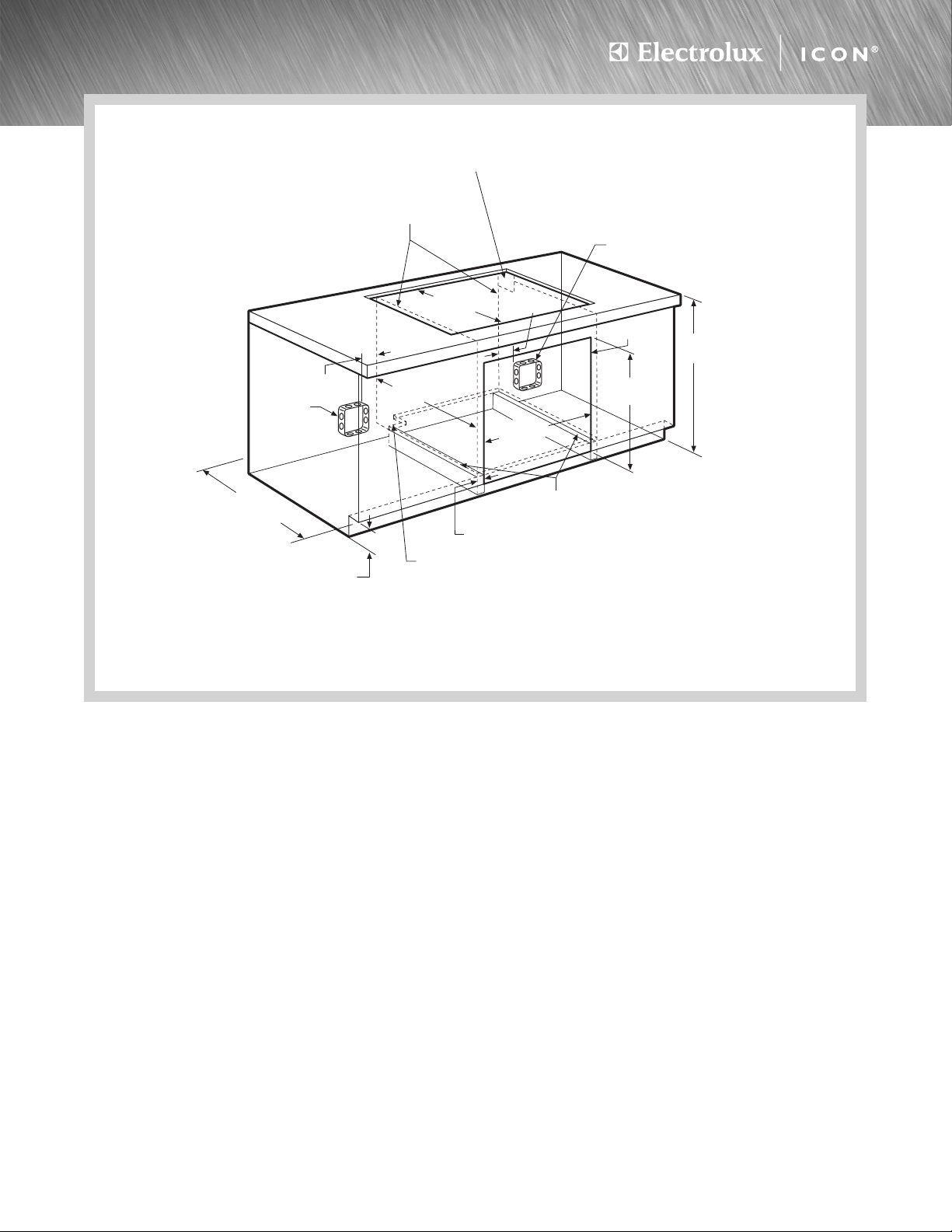

36" Induction Drop-In Cooktop Specifications
•Product Weight – 56 Lbs.
•Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz, fused on both sides of line with ground.
•Connected Load (kW Rating) @ 240/208 Volts = 10.6/9.6kW
•Amps @ 240/208 Volts = 44.2/46.2 Amps
•Recommended Circuit Breaker – 50 Amps
•Always consult local and/or national electric codes.
•Allow 2"space below armored cable opening to clear electrical cable and allow space for installation of junction box on wall at back of cooktop.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Allow 30" minimum clearance between top of cooktop and bottom of unprotected wood or metal overhead cabinetry.
•Absolute minimum horizontal distance between overhead cabinets installed to either side of appliance must be no less than maximum width of appliance.
•Allow 24" minimum clearance when bottom of wood or metal overhead cabinet is protected by not less than 1/8" flame-retardant millboard covered with not less than No. 28 MGS sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
•Allow 1-1/2" minimum clearance between rear edge of cutout and nearest combustible surface above countertop.
•Allow 7-1/2" minimum clearance from edge of cooktop to nearest combustible wall on either side of unit.
•It is recommended that drawers not be used beneath cooktop.
•To reduce risk of fire when using overhead cabinetry, install vent hood that projects horizontally a recommended minimum of 5" beyond bottom of cabinets.
•Induction Drop-In Cooktop model E36IC75FSS is approved to be used over any Electrolux ICON® Single Wall Oven. (Refer to Electric Cooktop Installation Over 30" Electric Single Wall Oven Specifications page on web.)
•Induction Drop-In Cooktop model E36IC75FSS is approved to be used in combination with an Electrolux ICON® 36” Downdraft Vent.
(Refer to Drop-In Cooktop / Downdraft Vent Countertop Preparation page on web for detailed installation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•Granite Countertop Installation Kit – (PN# 903061-9010).
•Griddle Plate – (PN# 318251611).
Electrolux Major Appliances, N.A.
USA • 250 Bobby Jones Expressway • Augusta, GA 30907 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com |
High standards of quality at Electrolux Home Products, Inc. mean we are |
|
constantly working to improve our products. We reserve the right to change |
||
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca |
||
specifications or discontinue models without notice. |
E36IC75FSS 01/09 |
© 2009 Electrolux Home Products, Inc. |
Printed in the U.S.A. |
