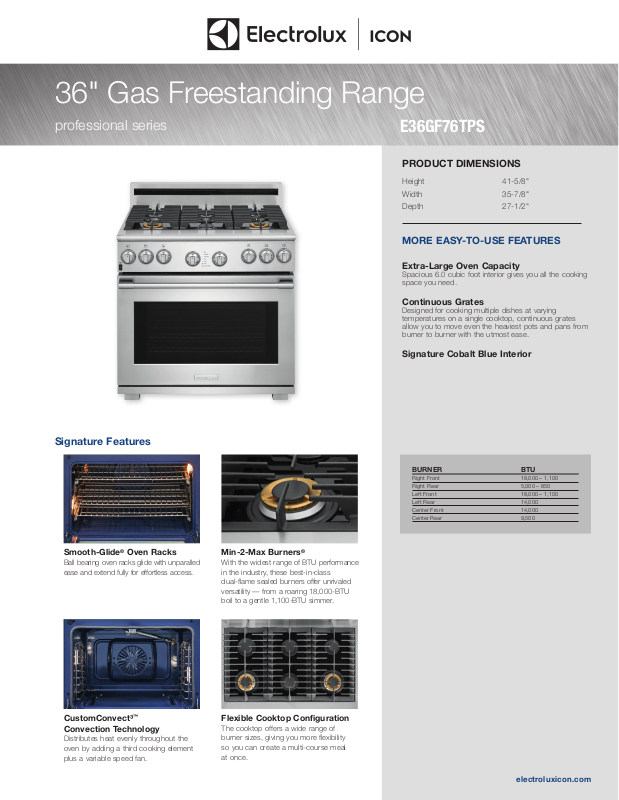

Page 1
36" Gas Freestanding Range
professional series
E36GF76TPS
PRODUCT DIMENSIONS
Height 41-5/8"
Width 35-7/8"
Depth 27-1/2"
MORE EASY-TO-USE FEATURES
Extra-Large Oven Capacity
Spacious 6.0 cubic foot interior gives you all the cooking
space you need.
Continuous Grates
Designed for cooking multiple dishes at varying
temperatures on a single cooktop, continuous grates
allow you to move even the heaviest pots and pans from
burner to burner with the utmost ease.
Signature Cobalt Blue Interior
Signature Features
Smooth-Glide® Oven Racks
Ball bearing oven racks glide with unparalled
ease and extend fully for effortless access.
CustomConvect³™
Convection Technology
Distributes heat evenly throughout the
oven by adding a third cooking element
plus a variable speed fan.
Min-2-Max Burners
With the widest range of BTU performance
in the industry, these best-in-class
dual-flame sealed burners offer unrivaled
versatility — from a roaring 18,000-BTU
boil to a gentle 1,100-BTU simmer.
®
Flexible Cooktop Configuration
The cooktop offers a wide range of
burner sizes, giving you more flexibility
so you can create a multi-course meal
at once.
BURNER
Right Front
Right Rear
Left Front
Left Rear
Center Front
Center Rear
BTU
18,000 – 1,100
5,000 – 850
18,000 – 1,100
14,000
14,000
9,500
electroluxicon.com
Page 2
36" Gas Freestanding Range
E36GF76TPS professional series
36" GAS FREESTANDING RANGE
CONTROL PANEL FEATURES
Manual Oven Control
Professional-Style Stainless Steel Console
Large Professional Skirted Knobs with Bezel
RANGETOP FEATURES
Min-2-Max Burners® (BTU)
Sealed Power Burner
Sealed Precision Burner
Continuous Grates
Electronic Ignition
™
(BTU)
™
(BTU)
OVEN CAVITY FEATURES
Capacity
Bake Burner (BTU)
Broil Burner (BTU)
Convection Burner (Watts)
Signature Cobalt Blue Oven Interior
Self-Clean with Door Lock
Extra-Large Oven Window
Cook Modes –
Bake
Broil
Convection Bake
Convection Roast
Halogen Oven Lights
Smooth-Glide
Conventional Racks
®
Oven Racks
ADDITIONAL FEATURES
Stainless Steel Backsplash
Full Stainless Steel Side Panels
Professional Handle
Fully Adjustable Leveling Legs
ACCESSORIES
Broiler Pan and Insert
Stainless Steel Cleaner
Wok Ring
SPECIFICATIONS
Gas Supply Connection Location
Power Cord Location
LP Gas Conversion Kit
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Shipping Weight (Approx.)
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
‡
Yes
Yes
Yes
2 (18,000 – 1,100)
2 (14,000)
1 (9,500)
1 (5,000 – 850)
Yes
Yes
6.0 Cu.Ft.
1 (30,000)
1 (11,500)
1 (350)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2
1
Yes
Yes
Yes
Yes
Included
Included
Included
Left Bottom Rear
Middle Bottom Right
Included
120V/60Hz/7A
0.84
425 Lbs.
PRODUCT DIMENSIONS
Height (Adjustable)
Width
Depth (Including Handle)
(with Door 90° Open)
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E36GF76TPS 07/17 © 2017 Electrolux Home Products, Inc.
41-5/8"
35-7/8"
28-3/4"
48-3/8"
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Page 3
36" Gas Freestanding Range
E36GF76TPS professional series
13"
max.
18"
min.
25"
24" min.
24
1/2" max.
5"
max.
*Minimum distance required
between cooking surface
and cabinet bottom
8" clearance
from cooking
adjacent side
walls or other
36" min.
C
L
1/16"
36
min.
42"
min.*
18"
min.
vertical surfaces
or structures
such as cabinets
8"
12"
14"
12"
8"
Hatched area is suggested gas supply/
shut-off valve location. (Supply piping can
enter through cabinet side wall.)
Shaded area is suggested location
for electrical wall outlet which may also be
located on wall in lower left corner of adjacent
right cabinet or on wall in lower right corner
of adjacent left cabinet. (All dimensions
for outlet locations are maximum.)
Minimum
required
surface to
3
35
/4"
min.
36"
stand.
Wall
Side
19/16"
7
3/4"
Depth
including
oven door
open
in 90°
position –
48
283/4"
271/2"
257/8"
1
1/2"
Optional 12"
Optional 9"
Standard 6"
backsplash
353/4" min.
3
36
/4" max.
Power
cord
location
(right
bottom
3
/8"
rear*)
Adjustable legs
Gas inlet
location
(left
bottom
rear*)
*when viewed
from front
Front
41
5/8"
min.
5/8"
42
max.
35
36" Gas Freestanding Range Specifications
•
Product Weight – 380 Lbs.
•
Voltage Rating –120V/60Hz/7A
•
Connected Load (kW Rating) @120 Volts = 0.84 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 7 Amps
•
Always consult local and national electric and gas codes.
•
Make sure wall coverings around range can withstand heat generated
by range.
•
Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90°F above room
temperature without shrinking, warping or discoloring. Insulating pad or
1/4"-thick plywood required between range and a carpeted floor.
•
Do not obstruct flow of combustion air at oven vent nor around base or
beneath lower front panel of range. Range requires fresh air for proper
burner combustion.
•
Do not install range beneath any downward-blowing, overhead
vent hood or air curtain.
•
Range ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•
Allow 42" minimum clearance between top of rangetop and bottom of
unprotected wood or metal overhead cabinetry.
•
Allow 8" minimum clearance from edge of rangetop to nearest combustible
wall on either side of unit.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E36GF76TPS 07/17 © 2017 Electrolux Home Products, Inc.
7/8"
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
