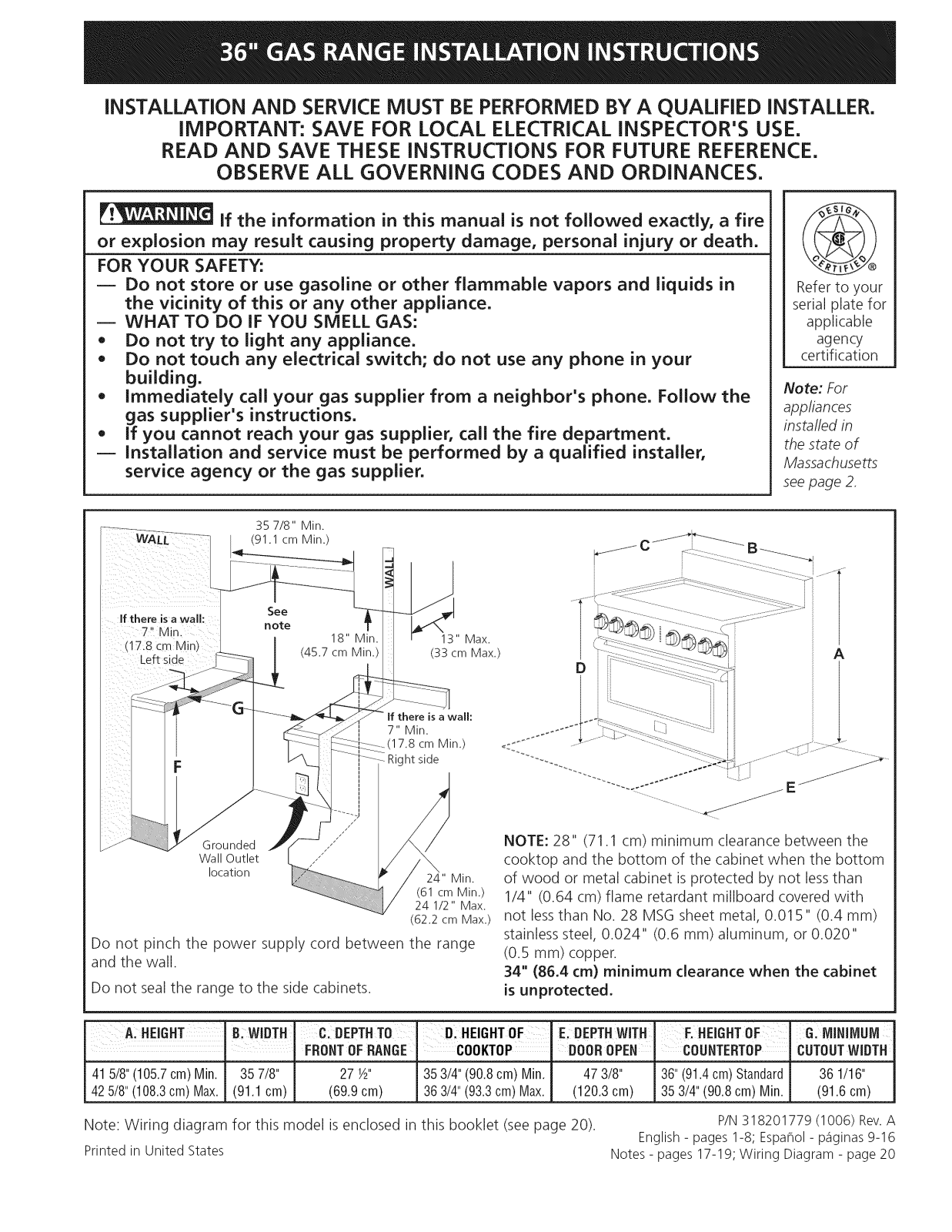

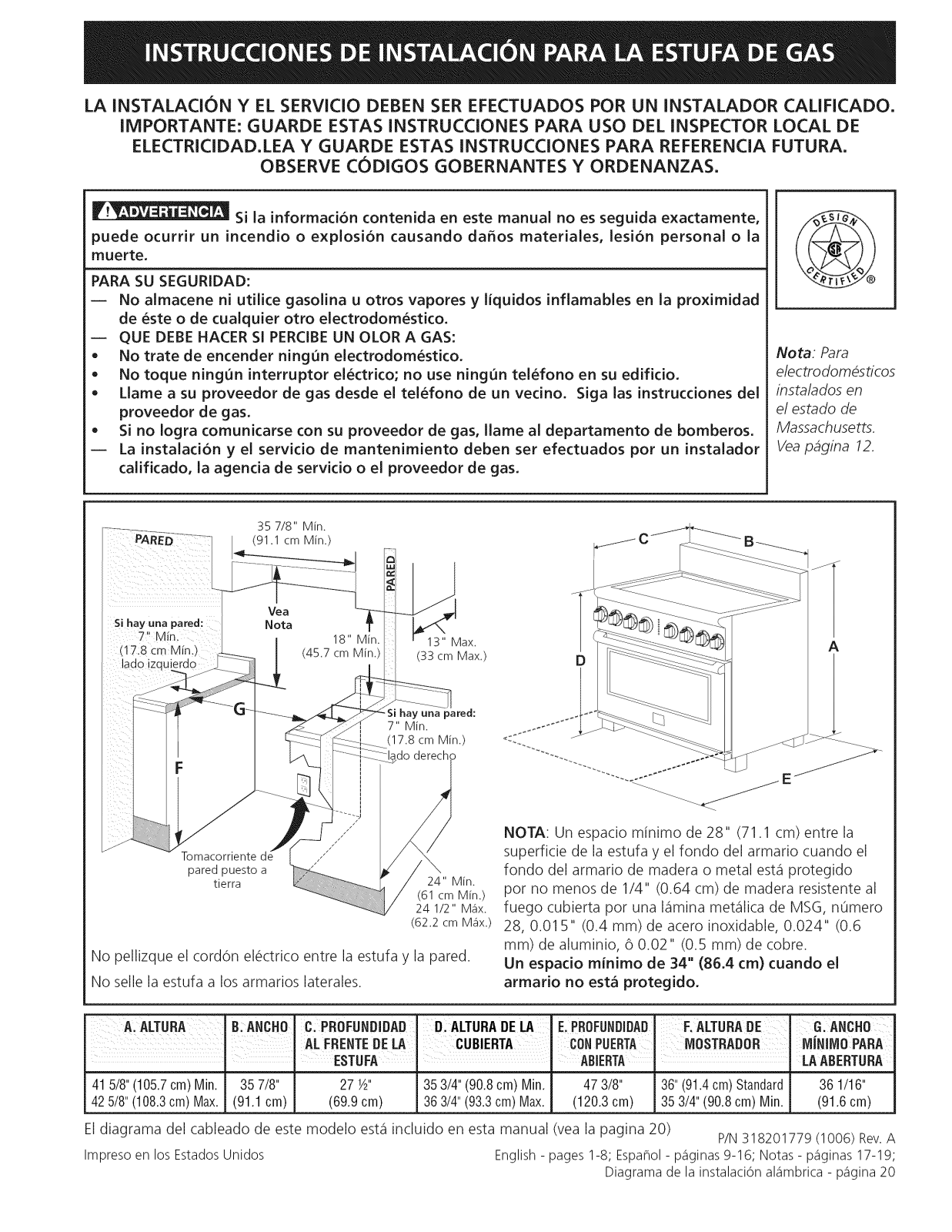

Electrolux E36GF76JPS1, E36GF76JPS2 Installation Guide

iNSTALLATiON AND SERVICEMUST BEPERFORMED BY A QUALiFiED iNSTALLER.

iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.

READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.

OBSERVE ALL GOVERNING CODES AND ORDINANCES.

If the information in this manual is not followed exactly, a fire

or explosion may result causing property damage, personal injury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.

-- WHAT TO DO IF YOU SMELL GAS:

, Do not try to light any appliance.
, Do not touch any electrical switch; do not use any phone in your

building.

, Immediately call your gas supplier from a neighbor's phone. Follow the

gas supplier's instructions.

, If you cannot reach your gas supplier, call the fire department.

-- Installation and service must be performed by a qualified installer,
service agency or the gas supplier.

35 7/8" Min.

(91.1 cm Min.)

Refer to your

serial plate for

applicable

agency

certification

Note: For

appliances

instafled in
the state of
Massachusetts

seepage 2,

If there isawall:

7" Min.

(17.8 cm Min)

Left side

See

note

18" Min.

(45.7 cm Min.)

13" Max.

(33 cm Max.)

If there is a wall:
7" Min.

17.8 cm Min.)

Right side

_E j

NOTE: 28" (71.1 cm) minimum clearance between the

Grounded y .'"

Wall Outlet

location 24" Min.

(61 cm Min.)

24 1/2" Max.

(62.2 cm Max.)

Do not pinch the power supply cord between the range
and the wall.

Do not sealthe range to the side cabinets.

cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not lessthan

1/4" (0.64 cm) flame retardant millboard covered with

not lessthan No. 28 MSG sheet metal, 0.01 5" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.

34" (86.4 cm) minimum clearance when the cabinet
is unprotected.

A: HHEIGHT, B:WIDTII C:DEPTHTO D:HEIGHTOF E DEPTH.lWITH' F.HEIGHTOF G.MINIMUM

' FRONTOFRANGE COOKTOP DOOR OPEN COUNTERTOP CUTOUTWIDTH

415/8"(105.7cm)Min. 357/8" 27W' 353/4"(90.8cm) Min, 473/8" 36"(91.4cm)Standard 361/16"
425/8"(108.3cm)Max. (91,1cm) (69,9cm) 363/4"(93.3cm)Max. (120,3cm) 353/4"(90.8cm)Min. (91,6cm)

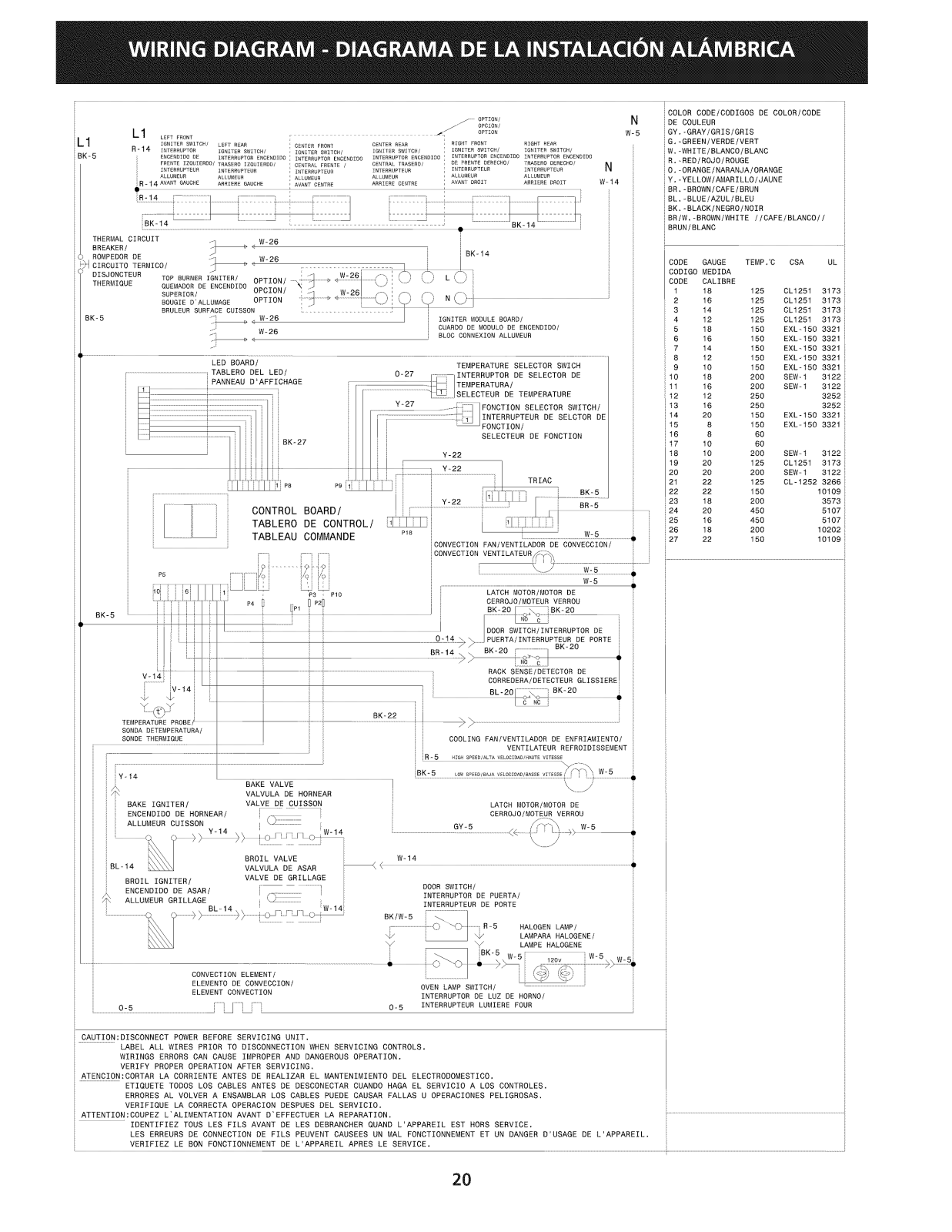

Note: Wiring diagram for this model is enclosed in this booklet (see page 20). P/N318201779 (1006) Rev.A
Printed in United States Notes - pages 17-19; Wiring Diagram - page 20

English - pages 1-8; EspaSol - p_iginas 9-16

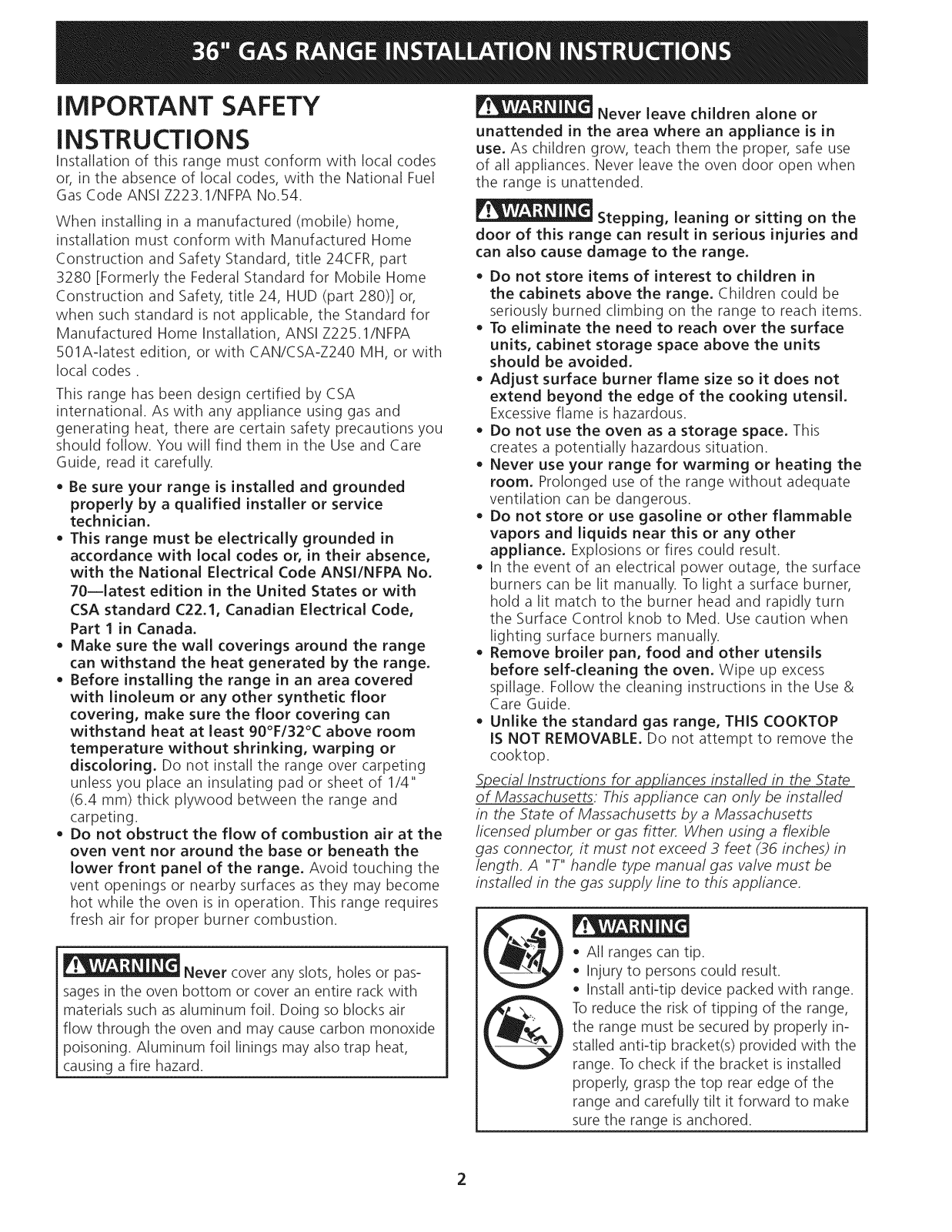

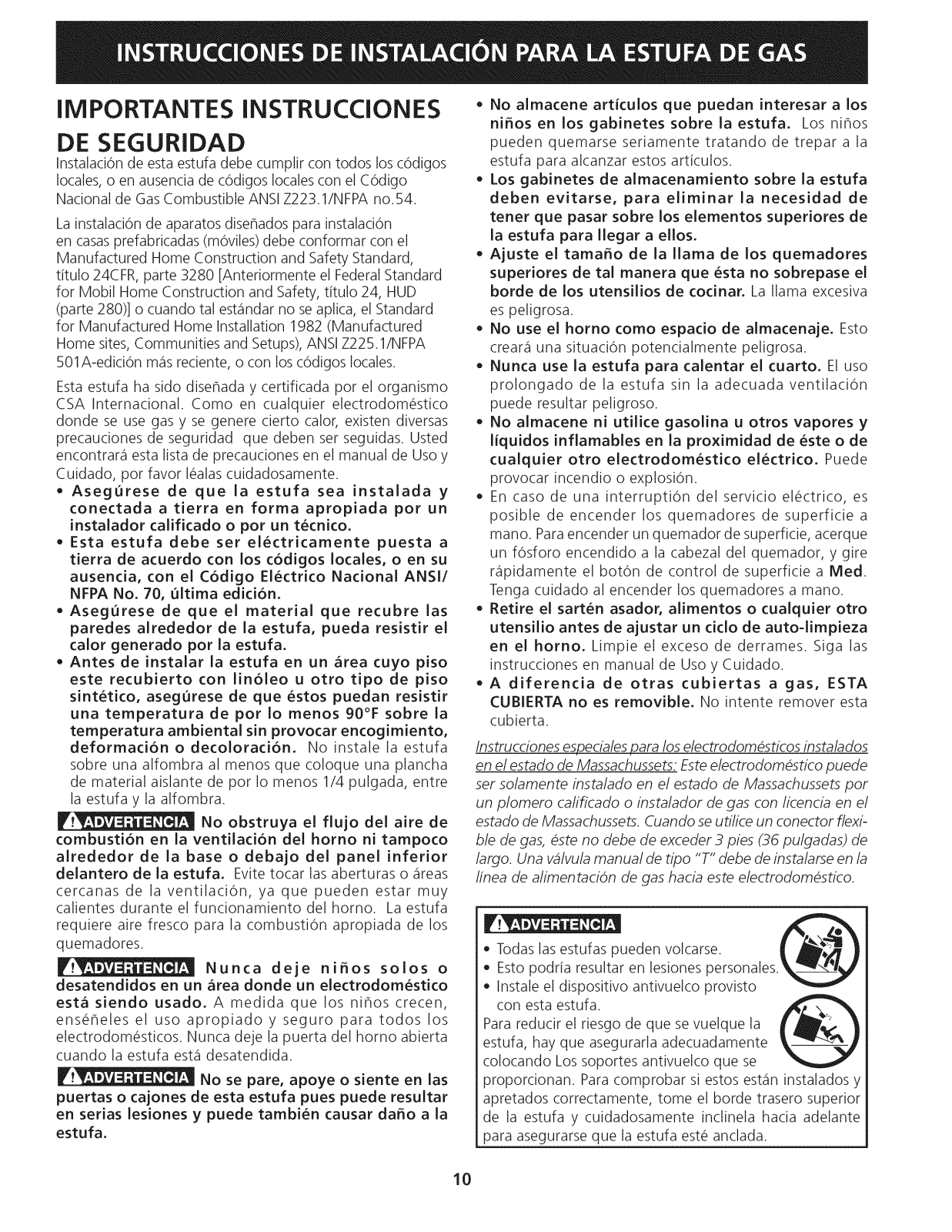

iMPORTANT SAFETY

iNSTRUCTiONS

Installation of this range must conform with local codes
or, in the absence of local codes, with the National Fuel

Gas Code ANSI Z223.1/NFPA No.54.
When installing in a manufactured (mobile) home,

installation must conform with Manufactured Home
Construction and Safety Standard, title 24CFR, part

3280 [Formerly the Federal Standard for Mobile Home
Construction and Safety, title 24, HUD (part 280)] or,
when such standard is not applicable, the Standard for

Manufactured Home Installation, ANSI Z225.1/NFPA
501A-latest edition, or with CAN/CSA-Z240 MH, or with

local codes.
This range has been design certified by CSA

international. As with any appliance using gas and
generating heat, there are certain safety precautions you

should follow. You will find them in the Use and Care
Guide, read it carefully.

• Be sure your range is installed and grounded
properly by a qualified installer or service

technician.

• This range must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.

70--latest edition in the United States or with
CSA standard C22.1, Canadian Electrical Code,

Part I in Canada.

Make sure the wall coverings around the range
can withstand the heat generated by the range.
Before installing the range in an area covered
with linoleum or any other synthetic floor
covering, make sure the floor covering can

withstand heat at least 90°F/32°C above room
temperature without shrinking, warping or

discoloring. Do not install the range over carpeting
unless you place an insulating pad or sheet of 1/4"
(6.4 mm) thick plywood between the range and
carpeting.

Do not obstruct the flow of combustion air at the
oven vent nor around the base or beneath the

lower front panel of the range. Avoid touching the
vent openings or nearby surfaces as they may become
hot while the oven is in operation. This range requires
fresh air for proper burner combustion.

Never leave children alone or

unattended in the area where an appliance is in
use. As children grow, teach them the proper, safe use
of all appliances. Never leave the oven door open when
the range is unattended.

Stepping, leaning or sitting on the

door of this range can result in serious injuries and
can also cause damage to the range.

Do not store items of interest to children in
the cabinets above the range. Children could be

seriously burned climbing on the range to reach items.
To eliminate the need to reach over the surface

units, cabinet storage space above the units
should be avoided.

Adjust surface burner flame size so it does not
extend beyond the edge of the cooking utensil.

Excessiveflame is hazardous.

Do not use the oven as a storage space. This
creates a potentially hazardous situation.

Never use your range for warming or heating the
room. Prolonged use of the range without adequate
ventilation can be dangerous.

Do not store or use gasoline or other flammable
vapors and liquids near this or any other

appliance. Explosions or fires could result.
In the event of an electrical power outage, the surface
burners can be lit manually. To light a surface burner,
hold a lit match to the burner head and rapidly turn

the Surface Control knob to Med. Use caution when
lighting surface burners manually.

Remove broiler pan, food and other utensils
before self-cleaning the oven. Wipe up excess
spillage. Follow the cleaning instructions in the Use &

Care Guide.
Unlike the standard gas range, THIS COOKTOP

IS NOT REMOVABLE. Do not attempt to remove the
cooktop.

Special/nstructions for appliances installed in the State

of Massachusetts: This appliance can only be installed
in the State of Massachusetts by a Massachusetts
licensed plumber or gas fitter. When using a flexible
gas connector, it must not exceed 3 feet (36 inches) in
length. A "T" handle type manual gas valve must be
installed in the gas supply line to this appliance.

Never cover any slots, holes or pas-

sages in the oven bottom or cover an entire rack with
materials such asaluminum foil. Doing so blocks air

flow through the oven and may cause carbon monoxide

poisoning. Aluminum foil linings may also trap heat,
causing afire hazard.

All ranges can tip.

Injury to persons could result.

Install anti-tip device packed with range.
To reduce the risk of tipping of the range,
the range must be secured by properly in-
stalled anti-tip bracket(s) provided with the
range. Tocheck if the bracket is installed
properly, grasp the top rear edge of the
range and carefully tilt it forward to make
sure the range is anchored.

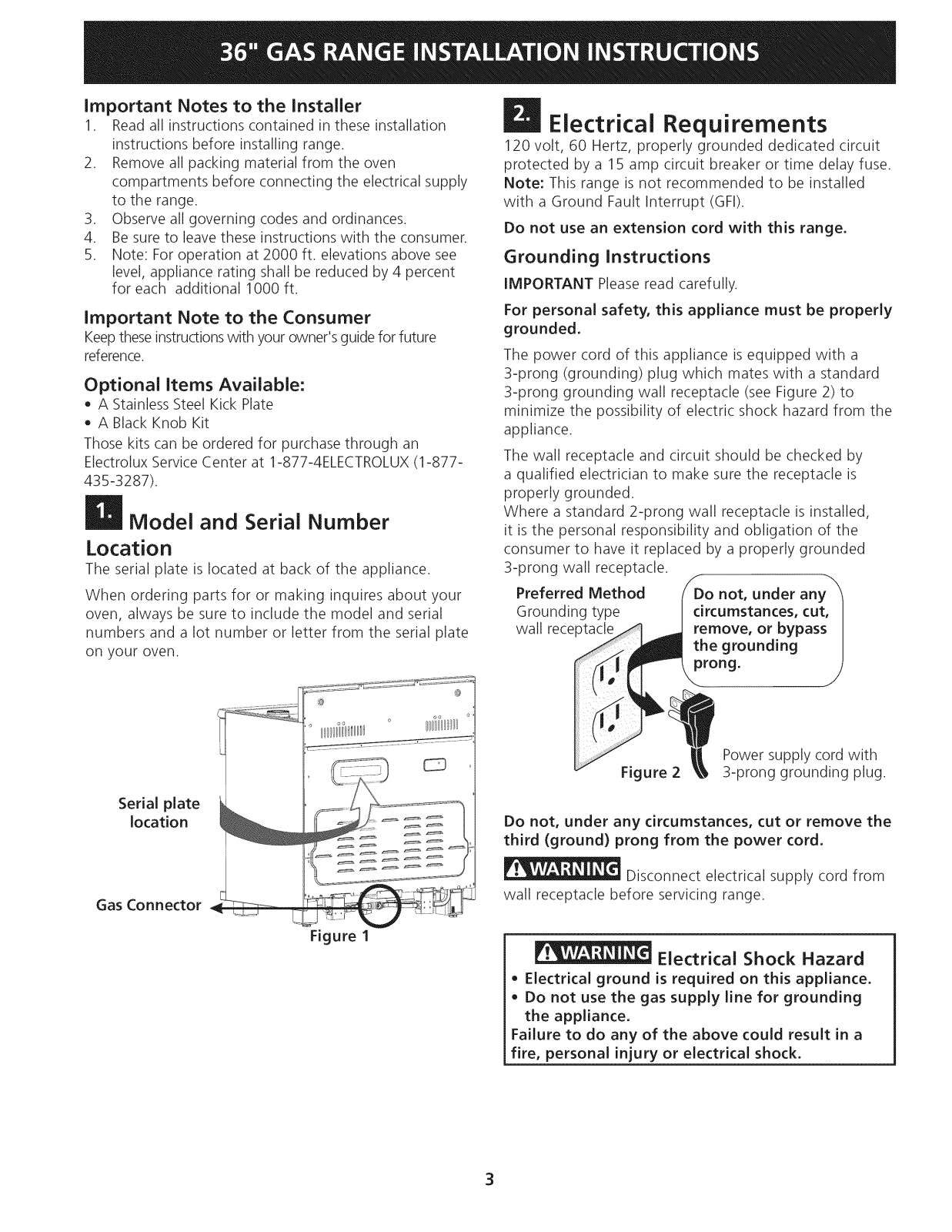

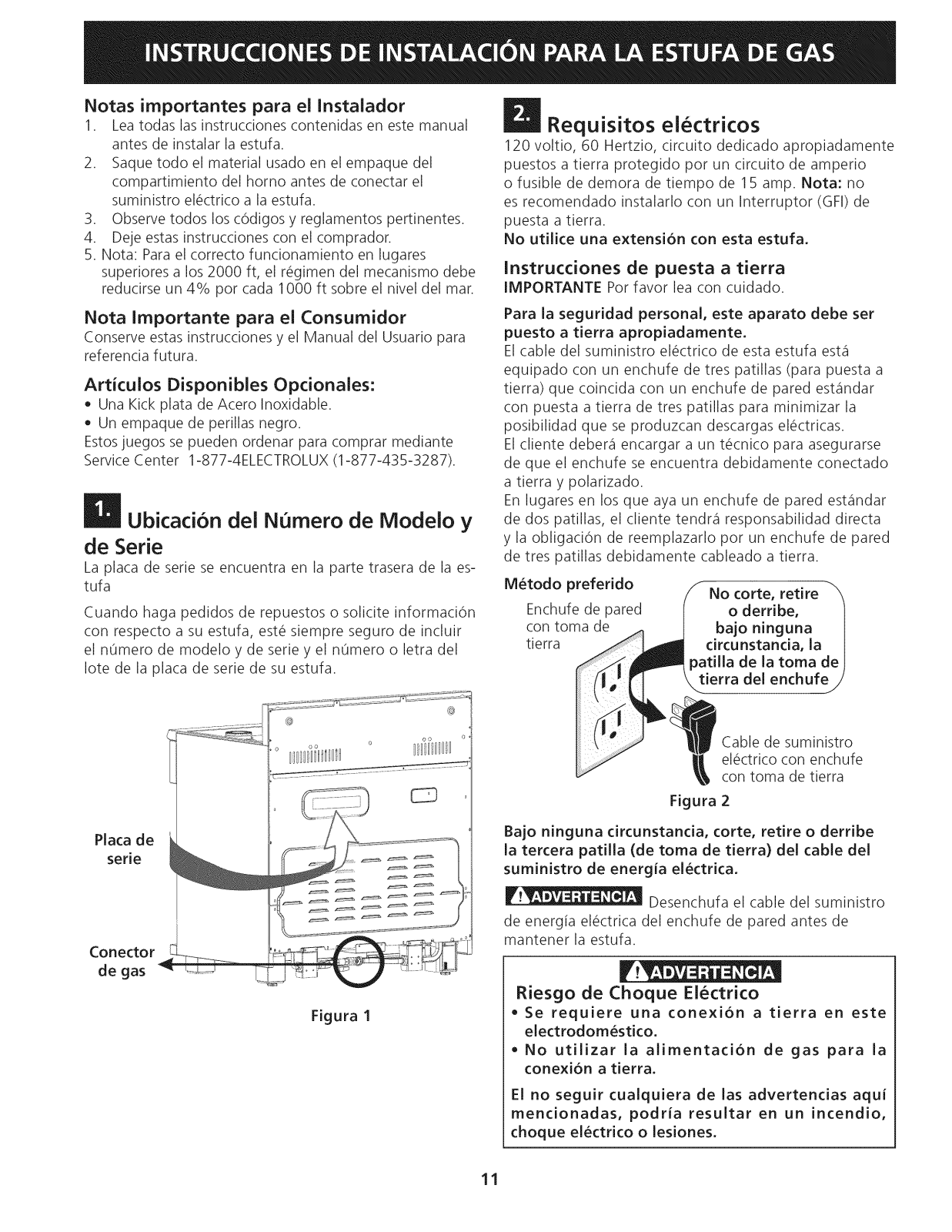

Important Notes to the Installer

1. Read all instructions contained in these installation
instructions before installing range.

2. Remove all packing material from the oven
compartments before connecting the electrical supply
to the range.

3. Observe all governing codes and ordinances.

4. Besure to leave these instructions with the consumer.

5. Note: For operation at 2000 ft. elevations above see
level, appliance rating shall be reduced by 4 percent

for each additional 1000 ft.

Important Note to the Consumer
Keepthese instructionswith your owner's guide for future

reference.
Optional Items Available:

• A Stainless Steel Kick Plate

A Black Knob Kit

Those kits can be ordered for purchase through an
Electrolux Service Center at 1-877-4ELECTROLUX(1-877-

435-3287).

Model and Serial Number

Location

The serial plate is located at back of the appliance.
When ordering parts for or making inquires about your

oven, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate

on your oven.

Electrical Requirements

120 volt, 60 Hertz, properly grounded dedicated circuit
protected by a 15 amp circuit breaker or time delay fuse.
Note: This range is not recommended to be installed
with a Ground Fault Interrupt (GFI).

Do not use an extension cord with this range.
Grounding Instructions

IMPORTANT Pleaseread carefully.
For personal safety, this appliance must be properly

grounded.
The power cord of this appliance isequipped with a

3-prong (grounding) plug which mates with a standard
3-prong grounding wall receptacle (see Figure 2) to
minimize the possibility of electric shock hazard from the
appliance.

The wall receptacle and circuit should be checked by
a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard 2-prong wall receptacle is installed,
it is the personal responsibility and obligation of the
consumer to have it replaced by a properly grounded
3-prong wall receptacle.

Preferred Method
Grounding type

wall rece

Serial plate

location

Gas Connector

Figure 1

Power supply cord with

Figure 2

Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.

Disconnect electrical supply cord from

wall receptacle before servicing range.

Electrical Shock Hazard

Electrical ground is required on this appliance.
Do not use the gas supply line for grounding

the appliance.

Failure to do any of the above could result in a

fire, personal injury or electrical shock.

3

3-prong grounding plug.

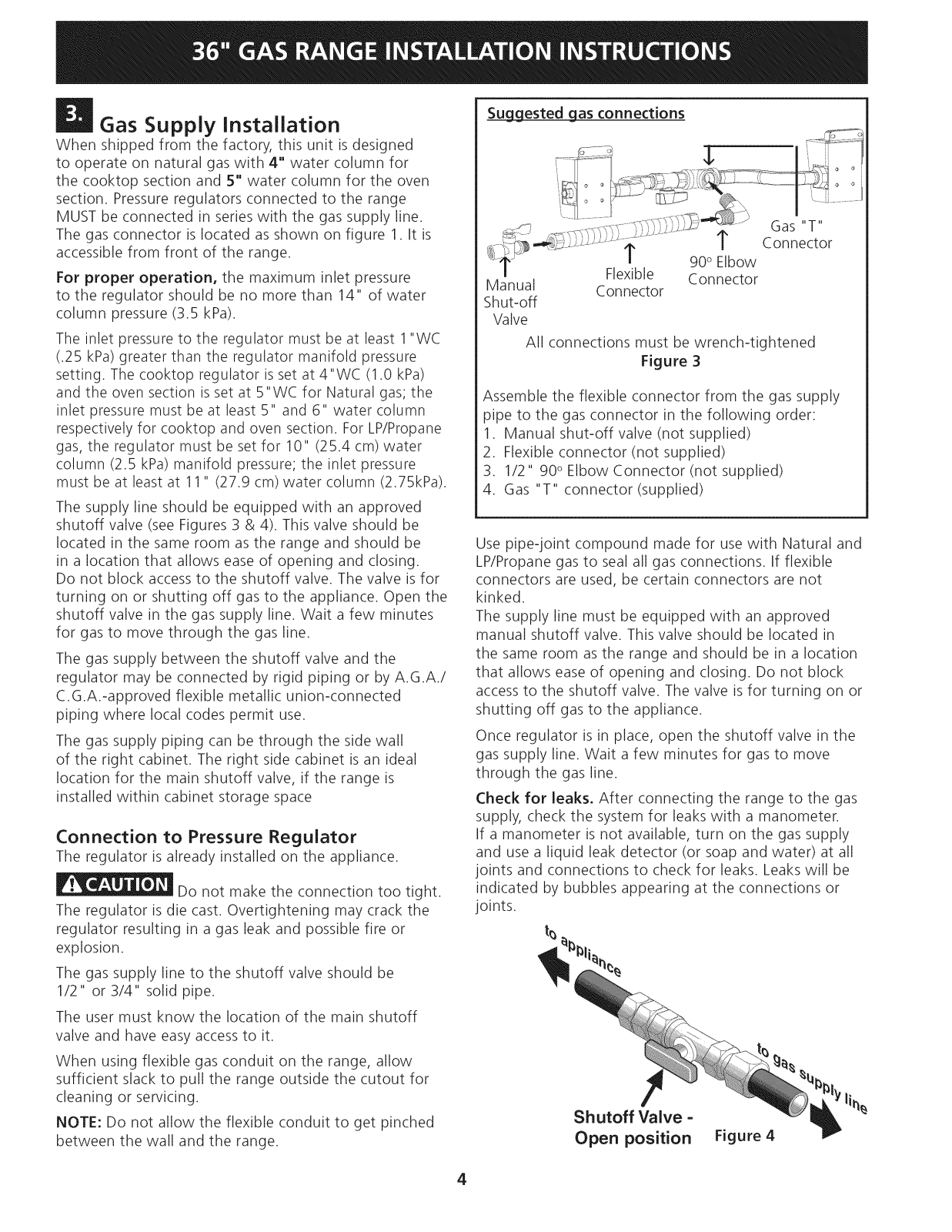

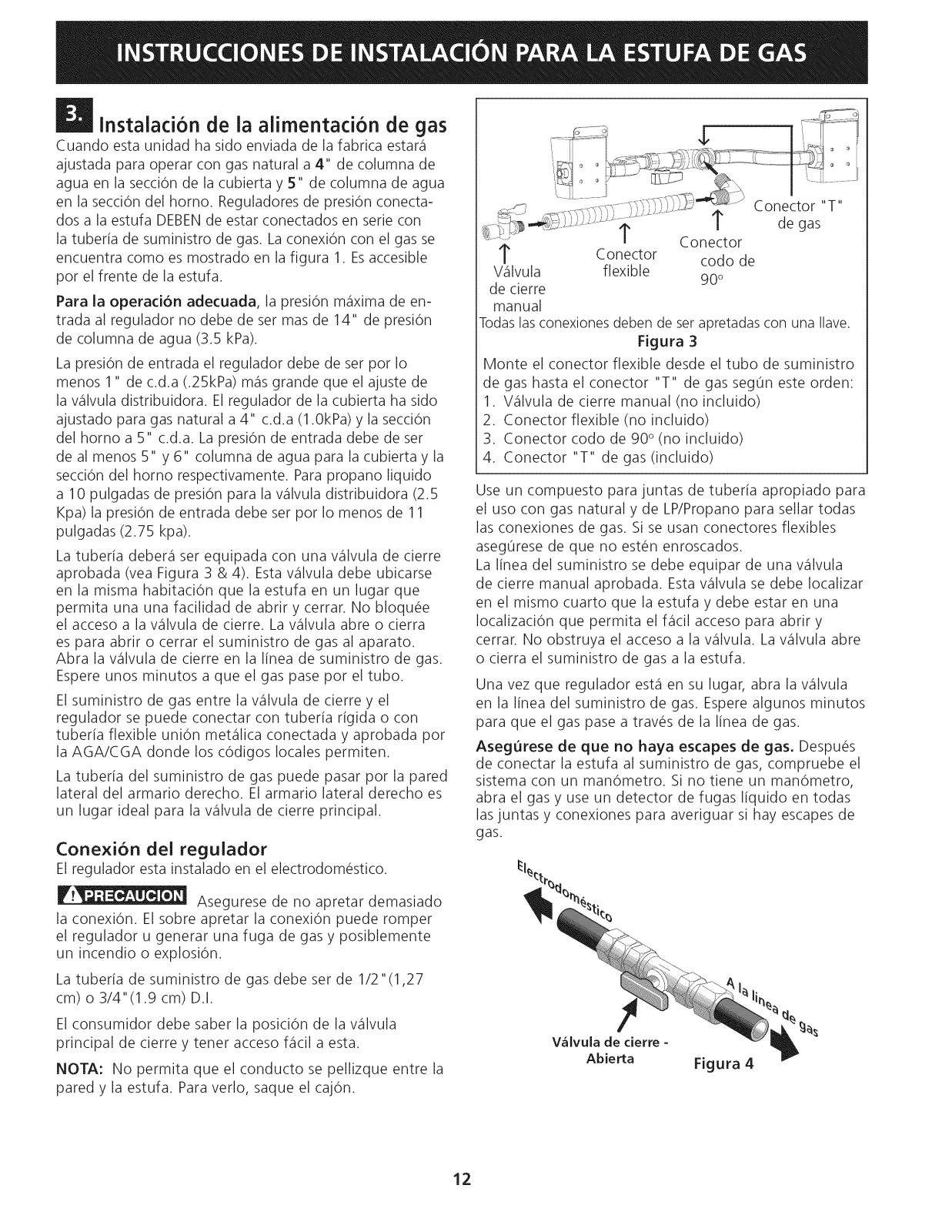

D Gas Supply Installation

When shipped from the factory, this unit is designed
to operate on natural gas with 4" water column for

the cooktop section and 5" water column for the oven
section. Pressure regulators connected to the range

MUST be connected in series with the gas supply line.
The gas connector is located as shown on figure 1. It is

accessible from front of the range.
For proper operation, the maximum inlet pressure

to the regulator should be no more than 14" of water
column pressure (3.5 kPa).

The inlet pressure to the regulator must be at least 1"WC
(.25 kPa) greater than the regulator manifold pressure

setting. The cooktop regulator is set at 4"WC (1.0 kPa)
and the oven section is set at 5"WC for Natural gas; the

inlet pressure must be at least 5" and 6" water column
respectively for cooktop and oven section. For LP/Propane

gas, the regulator must be set for 10" (25.4 cm) water
column (2.5 kPa) manifold pressure; the inlet pressure

must be at least at 11" (27.9 cm) water column (2.75kPa).
The supply line should be equipped with an approved

shutoff valve (see Figures 3 & 4). This valve should be
located in the same room as the range and should be

in a location that allows ease of opening and closing.
Do not block access to the shutoff valve. The valve is for

turning on or shutting off gas to the appliance. Open the
shutoff valve in the gas supply line. Wait a few minutes

for gas to move through the gas line.
The gas supply between the shutoff valve and the

regulator may be connected by rigid piping or by A.G.A./
C.G.A.-approved flexible metallic union-connected
piping where local codes permit use.

The gas supply piping can be through the side wall
of the right cabinet. The right side cabinet is an ideal
location for the main shutoff valve, if the range is
installed within cabinet storage space

Connection to Pressure Regulator
The regulator is already installed on the appliance.

_Do not make the connection too tight.
The regulator is die cast. Overtightening may crack the

regulator resulting in a gas leak and possible fire or
explosion.

The gas supply line to the shutoff valve should be

1/2" or 3/4" solid pipe.

The user must know the location of the main shutoff
valve and have easy access to it.

When using flexible gas conduit on the range, allow
sufficient slack to pull the range outside the cutout for

cleaning or servicing.
NOTE: Do not allow the flexible conduit to get pinched

between the wall and the range.

Su__U_gLgestedgas connections

Manual

Shut-off

Valve

All connections must be wrench-tightened

Assemble the flexible connector from the gas supply

pipe to the gas connector in the following order:

1. Manual shut-off valve (not supplied)

2. Flexible connector (not supplied)

3. 1/2" 90° Elbow Connector (not supplied)

4. Gas "T" connector (supplied)

Use pipe-joint compound made for use with Natural and
LP/Propane gas to seal all gas connections. If flexible

connectors are used, be certain connectors are not
kinked.

The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in

the same room as the range and should be in a location
that allows ease of opening and closing. Do not block
access to the shutoff valve. The valve isfor turning on or
shutting off gas to the appliance.

Once regulator is in place, open the shutoff valve in the
gas supply line. Wait a few minutes for gas to move
through the gas line.

Check for leaks. After connecting the range to the gas
supply, check the system for leaks with a manometer.

If a manometer is not available, turn on the gas supply
and use a liquid leak detector (or soap and water) at all

joints and connections to check for leaks. Leaks will be

indicated by bubbles appearing at the connections or

joints.

t_

Flexible Connector

Connector

Figure 3

Shutoff Valve =

Open position

Figure 4

4

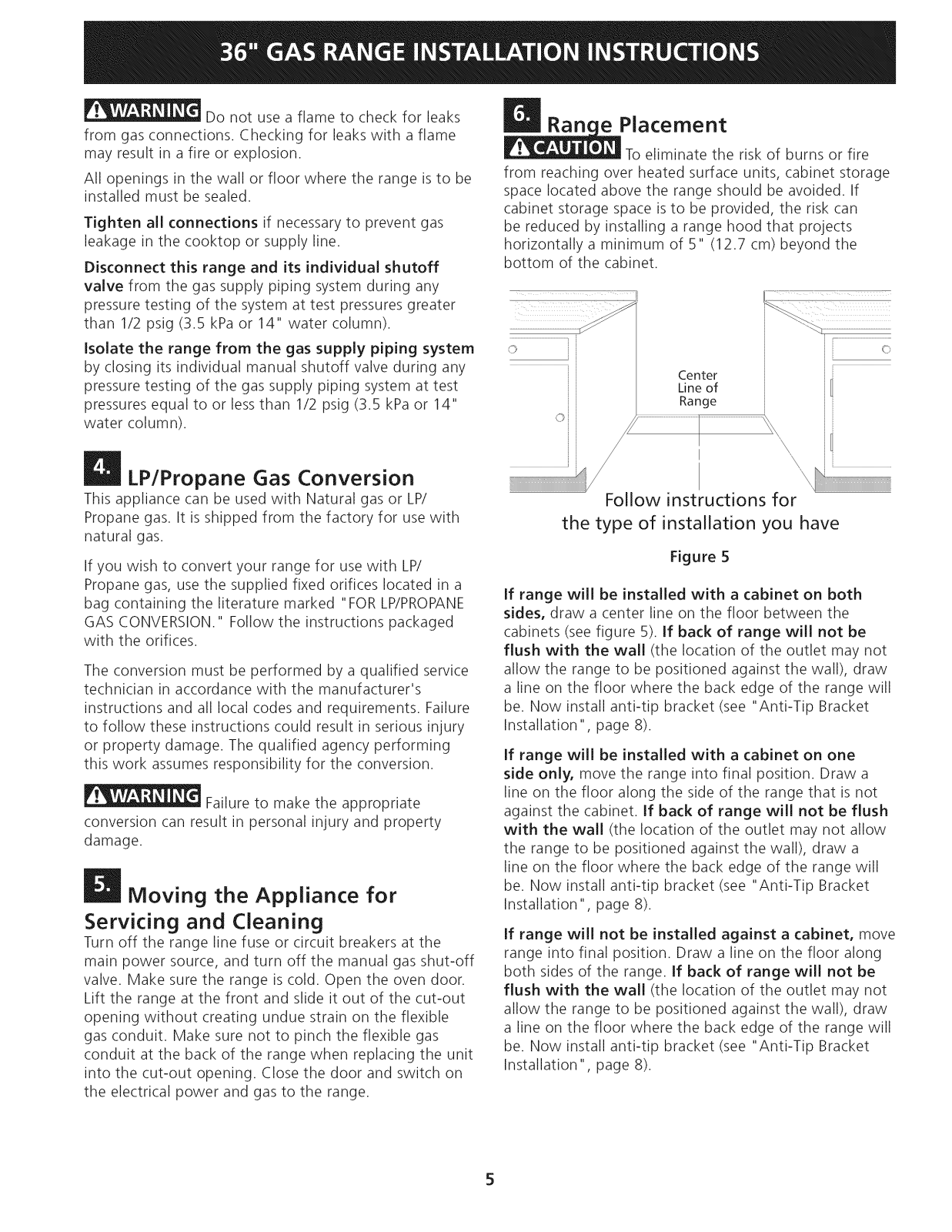

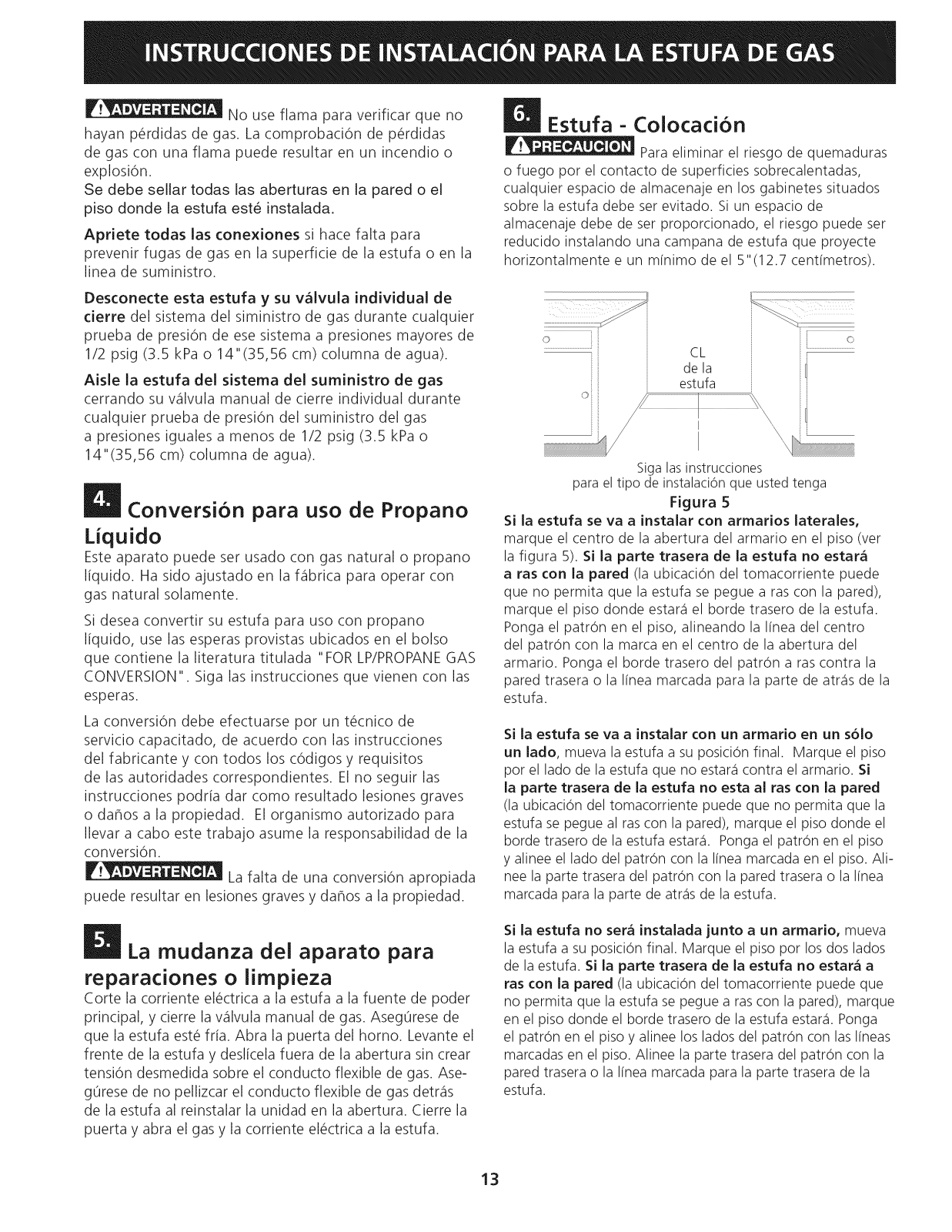

r_ "- • '- Do not use a flame to check for leaks
from gas connections. Checking for leaks with a flame

may result in a fire or explosion.
All openings in the wall or floor where the range is to be

installed must be sealed.
Tighten all connections if necessary to prevent gas

leakage in the cooktop or supply line.
Disconnect this range and its individual shutoff

valve from the gas supply piping system during any
pressure testing of the system at test pressures greater
than 1/2 psig (3.5 kPa or 14" water column).

Isolate the range from the gas supply piping system
by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa or 14"

water column).

LP/Propane Gas Conversion

This appliance can be used with Natural gas or LP/
Propane gas. It is shipped from the factory for use with
natural gas.

If you wish to convert your range for use with LP/
Propane gas, use the supplied fixed orifices located in a
bag containing the literature marked "FOR LP/PROPANE
GAS CONVERSION." Follow the instructions packaged

with the orifices.
The conversion must be performed by a qualified service

technician in accordance with the manufacturer's
instructions and all local codes and requirements. Failure

to follow these instructions could result in serious injury
or property damage. The qualified agency performing
this work assumes responsibility for the conversion.

Failure to make the appropriate

conversion can result in personal injury and property
damage.

Moving the Appliance for

Servicing and Cleaning

Turn off the range line fuse or circuit breakers at the
main power source, and turn off the manual gas shut-off
valve. Make sure the range is cold. Open the oven door.
Lift the range at the front and slide it out of the cut-out
opening without creating undue strain on the flexible
gas conduit. Make sure not to pinch the flexible gas
conduit at the back of the range when replacing the unit
into the cut-out opening. Close the door and switch on
the electrical power and gas to the range.

e Placement

To eliminate the risk of burns or fire

from reaching over heated surface units, cabinet storage
space located above the range should be avoided. If
cabinet storage space is to be provided, the risk can

be reduced by installing a range hood that projects
horizontally a minimum of 5" (12.7 cm) beyond the

bottom of the cabinet.

......i ii

J

Center
Line of

Range

i
i

J

i

I \\\\\

Follow instructions for

the type of installation you have

Figure 5

If range will be installed with a cabinet on both
sides, draw a center line on the floor between the

cabinets (see figure 5). If back of range will not be
flush with the wall (the location of the outlet may not
allow the range to be positioned against the wall), draw
a line on the floor where the back edge of the range will
be. Now install anti-tip bracket (see "Anti-Tip Bracket
Installation", page 8).

If range will be installed with a cabinet on one
side only, move the range into final position. Draw a
line on the floor along the side of the range that is not
against the cabinet. If back of range will not be flush
with the wall (the location of the outlet may not allow
the range to be positioned against the wall), draw a
line on the floor where the back edge of the range will
be. Now install anti-tip bracket (see "Anti-Tip Bracket
Installation", page 8).

If range will not be installed against a cabinet, move
range into final position. Draw a line on the floor along
both sides of the range. If back of range will not be
flush with the wall (the location of the outlet may not
allow the range to be positioned against the wall), draw
a line on the floor where the back edge of the range will
be. Now install anti-tip bracket (see "Anti-Tip Bracket
Installation", page 8).

'\

i

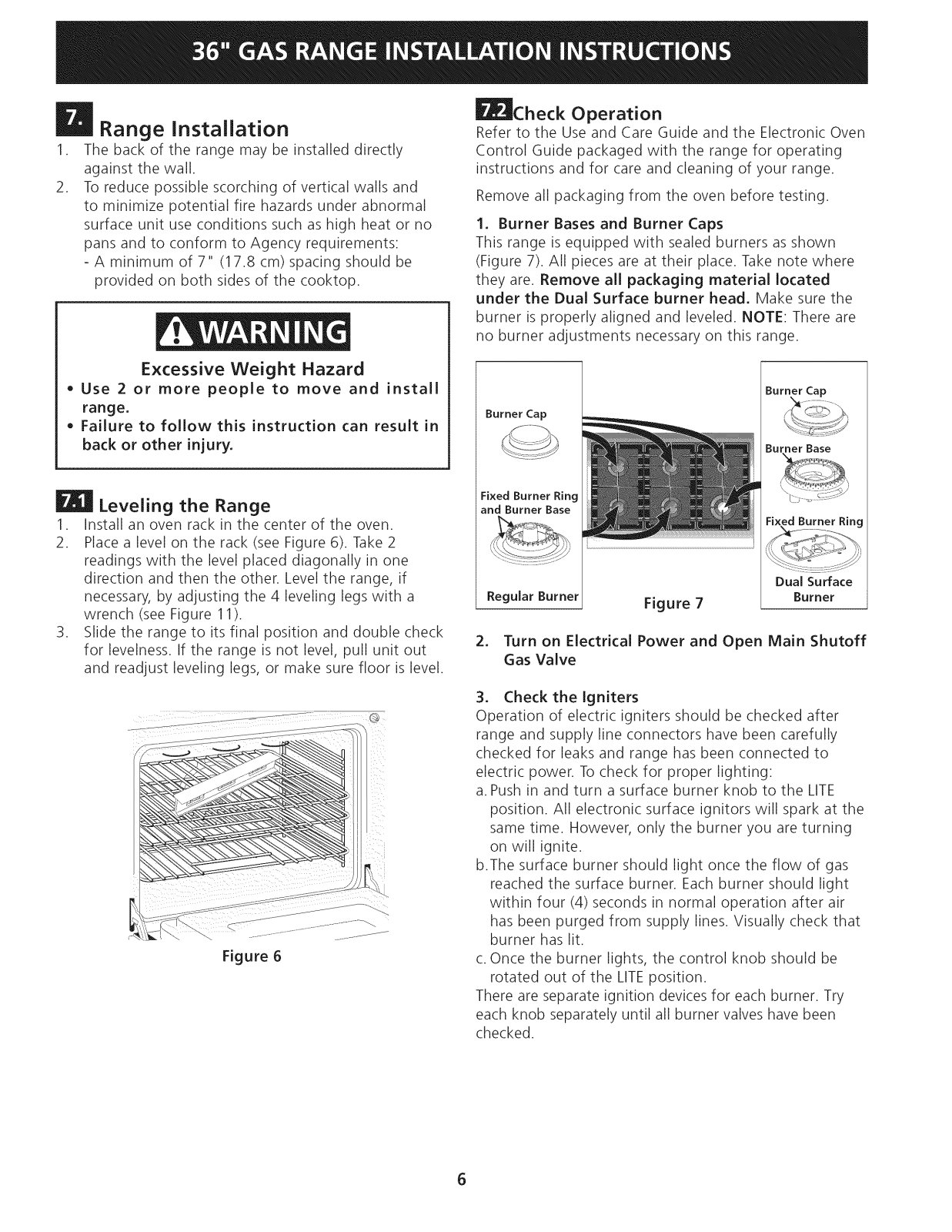

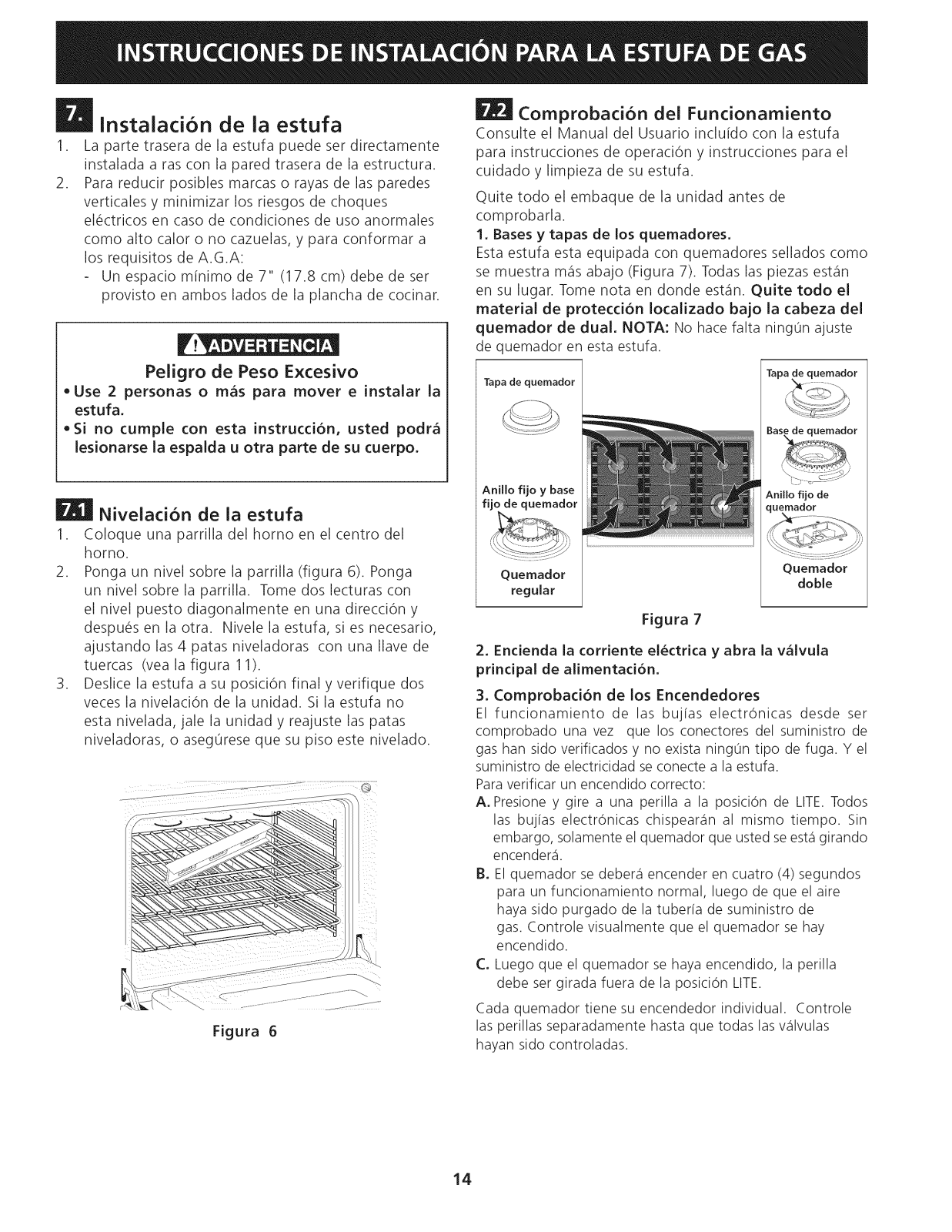

Range Installation

1. The back of the range may be installed directly
against the wall.

2. To reduce possible scorching of vertical walls and
to minimize potential fire hazards under abnormal
surface unit use conditions such as high heat or no
pans and to conform to Agency requirements:

- A minimum of 7" (17.8 cm) spacing should be

provided on both sides of the cooktop.

Excessive Weight Hazard

• Use 2 or more people to move and install
range.

• Failure to follow this instruction can result in
back or other injury.

_Check Operation
Refer to the Use and Care Guide and the Electronic Oven

Control Guide packaged with the range for operating
instructions and for care and cleaning of your range.

Remove all packaging from the oven before testing.

1. Burner Bases and Burner Caps
This range is equipped with sealed burners as shown
(Figure 7). All pieces are at their place. Take note where

they are. Remove all packaging material located
under the Dual Surface burner head. Make sure the

burner is properly aligned and leveled. NOTE: There are
no burner adjustments necessary on this range.

Burner Cap

Burner Cap

k4_--

Burner Base

Leveling the Range

1. Install an oven rack in the center of the oven.

2. Place a level on the rack (see Figure 6). Take 2
readings with the level placed diagonally in one

direction and then the other. Level the range, if
necessary, by adjusting the 4 leveling legs with a

wrench (see Figure 11).

3. Slide the range to its final position and double check
for levelness. If the range is not level, pull unit out

and readjust leveling legs, or make sure floor is level.

Figure 6

Fixed Burner Ring
and Burner Base

Regular Burner

Figure 7

Fixed Burner Ring

Dual Surface

Burner

2. Turn on Electrical Power and Open Main Shutoff
Gas Valve

3. Check the Igniters

Operation of electric igniters should be checked after
range and supply line connectors have been carefully
checked for leaks and range has been connected to
electric power. To check for proper lighting:

a. Push in and turn a surface burner knob to the LITE

position. All electronic surface ignitors will spark at the
same time. However, only the burner you are turning
on will ignite.

b.The surface burner should light once the flow of gas

reached the surface burner. Each burner should light
within four (4) seconds in normal operation after air
has been purged from supply lines. Visually check that

burner has lit.

c. Once the burner lights, the control knob should be

rotated out of the LITEposition.
There are separate ignition devices for each burner. Try
each knob separately until all burner valves have been

checked.
