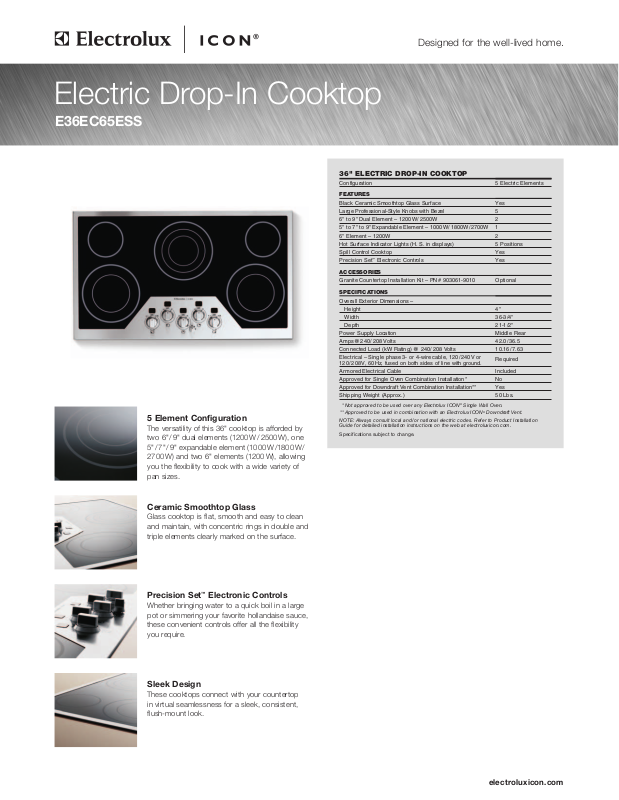

36" ELECTRIC DROP-IN COOKTOP
Configuration
FEATURES
Black Ceramic Smoothtop Glass Surface
Large Professional-Style Knobs with Bezel
6" to 9" Dual Element – 1200W/ 2500W
5" to 7" to 9" Expandable Element – 1000W/ 1800W/2700W
6" Element – 1200W
Hot Surface Indicator Lights (H. S. in displays)
Spill Control Cooktop
Precision Set™Electronic Controls
ACCESSORIES
Granite Countertop Installation Kit – PN# 903061-9010
SPECIFICATIONS
Overall Exterior Dimensions –
Height
Width
Depth
Power Supply Location
Amps@ 240/208 Volts
Connected Load (kW Rating) @ 240/ 208 Volts
Electrical – Single phase 3- or 4-wire cable, 120/ 240V or
120/ 208V, 60Hz, fused on both sides of line with ground.
Armored Electrical Cable
Approved for Single Oven Combination Installation*
Approved for Downdraft Vent Combination Installation**
Shipping Weight (Approx.)
* Not approved to be used over any Electrolux ICON®Single Wall Oven.
** Approved to be used in combination with an Electrolux ICON®Downdraft Vent.
NOTE: Always consult local and/ or national electric codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
5 Electric Elements
Yes
5
2
1
2
5 Positions
Yes
Yes
Optional
4"
36-3/4"
21-1/2"
Middle Rear
42.0/ 36.5
10.16/ 7.63
Required
Included
No
Yes
50 Lbs.
electroluxicon.com
5 Element Configuration
The versatility of this 36" cooktop is afforded by
two 6"/9" dual elements (1200W/ 2500 W), one
5"/7"/9" expandable element (1000W /1800 W /
2700W) and two 6" elements (1200W), allowing
you the flexibility to cook with a wide variety of
pan sizes.
Ceramic Smoothtop Glass
Glass cooktop is flat, smooth and easy to clean
and maintain, with concentric rings in double and
triple elements clearly marked on the surface.
Precision Set™Electronic Controls
Whether bringing water to a quick boil in a large
pot or simmering your favorite hollandaise sauce,
these convenient controls offer all the flexibility
you require.
Sleek Design
These cooktops connect with your countertop
in virtual seamlessness for a sleek, consistent,
flush-mount look.
Designed for the well-lived home.
Electric Drop-In Cooktop
E36EC65ESS
Electric Drop-In Cooktop
E36EC65ESS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352
•
electroluxicon.ca
E36EC65ESS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
36" Electric Drop-In Cooktop Specifications
•
Product Weight – 44 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 10.16/7.63kW
•
Amps @ 240/208 Volts = 42.0/36.5 Amps
•
Always consult local and/or national electric codes.
•
Allow 2" space below armored cable opening to clear electrical
cable and allow space for installation of junction box on wall at back
of cooktop.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
•
Allow 7-1/2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
It is recommended that drawers not be used beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Electric Drop-In Cooktop model E36EC65ESS is NOT approved to be
used over any Electrolux ICON®Single Wall Oven.
•
Electric Drop-In Cooktop model E36EC65ESS is approved to be used in
combination with an Electrolux ICON®36” Downdraft Vent. (Refer to
Drop-In Cooktop/Downdraft Vent Countertop Preparation page on web
for detailed installation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN# 903061-9010).

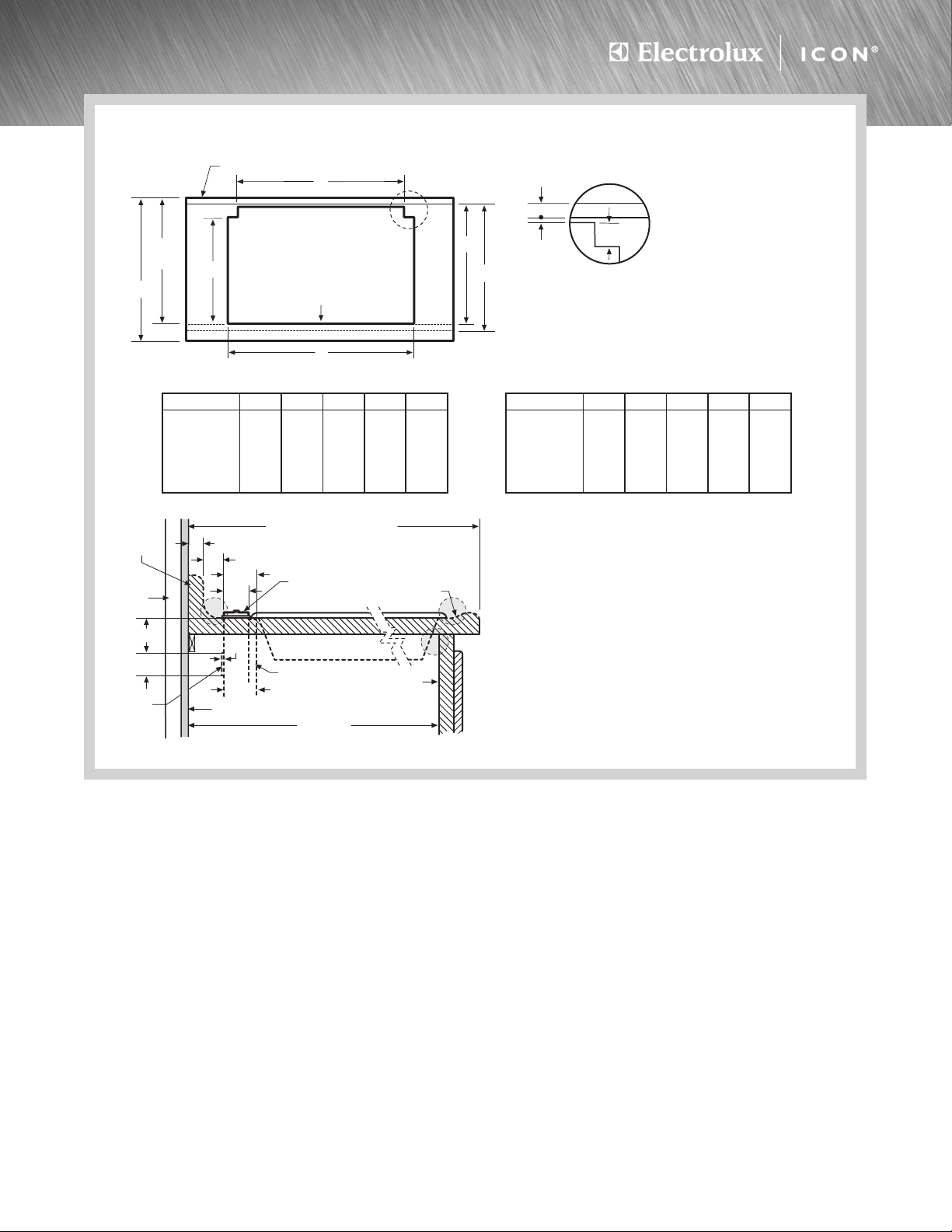

355/8"min.
36"max.
Approximate location
of junction box
4"x 8" opening to route
armoured cable
6" min.
25"min.
71/2" min. to nearest
combustible wall
(either side of unit)
24"
2" min. recommended
distance between rear
edge of cutout and
nearest combustible
surface above countertop
10"
12"
201/4" min.
20
1
/2" max.
21/2"
max.
363/4"
211/2"
4"
36 3/4"
13"
max.
cabinet
depth
18"
min.
30" min. for
unprotected cabinet
24" min. for
protected surface
Side inset 3/8"
