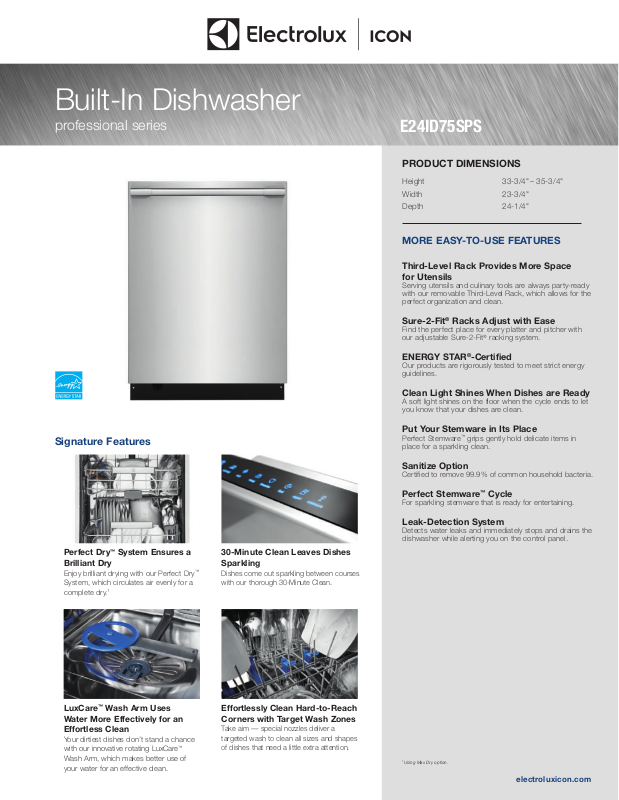

Built-In Dishwasher
professional series
E24ID75SPS
PRODUCT DIMENSIONS
Height 33-3/4" – 35-3/4"
Width 23-3/4"
Depth 24-1/4"
MORE EASY-TO-USE FEATURES
Third-Level Rack Provides More Space
for Utensils
Serving utensils and culinary tools are always party-ready
with our removable Third-Level Rack, which allows for the
perfect organization and clean.
Sure-2-Fit® Racks Adjust with Ease
Find the perfect place for every platter and pitcher with
our adjustable Sure-2-Fit
ENERGY STAR®-Certified
Our products are rigorously tested to meet strict energy
guidelines.
Clean Light Shines When Dishes are Ready
A soft light shines on the floor when the cycle ends to let
you know that your dishes are clean.
®
racking system.
Signature Features
Perfect Dry™ System Ensures a
Brilliant Dry
Enjoy brilliant drying with our Perfect Dry™
System, which circulates air evenly for a
complete dry.
LuxCare™ Wash Arm Uses
Water More Effectively for an
Effortless Clean
Your dirtiest dishes don’t stand a chance
with our innovative rotating LuxCare
Wash Arm, which makes better use of
your water for an effective clean.
1
Put Your Stemware in Its Place
Perfect Stemware™ grips gently hold delicate items in
place for a sparkling clean.
Sanitize Option
Certified to remove 99.9% of common household bacteria.
Perfect Stemware™ Cycle
For sparkling stemware that is ready for entertaining.
Leak-Detection System
Detects water leaks and immediately stops and drains the
dishwasher while alerting you on the control panel.
30-Minute Clean Leaves Dishes
Sparkling
Dishes come out sparkling between courses
with our thorough 30-Minute Clean.
Effortlessly Clean Hard-to-Reach
Corners with Target Wash Zones
Take aim — special nozzles deliver a
™
targeted wash to clean all sizes and shapes
of dishes that need a little extra attention.
1
Using Max Dry option.
electroluxicon.com
Built-In Dishwasher
E24ID75SPS professional series
BUILT-IN DISHWASHER
FEATURES
Stainless Steel Interior
Luxury-Hold™ Door
Custom-Set™ Options
Theatre LED Lighting
Integrated IQ-Touch
LED Indicator Lights
Tall-Tub Design
ProClean
LuxCare
Luxury-Clean
Luxury-Quiet
Wash Levels
Aqua-Lux
Leak-Detection System
Adjustable Rinse Aid Dispenser with Indicator
ENERGY STAR
CYCLES
Auto Wash
Delicate
Eco Wash
Favorite
Heavy
Normal
Perfect Stemware
30-Min. Fast Wash
Rinse Only
Upper Rack
OPTIONS
Hi-Temp. Wash
Air Dry
Max Dry
Sanitize Option
Delay Start
RACK SYSTEM
Sure-2-Fit® Rack System
Upper Rack –
Adjustable Height
Cup Clips
Cup Shelf / Stemware Holder
Fold-Down Tines
Rack Handle
Versa-Tray
Lower Rack –
Fold-Down Tines
Knife Holder
Utility Tray / Shelf
Stemware / Champagne Glass Holders
Silverware Basket
Special Items Cover
Third-Level Rack (Single Tray)
SPECIFICATIONS
Power Supply Connection Location
Water Inlet Location
Leveling Legs
Water Usage (Gallons) – Normal Cycle
Water Pressure (PSI)
Integral Air Gap on Supply
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
‡
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate
ground wire. Appliance must be grounded for safe operation.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
™
Controls
™
Wash System
™
Wash Arm
™
Technology
™
Sound Package / (Approx. dBA)
™
Wash System
®
™
™
‡
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Direct Feed
Yes
Yes
Yes / 45.0
5
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
1-24 Hrs.
Yes
Yes
Yes
2 / Yes
4 Rows
Yes
Yes
4
Yes
6
3-Piece Split
3
Yes
Right Bottom Front
Left Bottom Front
Yes
4.0 – 8.0
15 – 120
Yes
120V / 60 Hz / 15A
1.44
15
115 Lbs.
PRODUCT DIMENSIONS
Height (Adjustable)
Width
Depth (Including Door)
(with Door 90° Open)
33-3/4" – 35-3/4"
23-3/4"
24-1/4"
50-1/4"
Electrolux Major Appliances, N.A.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-877-4electrolux (1-877-435-3287) • electroluxicon.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxicon.ca
E24ID75SPS 12/16 © 2016 Electrolux Home Products, Inc.
Meets
requirements of
ASSE 1006
High standards of quality at Electrolux Home Products, Inc.
mean we are constantly working to improve our products.
We reserve the right to change specifications or
discontinue models without notice.
Built-In Dishwasher
E24ID75SPS professional series
Front
23
3/4"
*Height only adjustable to 35
33
3/4"
Adjustable
*
3/4"
to 35
3/4" max. when installed in 35
Left
24
1/4"
3/4" max.
standard cabinetry cutout. (Dimensions do NOT include insulation –
insulation blanket may be compressed during installation.)
90°
34"
min. to
35
3/4"
**
max.
24"
min.
3
"
3
1/2" min. to
4
1/2" max.
11/4"
underside of countertop.)
Electrical, water,
and drain lines
must be confined
to shaded area
Preferred
drain areas
3
"
**
NOTE: 35
3/4"
height for standard
cabinetry cutout.
(5/16" min. clearance
required from unit to
max.
24"
18"
3"
1"
1
/4"21/4"
2
Door in 90°
open position
27
90°
Right
1/4"
50
3/4"
Power supply & water inlet location
(bottom rear)
22
1/2"
Built-In Dishwasher Specifications
•
Product Weight – 98 Lbs.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 9.0 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006.
•
Water Pressure – Hot water line to dishwasher must provide between
15 and 120 pounds per square inch (psi) with at least 120° F hot water
temperature.
•
Make sure location has correct drain, water and electrical outlets to make
connections.
•
Electrical and water supplies should enter cabinet opening on floor, or
through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
Connections preferably located toward left side of dishwasher. Do not
cross drain, water or electrical lines in front of motor, blower or frame.
•
If connecting drain hose to sink trap, local code may require installation of
Air Gap Kit (not included).
•
Leveling legs supplied to adjust height. (Note: Height only adjustable to
35-3/4" max. when installed in 35-3/4" max. standard cabinetry cutout.
5/16" min. clearance required from top of unit to underside of countertop.
Dimensions do NOT include insulation — insulation blanket may be
compressed during installation.)
•
When installing adjacent to wall, cabinet or other obstruction that extends
beyond front edge of unit, allow 2" minimum clearance between opened
door and obstruction.
•
Floor should be flat and free of obstructions.
•
When installing at end of cabinet line, sides and back must be fully
enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moisture-proof
polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
