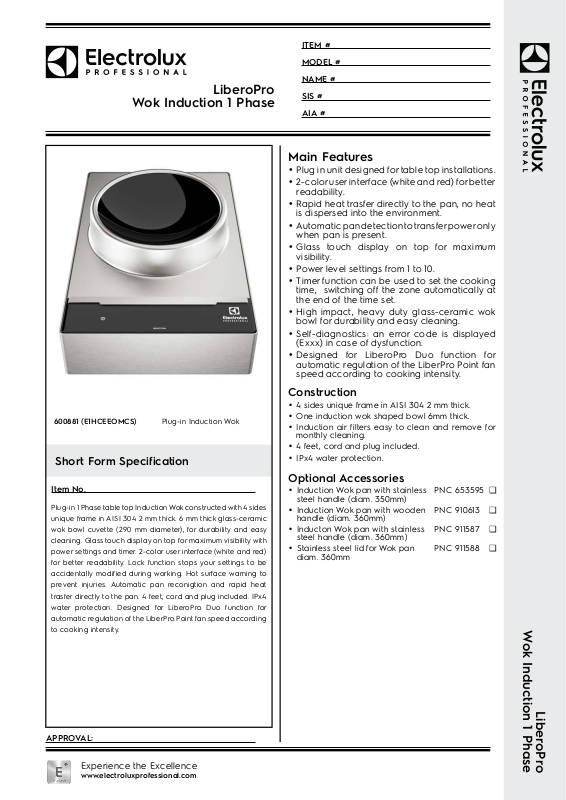

Electrolux E1HCEEOMCS Datasheet
|
|
|
|
|
|
ITEM # |
|
|
|
|
|
|
|
|
|
MODEL # |
|
|
|
|
|
LiberoPro |
|
NAME # |
|
|
|
||
|
|
|
SIS # |
|
|
|
|||
|
Wok Induction 1 Phase |
|
|
|
|
||||
|
|
AIA # |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main Features |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
∙ Plug in unit designed for table top installations. |
||||
|
|
|
|
|
∙ 2-coloruserinterface (white and red) forbetter |
||||
|
|
|
|
|
readability. |
|
|
|
|
|
|
|
|
|
∙ Rapid heat trasfer directly to the pan, no heat |
||||
|
|
|
|
|
is dispersed into the environment. |
|
|
||
|
|
|
|
|
∙ Automaticpandetectiontotransferpoweronly |
||||
|
|
|
|
|
when pan is present. |
|
|
|
|
|
|
|
|
|
∙ Glass touch display on top for maximum |
||||
|
|
|
|
|
visibility. |
|
|
|
|
|
|
|
|
|
∙ Power level settings from 1 to 10. |
|
|
||
|
|
|
|
|
∙ Timer function can be used to set the cooking |
||||
|
|
|
|
|
time, switching off the zone automatically at |
||||
|
|
|
|
|
the end of the time set. |
|
|
|
|
|
|
|
|
|
∙ High impact, heavy duty glass-ceramic wok |
||||
|
|
|
|
|
bowl for durability and easy cleaning. |
|
|
||
|
|
|
|
|
∙ Self-diagnostics: an error code is displayed |
||||
|
|
|
|
|
(Exxx) in case of dysfunction. |
|
|
|
|
|
|
|
|
|
∙ Designed for LiberoPro Duo function for |
||||
|
|
|
|
|
automatic regulation of the LiberPro Point fan |
||||
|
|
|
|
|
speed according to cooking intensity. |
|
|
||
|
|
|
|
|
Construction |
|
|
|
|
|
|
|
|
|
∙ 4 sides unique frame in AISI 304 2 mm thick. |
|
|
||
|
600881 (E1HCEEOMCS) |
Plug-in Induction Wok |
|
∙ One induction wok shaped bowl 6mm thick. |
|
|
|||
|
|
∙ Induction air filters easy to clean and remove for |
|||||||
|
|
|
|
|
|||||
|
|
|
|
|
monthly cleaning. |
|
|
|
|
|
|
|
|
|
∙ 4 feet, cord and plug included. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Short Form Specification |
|
∙ IPx4 water protection. |
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
Optional Accessories |
|
|
|
|
|
Item No. |
|
|
|
|
|
|
||
|
|
|
|
∙ Induction Wok pan with stainless |
PNC 653595 |
||||
|
Plug-in 1 Phase table top InductionWok constructed with 4 sides |
|
steel handle (diam. 350mm) |
|
|
|
|||
|
|
∙ Induction Wok pan with wooden |
PNC 910613 |
|
|||||
|
unique frame in AISI 304 2 mm thick. 6 mm thick glass-ceramic |
|
handle (diam. 360mm) |
|
|
|
|||
|
wok bowl cuvette (290 mm diameter), for durability and easy |
|
∙ Inducton Wok pan with stainless |
PNC 911587 |
|
||||
|
cleaning. Glass touch display on top for maximum visibility with |
|
steel handle (diam. 360mm) |
|
|
|
|||
|
|
∙ Stainless steel lid for Wok pan |
PNC 911588 |
|
|||||
|
power settings and timer. 2-color user interface (white and red) |
|
|||||||
|
|
diam. 360mm |
|
|
|
||||
|
for better readability. Lock function stops your settings to be |
|
|
|
|
||||
|
|
|
|
|
|
|
|||
|
accidentally modified during working. Hot surface warning to |
|
|
|
|
|
|
||
|
prevent injuries. Automatic pan reconigtion and rapid heat |
|
|
|
|
|
|
||
|
trasfer directly to the pan. 4 feet, cord and plug included. IPx4 |
|
|
|
|
|
|
||
|
water protection. Designed for LiberoPro Duo function for |
|
|
|
|
|
|
||
|
automatic regulation of the LiberPro Point fan speed according |
|
|
|
|
|
|
||
|
to cooking intensity. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
APPROVAL:
Experience the Excellence
www.electroluxprofessional.com
<![endif]>LiberoPro
<![if ! IE]><![endif]>Phase 1 Induction Wok
LiberoPro
Wok Induction 1 Phase
|
|
Top |
|
|
Side |
EI |
= |
Electrical inlet (power) |
EO |
= |
Electrical Outlet |
|
|
Other |
Electric
Supply voltage: |
|
600881 (E1HCEEOMCS) |
220-240 V/1N ph/50-60 Hz |
Total Watts: |
3.5 kW |
Plug type: |
CE-SCHUKO |
Minimum Circuit Ampacity |
16A |
(MCA): |
|
Key Information: |
|
External dimensions, Width: |
400 mm |
External dimensions, Height: |
229 mm |
External dimensions, Depth: |
600 mm |
Net weight: |
21 kg |
Top area width: |
400 mm |
Top area depth: |
397 mm |
LiberoPro
Wok Induction 1 Phase
The company reserves the right to make modifications to the products without prior notice. All information correct at time of printing.
2021.06.25
