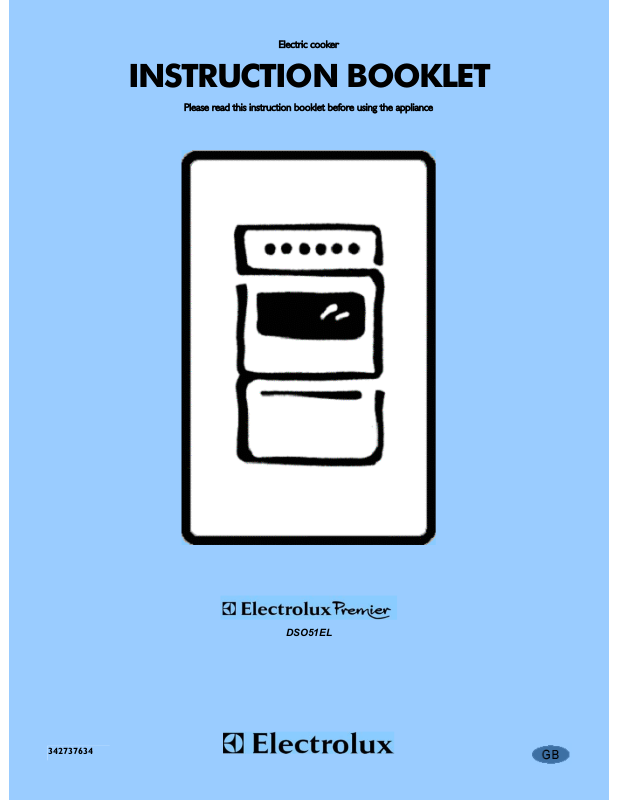

Electrolux DSO51EL User Manual

Electric cooker

INSTRUCTION BOOKLET

Please read this instruction booklet before using the appliance

342737634

DSO51EL

WARNINGS

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings. These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Installation

• This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards.

• This cooker is heavy. Take care when moving it.

• Remove all packaging before using the cooker.

• Ensure that the electrical supply complies

with the type stated on the rating plate.

• Do not attempt to modify the cooker in any way.

Child Safety

• This cooker is designed to be operated by adults. Do not alow children to play near or with the cooker.

• The cooker gets hot when it is in use and retain their heat for a long period after use. Children should be kept away until it has cooled.

• Children can also injure themselves by pulling pans or pots off the cooker.

During use

• Never leave the cooker unattended when cooking with oil and fats.

• This cooker should be kept clean at all times. A build-up of fats or foodstuffs could result in a fire.

• Only clean this oven in accordance with the instructions.

• Never use plastic dishes in the oven or on the hob hotplates. Never line any part of the oven with aluminium foil.

• Always ensure that the oven vent which is located at the centre back of the hob is left unobstructed to ensure ventilation of the oven cavity.

• Perishable food, plastic items and aerosols may be affected by heat and should not be stored above the cooker.

Service

• This cooker should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

• This cooker is intended for domestic cooking only. It is not designed for commercial or industrial purposes.

• Do not use this cooker if it is in contact with water. Do not operate the cooker with we hands.

• The grill pan will become hot during use, always use oven gloves when removing o replacing a hot grill pan.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• Ensure the control knobs are in the ‘OFF’ position when not in use.

• When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooker.

• Unstable or misshapen pans should not be used on the hob hotplates as unstable pans can cause an accident by tipping or spillage.

Environmental Information

• After installation, please dispose of the packaging with due regard to safety and the environment.

• When disposing of an old appliance, make it unusable, by cutting off the cable.

our safety is of paramount importance.

Therefore, if you are unsure about any of the meanings of these WARNINGS, contact the:

Customer Care Departement Telephone: 08705 950950

Instructions for the Installer

CONTENTS

Technical features

Installation

Location

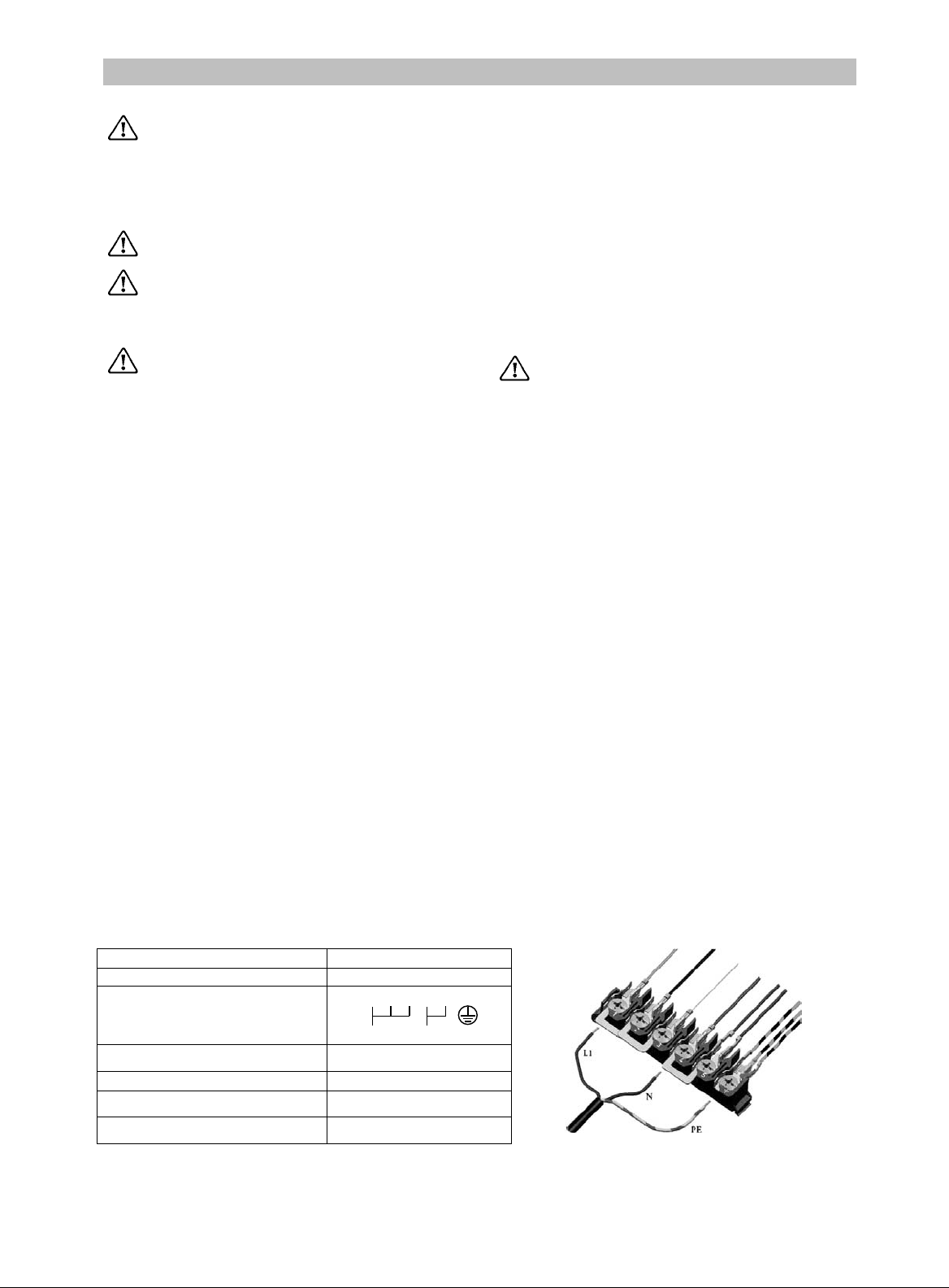

Electrical connections

Instructions for the User

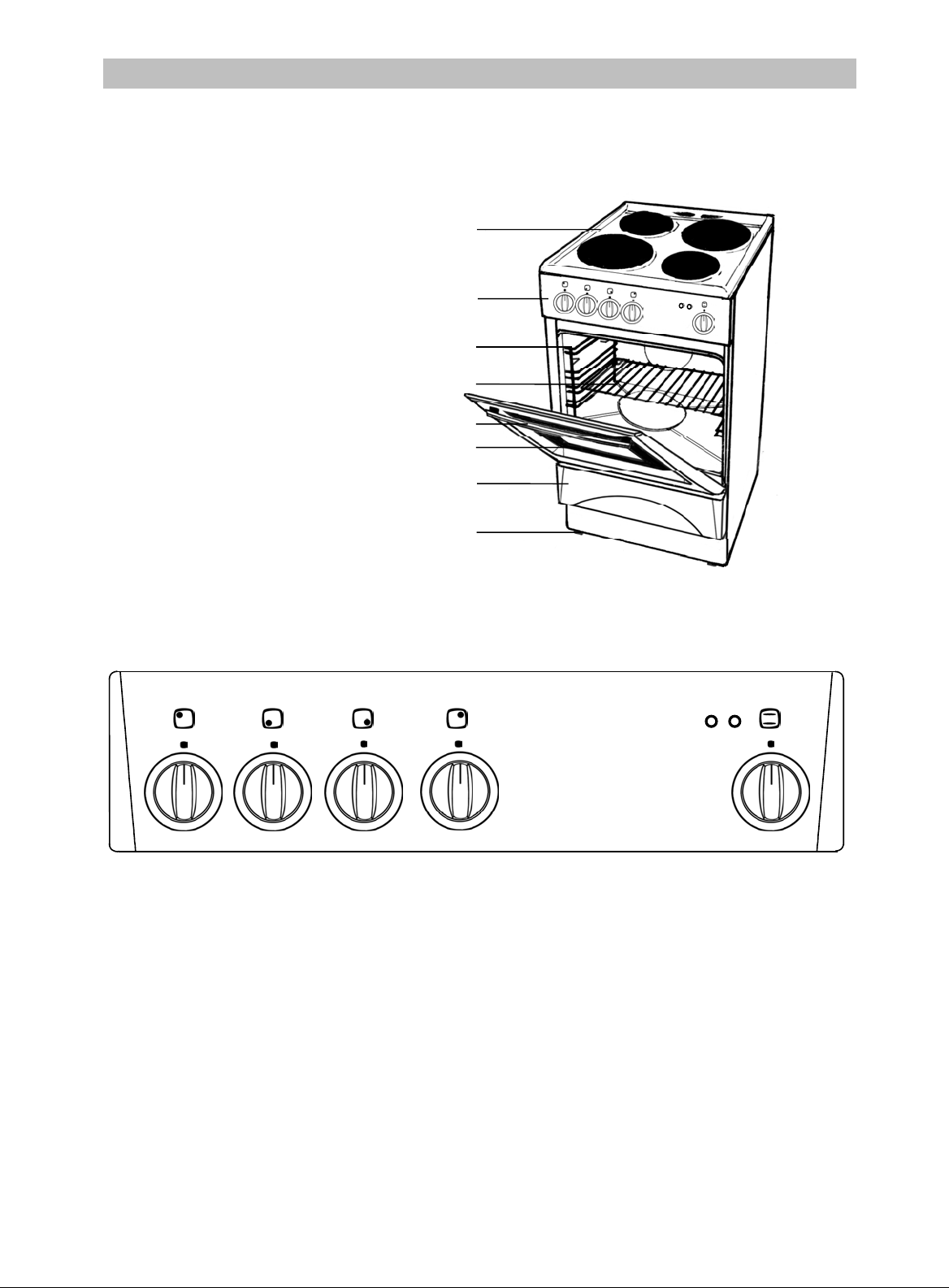

Use and care

Before the first use of the oven

Electric oven

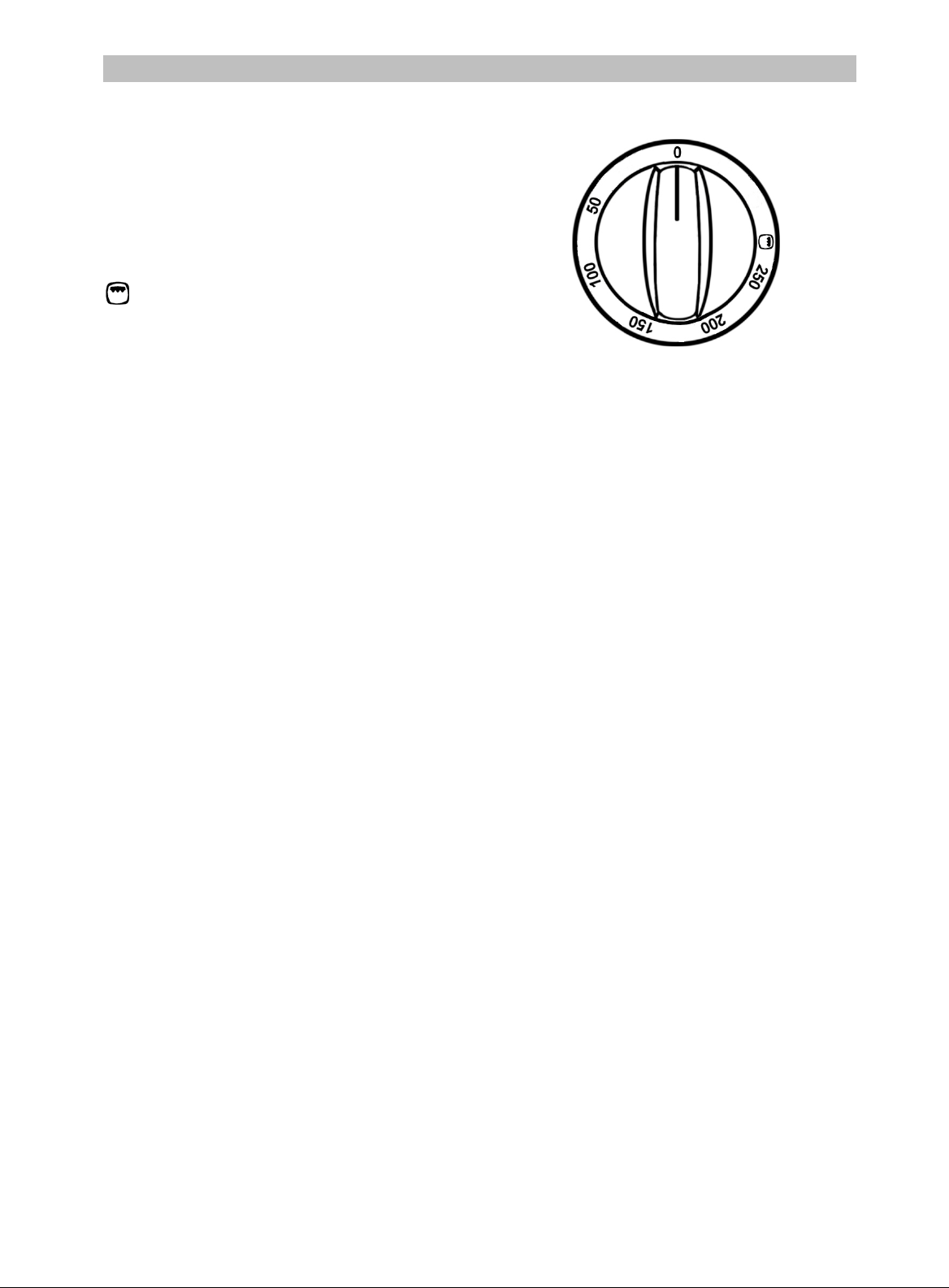

- Oven function control knob

Cooking in the oven

Grilling

Hints and tips

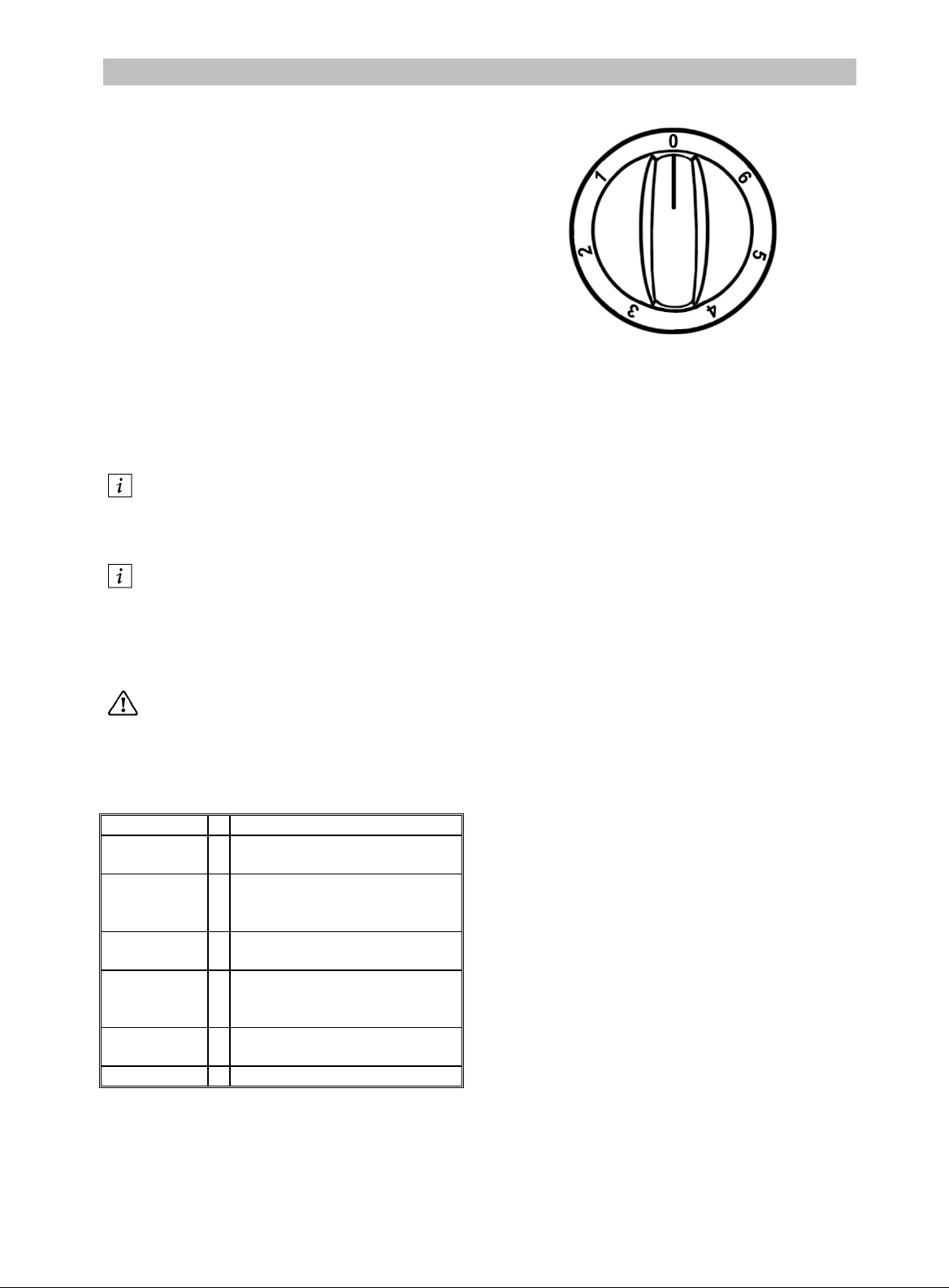

Electric hotplates

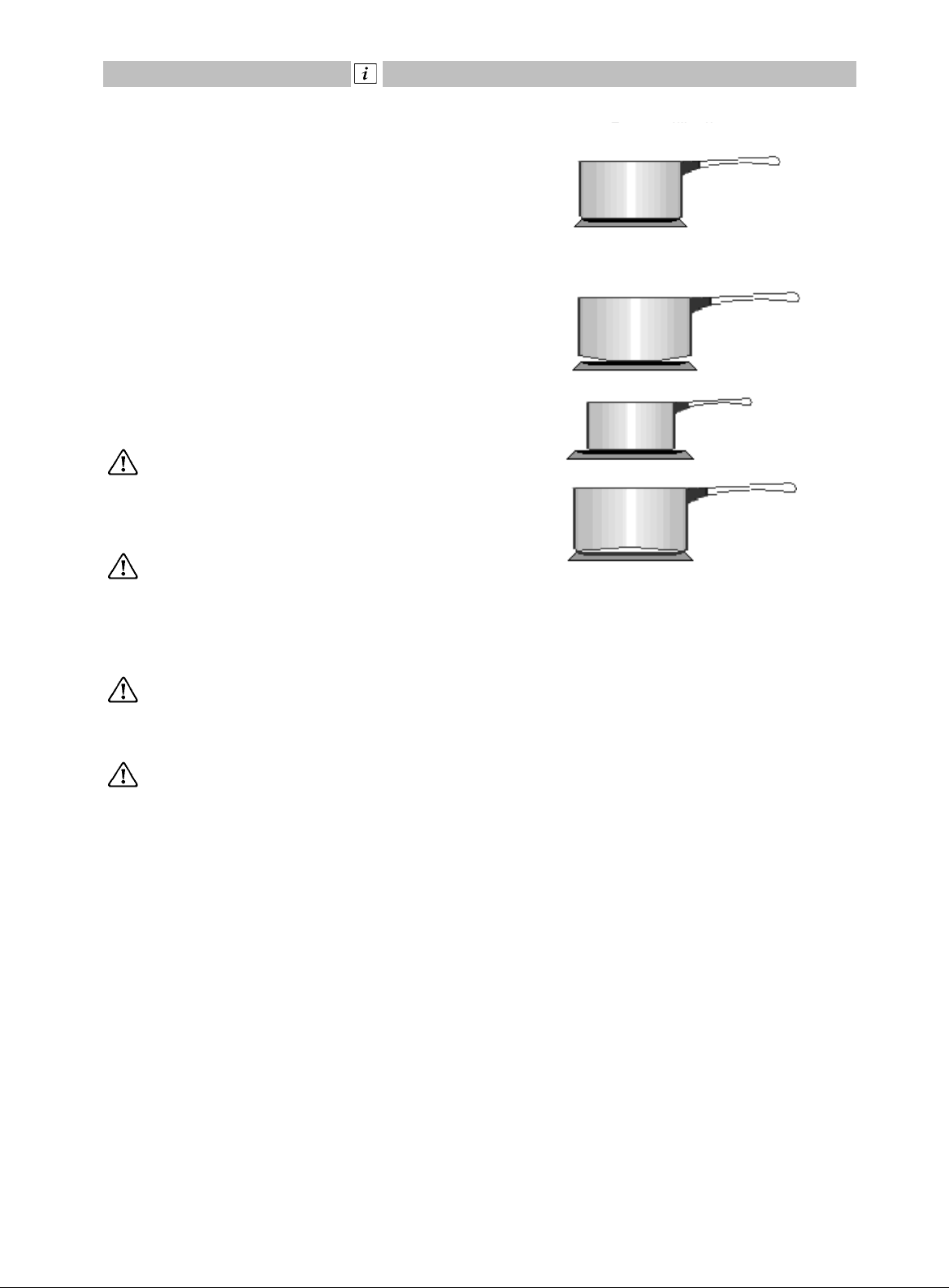

Hints and tips

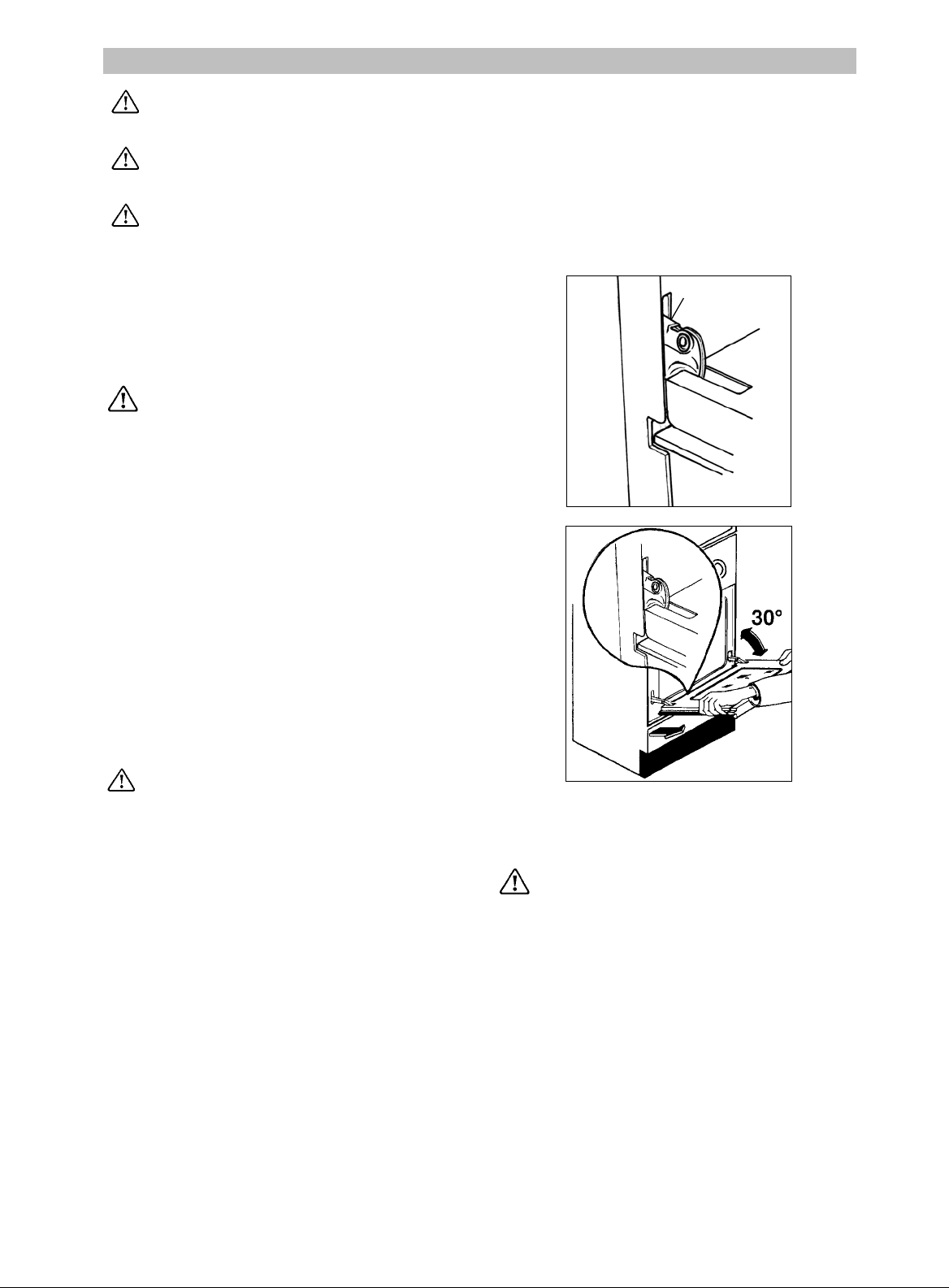

Maintenance and cleaning

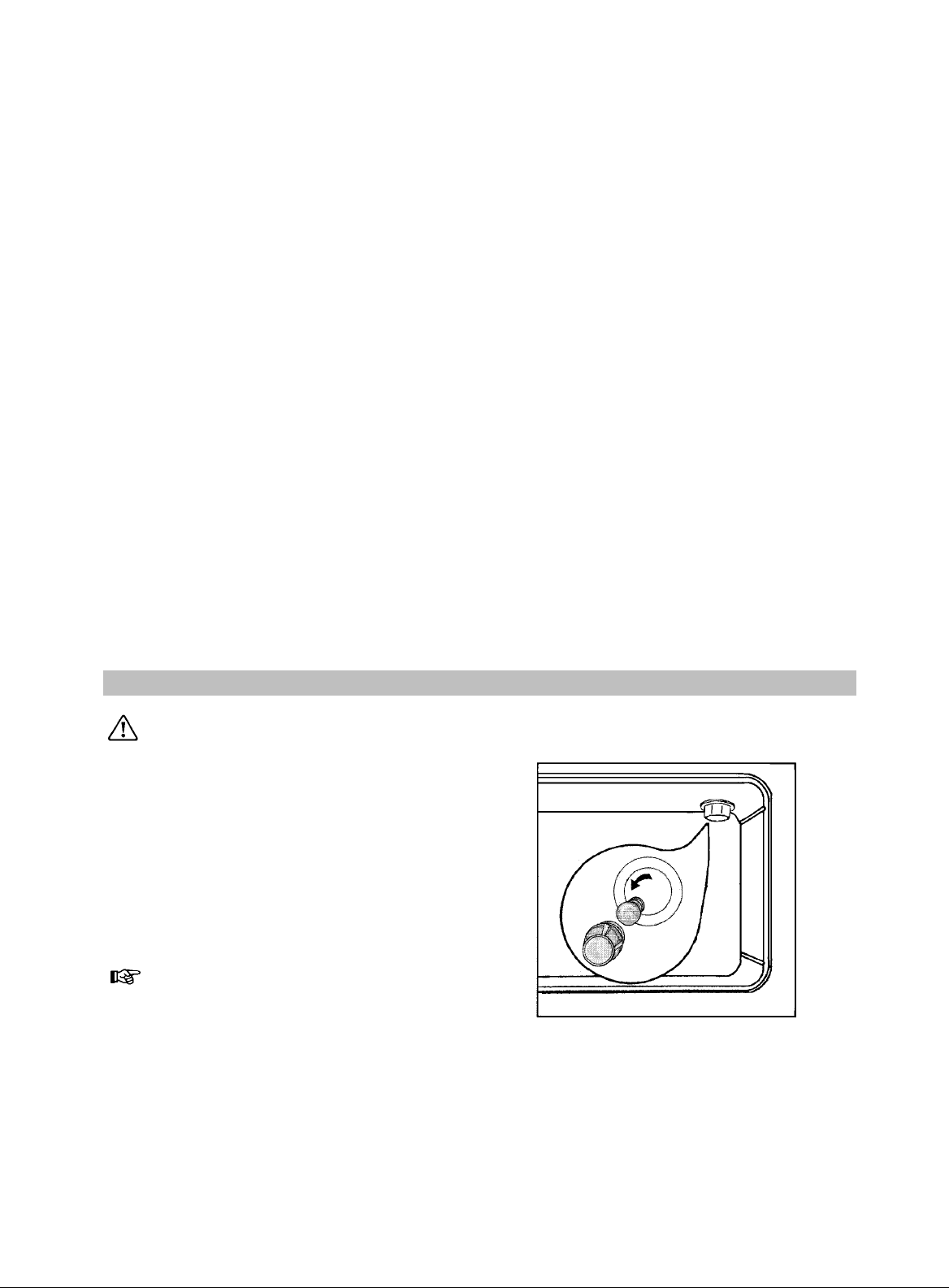

Oven bulb replacement

10 10

Something Not Working

Service and spare parts

Guarantee Conditions

How to read the instruction book

The symbols below will guide you when reading the

instruction book

Safety instructions

Step by Step Operation

Advice and recommendations

Environmental Information

INSTRUCTIONS FOR THE INSTALLER

TECHNICAL FEATURES

Dimensions Height

Width Depth Oven Capacity

Hob Front left

Back left Front right Back right

Total hob rating 5500 - 5760 W

Oven

Supply Rated voltage

Oven element Grill element Light in the oven Cleaning

Total oven rating 1850 - 1925 W

Rated frequency

Hob element Ø 180 mm Hob element Ø 145 mm Hob element Ø 145 mm Hob element Ø 180 mm

900 mm 500 mm 600 mm

49 l

2000 - 2090 W 1000 - 1050 W 1000 - 1050 W 1500 - 1570 W

1650 - 1700 W 1825 - 1900 W

Lamp 25W type E14

manual

230 - 240 V

50 Hz

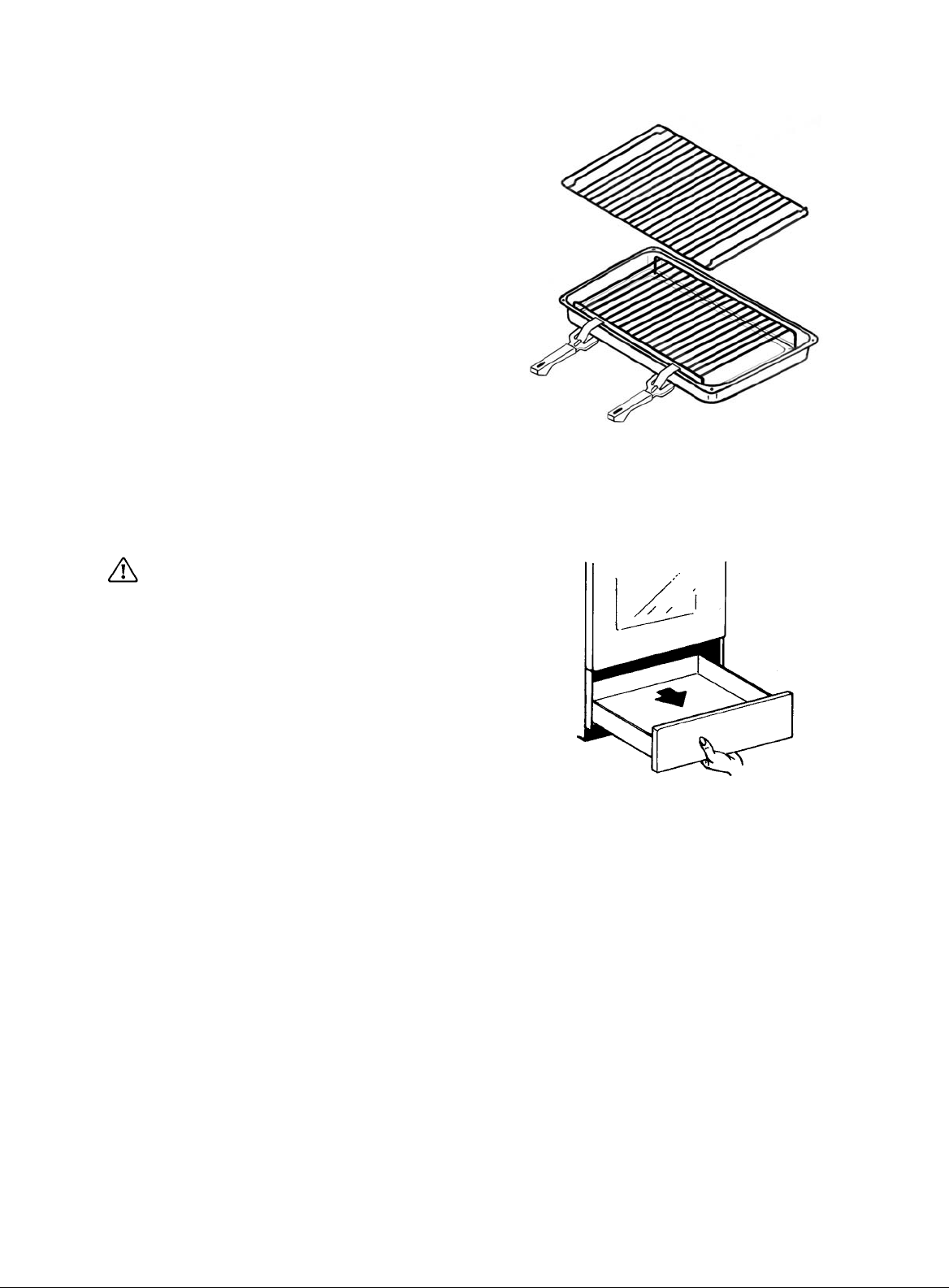

Accessories Oven grid

Roasting tray / grill pan Trivet 2 handles

Total cooker rating

This appliance complies with: European Council Directive 73/23/EEC EMC Directive 89/336/EEC CE Marking Directive 93/68/EEC

7350 - 7685 W

INSTALLATION

This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions.

The appliance must be installed in accordance with " X " specification (EN60.335-2.6). The cooker must not be installed higher than the worktop.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

LOCATION

The cooker has been registered as a “Class X”appliance according to Fire Risk Regulations. Any adjacent cabinets or walls must not exceed the cooker’s height.

The cooker may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom, shower room or garage.

Before your appliance is connected to the mains electricity supply, check to ensure that the voltage and the frequency shown on the rating plate corresponds with your supply voltage.

This appliance must be earthed.

600 mm

660 mm

min 150 mm

The minimum distance combustible material can be fitted above the cooker in line with the edges of the cooker is 660 mm (see fig.)

The appliance must be set on a heatproof floor. The adjustable feet must not be removed.

Levelling

The appliance is provided with adjustable small feet placed in the back and front corners of the base.

By adjusting the small feet it is possible to change the height of the appliance so as to ensure a better levelling with other surfaces and an even distribution of the liquids contained in pots and pans.

Electrolux Premier
