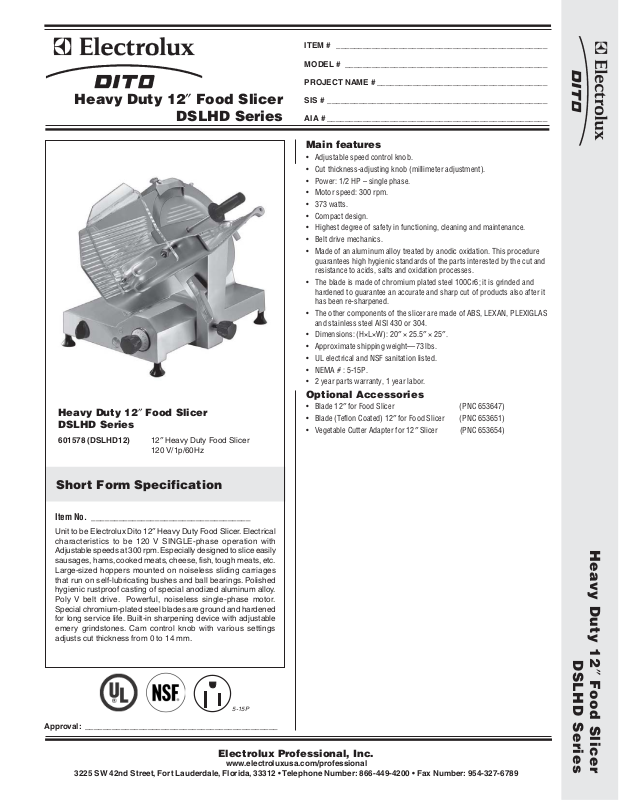

Electrolux 601578, DSLHD12 User Manual

ITEM # _______________________________________________

MODEL # _____________________________________________

PROJECT NAME # ______________________________________

Heavy Duty 12″ Food Slicer

DSLHD Series

Heavy Duty 12″ Food Slicer
DSLHD Series

601578 (DSLHD12) 12″ Heavy Duty Food Slicer

120 V/1p/60Hz

SIS # _________________________________________________

AIA # _________________________________________________

Main features

• Adjustable speed control knob.

• Cut thickness-adjusting knob (millimeter adjustment).

• Power: 1/2 HP – single phase.

• Motor speed: 300 rpm.

• 373 watts.

• Compact design.

• Highest degree of safety in functioning, cleaning and maintenance.

• Belt drive mechanics.

• Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.

• The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.

• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.

• Dimensions: (H×L×W): 20″ × 25.5″ × 25″.

• Approximate shipping weight—73 lbs.

• UL electrical and NSF sanitation listed.

• NEMA # : 5-15P.

• 2 year parts warranty, 1 year labor.

Optional Accessories

• Blade 12″ for Food Slicer (PNC 653647)

• Blade (Teflon Coated) 12″ for Food Slicer (PNC 653651)

• Vegetable Cutter Adapter for 12″ Slicer (PNC 653654)

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux Dito 12″ Heavy Duty Food Slicer. Electrical
characteristics to be 120 V SINGLE-phase operation with
Adjustable speeds at 300 rpm. Especially designed to slice easily
sausages, hams, cooked meats, cheese, fish, tough meats, etc.
Large-sized hoppers mounted on noiseless sliding carriages
that run on self-lubricating bushes and ball bearings. Polished
hygienic rustproof casting of special anodized aluminum alloy.
Poly V belt drive. Powerful, noiseless single-phase motor.
Special chromium-plated steel blades are ground and hardened
for long service life. Built-in sharpening device with adjustable
emery grindstones. Cam control knob with various settings
adjusts cut thickness from 0 to 14 mm.

5-15P

Approval: ___________________________________________

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

Heavy Duty 12″ Food Slicer

DSLHD Series

Heavy Duty 12″ Food Slicer

DSLHD Series

Front View

To p Vi e w

Electric

Supply voltage:
601578 (DSLHD12) 120 V/1p/60Hz – 3.1A

Key Information

The MECHANICAL SAFETY system includes:

- Blade guard

- Cover

- Meat pusher

- Hand cover on meat hopper

- Meat hopper + finger protection

The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the

slicer in case the tie rod for blade guard is removed; the micro­switch prevents from restarting the slicer if the guard has not
been set in the switch-off position.

Side View

Heavy Duty 12

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

″″

″ Food Slicer

″″

DSLHD Series

6-30-09
