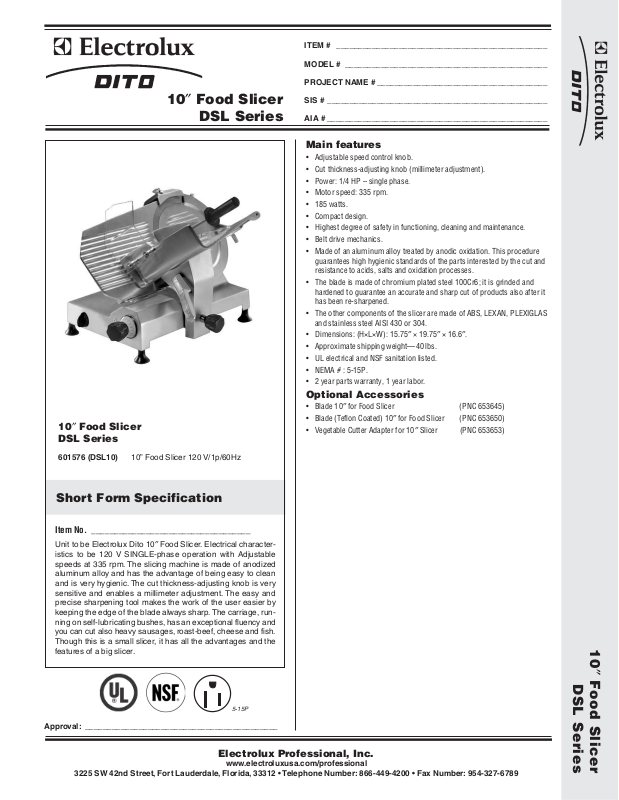

Electrolux 601576, DSL10 User Manual

ITEM # _______________________________________________

MODEL # _____________________________________________

PROJECT NAME # ______________________________________

10″ Food Slicer
DSL Series

10″ Food Slicer

DSL Series

SIS # _________________________________________________

AIA # _________________________________________________

Main features

• Adjustable speed control knob.

• Cut thickness-adjusting knob (millimeter adjustment).

• Power: 1/4 HP – single phase.

• Motor speed: 335 rpm.

• 185 watts.

• Compact design.

• Highest degree of safety in functioning, cleaning and maintenance.

• Belt drive mechanics.

• Made of an aluminum alloy treated by anodic oxidation. This procedure
guarantees high hygienic standards of the parts interested by the cut and
resistance to acids, salts and oxidation processes.

• The blade is made of chromium plated steel 100Cr6; it is grinded and
hardened to guarantee an accurate and sharp cut of products also after it
has been re-sharpened.

• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS
and stainless steel AISI 430 or 304.

• Dimensions: (H×L×W): 15.75″ × 19.75″ × 16.6″.

• Approximate shipping weight—40 lbs.

• UL electrical and NSF sanitation listed.

• NEMA # : 5-15P.

• 2 year parts warranty, 1 year labor.

Optional Accessories

• Blade 10″ for Food Slicer (PNC 653645)

• Blade (Teflon Coated) 10″ for Food Slicer (PNC 653650)

• Vegetable Cutter Adapter for 10″ Slicer (PNC 653653)

601576 (DSL10) 10” Food Slicer 120 V/1p/60Hz

Short Form Specification

Item No. ___________________________________

Unit to be Electrolux Dito 10″ Food Slicer. Electrical character­istics to be 120 V SINGLE-phase operation with Adjustable
speeds at 335 rpm. The slicing machine is made of anodized
aluminum alloy and has the advantage of being easy to clean
and is very hygienic. The cut thickness-adjusting knob is very
sensitive and enables a millimeter adjustment. The easy and
precise sharpening tool makes the work of the user easier by
keeping the edge of the blade always sharp. The carriage, run­ning on self-lubricating bushes, has an exceptional fluency and
you can cut also heavy sausages, roast-beef, cheese and fish.
Though this is a small slicer, it has all the advantages and the
features of a big slicer.

5-15P

Approval: ___________________________________________

10″ Food Slicer

DSL Series

Electrolux Professional, Inc.

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

www.electroluxusa.com/professional

10″ Food Slicer

DSL Series

Front View

To p Vi e w

Electric

Supply voltage:
601576 (DSL10) 120 V/1p/60Hz – 1.6A

Key Information

The MECHANICAL SAFETY system includes:

- Blade guard

- Cover

- Meat pusher

- Hand cover on meat hopper

- Meat hopper + finger protection.

The ELECTRICAL SAFETY system includes:
The slicer is equipped with: a micro-switch which stops the

slicer in case the tie rod for blade guard is removed; the micro­switch prevents from restarting the slicer if the guard has not
been set in the switch-off position.

Side View

″″

10

″ Food Slicer

″″

DSL Series

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

6-30-09
