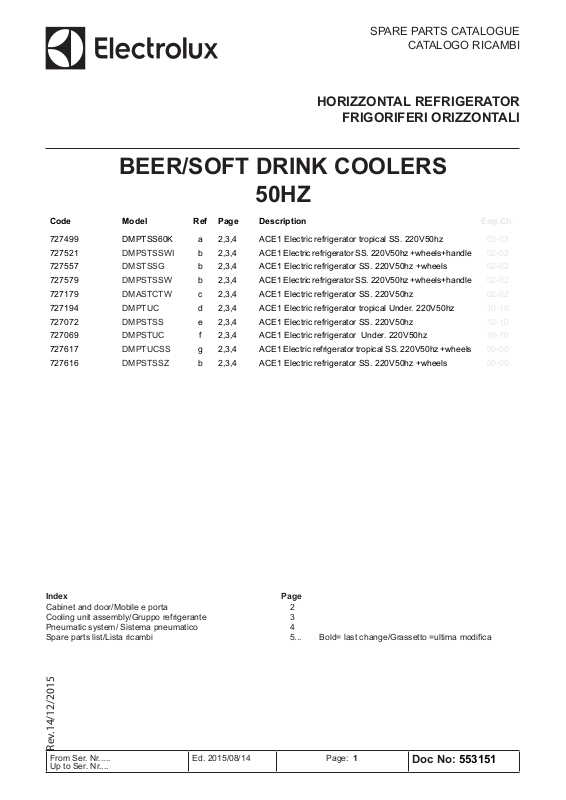

Page 1
SPARE PARTS CATALOGUE
CATALOGO RICAMBI
HORIZZONTAL REFRIGERATOR
FRIGORIFERI ORIZZONTALI
BEER/SOFT DRINK COOLERS
50HZ
Code Model Ref Page Description Eng.Ch.
727499 DMPTSS60K a 2,3,4 ACE1 Electric refrigerator tropical SS. 220V50hz 03-03
727521 DMPSTSSWI b 2,3,4 ACE1 Electric refrigerator SS. 220V50hz +wheels+handle 02-02
727557 DMSTSSG b 2,3,4 ACE1 Electric refrigerator SS. 220V50hz +wheels 02-02
727579 DMPSTSSW b 2,3,4 ACE1 Electric refrigerator SS. 220V50hz +wheels+handle 02-02
727179 DMASTCTW c 2,3,4 ACE1 Electric refrigerator SS. 220V50hz 02-02
727194 DMPTUC d 2,3,4 ACE1 Electric refrigerator tropical Under. 220V50hz 10-10
727072 DMPSTSS e 2,3,4 ACE1 Electric refrigerator SS. 220V50hz 10-10
727069 DMPSTUC f 2,3,4 ACE1 Electric refrigerator Under. 220V50hz 10-10
727617 DMPTUCSS g 2,3,4 ACE1 Electric refrigerator tropical SS. 220V50hz +wheels 00-00
727616 DMPSTSSZ b 2,3,4 ACE1 Electric refrigerator SS. 220V50hz +wheels 00-00
Index Page
Cabinet and door/Mobile e porta 2...
Cooling unit assembly/Gruppo refrigerante 3...
Pneumatic system/ Sistema pneumatico 4...
Spare parts list/Lista ricambi 5... Bold= last change/Grassetto =ultima modica
Rev.14/12/2015
From Ser. Nr.....
Up to Ser. Nr....
Ed. 2015/08/14 Page: 1
Doc No: 553151
Page 2
Cabinet and door
1
5
4
2
3
6a
6
7
10
8
9
15
13
14
15
12
11
12
Illustr:553150_p2
From Ser. Nr.....
Up to Ser. Nr....
Ed. 2015/08/14 Page: 2
Doc No: 553151
Page 3
28

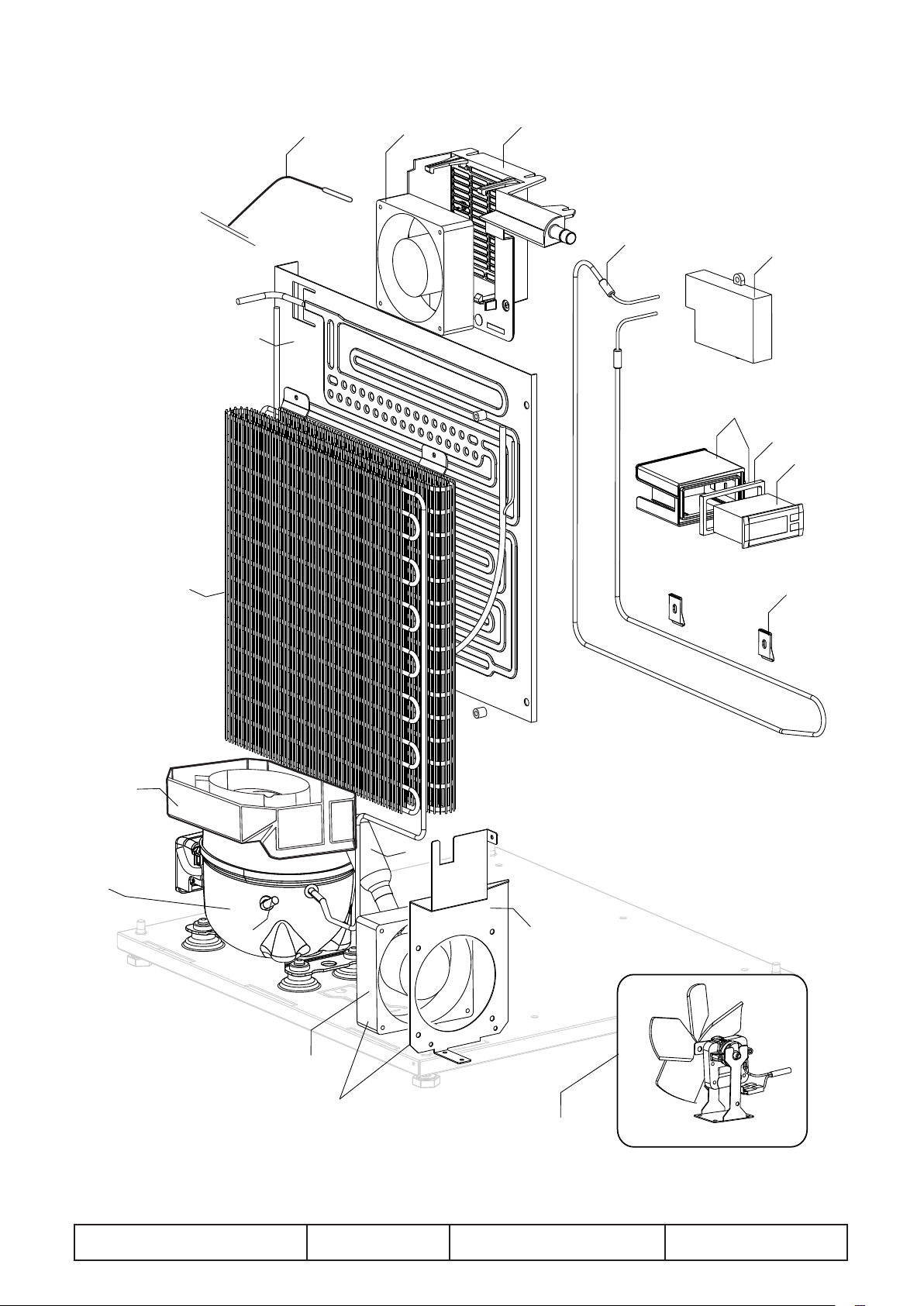

Cooling unit assembly
27
30
29
35
34
32
33
31
20
21
24
22
36
23
26
STANDARD unit
Illustr:553150_p3
From Ser. Nr.....
Up to Ser. Nr....
25
TROPICAL unit
Ed. 2015/08/14 Page: 3
37
Doc No: 553151
Page 4

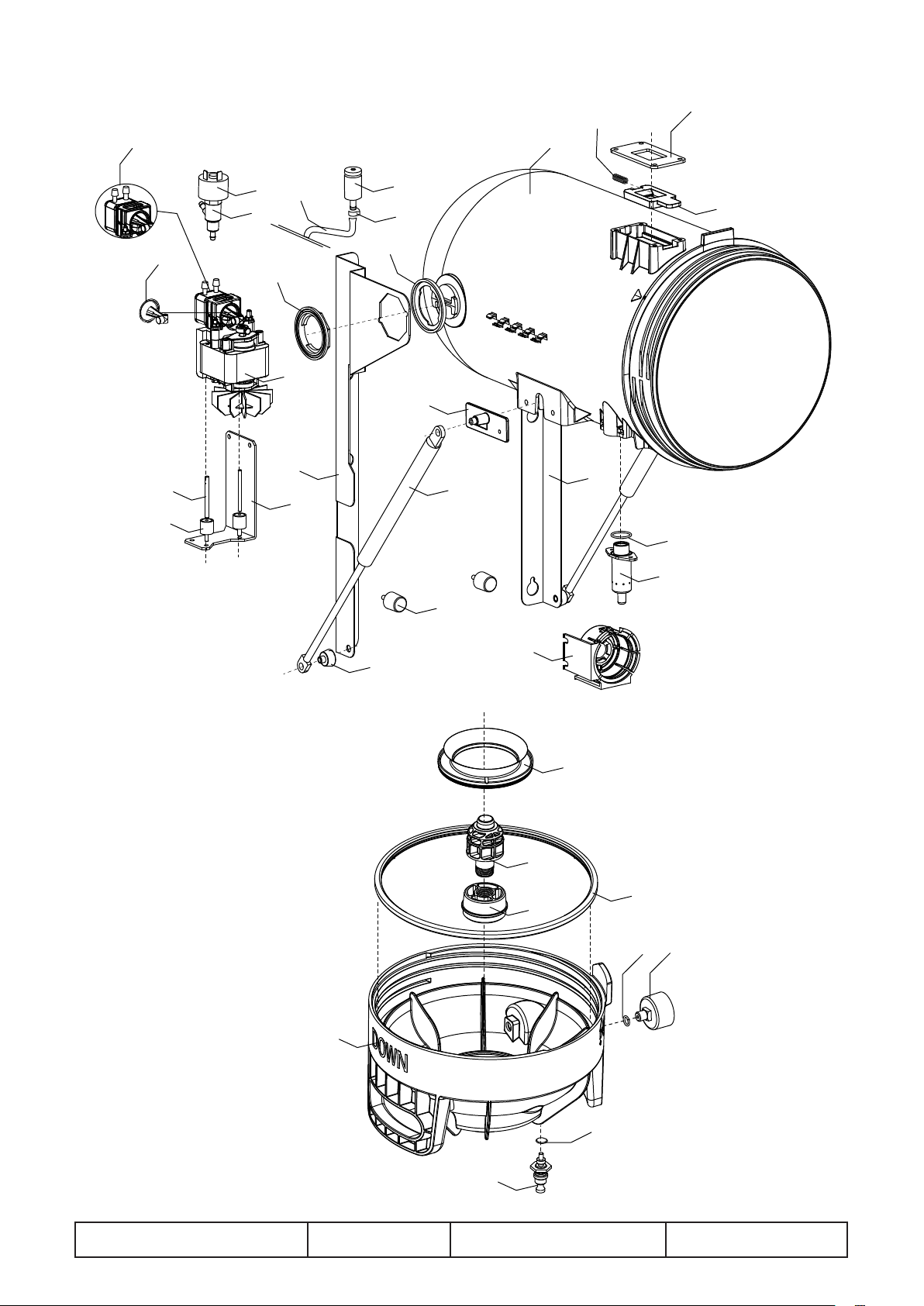

Pneumatic system
83
82
74
80
81
76
60
73
59
78
72
61
75
77
52
53
56
57
51
55
58
63
54
71
50
67
68
69
70
79
62
66
Illustr:553150_p4
From Ser. Nr.43510001
Up to Ser. Nr....
64
65
Ed. 2015/08/14 Page: 4
79
Doc No: 553151
Page 5
BEER/SOFT DRINK COOLER
Pos Code Factory code Description Descrizione Ref/notes
Pag. 2 Cabinets and door Mobile e porta
1 091933 0546R09103 TOP TOP SPINA BIRRA DRAUGHT MASTER
2 091934 0555R04000 SPACER FOR EXTERNAL COVER DISTANZIALE RIVESTIMENTO
3 093067 0501R01200 AESTHETICS COVER RIVESTIMENTO ESTETICO
3 091935 0500R97300 AESTHETICS COVER RIVESTIMENTO ESTETICO
4 091936 0546R09200 BOWL BEER VASCHETTA RACCOLTA BIRRA
5 091937 0500R90800 DRAIN GRID GRIGLIA SGOCCIOLATOIO
6 091515 0880R32606 DOOR MODULO PORTA
6a 093680 REPAIR KIT FOR DOOR KIT RIPARZIONE PORTA
7 091531 0505R00401 CYLINDER STOP BRACKET STAFFA A'Z' BLOCCAGGIO CRICCHET.
8 092290 0546R11201 DOOR STOPPER CRICCHETTO FERMAPORTA
9 092932 0500R00306 CARTER PROTECTION PROTEZIONE/CARTER NERO 6/10
10 091723 0569R02800 INSULATION PANEL PANNELLO ISOLANTE 500X300
11 091721 0518R01200 FOOT PIEDINO IVARS ESAGONALE
12 091155 0835R08500 WHEEL WITH BRAKE RUOTA CON FRENO
13 091156 0835R08600 WHEEL WITHOUT BRAKE RUOTA SENZA FRENO
14 094718 0832R02800 KIT WHEELS ASS. SACCHETTO KIT RUOTE
15 092115 546R06700 SPACER FOR FOOT AND WHEELS DISTANZIALE PIEDINI RUOTE
16
ACE1 220V/60HZ
Illust:553150 p2
a,b,e,g,c
a,b,e,g,c
a,b,e,g
c
a,b,e,g,c
a,b,e,g,c
a,e,d,f,c
b,g
b,g
b,g
Pag. 3 Cooling unit Gruppo refrigerante
20 094715 0684R11600 GAS COMPRESSOR COMPRE.GL60PB 220-240V 50HZ
21 0A9490 0542702200 BOWL COMPRESSOR BACC.RACC.COND. COMPRESSORE
22 0A8171 0A02021800 COMPRESSOR VALVE H42 VAL511700800 SCHRADEN
23 099949 0858R00100 DEHIDRATOR FILTER 135gr freon FILTER GR.15 2 VIE FORI DIAM.2,5-5,0
23 092157 0858R05401 DEHIDRATOR FILTER 150gr freon FILTER GR.10 2 VIE CON ACCUMULO
24 099950 0830R00103 CONDESER
25 088034 0682719600 FAN CONDENSER VENTILAT. FANDIS 120X120X38 IP
26 094723 0501R26201 FAN SUPPORT SUPPORTO VENTILATORE TROPICAL
27 099953 0830R00200 EVAPORATOR EVAPORATORE PIASTRA ROLL-BOND
28 099954 0541R00200 AIR CONVEJOR CONVOGLIATORE IN PLASTICA
29 091337 0682R01800 FAN CELL VENT.IP20 ULTRASPEED 230V 50/60HZ
30 099955 0646R00300 PROBE SONDA CELLA IP68 CON CAPPUCCIO
31 091810 0646R11800 THERMOREGULATOR TERMOREG. AE003AA0 70
32 093670 0546R11301 THERMOREGULATOR PROTECTION TEGOLINO TERMOREGOLATORE
33 092310 0546R11800 THERMOREGULATOR GASKET GUARNIZIONE TEGOLINO TERM.
34 094792 0856R25700 WIRING AND CLAMP ASS.CABLAG.+ MORSETT.ACE 1
34 094793 0856R25800 WIRING AND CLAMP ASS.CABLAG.+ MORSETT.ACE 1 TROP
35 091345 0855R01005 HEATING ELEMENT ASSIEME RESISTENZA + COMPONEN.
36 094721 0546R06500 CLIP CLIP FISSAGGIO RESISTENZA
37 099951 0682R00101 FAN 220-240/50-60 HZ VENTILATORE 220-240/50-60 HZ
38
CONDENSATORE A FILI 3 TUBI
Illust:553150 P3
a,d,g
b,e,f,c
a,d,g
a,d,g
b,e,f,c
a,d,g
b,e,f,c
Page 4 Pneumatic system Sistema pneumatico
50 099944 0546R00102 PLUG PARKING DEVICE DISPOSITIVO PARCHEGGIO TAPPO
51 099966 0547774801 CYLINDER CILINDRO IN PLASTICA 'ACE'
52 091533 0530R02000 UPPER GAS STRUTS SUPPORT SUPPORTO MARTINETTI SUPERIORE
53 099969 0646767100 GAS STRUTS MOLLA A GAS 200 NEWTON ACE
54 091534 0530R01900 LOWER GAS STRUTS SUPPORT SUPPORTO MARTINETTI INFERIORE
55 099970 0546R00400 CYLINDER SAFETY SLIDE CURSORE DI SICUREZZA CILINDRO
56 099971 0514R00901 SPRING MOLLA PER CURSORE ACE PROJECT
From Ser. Nr.
Up to Ser. Nr....
Ed. 2015/08/14 Page: 5
Doc No: 553151
Illust:553150 p4
Page 6
BEER/SOFT DRINK COOLER
Pos Code Factory code Description Descrizione Ref/notes
57 099972 0546R07600 COVER PIASTRINA CURSORE' IN PVC
58 092300 0505R10801 RIGHT CYLINDER SUPPORT STAFFA SUPPORTO CILINDRO DX
59 092299 0505R10901 LEFT CYLINDER SUPPORT STAFFA SUPPORTO CILINDRO SX
60 099973 0546R00500 CYLINDER RING GHIERA X ROTAZIONE CILINDRO
61 099974 0546R00600 EXTERNAL CYLINDER RING CONTROGHIERA X ROTAZIONE CILIN
62 099975 0858R04102 3 WAY VA LVE ASS.VALV.3 VIE
63 099976 0569707500 O-RING A195 O-RING EXT.CORPO VALVOLA
64 099978 0835R00307 PLUG ASSIEME TAPPO CILINDRO
65 099979 0646R00101 SAFETY VALVE VALVOLA SOVRAPRESSIONE
66 099981 0646R00200 MANOMETER MANOMETRO PER TAPPO CILIN.
67 099983 0546R00202 DEVICE DRILLING KEG TAPPO PERFORAZIONE KEG
68 099984 0546R00302 STOP DEVICE DRILLING KEG TAPPO SGANCIO KEG
69 099985 0548R00100 KEG GASKET GUARNIZIONE X KEG ACE PROJECT
70 092586 0548R04900 CYLINDER GASKET GUARNIZIONE TAPPO-CILINDRO
71 092931 0514R01701 DAMPER PARACOLPI IN GOMMA PER CILINDRO
72 091797 0505R08100 AIR COMPRESSOR SUPPORT SUPPORTO COMPRESSORE ARIA
73 099956 0684R01201 AIR COMPRESSOR COMPRESSORE ARIA
74 091532 0510R00901 THREADED ROD BARRA FILETTATA M4X50 ZINCATA
75 099957 0514R00301 AIR FILTER FILTRO COMPLETO IN ABS
76 091154 0832R02102 PRESSOSTAT VALVE ASS.COMPONENTI VALVOLA PRESS
77 099961 0639R00101 PIPE CLAMPS STRINGITUBI 'SNAPPER' HERBIE
78 091371 PIPE TUBO POLIU.95SHA8X5
79 099982 O-RING O-RING
80 092532 SCREW SUPPORT M4/50mm BARRA FILETTATA M4 da 50mm comp.
81 099958 0646R00401 PRESSOSTAT PRESSOSTATO'CEME' PC G 1/8 DIF
82 092528 832R07100 PISTON KIT (25 PIECES) KIT PISTONE 25 PEZZI
83 092678 CYLINDER KITS (25 PIECES) kIT CILINDRO 25 PEZZI
* 093855 TEST KIT PRESSURE
KIT DI CONTROLLO PRESSIONE
ACE1 220V/60HZ
From Ser. Nr.
Up to Ser. Nr....
Ed. 2015/08/14 Page: 6
Doc No: 553151
