Electrolux Combi LW 10 GN 2/1, 268513, AOS102GBD1, AOS102GBG1, AOS102GBG2 Brochure & Specs

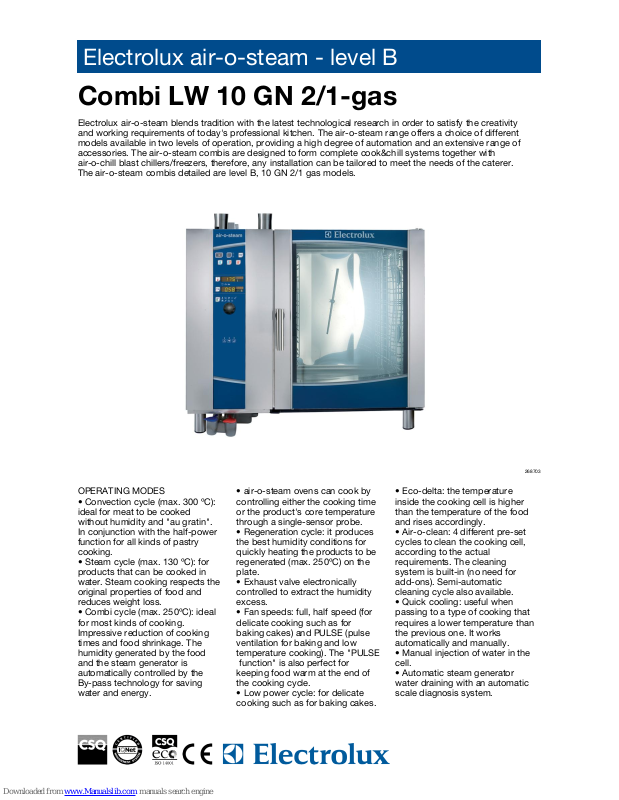

...Page 1
Electrolux air-o-steam - level B
Combi LW 10 GN 2/1-gas
Electrolux air-o-steam blends tradition with the latest technological research in order to satisfy the creativity
and working requirements of today's professional kitchen. The air-o-steam range offers a choice of different
models available in two levels of operation, providing a high degree of automation and an extensive range of
accessories. The air-o-steam combis are designed to form complete cook&chill systems together with
air-o-chill blast chillers/freezers, therefore, any installation can be tailored to meet the needs of the caterer.
The air-o-steam combis detailed are level B, 10 GN 2/1 gas models.
268703
OPERATING MODES
• Convection cycle (max. 300 ºC):
ideal for meat to be cooked
without humidity and "au gratin".
In conjunction with the half-power
function for all kinds of pastry
cooking.
• Steam cycle (max. 130 ºC): for
products that can be cooked in
water. Steam cooking respects the
original properties of food and
reduces weight loss.
• Combi cycle (max. 250ºC): ideal
for most kinds of cooking.
Impressive reduction of cooking
times and food shrinkage. The
humidity generated by the food
and the steam generator is
automatically controlled by the
By-pass technology for saving
water and energy.
• air-o-steam ovens can cook by
controlling either the cooking time
or the product's core temperature
through a single-sensor probe.
• Regeneration cycle: it produces
the best humidity conditions for
quickly heating the products to be
regenerated (max. 250ºC) on the
plate.
• Exhaust valve electronically
controlled to extract the humidity
excess.
• Fan speeds: full, half speed (for
delicate cooking such as for
baking cakes) and PULSE (pulse
ventilation for baking and low
temperature cooking). The "PULSE
function" is also perfect for
keeping food warm at the end of
the cooking cycle.
• Low power cycle: for delicate
cooking such as for baking cakes.
• Eco-delta: the temperature
inside the cooking cell is higher
than the temperature of the food
and rises accordingly.
• Air-o-clean: 4 different pre-set
cycles to clean the cooking cell,
according to the actual
requirements. The cleaning
system is built-in (no need for
add-ons). Semi-automatic
cleaning cycle also available.
• Quick cooling: useful when
passing to a type of cooking that
requires a lower temperature than
the previous one. It works
automatically and manually.
• Manual injection of water in the
cell.
• Automatic steam generator
water draining with an automatic
scale diagnosis system.
Page 2
Electrolux air-o-steam - level B
Combi LW 10 GN 2/1-gas
Internet: http://www.electrolux.com/foodservice
ECBB0302011-02-22Subject to change without notice
Supply voltage 230 V, 1N, 50/60 230 V, 1N, 50/60
Net weight - kg. 203 203
auxiliary 1 1
gas 45 45
electric 1 1
cooking chamber 27 27
auxiliary 1 1
boiler 25 25
Power - kW
height 736 736
depth 855 855
width 640 640
Internal dimensions - mm
height 1058 1058
depth 1065 1065
width 1208 1208
External dimensions - mm
Automatic cleaning system ● ●
Meat probe ● ●
Two-speed fan ● ●
Low temp steaming ● ●
Regeneration ● ●
Convection/steaming ● ●
Steaming ● ●
Convection ● ●
combi 250 250
steam 130 130
air-convection 300 300
Cooking cycles - °C
Runners pitch - mm 65 65
Number of grids 10 10
Gas Natural Gas LPG
Power supply Gas Gas
TECHNICAL DATA
AOS102GBG2
268703
AOS102GBD2
268713
PERFORMANCE
• By-pass technology: controls the
humidity degree of the oven
atmosphere in combi and
regeneration cycles. It prevents
water and energy waste.
• air-o-flow: blows fresh air from
outside through the bi-functional
fan, which pulls the air in from the
backside of the oven after it is
pre-heated, thus guaranteeing an
even cooking process.
• Single-sensor food probe.
• NXT cell and steam generator
gas burners: GASTEC certification
on high efficiency and low
emissions. High efficiency cell and
steam generator heat exchangers.
CONSTRUCTION
• Stainless steel 304 throughout,
with seamless joints in the cooking
cell.
• Double thermo-glazed door
equipped with drip pans to catch
condensate and prevent slippery
floor for maximum security and
four holding positions allowing
easier loading and unloading.
• Halogen lighting in the cooking
cell.
• Access to main components
from the front panel.
• Automatic scale diagnosis
system in the steam generator to
detect the presence of scale
build-up.
• IPX5 water protection.
• air-o-steam ovens meet
GASTEC safety requirements.
Page 3
Electrolux air-o-steam - level B
Combi LW 10 GN 2/1-gas
Internet: http://www.electrolux.com/foodservice
ECBB0302011-02-22Subject to change without notice
WHEEL KIT FOR BASE OF 6&10X1/1 LW 922003 922003
WATER FILTER FOR OVENS 0.8 L/MIN. 922186 922186
TROLLEY FOR SLIDE-IN RACK 10 GN 2/1-LW 922042 922042
TRAY(400X600X38)5 ROWS-PERF.ALUM/SILICON 922189 922189
TRAY SUPPORT FOR OVEN BASE 10 GN 2/1-LW 922041 922041
TRAY RACK+WHEELS 8X2/1GN,80MM PITCH-LW 922045 922045
TRAY RACK+WHEELS 10X2/1GN,65MM PITCH-LW 922043 922043
THERMAL COVER FOR 10 GN 2/1-LW 922048 922048
SLIDE-IN RACK WITH HANDLE-10 GN 2/1-LW 922047 922047
RESIN SANITIZER FOR WATER SOFTENER 921306 921306
PASTRY 8X(400X600)RACK+WHLS-80MM,10X2/1 922067 922067
PAIR OF 2/1 GN AISI 304 S/S GRIDS 922175 922175
PAIR OF 1/1GN AISI 304 S/S GRIDS 922017 922017
OVEN GRILL (ALUMINIUM) GN 1/1 922289 922289
OPEN BASE+TRAY SUPPORT FOR 10GN2/1 LW 922198 922198
NON-STICK U-PAN GN 1/1 H=65 MM 922092 922092
NON-STICK U-PAN GN 1/1 H=40 MM 922091 922091
NON-STICK U-PAN GN 1/1 H=20 MM 922090 922090
KIT TO CONVERT FROM NATURAL GAS TO LPG 922277
KIT TO CONVERT FROM LPG TO NATURAL GAS 922278
KIT INTEGRATED HACCP FOR OVENS 922275 922275
KIT HACCP EKIS 922166 922166
KIT 4 ADJUSTABLE FEET 922012 922012
HOT CUPB.BASE+TRAY SUPPORT- 10GN2/1 LW 922225 922225
HOLDER FOR DETERGENT TANK ON OPEN BASE 922212 922212
HEAT SHIELD FOR 10 GN 2/1 OVENS 922252 922252
FLUE CONDENSER FOR GAS OVENS-LW 922235 922235
FAT FILTER FOR OVENS 10X1/1-2/1 922178 922178
EXTERNAL SIDE SPRAY UNIT 922171 922171
EXTERNAL CONN. KIT FOR DETERG./RINSE AID 922169 922169
EXHAUST HOOD WITHOUT FAN FOR 10GN2/1-LW 640793 640793
EXHAUST HOOD WITH FAN FOR 10 GN2/1-LW 640794 640794
EGG FRYER FOR 8 EGGS - GN 1/1 922290 922290
DRAIN KIT (D=50MM) OVENS 6&10 GN 1/1-2/1 922283 922283
DOUBLE-CLICK CLOSING CATCH FOR OVEN DOOR 922265 922265
CUPB. BASE+TRAY SUPPORT-10GN2/1 OVENS LW 922097 922097
CONTROL PANEL FILTER-10 GN2/1 OVENS-LW 922247 922247
BASKET FOR DETERGENT TANK-WALL MOUNTED 922209 922209
BANQUET RACK-51PLATES-75MM PITCH-10GN2/1 922052 922052
BAKING TRAY(400X600X20)4 EDGES-PERF.ALUM 922190 922190
BAKING TRAY(400X600X20)4 EDGES-ALUMINIUM 922191 922191
BAKING TRAY FOR BAGUETTE GN 1/1 922288 922288
AUTOMATIC WATER SOFTENER FOR OVENS 921305 921305
2 GRIDS GN 1/1 FOR CHICKENS (8 PER GRID) 922036 922036
2 FRYING BASKETS FOR OVENS 922239 922239
1 GRID GN1/1 FOR 8 WHOLE CHICKENS(1.2KG) 922266 922266
ACCESSORIES
AOS102GBG2
268703
AOS102GBD2
268713
Page 4
Electrolux air-o-steam - level B
Combi LW 10 GN 2/1-gas
Internet: http://www.electrolux.com/foodservice
ECBB0302011-02-22Subject to change without notice
WIC - Cooling water inlet 3/4" 3/4"
G - Gas connection 1/2" 1/2"
EI - Electrical connection 230 V, 1N, 50/60 230 V, 1N, 50/60
D - Water drain 1"1/4 1"1/4
CWI - Cold water inlet 3/4" 3/4"
LEGEND
AOS102GBG2
268703
AOS102GBD2
268713
268703, 268713
