INSTRUCTION BOOK
cod. 436002577_01 - 050329
FOR ELECTROLUX
COOKER HOOD
CH 910
UK
Thank you for buying a Electrolux product.
To enable you to use your appliance effectively and safely, please read this instruction book carefully before using
the appliance and retain for future reference. If you require guidance in the use of the appliance or require further information on Electrolux Products, please contact our Customer Care Department. For general enquiries concerning
your Electrolux appliance or for further information, visit our website at http://www.electrolux.co.uk
Customer Care Department
Electrolux
55 - 77 High Street
Slough
Berkshire
SL1 1DZ Tel: 08705 727727*
*Calls to this number may be recorded for training purposes.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance.
For the User
Important Safety Information
Your Appliance
Operating Instructions
Cooker Hood Controls
To Operate
Recirculation
Extraction
Maintenance and Cleaning
External Cleaning

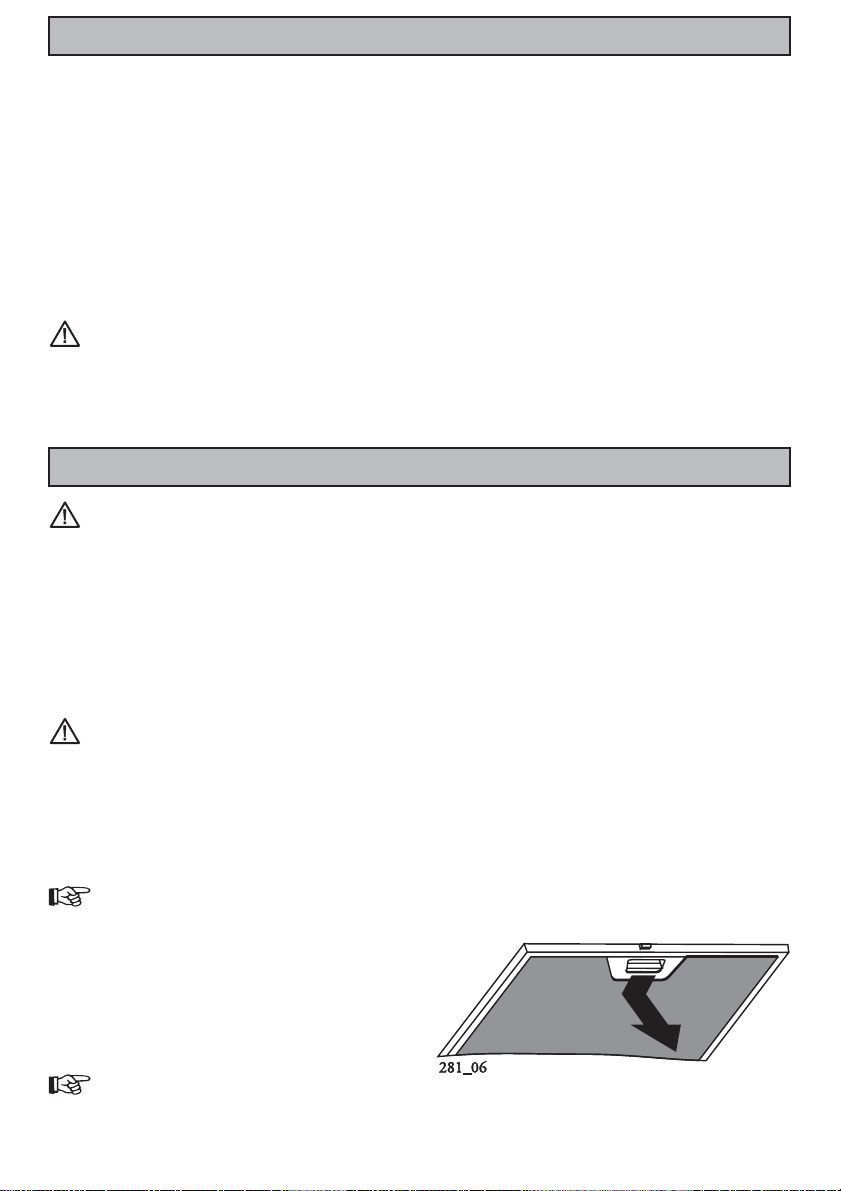

Metal Grease Filters
Charcoal Filters

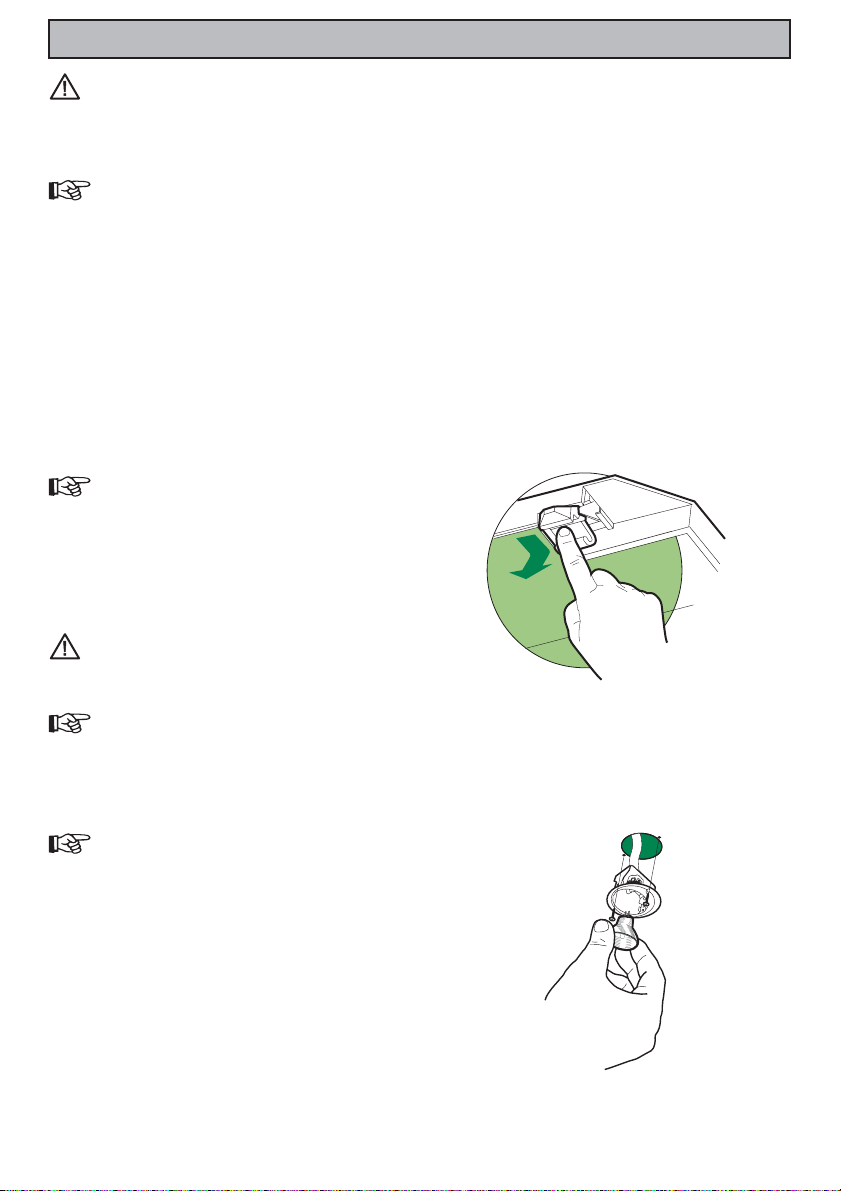

To Remove/Replace Charcoal Filter
Changing the Halogen Light
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Technical Information
Electrical Connections
Electrical Requirements
Electrical Connection
Installing the Cooker Hood

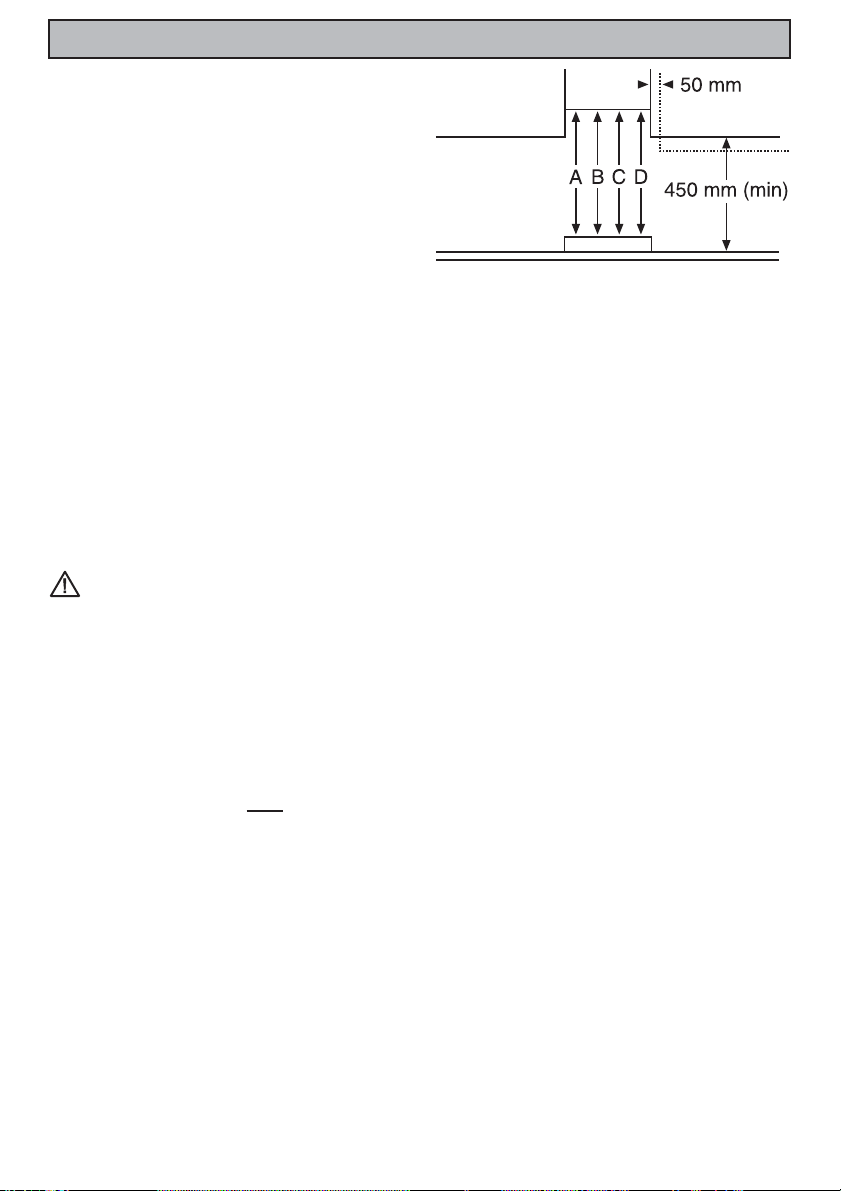

Installation Requirements

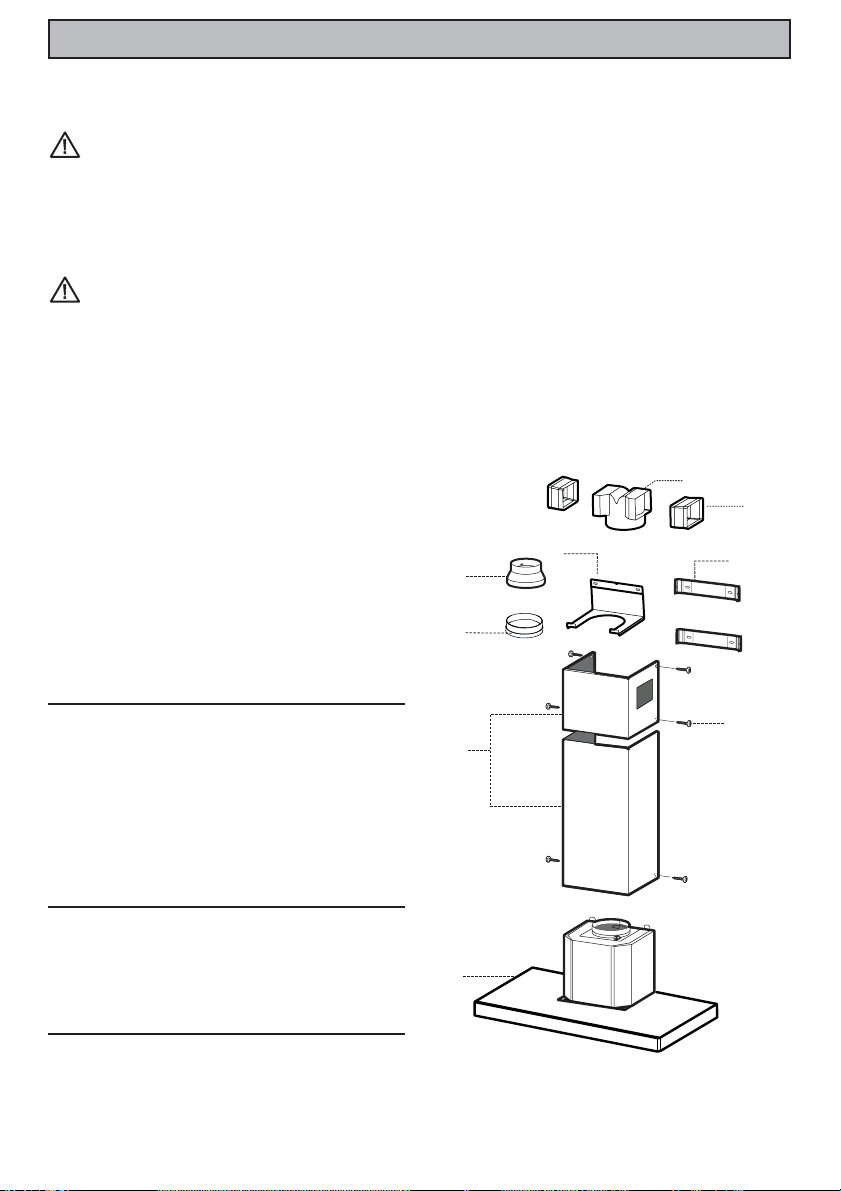

Unpacking

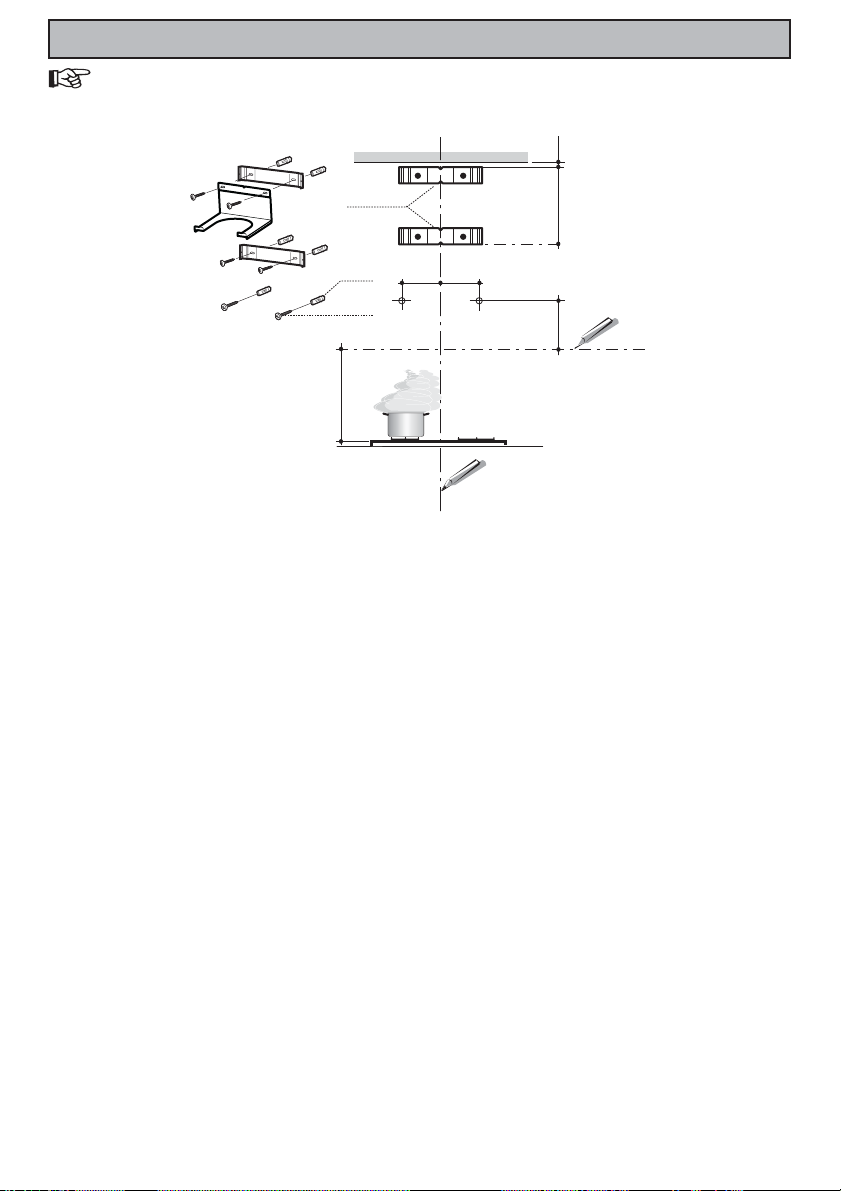

Fitting the Wall Brackets
Fitting the Canopy Hood

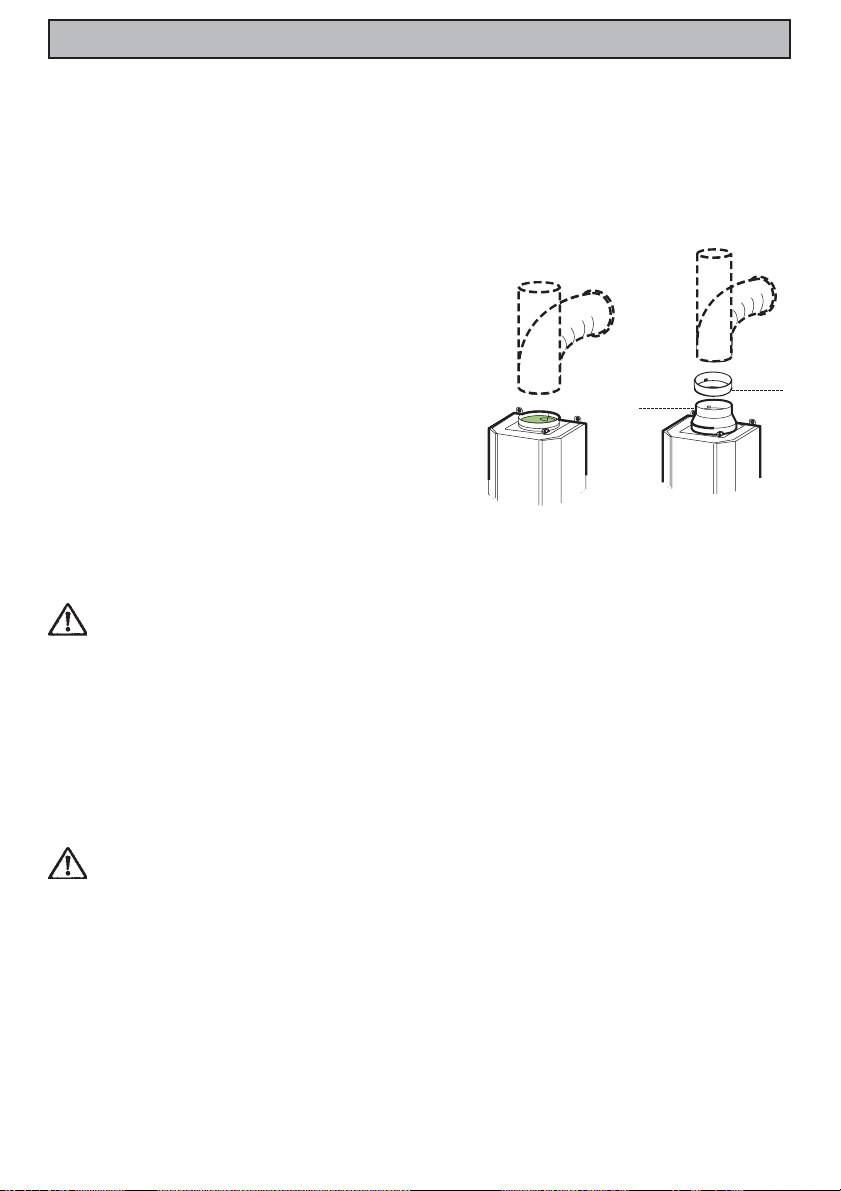

Venting
Recirculation

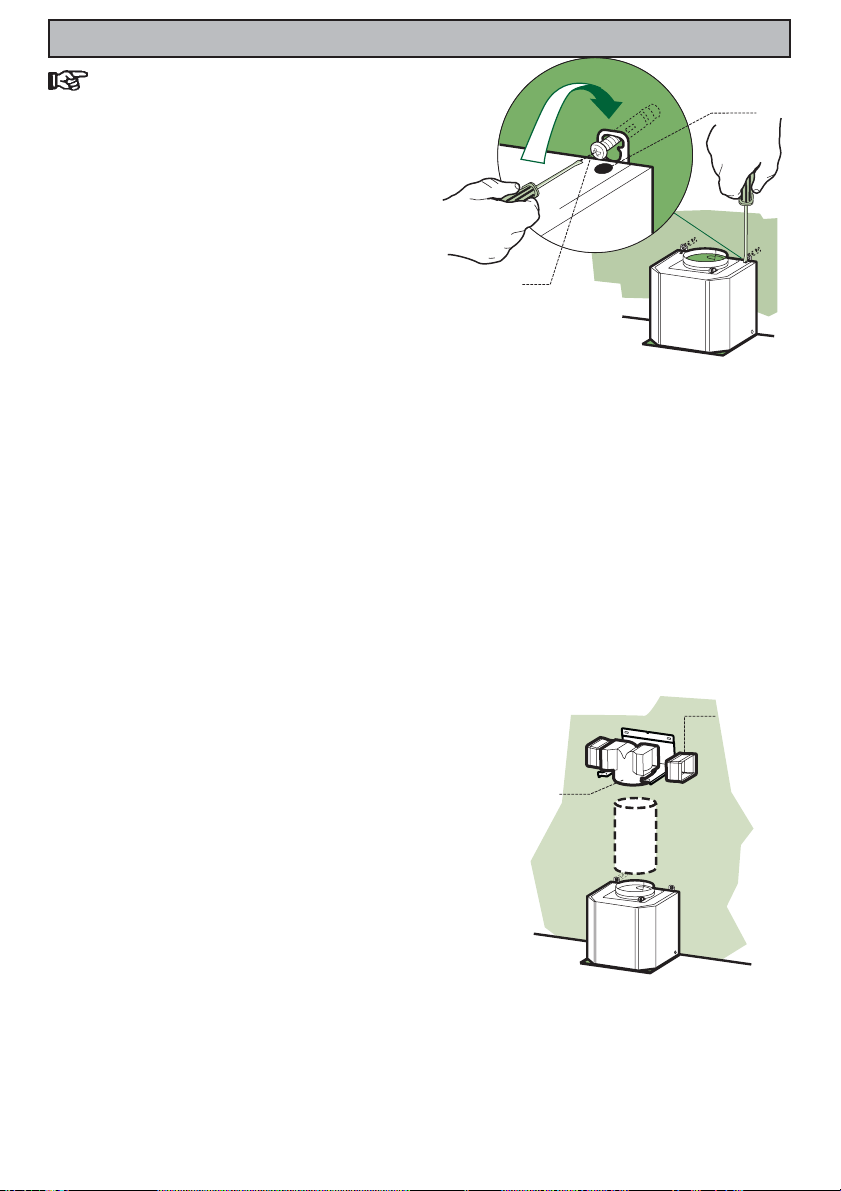

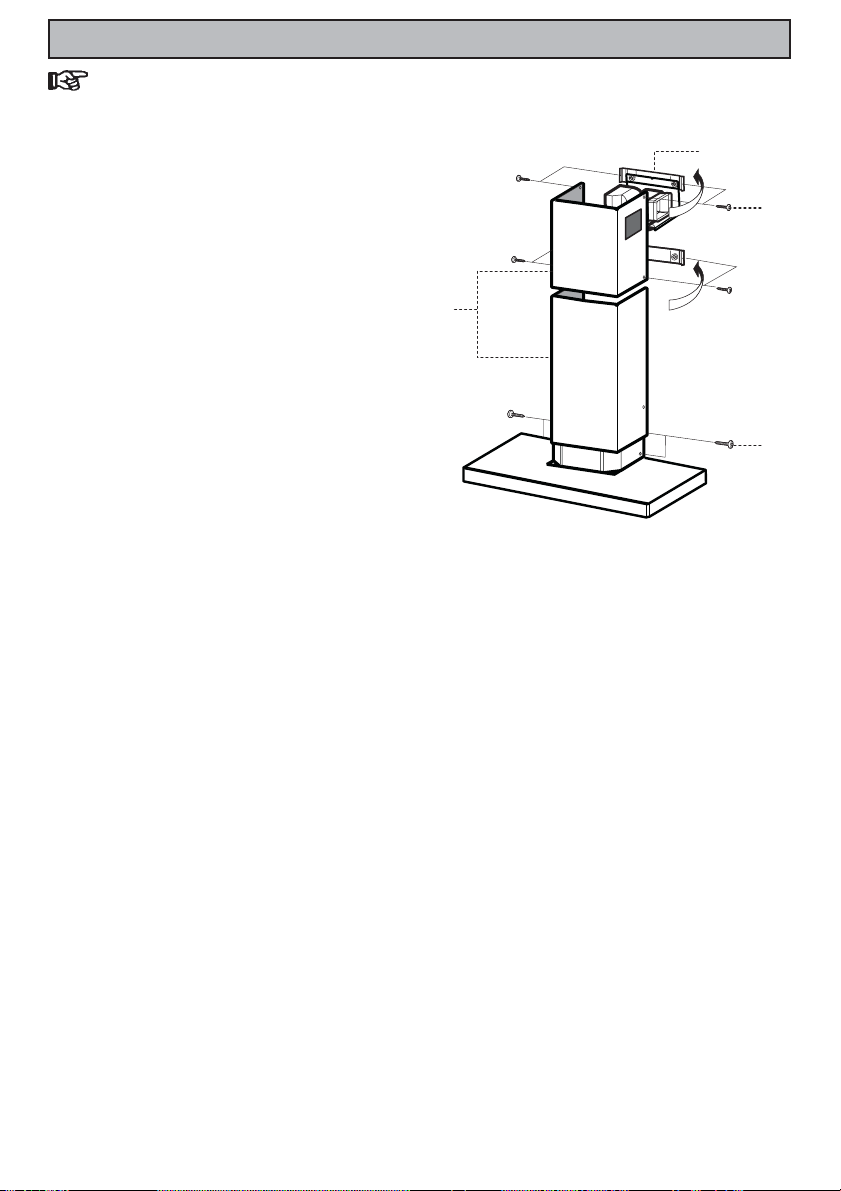

Fitting the Chimney Stack
The following Symbols will be found in the text to guide you through the instruction book
Guide to use the instruction book
Safety instructions Step by step instructions
3
IMPORTANT SAFETY INFORMATION
These warnings are provided in the interests of your safety. Ensure that you understand them all before
installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the
meanings of these warnings contact the Customer Care Department.
Installation
• Any installation work must be undertaken by a qualifi ed electrician or a competent person.
• This hood must be installed in accordance with the
installation instructions and all measurements must
be adhered to.
• If the cooker hood is installed for use above a gas
appliance then the provision for ventilation must be
in accordance with the Gas Safety Codes of Practice
BS.6172, BS.5440 and BS.6891 (Natural Gas) and
BS.5482 (LP Gas) 1994, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued
by the Department of the Environment, the Building
standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a
cut-out device which will operate if the cooker hood
is installed below the minimum height recommended
under section ‘Clearance Height’, or if the motor becomes overheated. If the cut-out device is activated,
switch off the fan motor and allow the cooker hood to
cool. The cut-out device will reset itself when the fan
motor has cooled signifi cantly.
• It is dangerous to alter the specifi cations or modify
this product in any way.
• When installed between adjoining wall cabinets the
wall cabinets must not overhang the hob.
• If the room where the hood is to be used contains
a fuel burning appliance such as a central heating
boiler then its fl ue must be of the room sealed or
balanced fl ue type.
Child Safety
• This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the appliance.
During Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as
over-heated fats and oils might catch fi re.
• Never do fl ambé cooking under this cooker hood.
• Do not leave naked fl ames under the hood.
• This cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
Maintenance and Service
• This appliance can be a hazard if the synthetic paper
and charcoal fi lters are not replaced as recommended.
• Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or more
serious malfunction. Refer to your local Electrolux
Service Force Centre. Always insist on genuine
spare parts.
• If other types of fl ue or appliances are fi tted ensure
that there is an adequate supply of air to the room.
• The ducting system for this appliance must not be
connected to any existing ventilation system which is
being used for any other purpose.
• Do not install above a cooker with a high level grill.
4
YOUR APPLIANCE
740
490 60
108
598-698-898-1198
300
150
870
260
1200
64
42
650 min.
5
OPERATING INSTRUCTIONS
The cooker hood is designed to extract unpleasant odours from the kitchen, it will not extract steam.
The appliance can be installed to recirculate or extract contaminated air.
Control Panel
The hood can be switched on pushing directly onto the requested speed without fi rstly having
to select 0/1 button.
L T1 T2 T3 T4 T5 F
Touch
Basic functions
Dual Function
L
When briefl y pressed it switches the lighting system on/off.
When pressed for 2 seconds it starts the lighting system
in “courtesy light" mode.The lamps are fed at a reduced
power of approximately 5W. Such function can be stopped by pressing the touch control for 2 seconds or just by
pressing it shortly in order to return to the normal lighting
mode. In courtesy light mode the touch control is not lit.
When pressed the motor is stopped, regardless of the
T1
speed it is set to.
T2
When pressed the motor is set to the fi rst speed
By a brief pressing the motor is set to the second speed.
T3
By pressing the touch control for approximately 2 seconds the
Delay function is enabled, i.e delayed shutdown of the appliance ensuring a complete elimination of the residual odours.
This function can be activated at OFF- position and at 1°, 2°
and 3°speeds. It can be stopped in advance by pressing any
of the touch controls (T) with the exception of T3. The Delay
function works according to the following scheme:
1°speed / OFF = 20 minuets
2°speed =15 minutes
3°speed = 5 minutes
When pressed the motor is set to the third speed
T4
When pressed the motor is set to the intensive speed
T5
timed to 5 minutes. At the end of 5 minutes of intensive
speed the hood starts again at the speed it was set to
previously. In case the hood is set to the intensive speed
directly from OFF-state it will then start from the fi rst
speed after 5 minutes of intensive speed.
When pressed for 4 seconds it resets the fi lter alarm s-
F
ignal indicated by fl ashing of the touch control T1.This
procedure can be carried out only when the motor is
stopped.
Indicator lights
Touch control unlit Lights off
Touch control lit Lights on
Touch control unlit Courtesy light on
Touch control lit Motor on
Touch control unlit Motor off
Touch control lit
Touch control lit Second speed on
Flashing touch control Delay function on
Touch control lit
Touch control lit
Touch control lit Metal grease fi lters saturation
alarm.Metal grease fi lters need
to be washed.The alarm starts
up after 100 working hours.
Flashing touch control Charcoal odour fi lter saturaion
alarm.Charcoal fi lter has to
be replaced and metal grease
fi lters washed.The alarm
starts up after 200 working
hours.(Activation; check the
paragraph "Odour fi lter")
6
