PROFESSIONAL LAUNDRY
Heavy duty ironer with integrated thermal oil boiler
C-Flex 900-1200
Features and benefits
•30% energy savings compared to a regular steam heated ironer
•Highest boiler combustion efficiency garanteeing the lowest gas consumption on the market
•Thermal stability guaranteeing an homogeneous ironing temperature all along the chest
•High precision temperature adjustment for a variety of textiles and fabrics
•Lower heat losses than of a standard steam heated ironer
•Most efficient dewatering on the market thanks to the large diameter off centred exhaust adjustable on each roll
•Chest and ironer entirely designed and manufactured on Electrolux premises ensuring best performance on the market
•Chest in thick carbon steel carefully machine tooled and polished for an outstanding and consistent ironing quality
•Fully encased machine including a walkable top cover and a feeding guard protection bar for the best workplace safety on the market

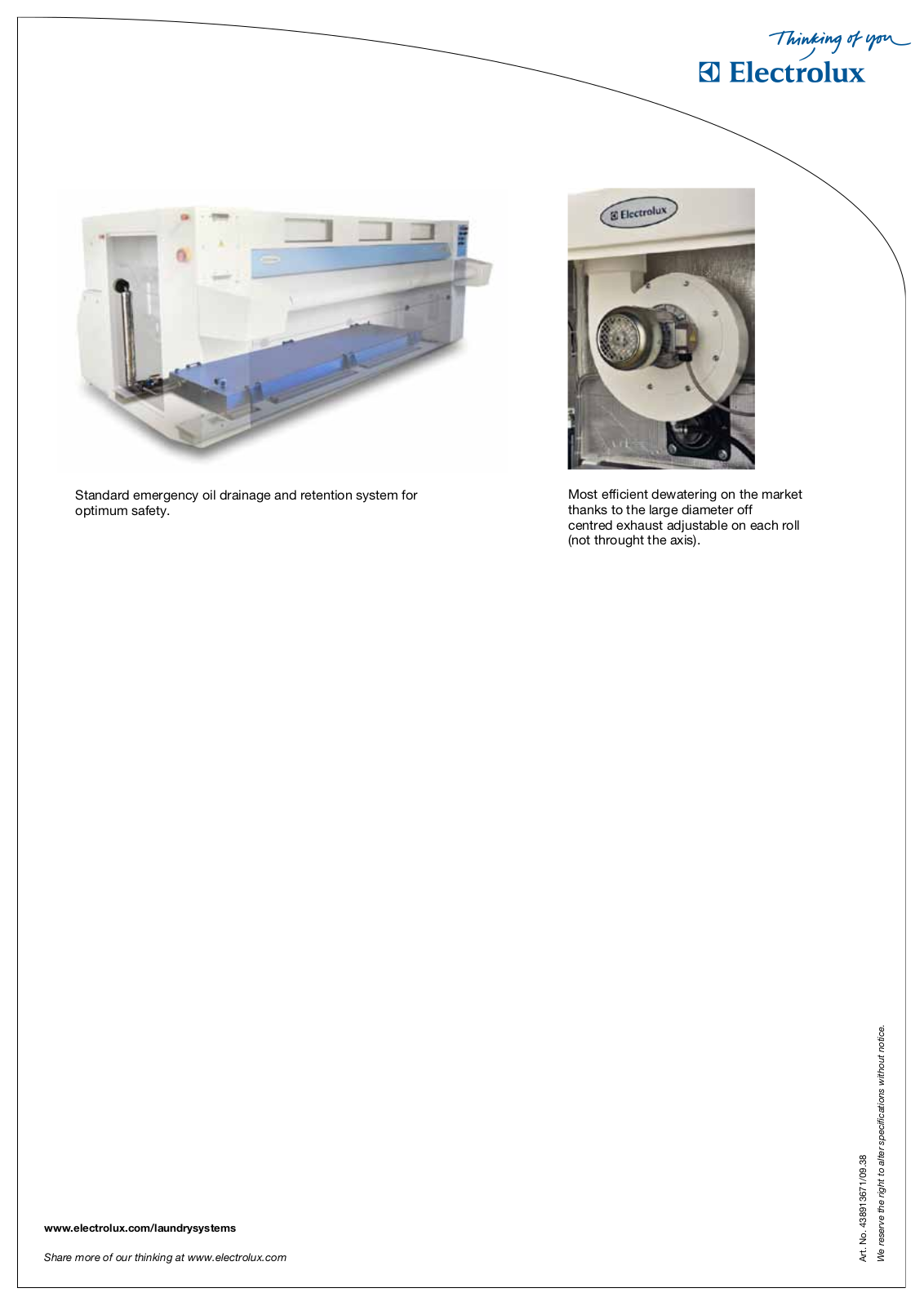

•Standard emergency oil drainage and retention system for optimum safety
•Frequency inverter controlled asynchronous main drive motor for an indefinitely adjustable speed range
•Galvanized MaxPress spring padding for optimum suppleness and robustness
•Nomex® felt padding withstanding temperature above 220°C
Main options
•Insulation of walkable top cover and side casings for minimum heat losses
•Hand rail and ladder for optimum workplace safety
•Vacuum feeding table for optimum efficiency when feeding small flat
•Lateral side casings protection bumper
•Broken guiding tape detection and alarm
Main specifications |
|
C-Flex 933-1 |
C-Flex 933-2 |
C-Flex 1233-1 |
C-Flex 1233-2 |
|
Cylinder |
number of rolls |
|
1 |
2 |
1 |
2 |
|
diameter |
mm |
900 |
900 |
1200 |
1200 |
|
length |
mm |
3300 |
3300 |
3300 |
3300 |
Ironing speed (standard) |
m/min |
5-15 |
9-27 |
8-24 |
14-42 |
|
Heating capacity (boiler) |
kW |
150 |
290 |
220 |
390 |
|
|
|
|
|
|
|
|
|
Electrical connections |
|
C-Flex 933-1 |
C-Flex 933-2 |
C-Flex 1233-1 |
C-Flex 1233-2 |
||
|
Voltage |
400-415V 3AC 50/60Hz |
kW (A) |
10 (20) |
20 (40) |
12.5 (25) |
31.5 (63) |
|
|
Circuit breaker |
A |
25 |
40 |
32 |
63 |
||
|
Main switch |
A |
63 |
63 |
63 |
63 |
||
|
Cable size |
|
Nb. x mm2 |
4 x 4 |
4 x 10 |
4 x 6 |
4 x 16 |
|
|
Compressed air and gas connections |
|
|
|
|
|||
|
Compressed air |
|
|
|
|
|
||
|
Pressure supply |
kPa |
400/700 |
400/700 |
400/700 |
400/700 |
||
|
Average consumption at 600 kPa |
Nm3/h |
0.3 |
0.6 |
0.4 |
0.8 |
||
|
Connection diameter |
DN (inch) |
12 (3/8") |
12 (3/8") |
12 (3/8") |
12 (3/8") |
||
|
Connection height from floor |
mm |
1730 |
1850 |
1950 |
1950 |
||
|
Gas |
|
|
|
|
|
|
|
|
Gas power necessary at burner |
kW |
150 |
290 |
220 |
390 |
||
|
Example with natural gas (G20) |
|
|
|
|
|
||
|
|
Gas pressure |
mbar |
300 |
300 |
300 |
300 |
|
|
|
Average consumption |
Nm3/h |
11 |
22 |
14 |
28 |
|
|
Connection diameter |
DN (inch) |
25 (1") |
32 (1 1/4") |
25 (1") |
40 (1 1/2") |
||
|
Connection height from floor |
mm |
1400 |
1470 |
1470 |
1470 |
||
|
|
|
|
|
|
|
||
|
Exhausts connections |
|
|
|
|
|
||
|
Vapours |
|
|
|
|
|
|
|
|
Diameter x number of exhausts |
mm |
200 x 1 |
200 x 2 |
200 x 1 |
200 x 2 |
||
|
Optional exhausts manifold |
mm |
- |
- |
- |
300 |
||
|
Fan max. flow rate with no pressure |
m3/h |
2000 |
2000 |
2000 |
2000 |
||
|
Total pressure with no flow |
Pa |
2450 |
2450 |
2450 |
2450 |
||
|
Average exhausts temperature |
°C |
105 |
105 |
105 |
105 |
||
|
Connection height from floor |
mm |
1545 |
1665 |
1745 |
1705 |
||
|
Burned gases |
|
|
|
|
|
||
|
Diameter |
|
mm |
200 |
250 |
200 |
250 |
|
|
Average burned gases temperature |
°C |
240 |
240 |
240 |
240 |
||
|
Connection height from floor |
mm |
1020 |
1120 |
1120 |
1120 |
||
|
|
|
|
|
|
|
||
|
Integrated boiler |
|
|
|
|
|
||
|
Boiler maximum power |
kW |
230 |
450 |
230 |
450 |
||
|
Oil volume in the boiler |
l |
40 |
115 |
40 |
115 |
||
|
Total oil volume |
l |
250 |
340 |
330 |
450 |
||
|
Available installed energy |
kWh |
150 |
290 |
220 |
390 |
||
|
Standard maximum temperature |
°C |
210 |
210 |
210 |
210 |
||
|
Boiler efficiency |
% |
92 |
92 |
92 |
92 |
||
|
|
|
|
|
|
|
||
|
Sound level |
|
|
|
|
|
||
|
Airborne sound level |
dB (A) |
66-68 |
66-68 |
66-68 |
66-68 |
||
|
|
|
|
|
|
|
|
|
|
Heat loss |
|
|
|
|
|
|
|
|
Heat loss |
|
kWh |
3 |
5.8 |
4.4 |
7.8 |
|
|
|
|
|
|
|
|
||
|
Shipping data |
|
|
|
|
|
||
|
Total weight |
kg |
5730 |
9850 |
6180 |
12100 |
||
|
Weight roll 1 + roll 2 |
kg |
- |
4050 + 5800 |
- |
5400 + 6700 |
||
|
Total volume |
m3 |
17.44 |
30.08 |
22.04 |
36.93 |
||
|
Volume roll 1 + roll 2 |
m3 |
- |
13.54 + 16.54 |
- |
16.92 + 20.01 |
||
|

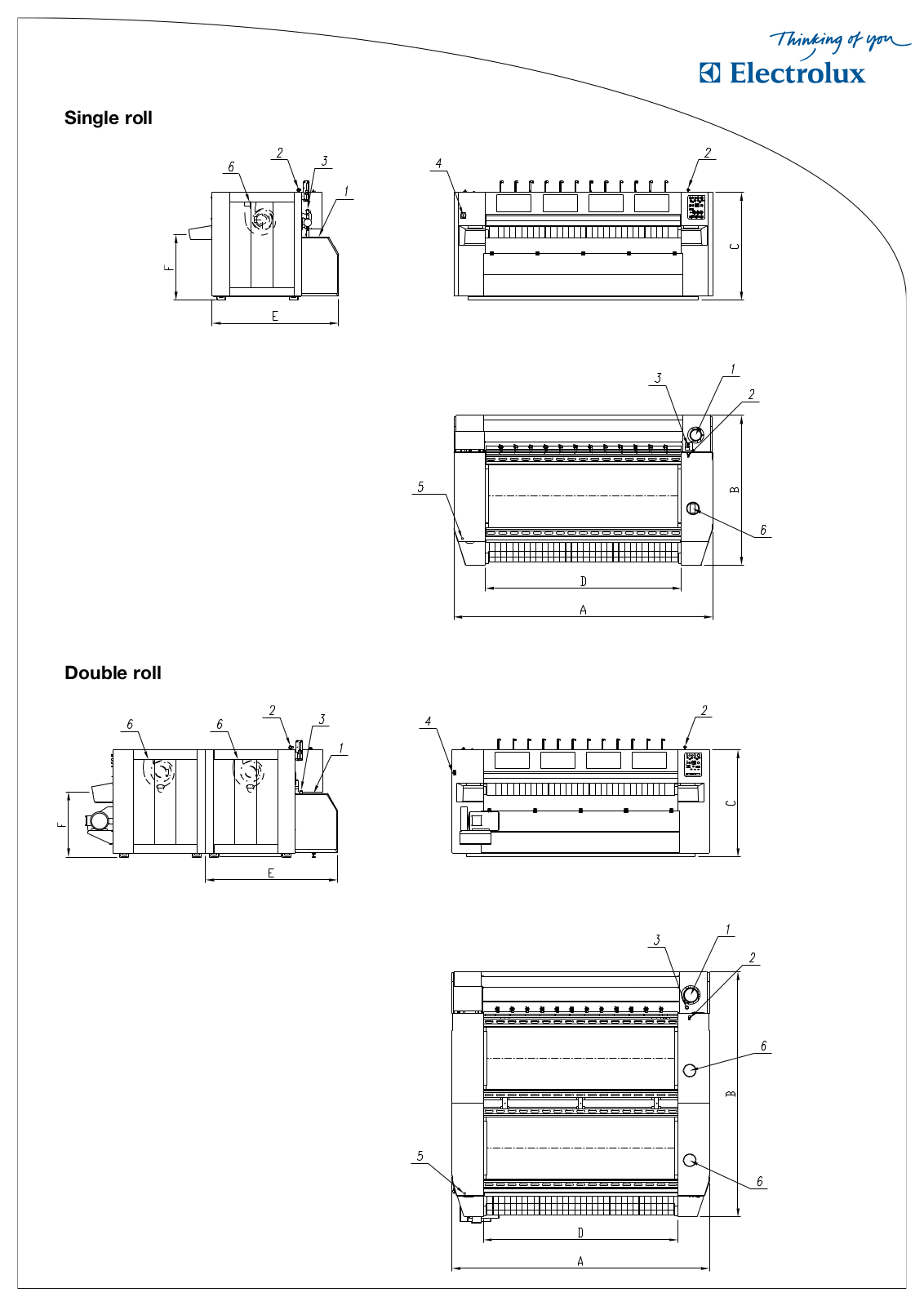

Dimensions in mm |
|
|
|
|
|
||
|
A |
Width |
|
|
4500 |
4500 |
4500 |
4500 |
|
B |
Depth |
|
|
2335 |
3755 |
2605 |
4365 |
|
C |
Height |
|
|
1660 |
1780 |
1880 |
1880 |
|
D |
Feeding width |
|
3300 |
3300 |
3300 |
3300 |
|
|
E Minimum door way (without feeding) |
1965 |
2065 |
2200 |
2305 |
|||
|
F Feeding height to roll axis (ø 120) |
1025 |
1144 |
1150 |
1140 |
|||
|
|
|
|
|
|
|
|
|
1Burned gases exhaust
2Compressed air connection
3Gas connection
4Main switch
5Electric connection
6Vapours exhaust
