Page 1
Item
Model
ProjectName

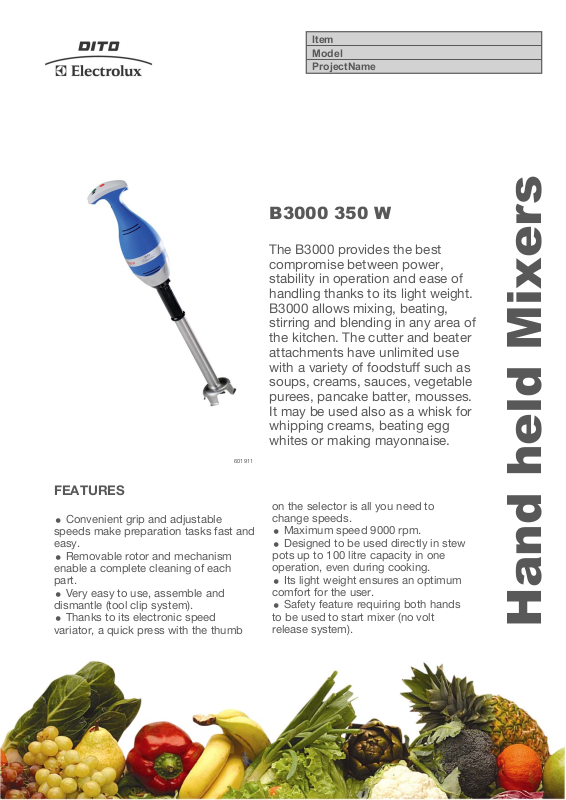

B3000 350 W
The B3000 provides the best
compromise between power,
stability in operation and ease of
handling thanks to its light weight.
B3000 allows mixing, beating,
stirring and blending in any area of
the kitchen. The cutter and beater
attachments have unlimited use
with a variety of foodstuff such as
soups, creams, sauces, vegetable
purees, pancake batter, mousses.
It may be used also as a whisk for
whipping creams, beating egg
whites or making mayonnaise.
601911
FEATURES
V Convenient grip and adjustable
speeds make preparation tasks fast and
easy.
V Removable rotor and mechanism
enable a complete cleaning of each
part.
V Very easy to use, assemble and
dismantle (tool clip system).
V Thanks to its electronic speed
variator, a quick press with the thumb
on the selector is all you need to
change speeds.
V Maximum speed 9000 rpm.
V Designed to be used directly in stew
pots up to 100 litre capacity in one
operation, even during cooking.
V Its light weight ensures an optimum
comfort for the user.
V Safety feature requiring both hands
to be used to start mixer (no volt
release system).
Hand held Mixers
Page 2
V The motor is protected from overload by
a terminal fuse (alert system).
V A red luminous indicator flashes when
V The motor has an air cooling system and
is protected against overheating (in case of
long intensive work).
the device is overloaded and the mixer
stops automatically to allow cooling.
Specifications
MODEL
External dimensions - mm
width 138 138 138 138 138
depth 120 120 120 120 120
height 665 765 765 707 340
Electrical power - kW 0.35 0.35 0.35 0.35 0.35
Net weight - kg. 3.25 3.4 4.3 3.4 2.4
Supply voltage 220...240 V,
Motor unit ✓
B3T35W35
601905
1N, 50/60
B3T45W35
601911
220...240 V,
1N, 50/60
B3K45W35
601951
220...240 V,
1N, 50/60
B3WSK35
601945
220...240 V,
1N, 50/60
B3M35
601939
220...240 V,
1N, 50/60
Page 3
Included accessories
CODE DESCRIPTION
653555 S/S TUBE 353MM FOR
PORTABLE MIXER B3000
653556 S/S TUBE 453MM FOR
PORTABLE MIXER B3000
653553 WHISK FOR PORTABLE MIXER
B3000
Optional accessories
CODE DESCRIPTION
653292 ADJUSTABLE RAIL
F.CONTAINERS D.375-650MM
653294 HOLDER FOR PORTABLE
MIXER
653554 REINFORCED WHISK -
PORTABLE MIXER B3000
653555 S/S TUBE 353MM FOR
PORTABLE MIXER B3000
653556 S/S TUBE 453MM FOR
PORTABLE MIXER B3000
653557 S/S TUBE 553MM FOR
PORTABLE MIXER B3000
653558 S/S TUBE 653MM FOR
PORTABLE MIXER B3000
653553 WHISK FOR PORTABLE MIXER
B3000
B3T35W35
601905
1
B3T35W35
601905
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
B3T45W35
601911
1 1
B3T45W35
601911
B3K45W35
601951
1 1
B3K45W35
601951
B3WSK35
601945
B3WSK35
601945
B3M35
601939
B3M35
601939
Page 4
Installation drawings
XXX
601905, 601939, 601945, 601951, 601911
120
340
138
MODEL
I - Electrical connection 220...240 V,
B3T35W35
601905
1N, 50/60
353
B3T45W35
601911
220...240 V,
1N, 50/60
110
453
397
B3K45W35
601951
220...240 V,
1N, 50/60
553
B3WSK35
601945
220...240 V,
1N, 50/60
653
120
B3M35
601939
220...240 V,
1N, 50/60
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
