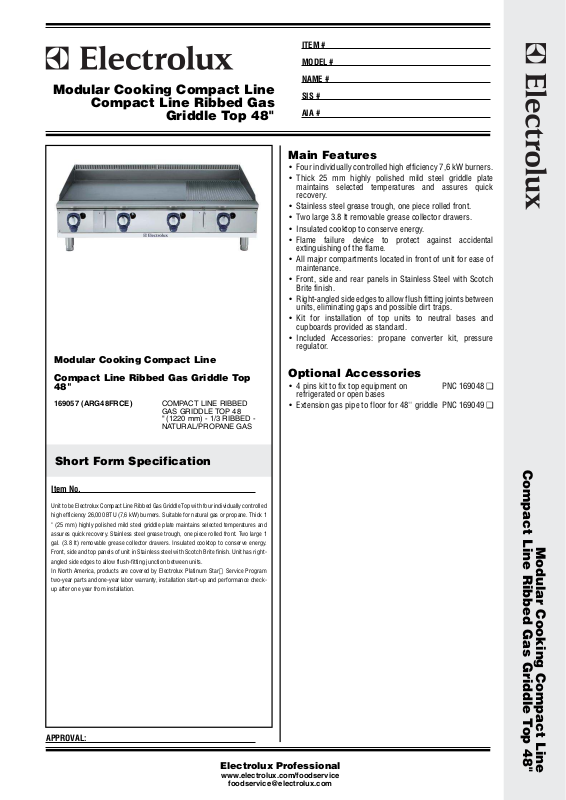

Electrolux ARG48FRCE User Manual

Modular Cooking Compact Line

Compact Line Ribbed Gas

Griddle Top 48"

Modular Cooking Compact Line
Compact Line Ribbed Gas Griddle Top

48"

169057 (ARG48FRCE)COMPACT LINE RIBBED

GAS GRIDDLE TOP 48
" (1220 mm) - 1/3 RIBBED ­NATURAL/PROP ANE GAS

ITEM #

MODEL #

NAME #

SIS #

AIA #

Main Features

•Four individually controlled high efficiency 7,6 kW burners.

•Thick 25 mm highly polished mild steel griddle plate

maintains selected temperatures and assures quick
recovery.

•Stainless steel grease trough, one piece rolled front.

•Two large 3.8 lt removable grease collector drawers.

•Insulated cooktop to conserve energy.

•Flame failure device to protect against accidental

extinguishing of the flame.

•All major compartments located in front of unit for ease of

maintenance.

•Front, side and rear panels in Stainless Steel with Scotch

Brite finish.

•Right-angled side edges to allow flush fitting joints between

units, eliminating gaps and possible dirt traps.

•Kit for installation of top units to neutral bases and

cupboards provided as standard.

•Included Accessories: propane converter kit, pressure

regulator.

Optional Accessories

•4 pins kit to fix top equipment on

refrigerated or open bases

•Extension gas pipe to floor for 48'' griddlePNC 169049 ❑

PNC 169048 ❑

Short Form Specification

Item No.

Unit to be Electrolux Compact Line Ribbed Gas Griddle Top with four individually controlled
high efficiency 26,000 BTU (7,6 kW) burners. Suitable for natural gas or propane. Thick 1
" (25 mm) highly polished mild steel griddle plate maintains selected temperatures and
assures quick recovery. Stainless steel grease trough, one piece rolled front. Two large 1
gal. (3.8 lt) removable grease collector drawers. Insulated cooktop to conserve energy.
Front, side and top panels of unit in Stainless steel with Scotch Brite finish. Unit has right­angled side edges to allow flush-fitting junction between units.
In North America, products are covered by Electrolux Platinum Star Service Program
two-year parts and one-year labor warranty, installation start-up and performance check­up after one year from installation.

Compact Line Ribbed Gas Griddle Top 48"

Modular Cooking Compact Line

APPROVAL:

Electrolux Professional

www.electrolux.com/foodservice

[e-mail]

Modular Cooking Compact Line

Compact Line Ribbed Gas

Griddle Top 48"

Front

Gas

Gas Power:

169057(ARG48FRCE)104000 Btu/hr (30.4 kW)
Gas Type Option:Propane
Gas Inlet:3/4" NPT
Natural gas - Pressure:7" w.c. (17.4 mbar)
Propane Gas Pressure:7,2" w.c. (18 mbar)

Key Information

Cooking Surface Width:47 13/16" (1214 mm)
Cooking Surface Depth:22 5/8" (575 mm)

Top

Working Temperature MIN:194 °F (90 °C)
Working Temperature MAX:500 °F (260 °C)
External dimensions, Width48 1/32" (1220 mm)
External dimensions, Depth31 1/2" (800 mm)
External dimensions, Height16 1/2" (419 mm)
Net weight:313 lbs (142 kg)
Shipping width:31 1/2" (800 mm)
Shipping depth:48 1/32" (1220 mm)
Shipping height:16 1/2" (419 mm)
Shipping weight:313 lbs (142 kg)
Shipping volume:14.44 ft³ (0.41 m³)

If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be
maintained or some form of heat insulation fitted.

G=Gas connection

Side

Compact Line Ribbed Gas Griddle Top 48"

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

Modular Cooking Compact Line

2010.09.13
