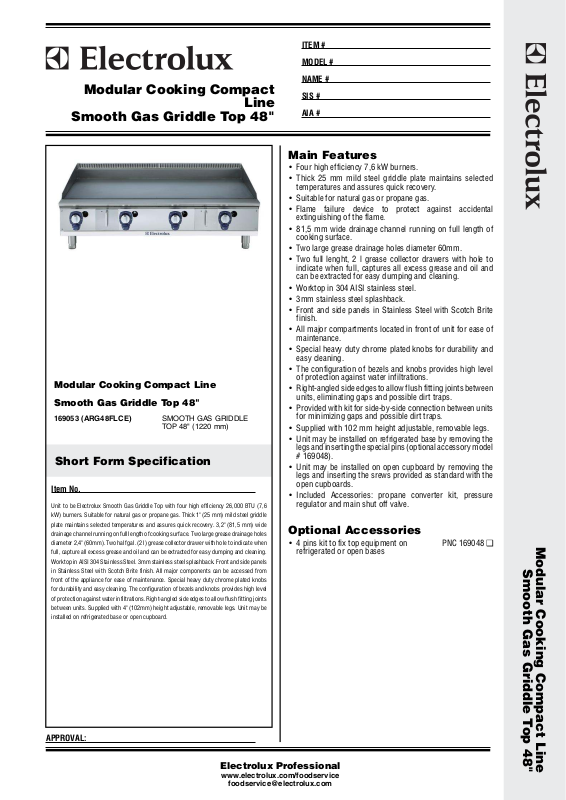

Electrolux ARG48FLCE User Manual

Modular Cooking Compact
Line
Smooth Gas Griddle Top 48"
Modular Cooking Compact Line Smooth Gas Griddle Top 48"
169053 (ARG48FLCE)SMOOTH GAS GRIDDLE
Short Form Specification
Unit to be Electrolux Smooth Gas Griddle Top with four high efficiency 26,000 BTU (7,6 kW) burners. Suitable for natural gas or propane gas. Thick 1" (25 mm) mild steel griddle plate maintains selected temperatures and assures quick recovery. 3,2" (81,5 mm) wide drainage channel running on full length of cooking surface. Two large grease drainage holes diameter 2,4" (60mm). Two half gal. (2 l) grease collector drawer with hole to indicate when full, capture all excess grease and oil and can be extracted for easy dumping and cleaning. Worktop in AISI 304 Stainless Steel. 3mm stainless steel splashback. Front and side panels in Stainless Steel with Scotch Brite finish. All major components can be accessed from front of the appliance for ease of maintenance. Special heavy duty chrome plated knobs for durability and easy cleaning. The configuration of bezels and knobs provides high level of protection against water infiltrations. Right-angled side edges to allow flush fitting joints between units. Supplied with 4" (102mm) height adjustable, removable legs. Unit may be installed on refrigerated base or open cupboard.
TOP 48" (1220 mm)
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
Four high efficiency 7,6 kW burners.
Thick 25 mm mild steel griddle plate maintains selected
temperatures and assures quick recovery.
Suitable for natural gas or propane gas.
Flame failure device to protect against accidental
extinguishing of the flame.
81,5 mm wide drainage channel running on full length of
cooking surface.
Two large grease drainage holes diameter 60mm.
Two full lenght, 2 l grease collector drawers with hole to
indicate when full, captures all excess grease and oil and can be extracted for easy dumping and cleaning.
Worktop in 304 AISI stainless steel.
3mm stainless steel splashback.
Front and side panels in Stainless Steel with Scotch Brite
finish.
All major compartments located in front of unit for ease of
maintenance.
Special heavy duty chrome plated knobs for durability and
easy cleaning.
The configuration of bezels and knobs provides high level
of protection against water infiltrations.
Right-angled side edges to allow flush fitting joints between
units, eliminating gaps and possible dirt traps.
Provided with kit for side-by-side connection between units
for minimizing gaps and possible dirt traps.
Supplied with 102 mm height adjustable, removable legs.
Unit may be installed on refrigerated base by removing the
legs and inserting the special pins (optional accessory model # 169048).
Unit may be installed on open cupboard by removing the
legs and inserting the srews provided as standard with the open cupboards.
Included Accessories: propane converter kit, pressure
regulator and main shut off valve.
Optional Accessories
4 pins kit to fix top equipment on
refrigerated or open bases
PNC 169048
Modular Cooking Compact Line
Smooth Gas Griddle Top 48"
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Modular Cooking Compact Line
Smooth Gas Griddle Top 48"
Front
Gas
Gas Power:
169053(ARG48FLCE)104000 Btu/hr (30.4 kW) Gas Inlet:3/4" NPT Natural gas - Pressure:3''w.c. (7 mbar) Propane Gas Pressure:7" w.c. (17.4 mbar)
Key Information
Cooking Surface Width:47 13/16" (1214 mm) Cooking Surface Depth:22 5/8" (575 mm) Working Temperature MIN:194 °F (90 °C)
Top
Working Temperature MAX:500 °F (260 °C) External dimensions, Width48 1/32" (1220 mm) External dimensions, Depth31 1/2" (800 mm) External dimensions, Height16 1/2" (419 mm) Net weight:313 lbs (142 kg) Shipping width:31 1/2" (800 mm) Shipping depth:48 1/32" (1220 mm) Shipping height:16 1/2" (419 mm) Shipping weight:313 lbs (142 kg) Shipping volume:14.44 ft³ (0.41 m³)
*The rear and side clearances shown on the diagram indicate the minimum distances reccomeneded from the appliance to combustible surfaces.
G=Gas connection
Side
Modular Cooking Compact Line
Smooth Gas Griddle Top 48"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
201 1.02.21
