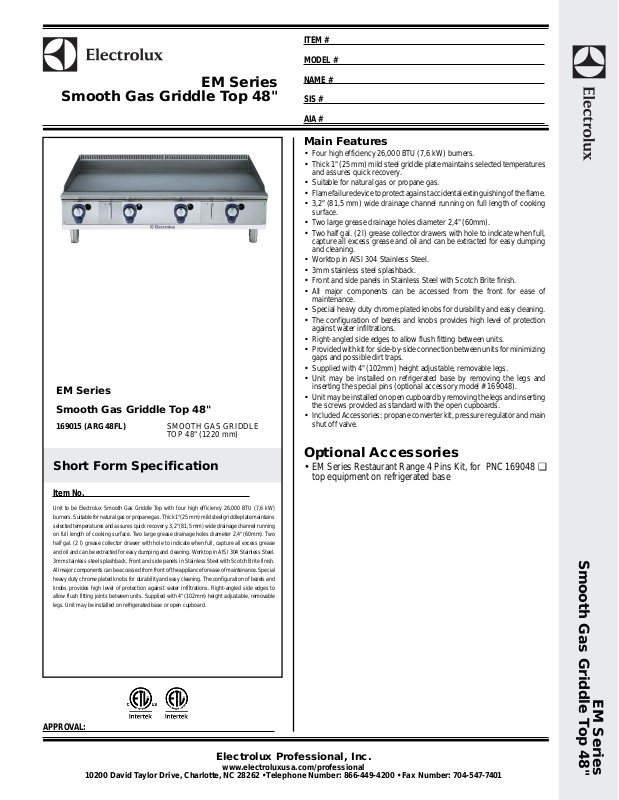

Electrolux ARG48FL User Manual
ITEM #
MODEL #
Smooth Gas Griddle Top 48"
EM Series
Smooth Gas Griddle Top 48"
169015 (ARG48FL)SMOOTH GAS GRIDDLE
EM Series
NAME #
SIS #
AIA #
Main Features
•Four high efficiency 26,000 BTU (7,6 kW) burners.
•Thick 1" (25 mm) mild steel griddle plate maintains selected temperatures
and assures quick recovery.
•Suitable for natural gas or propane gas.
•Flame failure device to protect against accidental extinguishing of the flame.
•3,2" (81,5 mm) wide drainage channel running on full length of cooking
surface.
•Two large grease drainage holes diameter 2,4" (60mm).
•Two half gal. (2 l) grease collector drawers with hole to indicate when full,
capture all excess grease and oil and can be extracted for easy dumping
and cleaning.
•Worktop in AISI 304 Stainless Steel.
•3mm stainless steel splashback.
•Front and side panels in Stainless Steel with Scotch Brite finish.
•All major components can be accessed from the front for ease of
maintenance.
•Special heavy duty chrome plated knobs for durability and easy cleaning.
•The configuration of bezels and knobs provides high level of protection
against water infiltrations.
•Right-angled side edges to allow flush fitting between units.
•Provided with kit for side-by-side connection between units for minimizing
gaps and possible dirt traps.
•Supplied with 4" (102mm) height adjustable, removable legs.
•Unit may be installed on refrigerated base by removing the legs and
inserting the special pins (optional accessory model # 169048).
•Unit may be installed on open cupboard by removing the legs and inserting
the screws provided as standard with the open cupboards.
•Included Accessories: propane converter kit, pressure regulator and main
shut off valve.
TOP 48" (1220 mm)
Short Form Specification
Item No.
Unit to be Electrolux Smooth Gas Griddle Top with four high efficiency 26,000 BTU (7,6 kW)
burners. Suitable for natural gas or propane gas. Thick 1" (25 mm) mild steel griddle plate maintains
selected temperatures and assures quick recovery. 3,2" (81,5 mm) wide drainage channel running
on full length of cooking surface. Two large grease drainage holes diameter 2,4" (60mm). Two
half gal. (2 l) grease collector drawer with hole to indicate when full, capture all excess grease
and oil and can be extracted for easy dumping and cleaning. Worktop in AISI 304 Stainless Steel.
3mm stainless steel splashback. Front and side panels in Stainless Steel with Scotch Brite finish.
All major components can be accessed from front of the appliance for ease of maintenance. Special
heavy duty chrome plated knobs for durability and easy cleaning. The configuration of bezels and
knobs provides high level of protection against water infiltrations. Right-angled side edges to
allow flush fitting joints between units. Supplied with 4" (102mm) height adjustable, removable
legs. Unit may be installed on refrigerated base or open cupboard.
APPROVAL:
Optional Accessories
•EM Series Restaurant Range 4 Pins Kit, for
top equipment on refrigerated base
PNC 169048 ❑
Smooth Gas Griddle Top 48"
EM Series
Electrolux Professional, Inc.
10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401
www.electroluxusa.com/professional
Smooth Gas Griddle Top 48"
EM Series
Front
Gas
Gas Power:
169015(ARG48FL)104000 Btu/hr (30.4 kW)
Gas Inlet:3/4" NPT
Natural Gas Pressure:4''w.c. (10 mbar)
Propane Gas Pressure:7''w.c. (18 mbar)
Key Information:
Cooking Surface Width:47 13/16" (1214 mm)
Cooking Surface Depth:22 5/8" (575 mm)
Working Temperature MIN:194 °F (90 °C)
Working Temperature MAX:500 °F (260 °C)
Top
External dimensions, Width:48 1/32" (1220 mm)
External dimensions, Depth:31 1/2" (800 mm)
External dimensions, Height:16 1/2" (419 mm)
Net weight:313 lbs (142 kg)
Shipping width:35 7/16" (900 mm)
Shipping depth:50 " (1270 mm)
Shipping height:27 1/16" (688 mm)
Shipping weight:348 lbs (158 kg)
Shipping volume:27.77 ft³ (0.79 m³)
* The rear and side clearances shown on the diagram indicate the
minimum distances reccomeneded from the appliance to
combustible surfaces.
G=Gas connection
Side
Smooth Gas Griddle Top 48"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
EM Series
2012.09.28
