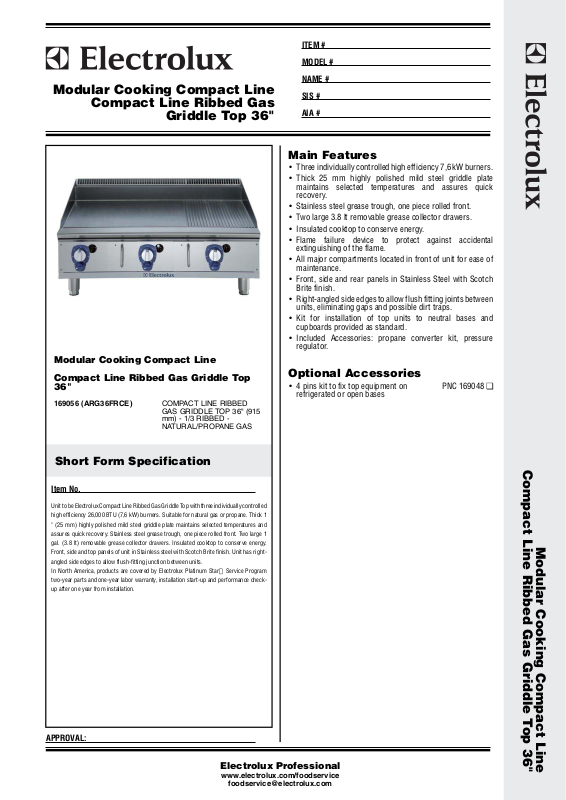

Electrolux ARG36FRCE User Manual
Modular Cooking Compact Line
Compact Line Ribbed Gas
Griddle Top 36"
Modular Cooking Compact Line
Compact Line Ribbed Gas Griddle Top
36"
169056 (ARG36FRCE)COMPACT LINE RIBBED
GAS GRIDDLE TOP 36" (915
mm) - 1/3 RIBBED NATURAL/PROP ANE GAS
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Three individually controlled high efficiency 7,6 kW burners.
•Thick 25 mm highly polished mild steel griddle plate
maintains selected temperatures and assures quick
recovery.
•Stainless steel grease trough, one piece rolled front.
•Two large 3.8 lt removable grease collector drawers.
•Insulated cooktop to conserve energy.
•Flame failure device to protect against accidental
extinguishing of the flame.
•All major compartments located in front of unit for ease of
maintenance.
•Front, side and rear panels in Stainless Steel with Scotch
Brite finish.
•Right-angled side edges to allow flush fitting joints between
units, eliminating gaps and possible dirt traps.
•Kit for installation of top units to neutral bases and
cupboards provided as standard.
•Included Accessories: propane converter kit, pressure
regulator.
Optional Accessories
•4 pins kit to fix top equipment on
refrigerated or open bases
PNC 169048 ❑
Short Form Specification
Item No.
Unit to be Electrolux Compact Line Ribbed Gas Griddle Top with three individually controlled
high efficiency 26,000 BTU (7,6 kW) burners. Suitable for natural gas or propane. Thick 1
" (25 mm) highly polished mild steel griddle plate maintains selected temperatures and
assures quick recovery. Stainless steel grease trough, one piece rolled front. Two large 1
gal. (3.8 lt) removable grease collector drawers. Insulated cooktop to conserve energy.
Front, side and top panels of unit in Stainless steel with Scotch Brite finish. Unit has rightangled side edges to allow flush-fitting junction between units.
In North America, products are covered by Electrolux Platinum Star Service Program
two-year parts and one-year labor warranty, installation start-up and performance checkup after one year from installation.
Compact Line Ribbed Gas Griddle Top 36"
Modular Cooking Compact Line
APPROVAL:
Electrolux Professional
www.electrolux.com/foodservice
foodservice@electrolux.com
Modular Cooking Compact Line
Compact Line Ribbed Gas
Griddle Top 36"
Front
Gas
Gas Power:
169056(ARG36FRCE)78000 Btu/hr (22.8 kW)
Gas Type Option:Propane
Gas Inlet:3/4" NPT
Natural gas - Pressure:7" w.c. (17.4 mbar)
Propane Gas Pressure:7,2" w.c. (18 mbar)
Key Information
Cooking Surface Width:35 13/16" (909 mm)
Cooking Surface Depth:22 5/8" (575 mm)
Top
Working Temperature MIN:194 °F (90 °C)
Working Temperature MAX:500 °F (260 °C)
External dimensions, Width36 1/32" (915 mm)
External dimensions, Depth31 1/2" (800 mm)
External dimensions, Height16 1/2" (419 mm)
Net weight:236 lbs (107 kg)
Shipping width:31 1/2" (800 mm)
Shipping depth:36 1/32" (915 mm)
Shipping height:16 1/2" (419 mm)
Shipping weight:236 lbs (107 kg)
Shipping volume:10.83 ft³ (0.31 m³)
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be
maintained or some form of heat insulation fitted.
G=Gas connection
Side
Compact Line Ribbed Gas Griddle Top 36"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Modular Cooking Compact Line
2010.09.13
