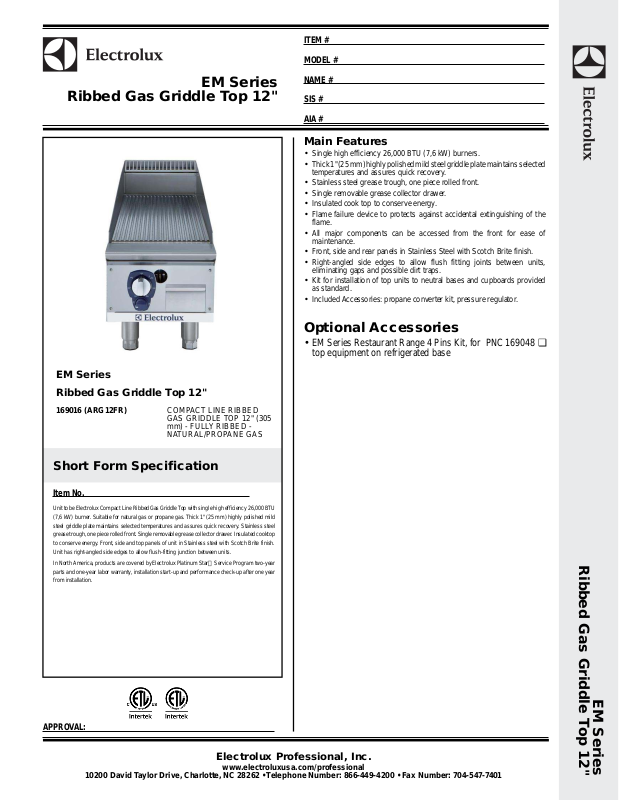

Electrolux ARG12FR User Manual
ITEM #
MODEL #
Ribbed Gas Griddle Top 12"
EM Series
NAME #
SIS #
AIA #
Main Features
•Single high efficiency 26,000 BTU (7,6 kW) burners.
•Thick 1" (25 mm) highly polished mild steel griddle plate maintains selected
temperatures and assures quick recovery.
•Stainless steel grease trough, one piece rolled front.
•Single removable grease collector drawer.
•Insulated cook top to conserve energy.
•Flame failure device to protects against accidental extinguishing of the
flame.
•All major components can be accessed from the front for ease of
maintenance.
•Front, side and rear panels in Stainless Steel with Scotch Brite finish.
•Right-angled side edges to allow flush fitting joints between units,
eliminating gaps and possible dirt traps.
•Kit for installation of top units to neutral bases and cupboards provided
as standard.
•Included Accessories: propane converter kit, pressure regulator.
Optional Accessories
•EM Series Restaurant Range 4 Pins Kit, for
top equipment on refrigerated base
PNC 169048 ❑
EM Series
Ribbed Gas Griddle Top 12"
169016 (ARG12FR)COMPACT LINE RIBBED
GAS GRIDDLE TOP 12" (305
mm) - FULLY RIBBED NATURAL/PROPANE GAS
Short Form Specification
Item No.
Unit to be Electrolux Compact Line Ribbed Gas Griddle Top with single high efficiency 26,000 BTU
(7,6 kW) burner. Suitable for natural gas or propane gas. Thick 1" (25 mm) highly polished mild
steel griddle plate maintains selected temperatures and assures quick recovery. Stainless steel
grease trough, one piece rolled front. Single removable grease collector drawer. Insulated cooktop
to conserve energy. Front, side and top panels of unit in Stainless steel with Scotch Brite finish.
Unit has right-angled side edges to allow flush-fitting junction between units.
In North America, products are covered by Electrolux Platinum Star Service Program two-year
parts and one-year labor warranty, installation start-up and performance check-up after one year
from installation.
Ribbed Gas Griddle Top 12"
APPROVAL:
EM Series
Electrolux Professional, Inc.
www.electroluxusa.com/professional
10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401
Ribbed Gas Griddle Top 12"
EM Series
Front
Gas
Gas Power:
169016(ARG12FR)26000 Btu/hr (7.6 kW)
Gas Inlet:3/4" NPT
Natural Gas Pressure:4''w.c. (10 mbar)
Propane Gas Pressure:7''w.c. (18 mbar)
Key Information:
Cooking Surface Width:11 3/4" (299 mm)
Cooking Surface Depth:22 5/8" (575 mm)
Working Temperature MIN:194 °F (90 °C)
Working Temperature MAX:500 °F (260 °C)
Net weight:82 lbs (37 kg)
Top
Shipping width:35 7/16" (900 mm)
Shipping depth:14 " (355 mm)
Shipping height:25 1/2" (648 mm)
Shipping weight:93 lbs (42 kg)
Shipping volume:7.31 ft³ (0.21 m³)
* Reccomended rear clearance of 4''(102 mm).
G=Gas connection
Side
Ribbed Gas Griddle Top 12"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
EM Series
2012.09.28
