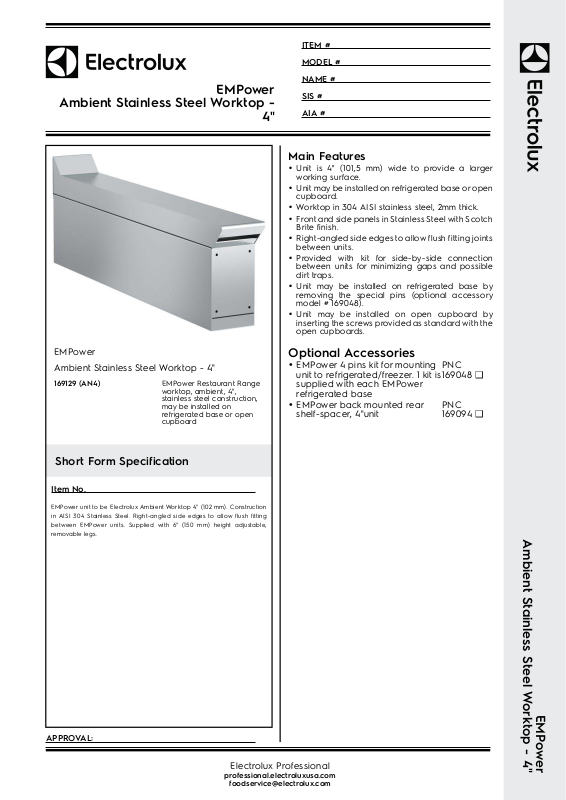

Electrolux AN4 User Manual

Ambient Stainless Steel Worktop -

EMPower

ITEM #

MODEL #

NAME #

SIS #

4"

AIA #

Main Features

•Unit is 4" (101,5 mm) wide to provide a larger

working surface.

•Unit may be installed on refrigerated base or open

cupboard.

•Worktop in 304 AISI stainless steel, 2mm thick.

•Front and side panels in Stainless Steel with Scotch

Brite finish.

•Right-angled side edges to allow flush fitting joints

between units.

•Provided with kit for side-by-side connection

between units for minimizing gaps and possible
dirt traps.

•Unit may be installed on refrigerated base by

removing the special pins (optional accessory
model # 169048).

•Unit may be installed on open cupboard by

inserting the screws provided as standard with the
open cupboards.

EMPower

Ambient Stainless Steel Worktop - 4"

169129 (AN4)EMPower Restaurant Range

worktop, ambient, 4",
stainless steel construction,
may be installed on
refrigerated base or open
cupboard

Short Form Specification

Item No.

EMPower unit to be Electrolux Ambient Worktop 4" (102 mm). Construction
in AISI 304 Stainless Steel. Right-angled side edges to allow flush fitting
between EMPower units. Supplied with 6" (150 mm) height adjustable,
removable legs.

Optional Accessories

•EMPower 4 pins kit for mounting

unit to refrigerated/freezer . 1 kit is
supplied with each EMPower
refrigerated base

•EMPower back mounted rear

shelf-spacer, 4"unit

PNC

169048 ❑

PNC

169094 ❑

Ambient Stainless Steel Worktop - 4"

APPROV AL:

EMPower

Electrolux Professional

professional.electroluxusa.com

[e-mail]

Ambient Stainless Steel Worktop - 4

EMPower

"

Front

Top

Key Information:

External dimensions, Width:

169129 (AN4)4 " (101 mm)
External dimensions, Depth:31 1/2" (800 mm)
External dimensions, Height:10 5/16" (262 mm)
Net weight:9 lbs (4 kg)
Shipping width:4 5/16" (110 mm)
Shipping depth:33 7 /16" (850 mm)
Shipping height:11 13/16" (300 mm)
Shipping weight:11 lbs (5 kg)
Shipping volume:0.99 ft³ (0.03 m³)

EQ=Equipotential screw

Side

Ambient Stainless Steel Worktop - 4"

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

EMPower

2016.07 .21
