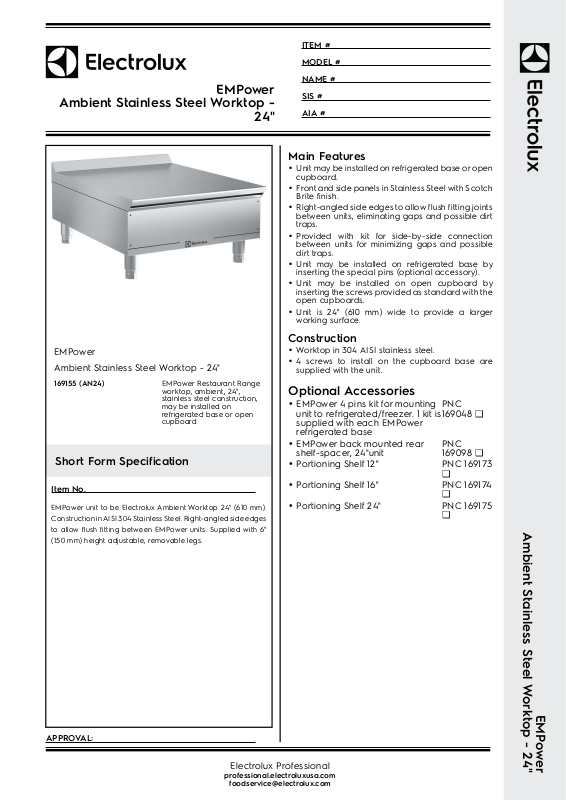

Electrolux AN24 User Manual
Ambient Stainless Steel Worktop -
EMPower
ITEM #
MODEL #
NAME #
SIS #
24"
AIA #
Main Features
•Unit may be installed on refrigerated base or open
cupboard.
•Front and side panels in Stainless Steel with Scotch
Brite finish.
•Right-angled side edges to allow flush fitting joints
between units, eliminating gaps and possible dirt
traps.
•Provided with kit for side-by-side connection
between units for minimizing gaps and possible
dirt traps.
•Unit may be installed on refrigerated base by
inserting the special pins (optional accessory).
•Unit may be installed on open cupboard by
inserting the screws provided as standard with the
open cupboards.
•Unit is 24" (610 mm) wide to provide a larger
working surface.
EMPower
Ambient Stainless Steel Worktop - 24"
169155 (AN24)EMPower Restaurant Range
worktop, ambient, 24",
stainless steel construction,
may be installed on
refrigerated base or open
cupboard
Short Form Specification
Item No.
EMPower unit to be Electrolux Ambient Worktop 24" (610 mm).
Construction in AISI 304 Stainless Steel. Right-angled side edges
to allow flush fitting between EMPower units. Supplied with 6"
(150 mm) height adjustable, removable legs.
Construction
•Worktop in 304 AISI stainless steel.
•4 screws to install on the cupboard base are
supplied with the unit.
Optional Accessories
•EMPower 4 pins kit for mounting
unit to refrigerated/freezer . 1 kit is
supplied with each EMPower
refrigerated base
•EMPower back mounted rear
shelf-spacer, 24"unit
•Portioning Shelf 12" PNC 169173
•Portioning Shelf 16" PNC 16917 4
•Portioning Shelf 24" PNC 169175
PNC
169048 ❑
PNC
169098 ❑
❑
❑
❑
Ambient Stainless Steel Worktop - 24"
APPROV AL:
EMPower
Electrolux Professional
professional.electroluxusa.com
foodservice@electrolux.com
Ambient Stainless Steel Worktop -
EMPower
24"
Front
Key Information:
Net weight:
169155 (AN24)53 lbs (24 kg)
Shipping width:26 3/8" (670 mm)
Shipping depth:36 1/32" (915 mm)
Shipping height:25 " (635 mm)
Shipping weight:62 lbs (28 kg)
Shipping volume:13.75 ft³ (0.39 m³)
Top
EQ=Equipotential screw
Side
Ambient Stainless Steel Worktop - 24"
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
EMPower
2016.07 .21
