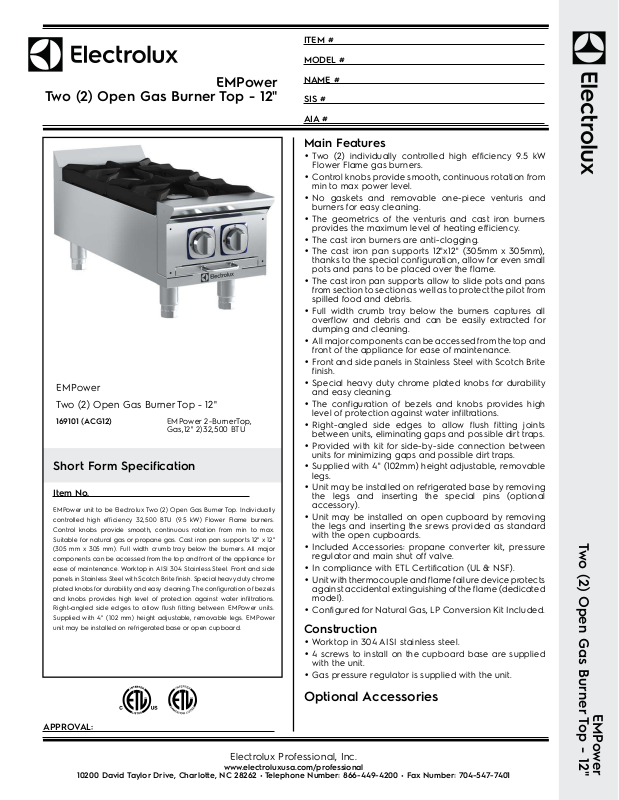

Electrolux ACG12 User Manual

ITEM #

MODEL #

EMPower

Two (2) Open Gas Burner Top - 12"

EMPower

Two (2) Open Gas Burner Top - 12"

169101 (ACG12)EMPower 2-BurnerT op,

Short Form Specification

Item No.

EMPower unit to be Electrolux Two (2) Open Gas Burner Top. Individually
controlled high efficiency 32,500 BTU (9.5 kW) Flower Flame burners.
Control knobs provide smooth, continuous rotation from min to max.
Suitable for natural gas or propane gas. Cast iron pan supports 12" x 12"
(305 mm x 305 mm). Full width crumb tray below the burners. All major
components can be accessed from the top and front of the appliance for
ease of maintenance. W orktop in AISI 304 Stainless Steel. Front and side
panels in Stainless Steel with Scotch Brite finish. Special heavy duty chrome
plated knobs for dur ability and easy cleaning. The configuration of bezels
and knobs pro vides high level of protection against water infiltrations.
Right-angled side edges to allow flush fitting between EMPower units.
Supplied with 4" (102 mm) height adjustable, removable legs. EMPower
unit may be installed on refrigerated base or open cupboard.

Gas,12" 2)32,500 BTU

NAME #

SIS #

AIA #

Main Features

•Two (2) individually controlled high efficiency 9.5 kW

Flower Flame gas burners.

•Control knobs provide smooth, continuous rotation from

min to max power level.

•No gaskets and removable one-piece venturis and

burners for easy cleaning.

•The geometrics of the venturis and cast iron burners

provides the maximum level of heating efficiency.

•The cast iron burners are anti-clogging.

•The cast iron pan supports 12"x12" (305mm x 305mm),

thanks to the special configuration, allow for even small
pots and pans to be placed over the flame.

•The cast iron pan supports allow to slide pots and pans

from section to section as well as to protect the pilot from
spilled food and debris.

•Full width crumb tray below the burners captures all

overflow and debris and can be easily extracted for
dumping and cleaning.

•All major components can be accessed from the top and

front of the appliance for ease of maintenance.

•Front and side panels in Stainless Steel with Scotch Brite

finish.

•Special heavy duty chrome plated knobs for durability

and easy cleaning.

•The configuration of bezels and knobs provides high

level of protection against water infiltrations.

•Right-angled side edges to allow flush fitting joints

between units, eliminating gaps and possible dirt traps.

•Provided with kit for side-by-side connection between

units for minimizing gaps and possible dirt traps.

•Supplied with 4" (102mm) height adjustable, removable

legs.

•Unit may be installed on refrigerated base by removing

the legs and inserting the special pins (optional
accessory).

•Unit may be installed on open cupboard by removing

the legs and inserting the srews provided as standard
with the open cupboards.

•Included Accessories: propane converter kit, pressure

regulator and main shut off valve.

•In compliance with ETL Certification (UL & NSF).

•Unit with thermocouple and flame failure device protects

against accidental extinguishing of the flame (dedicated
model).

•Configured for Natural Gas, LP Conversion Kit Included.

Construction

•Worktop in 304 AISI stainless steel.

•4 screws to install on the cupboard base are supplied

with the unit.

•Gas pressure regulator is supplied with the unit.

Two (2) Open Gas Burner Top - 12"

APPROV AL:

Optional Accessories

EMPower

Electrolux Professional, Inc.

www.electroluxusa.com/professional

10200 David T aylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401

EMPower

Two (2) Open Gas Burner Top - 12"

Front

Gas

Gas Power:

169101 (ACG12)65000 Btu/hr (19 kW)
Gas Type Option:Propane
Gas Inlet:3/4"

Key Information:

Front Burners Power:
External dimensions, Width:12 1/64" (305 mm)
External dimensions, Depth:31 1/2" (800 mm)
External dimensions, Height:14 5/8" (372 mm)

Top

Net weight:66 lbs (30 kg)
Shipping width:35 7 /16" (900 mm)
Shipping depth:14 " (355 mm)
Shipping height:25 1/2" (648 mm)
Shipping weight:77 lbs (35 kg)
Shipping volume:7.31 ft³ (0.21 m³)

*The rear and side clearances shown on the diagram
indicate the minimum distances reccomeneded from the
appliance to combustible surfaces.

9.5 - 0 kW (32385.5 - 0
Btu/hr)

EQ=Equipotential screw

G=Gas connection

Side

Two (2) Open Gas Burner Top - 12"

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

EMPower

2016.07 .21
