Hood type dishwashers
Page 2
2 electrolux dishwashers
Hood type dishwashers
Hood type dishwashers are the ideal solution for demanding customers
requiring high performance with low running costs.
Electrolux offers the maximum in washing results while providing reliable
dishwashing operation.
Small and medium sized restaurants
High performing dishwashers, the perfect choice for
restaurants with a large turnover of customers, needing
to provide rapid quality service.
Small and medium sized hotels
The ideal solution for small and medium sized kitchens
which have to satisfy various customer requirements from
room service to fi ne dining.
Quick service restaurants, pubs and bars
Ideal when a quick and dynamic service is required for
kitchens that have a limited time to prepare and serve
meals.
Page 3
green&clean
2electrolux Hood type
dishwashers
GREEN
Less water, energy, detergent
and rinse aid consumption for
lower running costs and less
impact on environment.
CLEAN
Best-in-class washing and
rinsing performance with
total detergent removal.
SILENT
Best-in-class for low noise
level thanks to the double
skin insulated hood.
SAFE
Unique WASH•SAFE CONTROL
device for a constant nominal
rinsing temperature of 84°C.
Page 4
4 electrolux
green&clean
dw
Low running costs
Experience the 20% running costs reduction versus standard machines in
the market and share the commitment of the latest generation of Electrolux
Hood type dishwashers for a better environment.
•
Enjoy the 500€* per year in your pocket thanks to the savings
500€
per year
made in water, energy, detergent and rinse aid and still guarantee
best in class performance:
–
Low water consumption: 3lt/cycle of fresh water are used for
rinsing with standard water inlet conditions
–
Low energy consumption: drops by 20-25% since less
water is used for rinsing
–
Less Detergent and Rinse aid consumption: much smaller
quantities are needed
•
The double skin insulated wall ensures a low noise level and a
reduction in heat loss from the machine
•
The optimisation of the packaging materials and size, to fi t
trucks and containers standard dimensions, drastically reduce
transportation costs and recycling needs
* Comparison with standard machine: 100 cycles per day, 300 annual working days. 15°C inlet water
Do you know why 3 liters are better than 2 or 4 liters?
high running costs
with adequate performance
4 lt.
green&clean:
the perfect balance between
optimum performance and
low running costs
3 lt.
lowest running costs but with
inadequate performance
2 lt.
Page 5
green&clean
Best-in-class performance
Excellent washing and rinsing performance with a total detergent removal.
The ideal dishwasher for cleaning plates, cups, utensils, trays, gastronorm
containers and cutlery.
Washing
•
The powerful washing circuit fully exploits the shape of
the spraying nozzles and the rotating arms both from
the top and from the bottom of the washing chamber
to deliver best-in-class results
No area in the washing chamber remains uncovered by
•
the water blades generated by the nozzles
dw
5electrolux
Electrolux Hood type dishwashers
Electrolux Hood type dishwashers guarantee clean items*.
*Result of standard testing procedure made by Electrolux using multiple layer chemical sensors. Black strips remaining on the plates
indicate that washing was not performed perfectly.
Rinsing
•
The atmospheric boiler is equipped with solenoid
valve, air break, waiting boiler device and rinse booster
pump. It ensures constant high temperature and
constant strong pressure of water during the rinse
phase. Therefore, regardless of inlet water condition,
the rinsing quality is always achieved
Electrolux Hood type dishwashers Other Hood type dishwashers
Standard Hood type dishwashers fail to remove all dirt/food on
the plates at the same washing conditions*.
Thanks to the 4-second pause after washing and
•
before rinsing, no drops of water used for washing will
fall on the cleaned items
Other Hood type dishwashers
Electrolux Hood type dishwashers guarantee perfect rinsing
performance*
* Result of standard testing procedure made by Electrolux using chemical sensors. Violet colour appears as reaction between residual
detergent and phenolphthalein.
Standard machines do not remove all detergent on the plates
after rinsing*
Page 6
6 electrolux
green&clean
dw
... and safety!
WASH•SAFE CONTROL: the rinse quality is guaranteed thanks to the
constant rinsing temperature of 84°C and the water pressure which is
independent from the mains.
Perfect rinsing performance
Sanitized plates are the best guarantee for hygiene and Electrolux Professional knows the importance of providing a total
detergent removal in the rinsing phase to fulfi l best-in-class safety requirements.
The most dangerous groups of bacteria fi nd their ideal conditions for growth in an environment with a temperature
between 20° and 60° (max 75°). Therefore, the constant rinsing temperature of 84°C assures perfect hygienic conditions.
1. Water inlet, water enters
at a pressure from 0,5 to 7 bar
(depending on water supply)
2. Air gap exit, water pressure
reaches 0,9-1 bar (depending
on the installation location)
while temperature remains
constant at inlet conditions
3. Boiler exit, water reaches
84°C while pressure remains
constant at 0,9-1 bar
4. Rinse booster pump exit,
water pressure reaches 6 bar
while temperature remains at
84°C
5. Rinse nozzle exit, at each
nozzle the pressure drops to
0,4-0,5 bar while temperature
remains at 84°C
2
5
3
4
1
The WASH•SAFE CONTROL light turns green to
guarantee rinsing has been performed perfectly
with a constant temperature over 84°C.
The air-break prevents water
from fl owing back into the mains
in case of machine failure
The atmospheric boiler
provides a large quantity of
hot water at a constant high
temperature
The boiler waiting device
ensures that rinsing starts only
when the water reaches the right
temperature
The rinse booster pump
pushes water at constant high
pressure. Detergent removal is
granted even with low water inlet
pressure
The solenoid valve allows water
from the mains to enter the
machine to fi ll the boiler
Spot-free glasses and cutlery
•
Models equipped with Continuous Water Softener (CWS) guarantee non-stop
dishwashing because workfl ow is not interrupted for resin regeneration thanks
to two resin containers installed in the back: the electronic control uses one of the
containers to soften the water and at the same time regenerates the resins in the
other one
•
100% of the water entering the dishwasher is softened providing spot-free results
and reducing scale build-up
•
The water softener is integrated with the atmospheric rinse system, maintaining high
rinse water pressure and a constant high temperature during the rinse phase
•
All models are equipped with external salt fi lling cap, so the operator can easily
load the container without having to access the internal chamber
•
A sensor advises the operator when the salt container needs to be refi lled
Page 7
Page 8
8 electrolux
green&clean
dw
The best performance ever
thanks to these additional
benefi ts
Ergonomics
•
Firm grip and fast operation are guaranteed
thanks to the rubber corners on the hood handle
•
A unique safety device prevents the hood from
accidentally closing in case of breakage of the
sustaining springs, thus avoiding any risk of injury
for both the operator and the service engineer
•
The hood, made of single sheets covering both
the front and sides, without lateral supports, make
loading/unloading operations fast and easy
•
The hood is open on the back side to prevent
steam from blasting towards the operator
•
The models equipped with automatic hood lifting
reduce labour costs, in heavy duty washing areas,
by eliminating the need to open and close the door
Rubber corners on the handle Hood open on the back to
release hot steam
Flexibility
•
Three standard cycles are available to wash any
kind of residue
•
The washing and rinsing cycle times and
temperatures can be fully customised to meet
specifi c customer requirements
•
The “Soft start” feature prevents accidental
damage to glassware and crockery by reducing
the power of the jets of water at the start of the
wash cycle
•
The concentration of detergent and rinse aid can
be set directly through the electronic board to get a
perfect washing result in all conditions
•
All models are pre-arranged to accept external
dosing equipment to avoid a service engineer from
damaging the machine during installation
•
Several types of baskets are available to suit
every washing need. Specifi c solutions for balloon,
crystal and beer glasses have been developed by
the Electrolux Dishwashing R&D department to
deliver spot-free results
The external electric box allows rapid on-site
•
changing from single to three phase connections
and viceversa
Control panel Soft start
Several types of baskets and loading/unloading tables
Page 9
Hygiene
•
The wash tank has round corners to avoid dirt
traps
•
The basket support, tank fi lter and wash/rinse
arms are easily removable for cleaning
•
The fully automatic self-cleaning cycle sanitizes
the washing chamber with hot water
•
The self-draining wash pump device completely
empties both the boiler and the wash pump to
avoid bacteria proliferation when the machine is not
in use
•
The self-draining wash pump and the draining of
the wash tank (by simply removing the overfl ow
pipe) eliminate “stagnant” water for added hygiene
green&clean
Round corners Wash/rinse arms easily
removable
dw
9electrolux
Reliability
•
All components in contact with water and
chemicals are made of A304 stainless steel
guaranteeing long-lasting operation
•
The boiler, made of A304L, is resistant to
chlorinated water and is welded in an inert
atmosphere to avoid contamination during the
production process
The water supply hose has metal connections
•
to withstand high water pressure and accidental
shocks during installation
All models are certifi ed IPX5 or IPX4 for water
•
protection and therefore can be washed even with
strong jets of water
Best-in-class for low noise level thanks to the
•
double skin insulated hood (less than 63dBA
measured at 1m distance, 1,5 m height, 30
seconds according to ISO11204) assures the best
working environment
Boiler resistant to chlorinated
Water supply hose
water
IPX5 water protection on green&clean models
Page 10
10 electrolux
green&clean
dw
2 aesthetics and 16 models
to suit all your needs
User friendly control panel with clear icons puts everyone at ease.
The WASH•SAFE CONTROL light turns
green to guarantee rinsing has been
performed perfectly with a constant
temperature over 84°C.
On /Off button
Self cleaning
Once the tank fi lter and overfl ow pipe have been
removed, pressing this button will activate the
emptying of the wash tank and the wash pump. After
that, four rinse cycles will start to sanitize the washing
chamber. When completed, the water from rinsing is
drained completely to avoid bacteria proliferation.
Washing Temperature indicator
When lit, it indicates that the washing
cycle is in operation at the temperature
shown on the display.
Rinsing Temperature indicator
When lit, it indicates that the rinsing cycle
is in operation at the temperature shown
on the display.
green&clean
hood type dishwasher
Hood lift
Automatic hood movement available
in selected models.
green&clean hood type
dishwasher aesthetic
double skin insulated hood for a quiet
working environment
Cycle 1
Short wash cycle (54 sec)
recommended for lightly soiled items
and glasses.
Cycle 2
Medium wash cycle (90 sec)
recommended for medium soiled
items.
Cycle 3
Long wash cycle (150 sec)
recommended for heavily soiled
items.
Infi nite
Infi nite wash cycle recommended for
soaking heavily soiled items.
Page 11
On /Off button
Self cleaning
Once the tank fi lter and overfl ow pipe have been
removed, pressing this button will activate the
emptying of the wash tank and the wash pump. After
that, four rinse cycles will start to sanitize the washing
chamber. When completed, the water from rinsing is
drained completely to avoid bacteria proliferation.
Washing Temperature indicator
When lit, it indicates that the washing
cycle is in operation at the temperature
shown on the display.
Rinsing Temperature indicator
When lit, it indicates that the rinsing cycle
is in operation at the temperature shown
on the display.
Hood type dishawasher
Hood type dishawasher
aesthetic
Cycle 1
Short wash cycle (54 sec)
recommended for lightly soiled items
and glasses.
Cycle 2
Medium wash cycle (90 sec)
recommended for medium soiled
items.
Cycle 3
Long wash cycle (150 sec)
recommended for heavily soiled
items.
Page 12

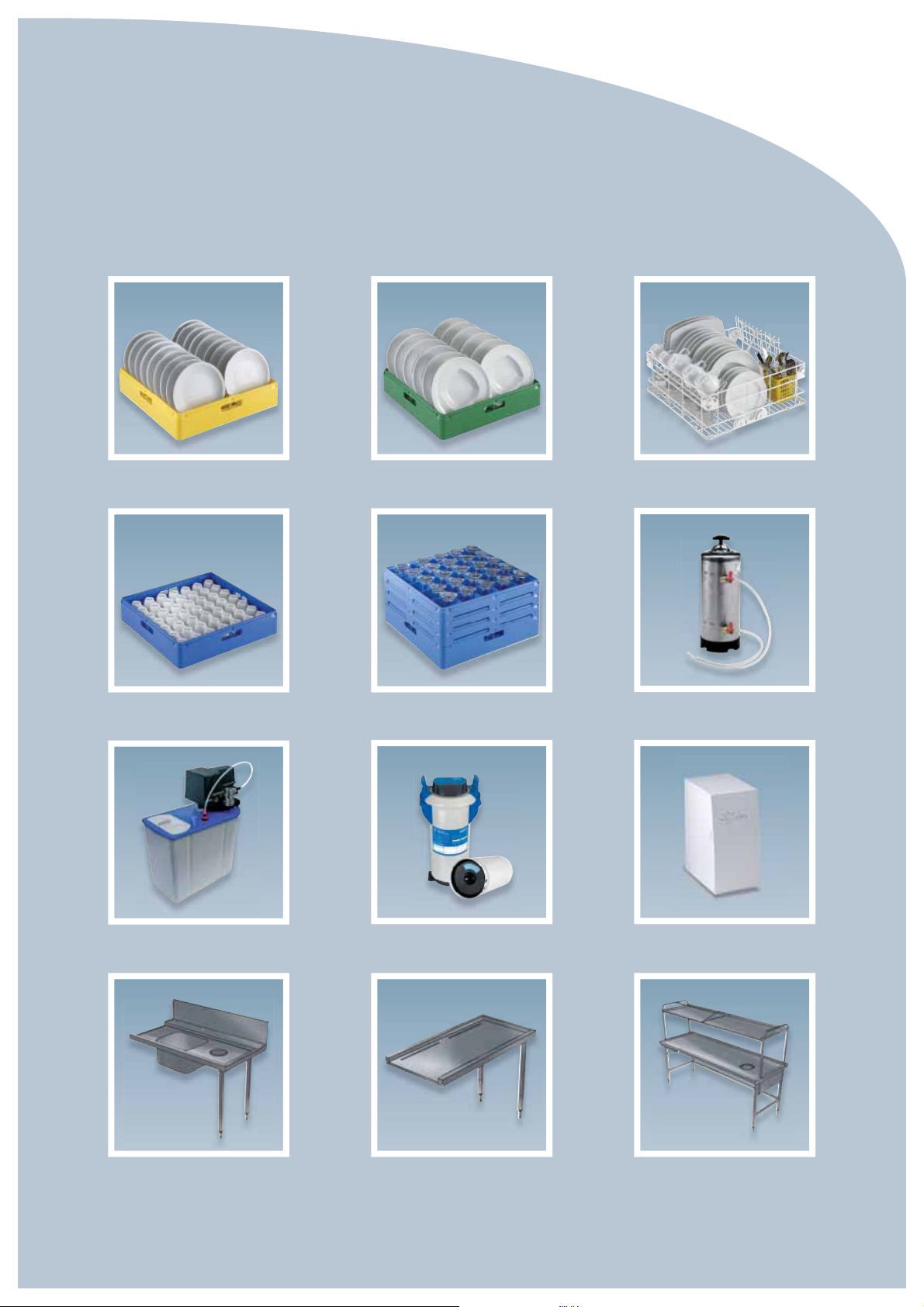

Accessories
12electrolux dishwashers
Basket for 18 dinner plates
Basket for 49 small cups
Basket for 12 soup bowls
Basket for 25 beer glasses
Multi-purpose basket
500x500x190 mm
12 lt. external manual
water softener
DOMETIC reverse osmosis fi lter
Full range of sorting tables
water softener
Full range of pre-wash tables
BRITA demineralizer fi lter8 lt. external automatic
Full range of loading/unloading
tables
...for additional baskets and other accessories consult our price list
Page 13
Range
13electrolux dishwashers
Description EHTAI
green&clean
WASH•SAFE CONTROL ••
Pressure boiler •
Atmospheric boiler ••
Double skin insulated hood ••
Electrical connection 400V/3N/50Hz,
convertible on site to
230V/1N or 230/3/50Hz
No. of cycles 443
Capacity (dishes/hour) 1.200 1.200 1.200
External dimensions
(WxDxH)
Basket dimension (mm) 500x500 500x500 500x500
Wash tank capacity (lt.) 40 40 42
Wash pump power (kW) 0,8 0,8 0,8
Boiler capacity (lt.) 12 12 12
Boiler power (kW) 999
Water consumption
(lt./cycle)
Rinse temperature/ time 84°C/12 sec. 84°C/12 sec. 80-90°C/16 sec.
Total power (kW) 9,9 9,9 9,9
Built-in rinse aid dispenser •••
Included baskets 1 basket for 18 plates + 1
735x815x1507 735x815x1507 748X833X1515
333
basket for cups + 2 cutlery
containers
230V/1N or 230/3/50Hz
1 basket for 18 plates + 1
basket for cups + 2 cutlery
EHTA
green&clean
400V/3N/50Hz,
convertible on site to
containers
EHT
400V/3N/50Hz,
convertible on site to
230V/1N or 230/3/50Hz
1 basket for 18 plates +
1 cutlery container
Additional versions
60Hz ••
Built-in continuous water
softener & drain pump
Built-in detergent dispenser •••
Built-in detergent dispenser,
drain pump & continuous
water softener
Built-in drain pump, detergent
dispenser & open air gap
(WRC)
Automatic hood •
••
•
••
Page 14
www.electrolux.com/foodservice
Share more of our thinking at www.electrolux.com
The Company reserves the right to change specifications without notice.
9JEDQU
Loading...
