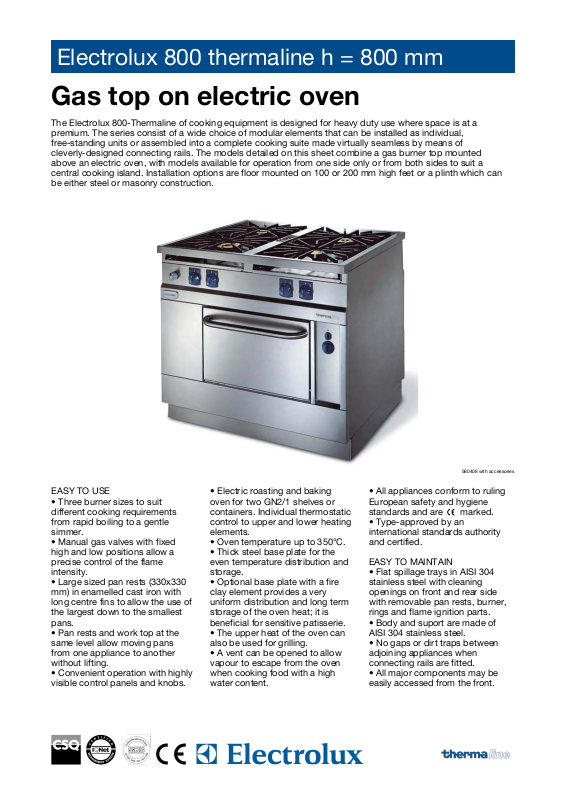

Electrolux 800 User Manual

Electrolux 800 thermaline h = 800 mm

Gas top on electric oven

The Electrolux 800-Thermaline of cooking equipment is designed for heavy duty use where space is at a
premium. The series consist of a wide choice of modular elements that can be installed as individual,
free-standing units or assembled into a complete cooking suite made virtually seamless by means of
cleverly-designed connecting rails. The models detailed on this sheet combine a gas burner top mounted
above an electric oven, with models available for operation from one side only or from both sides to suit a
central cooking island. Installation options are floor mounted on 100 or 200 mm high feet or a plinth which can
be either steel or masonry construction.

EASY TO USE

• Three burner sizes to suit
different cooking requirements
from rapid boiling to a gentle
simmer.

• Manual gas valves with fixed
high and low positions allow a
precise control of the flame
intensity.

• Large sized pan rests (330x330
mm) in enamelled cast iron with
long centre fins to allow the use of
the largest down to the smallest
pans.

• Pan rests and work top at the
same level allow moving pans
from one appliance to another
without lifting.

• Convenient operation with highly
visible control panels and knobs.

• Electric roasting and baking
oven for two GN2/1 shelves or
containers. Individual thermostatic
control to upper and lower heating
elements.

• Oven temperature up to 350°C.

• Thick steel base plate for the
even temperature distribution and
storage.

• Optional base plate with a fire
clay element provides a very
uniform distribution and long term
storage of the oven heat; it is
beneficial for sensitive patisserie.

• The upper heat of the oven can
also be used for grilling.

• A vent can be opened to allow
vapour to escape from the oven
when cooking food with a high
water content.

580408 with accessories

• All appliances conform to ruling
European safety and hygiene
standards and are H marked.

• Type-approved by an
international standards authority
and certified.

EASY TO MAINTAIN

• Flat spillage trays in AISI 304
stainless steel with cleaning
openings on front and rear side
with removable pan rests, burner,
rings and flame ignition parts.

• Body and suport are made of
AISI 304 stainless steel.

• No gaps or dirt traps between
adjoining appliances when
connecting rails are fitted.

• All major components may be
easily accessed from the front.

Electrolux 800 thermaline h = 800 mm

Gas top on electric oven

• The appliances are IP X5
certified against water jets.

• Hygenic design of the open base
compartement with large round
edges.

• Packing free of toxic
substances.

• Models with ECOFLAM (pot
detection system) assure energy
saving by reducing unnecessary
heat radiation in the kitchen.

EASY ON THE ENVIRONMENT

• All appliances are EC-prototype
tested by DVGW. The combustion
produces the lowest allowable
concentration of flue gases.

• Special insulation and heat
reflector beneath the cooking
surface reduces heat transfer to
the interior of the range to a
minimum.

• 98% recyclable by weight.

CK248209

580408

TECHNICAL DATA

Power supply Gas/Electric Gas/Electric Gas/Electric
Ecoflam ● ●
Installation FS on concrete

One-Side Operated ● ●
Both-Sides Operated ● ●
External dimensions - mm
width 800 800 800 800
depth 800 800 800 800
height 800 800 800 800
Oven cavity - mm
width 550 550 550 550
depth 700 700 700 700
height 270 270 270 270
Oven
heat input - kW 5.5 5.5 5.5 5.5
temperature min-max - °C 60, 350 60, 350 60, 350 60, 350
Control Knob Electrical

Back burner dimensions - mm 340x370, 340x370 340x370, 340x370 340x370 340x370, 340x370
Back burners power - kW 5, 5 5, 5 5 5, 5
Front burners dimension - mm 340x370, 340x370 340x370, 340x370 340x370 340x370, 340x370
Front burners power - kW 3.6, 5 3.6, 5 3.6 3.6, 5
Power - kW
gas 19 18.6 19 18.6
Oven power - kW
electric 5.5 5.5 5.5 5.5
Total Power - kW 24.1 24.1 24.1 24.1
Net weight - kg. 140 140 140 140
Supply voltage 400 V, 3N, 50/60 400 V, 3N, 50/60 400 V, 3N, 50/60 400 V, 3N, 50/60

INCLUDED ACCESSORIES

BAKING SHEET 2/1GN FOR OVENS 1 1 1 1
GRID, CHROMIUM PLATED, FOR OVENS 2/1 GN 1 1 1 1
PAN REST CAST-IRON COMPACT-330X330 MM 4 4 4 4

ACCESSORIES

BOTTOM PL+4 FEET 100MM-800&900MM-SPECIAL 911927 911927 911927 911927
BOTTOM STEEL PLATE 2/1 F.FIRE CLAY PLATE 910655 910655 910655 910655
C-BOARD WELDED 800 MM 911741 911741
FIRE CLAY PLATE 2/1GN FOR OVENS 910656 910656 910656 910656
FLEXIBLE CONNECTION HOSE 3/4'' 910720 910720 910720 910720
FOLDING SHELF 300X800 MM 910801 910801 910801 910801
FOLDING SHELF 400X800 MM 910802 910802 910802 910802
PAN REST SS COMPACT-330X330 MM 910715 910715 910715 910715
ROLLING RACKS 800 910824 910824 910824 910824
S/S PLINTH 800X800X100MM - AGAINST WALL 911344 911344
S/S PLINTH 800X800X100MM - FREESTANDING 911359 911359 911359 911359
SIMMERING PLATE COMPACT-330X330 MM 910717 910717 910717 910717
SOLID TOP PLATE COMPACT-330X330 MM 910719 910719 910719 910719

base, FS on feet,

FS on floor

thermostat; Gas

valve

CK248211

580434

FS on concrete

base, FS on feet,

FS on floor

Electrical

thermostat; Gas

valve

CK248209E

599392

FS on concrete

base, FS on feet,

FS on floor

Electrical

thermostat; Gas

valve

CK248211E

599395

FS on concrete

base, FS on feet,

FS on floor

Electrical

thermostat; Gas

valve

CDAB0202011-06-10Subject to change without notice
