ELECTROLUX 6439EM User Manual

6439 E

Instruction booklet Notice d'utilisation Istruzioni per l’uso

Electric hob

Table de cuisson

électrique

Piano di cottura

elettrico

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future.

The Electrolux ambition is to offer a wide variety of quality products that make

your life more comfortable.

You find some examples on the cover in this manual. Please take a few minutes to study this manual so that you can take advantage

of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind.

Good luck!

Description of the Hob....................................................................................... 3

Important Safety Information .............................................................................. 4

Before the First Use of the Appliance ................................................................. 6

Operation .......................................................................................................... 7

Maintenance and Cleaning .............................................................................. 10

Something Not Working? ................................................................................. 11

Service and original Spare Parts ...................................................................... 21

Declaration of guarantee terms (for Belgium only) ............................................ 22

Guarantee/Customer Service (for the United Kingdom only) .............................. 24

European Guarantee ....................................................................................... 25

For the Installer

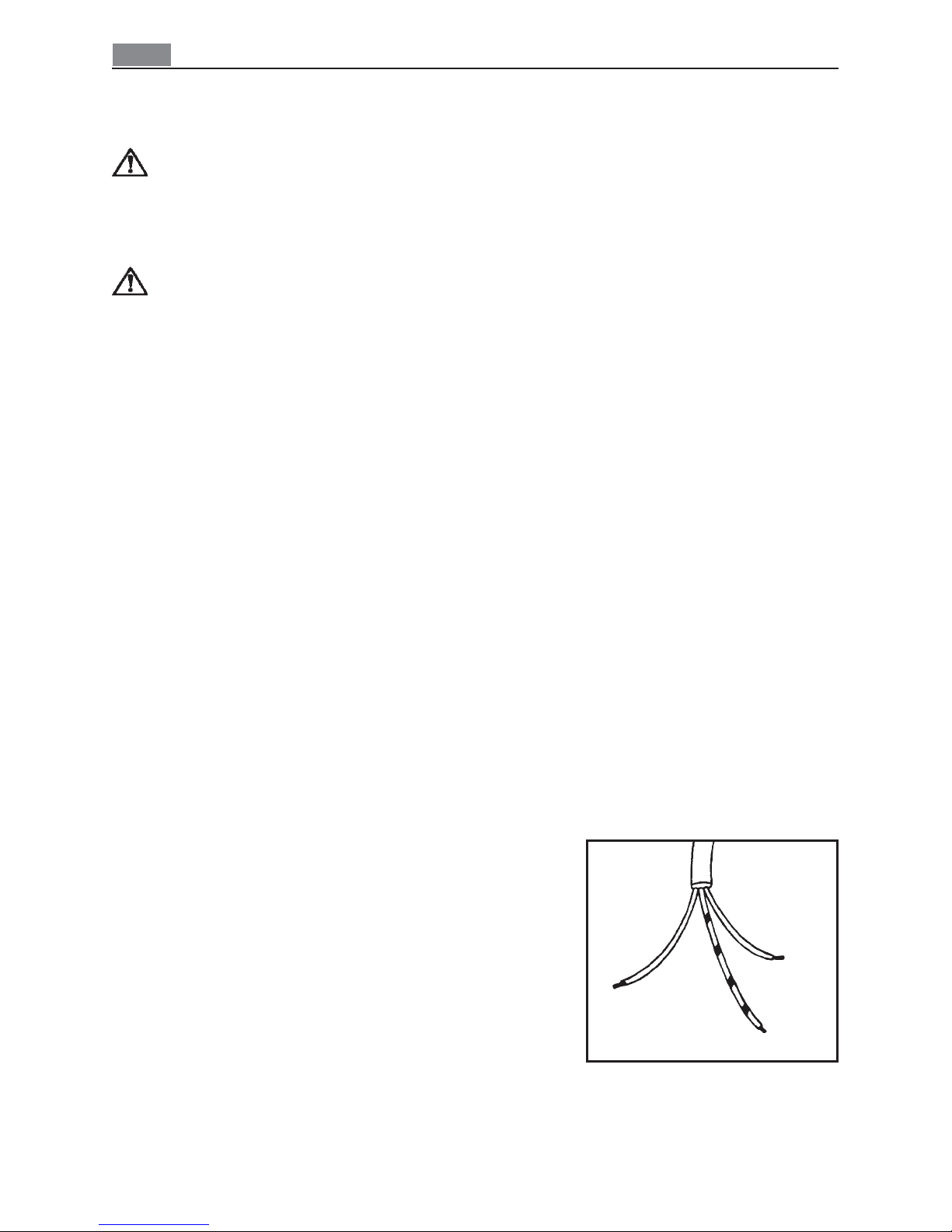

Electrical Connections ..................................................................................... 14

Wiring Diagram................................................................................................ 17

Installation ....................................................................................................... 18

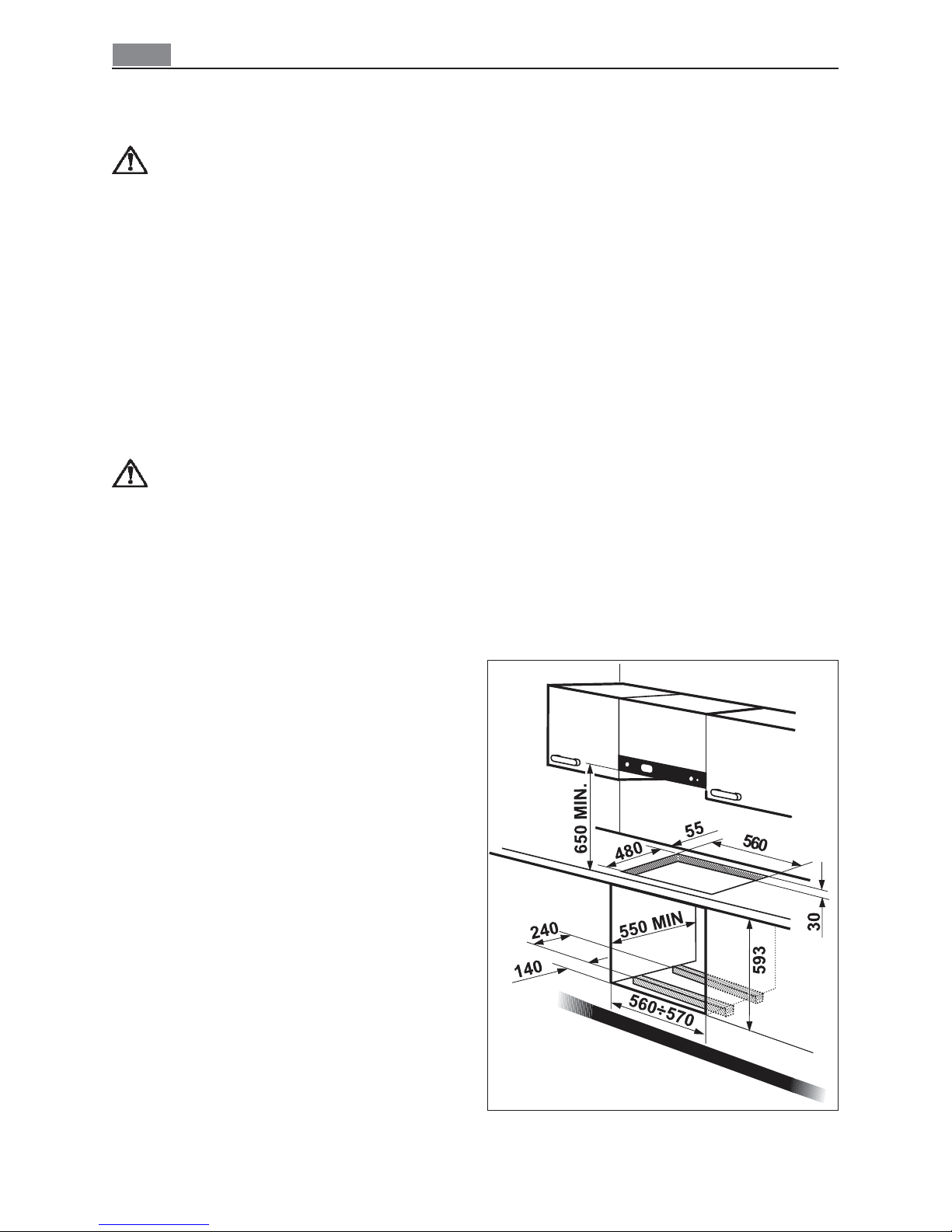

Building In ....................................................................................................... 20

For the User

Contents

Description of the Hob

1. Hob top

2. Rapid hotplate - 2000 W - 180 mm dia.

3. Rapid hotplate - 1500 W - 145 mm dia.

4. Control knobs

5. Mains On indicator light

This new appliance is easy to use.

However, make sure to read this handbook before installing and using the appliance for the first time. In this way you can obtain best performance, avoid incorrect operations, use the appliance in complete safety and respect the environment.

Important Safety Information

Installation

• This hob must be installed by qualified

personnel, according to the

manufacturer’s instructions and to the

relevant British Standards.

• Before carrying out any operation,

make sure the appliance is

DISCONNECTED from the power

supply.

• Remove all packaging before using

the hob.

• After unpacking the appliance, make

sure it is not damaged and that the

power cable is in perfect condition.

Otherwise, contact the dealer before

using the appliance.

• The Manufacturer declines any liability

if the accident-prevention regulations

are not respected.

People safety

• This appliance must only be used by

adults. Make sure children do not

play with the appliance or touch the

controls.

• This appliance is not intended for use

by children or other persons whose

physical, sensory or mental

capabilities or lack of experience and

knowledge prevents them from using

the appliance safely without

supervision or instruction by a

responsible person to ensure that

they can use the appliance safely.

• The exposed parts of this appliance

become hot during cooking and remain so for some time even after the appliance is turned off. Keep children away until the appliance has cooled.

During use

• This product is designed for non-

professional home use, for cooking food. Do not use it for any other purpose.

• Modifying or attempting to change the characteristics of this product is

hazardous.

• Keep the appliance clean. Food residuals can create the risk of fire.

• In case of faults, never try to repair the appliance on your own. Repairs

carried out by unqualified persons can cause damage and accidents. Firstly, consult this handbook. If you do not find the necessary information, contact the nearest Service Centre. Assistance for this appliance must be carried out by an authorised Technical Service Centre. Always demand the use of original spare parts.

• After using the appliance, make sure all the controls are in the “CLOSED” or “OFF” position.

• Do not use steam or steam appliances to clean the equipment.

English

• When using a power outlet near this appliance, make sure the cords of any electrical appliances being used do not touch it and are far enough away from its hot parts.

Environmental information

• All the materials used are environmentally friendly and

recyclable. Please make your contribution to safeguarding the environment by using the special differentiated waste collection channels.

• Appliances that are no longer used or unusable are not worthless waste.

Through ecological disposal, various materials used in manufacturing your appliance can be recovered.

• Find out about the possibilities of disposal from your specialised dealer

or local Council.

• When disposing of an old appliance,

make it unusable,by cutting off the cable.

! The symbol on the product or on

its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

These instructions are only valid for countries whose identification symbols appear on the handbook cover and on the appliance.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

This appliance is manufactured according to the following EEC directives:

2006/952006/95

2006/95 EEC -

93/6893/68

93/68 EEC -

89/336 89/336

89/336 EEC -

90/39690/396

90/396 EEC,

current edition.

Guide to Use the instructionsGuide to Use the instructions

Guide to Use the instructions

The following symbols will be found in the text to guide you throughout the Instructions:

Safety Instructions Step by step

instructions for an operation

Hints and Tips Environmental

information

MANUFACTURER:MANUFACTURER:

MANUFACTURER: ELECTROLUX HOME PRODUCTS ITALY S.p.A. Viale Bologna, 298 47100 FORLÌ (Italy)

Before the First Use of the Appliance

Before using the appliance remove all packaging, including the advertising labels and any protective film.

When using the hob for the first time:

1) place on all the plates a pan filled with some water;

2) switch the plates on for about 10 minutes at “maximum” position until water inside the pans boils;

3) then, turn the control knob to “minumum” and allow the plates to run for approximately 20 minutes;

4) open a window for ventilation.

During this time, the plates may smoke a little and an unpleasant odour may be emitted. This is absolutely normal and it is caused by residues of manufacturing.

Once this operation is carried out, let

the plates to cool down, then clean them with a soft cloth soaked in warm water.

Fig. 1

Electric Hotplates (Fig. 2)

To switch on a hotplate, turn the relevant control knob anticlockwise to the required heat setting.

The control knob is numbered 1 - 3.

0 - OFF 1 - Minimum 3 - Maximum

Rapid HotplatesRapid Hotplates

Rapid Hotplates

The rapid hotplates are indicated by a red dot, and will heat up more quickly than a normal plate. As the red dots are painted on the plate, they may deteriorate during use and even disappear completely after a period of time. This will not affect the

performance of the hob.

It is important to note that the plate may smoke and produce a slightly unpleasant odour when used for the first time. This is quite normal and will disappear after a short while.

Electric Hotplates Control Light

The Hotplates Control Light will come on each time a cooking zone is switched on.

Operation

Fig. 2

Mains On

Indicator Light

Control Knobs

OFF 0

Very Gentle

•

To keep food warm To melt butter and chocolate.

Gentle 1 To prepare cream-sauces,

stews and milk puddings or to fry eggs.

Slow

•

Dried vegetables, frozen food, fruit, boiling water or milk.

Medium 2 Boiled potatoes, fresh

vegetables, pâtés, soups, broths, pancakes or fish.

High

•

Larger stews, meat roll, fish, omelettes, steaks.

Fast 3 Steaks, escalopes and frying.

Suggestion for the correct setting of the plates are given in the table below.
