IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
■
■This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
■
■Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
■
■Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin
may stick to these extremely cold surfaces.
■
■Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
■
■In refrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating element
located on the bottom of the icemaker. Do not
place fingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
■
■Keep fingers out of the “pinch point” areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
■
■Set the master power switch to the O (off) position
before cleaning or making repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
■
■Do not refreeze frozen foods that have
thawed completely.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
ElectroluxUSA.com
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous…even if they will sit for “just a few
days.” If you are getting rid of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before You Throw Away Your Old Refrigerator
or Freezer:
■Take off the doors.
■Leave the shelves in place so that children may
not easily climb inside.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an
old refrigeration product, check with the
company handling the disposal about what
to do.
DANGER! RISK OF CHILD ENTRAPMENT
3
4
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug, which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
If the outlet is a standard 2-prong outlet, it is your
personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall
outlet.
The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull straight
out from the outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator, be careful not to roll
over or damage the power cord.
DONOT USE AN ADAPTER PLUG OR EXTENSION CORD
(Adapter plugs not permitted in Canada)
Do not use an adapter plug to connect the refrigerator to a 2-prong outlet.
Do not use an extension cord with this appliance.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
About the temperature controls. ElectroluxUSA.com
The temperature controls are preset in the factory at 37°F for the
refrigerator compartment and 0°F for the freezer compartment. Allow
24 hours for the temperature to stabilize to the preset recommended
settings.
The actual temperature may vary slightly from the set temperature
based on usage and operating environment.
NOTE: The refrigerator is shipped with protective film covering the
temperature controls. If this film was not removed during installation,
remove it now.
The Performance Air-Flow System is designed to
maximize temperature control in the refrigerator
and freezer compartments. This unique special
feature consists of the Air Tower along the back
wall of the refrigerator and the freezer. Placing food
in front of the louvers on these components will not
affect performance.
Performance Air Flow System
To change the temperature, press and release the
up or down arrow button. To change the
temperature, tap either the up arrow for warmer
temperatures or the down arrow for colder
temperatures until the desired temperature is
displayed. Refrigerator temperatures can be
adjusted between 34 °F and 46°F and the freezer
temperatures can be adjusted between -6 °F and +
6°F .
Once the desired temperature has been set,
the temperature display will clear after 60 seconds.
To display the temperature, the Disp T emp button
may be tapped.
Several adjustments may be required. Each time you
adjust controls, allow 24 hours for the refrigerator to
reach the temperature you have set.
5
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
About the water filter. (on some models)
6
Water Filter Cartridge
The water filter is located in the fresh food
compartment in the upper right side.
When to Replace the Filter
There is a replacement indicator light for
the water filter cartridge on the dispenser.
This light will turn amber to tell you that
you need to replace the filter soon.
The filter cartridge should be replaced
when the replacement indicator light turns
red or if the flow of water to the dispenser
or icemaker decreases.
Installing the Filter Cartridge
The filter cartridge is designed to filter for
approximately 6 months under normal
household usage
If you are replacing the cartridge,
first remove the old one by
depressing the ejection button
Insert the new filter with
approximately 1 lb. of force so that
the filter is completely seated
NOTE: If the filter is not seated properly,
water may leak from the filtration system or
no water will be dispensed.
Run water from the dispenser for
3 minutes (about 11⁄2 gallons) to clear
the system and prevent sputtering.
Press and hold the button on the
dispenser for 3 seconds.
NOTE: The dispenser and the icemaker
will not operate without the filter.
Replacement Filters:
To order additional filter cartridges
in the United States, visit our Website,
ElectroluxUSA.com or call 1-8774ELECTROLUX
Push In
and Click
to Install
7
About the shelves and bins. ElectroluxUSA.com
Refrigerator Door Bins and Freezer Door Bins
All door bins, except for the deep gallon
door bin and freezer bins, are adjustable
and can be moved up and down to meet
your storage needs. The deep gallon door
bin and the freezer bins can be removed
for cleaning.
To remove any bin: Lift the bin up and pull
it toward you.
To replace or relocate: Engage the back side
of the bin in the molded supports on the
door. Then push down on the front of the
bin. Bin will lock in place.
The snugger helps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
snugger near the rear and move it back
and forth to fit your needs.
CAUTION: Make
sure that items do
not block or fall into
the ice chute.
Not all features are on all models.
Refrigerator bins
Spillproof Shelves and Freezer Shelves
The special edges are designed to help
prevent spills from dripping to lower
shelves.
To remove shelves:
Tilt shelf up at front, then lift it up and out
of tracks on rear wall of refrigerator.
To replace shelves:
Select desired shelf height. With shelf front
raised slightly, engage top lugs in tracks at
rear of cabinet. Then lower front of shelf
until it locks into position.
Make sure you push the shelves all the way back
in before you close the door.
Top freezer bin
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Do not block
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
8
About the refrigerator doors.
Refrigerator Doors
The refrigerator doors may feel different
than the ones you are used to. The special
door opening/closing feature makes sure
the doors close all the way and are securely
sealed.
When opening and closing the door,
you will notice a stop position. When the
door is at the 90° stop position, it will
automatically close.
The resistance you feel at the stop
position will be reduced as the door
is loaded with food.
When the door is at 90° open,
it will automatically close.
Beyond this stop the door will stay open.
Door Alignment
If doors are uneven, adjust the refrigerator
door .
Using a 7/32″ socket wrench, turn the
door adjusting screw clockwise to raise
the door, counterclockwise to lower
the door. (A nylon plug, imbedded in
the threads of the pin, prevents the pin
from turning unless a wrench is used.)
After one or two turns of the wrench,
open and close the refrigerator door
and check the alignment at the top
of the doors.
Bushing
inge
Door H
Case Hinge
7/32" Wrench
Raise
Clockwise
About the drawers and baskets. ElectroluxUSA.com
9
Not all features are on all models.
Fruit and Vegetable Drawers
Excess water that may accumulate in the
bottom of the drawers should be wiped dry.
Adjustable Humidity Drawers
Slide the control all the way to the HI setting
to provide high humidity recommended for
most vegetables.
Slide the control all the way to the LO
setting to provide lower humidity levels
recommended for most fruits.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
To remove fresh food drawers:
Pull the desired drawer out to the
stop position.
Lift up slightly on the front of the
drawer .
Pull the drawer slightly forward and
out of the refrigerator.
To replace fresh food drawers:
Tip the back rollers of the drawer
behind the rollers in the track.
Lower the front of the drawer into
normal position.
Slide the drawer to the back of the
refrigerator .
To remove freezer baskets:
Pull the desired basket out to the
stop position.
Lift up slightly on the front of the
basket.
Pull the basket slightly forward and
out of the freezer.
To replace freezer baskets:
Place the back corners in the rail
with the basket tilted up.
Lower the basket down to the normal
position.
Slide the basket to the back of the
freezer .
How to Remove and Replace the Drawers and Freezer Baskets
About the ice and water dispenser and automatic icemaker.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
10
Ice Storage Bin
To remove:
Lift up the access door to reach the
icemaker. Set the icemaker power switch
to the O (off) position. With the access
door closed, support the storage bin at
the bottom while slightly lifting. Pull bin
straight out.
To replace:
Slide the bin back until the tab on
the bin locks into the slot on the shelf.
If the bin does not go all the way back,
remove it and rotate the drive mechanism
1/4 turn. Then push the bin back again.
Important facts about your
ice and water dispenser
■ Do not add ice from trays or bags to the
storage bin. It may not crush or dispense
well.
■ Avoid overfilling glass with ice and use of
narrow or extra-tall glasses. Backed-up ice
can jam the chute or cause the door in
the chute to freeze shut. If ice is blocking
the chute, poke it through with a wooden
spoon.
■ Beverages and foods should not be
quick-chilled in the ice storage bin.
Cans, bottles or food packages in the
storage bin may cause the icemaker
or auger to jam.
■ To keep dispensed ice from missing
the glass, put the glass close to, but not
touching, the dispenser opening.
■ Some crushed ice may be dispensed
even though you selected Cubed Ice.
This happens occasionally when a few
cubes accidentally get directed to the
crusher .
■ After crushed ice is dispensed, some
water may drip from the chute.
■ The first glass of water dispensed may
be warmer than the following ones.
This is normal.
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Icemaker
A newly-installed refrigerator may take 12–24
hours to begin making ice.
The icemaker will produce seven cubes per
cycle—approximately 15 cycles or more in
a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of door openings
and other use conditions.
If the refrigerator is operated before the
water connection is made to the icemaker,
set the power switch to O (off).
When the refrigerator has been connected
to the water supply, set the power switch to
I (on). The green light will come on.
Throw away the first full bucket of ice.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together .
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
After the icemaker has been turned on
again, there will be a delay of about 45
minutes before the icemaker resumes
operations.
NOTE: In homes with lower-than-average
water pressure, you may hear the icemaker
water valve cycle on several times when
making one batch of ice. Recommended
water pressure is 60 psi.
Icemaker
Feeler Arm
Power
Switch
Green
Power Light
Ice Storage Bin
Access Door
Rotate
Drive
Mechanism
11
About the ice and water dispenser. ElectroluxUSA.com
To Use the Dispenser
Select Cubed Ice , Crushed Ice ,
or Water .
Press the glass gently against the middle
of the dispenser pad.
The spill shelf is not self-draining.
To reduce water spotting, the shelf and
its grille should be cleaned regularly.
If no water is dispensed when the
refrigerator is first installed, there may be
air in the water line system. Press the
dispenser arm for at least two minutes to
remove trapped air from the water line
and to fill the water system. To flush out
impurities in the water line, throw away
the first six glassfuls of water.
CAUTION: Never put fingers
or any other objects into the ice crusher
discharge opening.
Locking the Dispenser
Press the LOCK/LIGHT
button for 3 seconds
to lock the dispenser
and control panel. To
unlock, press and hold
the button again for
3 seconds.
Dispenser Light
This button turns
the night light on the
dispenser on and off.
The light also comes
on when the dispenser
pad is pressed. If this
light burns out, it should
be replaced with a 6 watt
12V maximum bulb.
Express Ice
When you need ice
in a hurry, press this
button to speed up ice
production. This will
increase ice production
for the following
48 hours or until you
press the button again.
Door Alarm
To turn the Door Alarm
on, press the DOOR
ALARM button once.
The ACTIVE light will
come on. To turn it off,
press it again. When the
DOOR ALARM is active,
the ACTIVE light will
flash if you open the
door and beep if you
keep the door open for
more than 2 minutes.
The light goes out and
the beeping stops when
you close the door.
Spill Shelf
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
12
Cleaning the Outside
The spill shelf and the area beneath it should
be cleaned periodically with a mild liquid dish
detergent.
Dispenser pad. Before cleaning, lock
the dispenser by pressing the LOCK/LIGHT
button for 3 seconds to prevent activating
the dispenser. Clean with warm water
and a mild liquid dish detergent. Rinse
thoroughly and wipe dry. Unlock the
dispenser by pressing the LOCK/LIGHT
button for 3 seconds.
Door handles. Clean with a cloth dampened
with soapy water. Dry with a soft cloth.
Keep the outside clean. Wipe with a clean
cloth lightly dampened with mild liquid
dish detergent. Dry with a clean, soft cloth.
Do not wipe the refrigerator with a soiled
dish cloth or wet towel. These may leave a
residue that can damage the finish. Do not
use scouring pads, powdered cleaners,
bleach or cleaners containing bleach
because these products can scratch and
damage the finish.
Stainless steel. Regularly clean and
polish the Stainless Steel Doors with a
commercially available stainless steel
cleaner .
Do not use appliance wax or polish
on the stainless steel.
Cleaning the Inside
Turn off power at the circuit breaker or fuse
box before cleaning. If this is not practical,
wring excess moisture out of sponge or
cloth when cleaning around switches, lights
or controls.
Use warm water and baking soda solution—
about a tablespoon (15 ml) of baking soda
to a quart (1 liter) of water. This both
cleans and neutralizes odors. Thoroughly
rinse and wipe dry.
Other parts of the refrigerator, including door
gaskets, snack pan and vegetable drawers,
ice storage bin and all plastic parts, can be
cleaned the same way.
Do not wash the tray or any plastic
refrigerator parts in the dishwasher.
Avoid cleaning cold glass shelves with hot
water because the extreme temperature
difference may cause them to break. Handle
glass shelves carefully. Bumping tempered
glass can cause it to shatter.
Dispenser drip area.
Care and cleaning of the refrigerator.
13
For long vacations or absences, remove
food and unplug the refrigerator. Clean the
interior with a baking soda solution of one
tablespoon (15 ml) of baking soda to one
quart (1 liter) of water. Leave the doors
open.
Set the icemaker power switch to the O (off)
position and shut off the water supply to
the refrigerator.
If the temperature can drop below freezing,
have a qualified servicer drain the water
supply system to prevent serious property
damage due to flooding.
ElectroluxUSA.com
Preparing for Vacation
Preparing to Move
Secure all loose items such as shelves and
drawers by taping them securely in place
to prevent damage.
CAUTION: Due to the weight
and size of this refrigerator, and to reduce the
risk of personal injury or damage to the
product, AMINIMUMOF4 PEOPLE ARE
REQUIRED TO BRING THE UNIT INTO THE
HOME AND 2 PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
Be sure the refrigerator stays in an upright
position during moving.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
14
Replacing the light bulbs.
Setting the controls to OFF does not remove power to the light circuit.
Refrigerator Compartment—Upper Light
Raise the grille panel, set the master
power switch to the O (off) position and
allow lamps to cool.
To remove the light shield, press on the
Left side of the shield and pull down.
Replace the bulbs with appliance bulbs
of the same or lower wattage. Replace
the shield by engaging the bottom tab
into the slot and applying light forward
pressure until the shield snaps in place.
Set the master power switch to the I (on)
position and close the grille panel.
Refrigerator Compartment—Lower Light
This light is located above the top drawer.
Raise the grille panel, set the master
power switch to the O (off) position and
allow lamps to cool.
Remove items from the shelf above the
light shield. Remove the shelf.
Use both hands to grasp each end of
the light shield. Press in on the bottom
of the shield with your thumbs while
rotating the cover up and out.
Replace the bulb with an appliance
bulb of the same or lower wattage.
Replace the shield by engaging the
bottom tab into the slot and applying
light forward pressure until the shield
snaps in place.
Set the master power switch to the I (on)
position and close the grille panel.
Freezer Compartment
Raise the grille panel, set the master
power switch to the O (off) position and
allow lamps to cool.
Remove the items from the shelf just
below the light shield. Remove the
shelf.
To remove the light shield, press down
on the top of the shield and pull the
tabs out of the slots. Tilt the shield
forward and out.
Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. Replace
the shield by engaging the bottom tab
into the slot and applying light forward
pressure until the shield snaps in place.
Set the master power switch to the I (on)
position and close the grille panel.
Dispenser
Raise the grille panel, set the master
power switch to the O (off) position and
allow lamps to cool.
The bulb is located in the dispenser
under the control panel. Remove the
two screws from the light shield. Slide
the light shield toward the dispenser to
disengage the tabs, then remove the
light shield. Remove the light bulb by
turning it counterclockwise.
Replace the bulb with a bulb of the
same size and wattage. Replace the
light shield by sliding the tabs into
the slots in the front of the dispenser.
Replace the two screws.
Set the master power switch to the I(on)
position and close the grille panel.
(appearance may vary)
Installation
Instructions
Built-In Side-By-Side
Refrigerators
If you have questions, call 1-877-4ELECTROLUX 877-435-3287 or visit our website at:
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•
IMPORTANT — Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions for the consumer’s and local
inspector’s use.
• Note to Consumer – Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level – Installation of this refrigerator
requires basic mechanical, carpentry and
plumbing skills. Proper installation is the
responsibility of the installer. Product failure
due to improper installation is not covered
under the Electrolux Home Products
Warranty. See warranty information.
• Completion Time – 90 minutes (new
installations require more time than
replacement installations).
CAUTION:
Due to the weight and size of this refrigerator,
and to reduce the risk of personal injury or
damage to the product, A MINIMUM OF 4
PEOPLE ARE REQUIRED TO BRING THE UNIT
INTO THE HOME AND 2 PEOPLE ARE
REQUIRED FOR PROPER INSTALLATION.
WARNING:
• These refrigerators are top-heavy and must
be secured to prevent the possibility of
tipping forward. Anti-Tip protection is
required. See Step 4 on page 30 for details.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric power
supply cords that become frayed or damaged.
• Set the Master Power switch to the
O (OFF) position before cleaning or making
repairs.
• Repairs should be made by a qualified
service technician.
For local service in your area, call
1-877-4ELECTROLUX or 877-435-3287
For parts and accessories, call
1-877-4ELECTROLUX or 877-435-3287
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
15
Installation Instructions
16
HARDWARE SUPPLIED
• Anti-Tip brackets
Anti-Tip Brackets
MATERIALS REQUIRED
• 36″ long, 2″ x 4″ wood block for Anti-Tip
bracket installation
• #12 or #14 wood screws for Anti-Tip bracket
• Screws to secure refrigerator to cabinets
• 1/4″ O.D. copper water line tubing.
• Water shutoff valve
• Custom panels for doors and grille panel
(if installing custom panels)
• Special 3M Dual Lock adhesive strips for
1/4″ side panels (if installing side panels)
36″ Wood Block 1/4″ O.D. Copper Water Line
Tubing
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• Appliance dolly
• Tubing cutter
• Flathead screwdriver
• 1/2″ open-end wrench
• #2 Phillips screwdriver
• Drill and appropriate bits
• 7/32″, 1/2″ sockets
• Safety glasses
• 7/16″ open-end wrench
• Pliers
Appliance Dolly
Stepladder
Safety Glasses
Water Shutoff Valve #12 or #14
Wood Screws
Screws
Special 3M Dual Lock
Adhesive Strips
Custom Panels
Sockets
Open-end Wrenches Bucket
Drill & Bits
Flathead Screwdriver
Tubing Cutter
Phillips Head
Screwdriver
Level
Pliers
Tinsnips
THE INSTALLATION SPACE
Water and Electrical Locations
The opening must be prepared with the
electrical and water supply located as shown.
The cutout depth must be 24″
The refrigerator will project forward, slightly
beyond adjacent cabinets, depending on
your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power
supply is required. An individual properly
grounded branch circuit or circuit breaker
is recommended. Install a properly
grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must
be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not
recommended.
• Water line can enter the opening through
the floor or rear wall. The water line
installed should be 1/4″ O.D. copper tubing
between the cold water line and water
connection location. The line should be
long enough to extend to the front of the
refrigerator. Installation of an easily
accessible shutoff valve in the water line is
required.
DIMENSIONS AND CLEARANCES
Allow minimum clearances for Freezer
door (Dimension A) and Fresh Food door
(Dimension B) for a full 130° door swing
and to allow for drawer removal.
Four inch (4″) minimum clearance is required
when door swing is adjusted to 90°. If the 90°
door stop position is used, drawer access is
maintained, but drawer removal is restricted.
See illustrations, pages 18 and 19, to
determine door swing interaction with
adjacent cabinets or countertops.
*The finished cutout width must be:
41-1/2″ for 42″ models
42" Frame-to-Frame
Depth Including
Handles 26-7/8"
41"
Case Width
25-3/8" Case Depth
*81-3/4"
at Rear
*84" From
Floor to
Top Frame
*Finished Width
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
74"
From Floor
to Bottom
of Electrical
24"
5"
5"
3 1/2"
Water Supply
3 1/2"
3"
7"
7"
Product Clearances
These refrigerators are equipped with a 2
position door stop. The factory set 130° door
swing can be adjusted to 90° if clearance to
adjacent cabinets or walls is restricted.
130° Door Swing 90° Door Swing
B
A
23-7/8"
Behind
Frame
C
D
D
Models A B C D
42″ 12-3/16″ 16″ 24″ 4″
Installation Instructions
*Shipping height
The front height
may be adjusted
from 83-1/2" to 84-1/2"
by adjusting front and
rear leveling legs a
maximum of 1".
17
1/2"
1"
3/4" Custom Panel
(Nominal Size)
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Fresh Food
Door
Backer Panel
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim
3/4"
1/4"
1"
Top View
130° Door Swing
(factory setting)
Scale 1:1
Installation Instructions
18
1/2"
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
23-7/8"
From Rear of
Refrigerator
3/4" Custom Panel
(Nominal Size)
Case Trim
Refrigerator
Fresh Food
Door
Backer Panel
3/4"
1/4"
1"
Top View
90° Door Swing
(optional setting)
Scale 1:1
Installation Instructions
19
CUSTOMIZATION BASICS:
Stainless Steel Wrapped Models
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have
wrapped doors and grille panels, and beveled
edges. These models are shipped ready for
installation.
Trimmed Models
Trimmed Refrigerator Panels
Trimmed refrigerators are designed to be
customized with decorative panels. Field
installed custom door and grille panels are
required. There are three custom panel
options. You can install a 1/4″ framed panel,
a 3/4″ framed custom panel or a 3/4″ full-
width overlay custom panel.
1/4″ Framed Panels
You may install 1/4″ thick custom panels from
your cabinet manufacturer. The decorative
panel slides into the factory installed trim.
Door Handles On Trimmed Refrigerators
The handles can be used to accommodate
both framed or custom panels.
NOTE: For 3/4″ custom panels, please refer
to diagrams on page 23 for optimum handle
clearance.
3/4″ Framed Custom Panels
3/4″ framed custom panels are secured
to a 1/4″ finished backer panel. They are
designed to slide into the factory installed
trim, no kits required. The backer panel
will be exposed on the handle side and
therefore must be finished.
3/4″ Full-Width Overlay Custom Panels
3/4″ full-width overlay custom panels are
designed to slide into the factory installed
trim, no kits required. In this design, you
can achieve a nearly trimless appearance. A
spacer panel must be installed between the
finished backer and appearance panel. The
backer panel will be exposed on the handle
side and therefore must be finished.
Door Handles
3/4" Custom Panel
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Framed Panel
Door Handles
Installation Instructions
20
1/4″ FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they
must be cut to the dimensions shown. The
panels will slide into the frame on the door
and grille.
IMPORTANT NOTE: Maximum weight
for Fresh Food panel is 70 pounds and
30 pounds total for Freezer panels.
IMPORTANT NOTE: Dispenser Trim
The refrigerator is supplied with factory installed
dispenser trim.
• If panel is less than 1/4″ thick, a noticeable gap will be
created around the dispenser trim. Foam tape may be
applied on the door to improve the fit.
• If panel is more than 1/4″ thick, the panel will not fit
behind the trim.
E
D
F
A
B
Grille Panel
C
Dispenser
Cutout
Freezer
Panel
Fresh Food
Panel
G
1/4"
Panel
Door
5/16"
Trim
Reveal
Front Panel Dimensions (in inches)
ABCD E F G
42″ Models 39-15/16 10-3/4 67-7/8 16-7/16 22-11/32 17-13/16 35-5/32
Installation Instructions
21
3/4″ FRAMED CUSTOM PANEL OPTION
For a more custom appearance, 3/4″ framed custom
panels may be installed on trimmed models. The overlay
panel is secured to a 1/4″ finished backer panel. The
assembled custom panel then slides into the trim with
the same procedure described on page 33.
3/4″ FULL-WIDTH OVERLAY
CUSTOM PANEL OPTION
This design provides a nearly trimless appearance. The full
width overlay panel covers most of the door trim. In this design,
a spacer panel must be installed between the finished backer
and overlay panel.
NOTE: Left-to-right offset is not equal
to top-to-bottom offset.
NOTE: Left-to-right offset is not equal
to top-to-bottom offset.
.250 + .750 = 1.000 Maximum Total Panel Thickness
IMPORTANT NOTE: Maximum total weight for any
assembled Fresh Food panel is 70 pounds and
30 pounds total for Freezer panels.
Installation Instructions
22
.250 + .10 + .750 = 1.100 Maximum Total Panel Thickness
Door
3/4"
Custom
Overlay
Panel
3/4"
1/4"
Backer
Panel
Overlay Panel
Overlay Panel
Backer Panel
Spacer Panel
Backer Panel
Door
1/4"
Backer
Panel
Custom
Overlay
Panel
.10 Inch
Spacer
3/4″ FRAMED CUSTOM WOOD PANELS
Secured to a 1/4″ finished backer panel. This design
provides a framed appearance.
Fresh Food Panel
Installation Instructions
23
42″ Models A B
1/4″ Backer Panel 22-5/16″ 67-7/8″
3/4″ Overlay Panel 18-13/16″ 67-1/4″
3-1/8"
1" Thick Max.
or 3/4" Plus
1/4" Backer
1/4" Max.
5/16"
3/8"
Required for Optimal
Handle Clearance
3-1/8" Min.
2-1/2"
B
5/16"
A
3/4″ FRAMED CUSTOM WOOD PANELS
Secured to a 1/4″ finished backer panel. This design provides a framed appearance.
Grille Panel
Upper Freezer Panel
Lower Freezer Panel
Installation Instructions
24
42″ Models A B
1/4″ Backer Panel 39-15/16″ 10-3/4″
3/4″ Overlay Panel 39-7/16″ 10-1/8″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 17-13/16″
3/4″ Overlay Panel 12-15/16″ 17-3/16″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 35-1/8″
3/4″ Overlay Panel 12-15/16″ 34-1/2″
1" Thick Max.
or 3/4" Plus
1/4"
1/4" Backer
1/4"
5/16"
5/16"
B
A
1" Thick Max.
or 3/4" Plus
1/4" Backer
3/8"
3-1/8"
5/16"
Required for Optimal
Handle Clearance
3-1/8" Min.
1/4"
Max.
B
5/16"
A
2-1/2"
1" Thick Max.
or 3/4" Plus
1/4" Backer
3/8"
B
3-1/8"
5/16"
5/16"
A
3/4″ FULL-WIDTH OVERLAY CUSTOM PANELS
This panel design provides a nearly trimless appearance.
Assemble the spacer
panel onto the finished
backer panel. Allow
1/2″ clearance on the
top, bottom and hinge
side. Allow 3-5/8″ on
the handle side. Secure
the panels with glue.
Be sure to observe
clearances shown on
all sides.
Secure the overlay
panel to the assembled
backer/spacer panel.
Use glue and screws.
Countersink screws
into the backer panel.
Installation Instructions
25
42″ Models A B
1/4″ Backer Panel 22-5/16″ 67-7/8″
0.10″ Spacer Panel 18-3/16″ 66-7/8″
3/4″ Overlay Panel 19-5/16″ 68-1/8″
Fresh Food Panel
Spacer
Panel
Finished
Backer
Panel
3-5/8"
1/2"
1/2"
Required for Optimal
Handle Clearance
1/4"
Max.
3-1/8" Min.
3-1/8"
2-1/2"
B
A
1/2"
3/4″ FULL-WIDTH OVERLAY CUSTOM PANELS
This panel design provides a nearly trimless appearance.
Assemble the spacer panel onto the backer panel. Allow 1/2″ clearance on all four sides of the
grille spacer panel. Allow 1/2″ clearance on the top and hinge side, 15/16″ on the bottom and 3-5/8″
on the handle side of the upper freezer door panel. Allow 15/16″ on the top, 1/2″ clearance on the
bottom and hinge side and 3-5/8″ on the handle side of the lower freezer door panel. Secure the
panels with glue. Be sure to observe clearances on all sides.
Secure the appearance panel to the assembled backer/spacer panel. Use glue
and screws. Countersink screws into the backer panel.
Grille Panel
Lower Freezer Panel
Upper Freezer Panel
Installation Instructions
26
42″ Models A B
1/4″ Backer Panel 39-15/16″ 10-3/4″
0.10″ Spacer Panel 38-15/16″ 9-3/4″
3/4″ Overlay Panel 40-3/16″ 11″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 35-1/8″
0.10″ Spacer Panel 12-5/16″ 33-11/16″
3/4″ Overlay Panel 13-7/16″ 34-15/16″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 17-13/16″
0.10″ Spacer Panel 12-5/16″ 16-3/8″
3/4″ Overlay Panel 13-7/16″ 17-5/8″
3-5/8"
15/16"
1/2"
1/2"
Spacer
Panel
Finished
Backer Panel
Spacer
Panel
Finished
Backer Panel
Upper Freezer Panel
Spacer Assembly
Lower Freezer Panel
Spacer Assembly
B
5/16"
5/16"
A
3-1/8"
Required for Optimal
Handle Clearance
3-1/8" Min.
B
2-1/2"
A
3-1/8"
B
A
1/4"
Max.
1/2"
15/16"
1/2"
3-5/8"
GROUNDING THE REFRIGERATOR
IMPORTANT—Please read carefully
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power supply cord of this appliance is
equipped with a three-prong (grounding)
plug which mates with a standard threeprong (grounding) wall receptacle to
minimize the possibility of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet
is encountered, it is your personal
responsibility and obligation to have it
replaced with a properly grounded 3-prong
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO
CONNECT THE REFRIGERATOR TO A
2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE.
SIDE PANELS
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will be
exposed. The 1/4″
side panels will slip
into the side case
trim. Order side
panels from your
cabinet manufacturer .
*Depending on
installation height.
FLOORING
For proper installation, this refrigerator must
be placed on a level surface of hard material
that is at the same height as the rest of the
flooring. This surface should be strong
enough to support a fully loaded refrigerator,
or approximately 1500 lb.
NOTE: Protect the finish of the flooring. Cut a
large section of the cardboard carton and place
under the refrigerator where you are working.
Installation Instructions
27
24"
*84"
*3" to 4"
1-1/2"

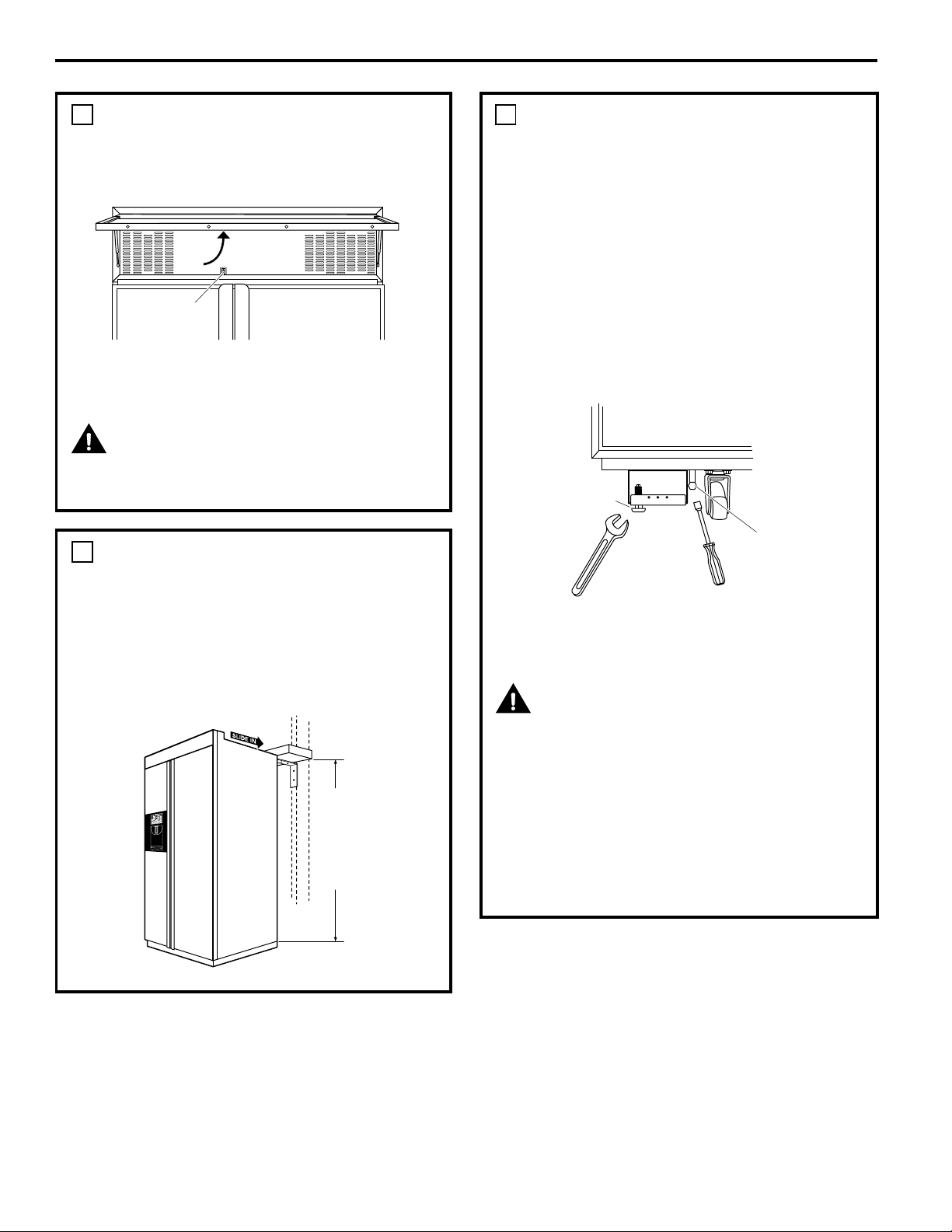

1 REMOVE PACKAGING
CAUTION: Refrigerator is
Top-Heavy—be careful when moving.
When using an appliance dolly, handle
from Freezer side only.
• Carefully cut banding at the top and
bottom; remove outer carton.
• Slide out rear corner posts (2).
• Slide carton off top of cabinet.
NOTE: DO NOT LAY CABINET DOWN
IN ORDER TO REMOVE SKID!
• The unit is secured to the skid with
six 7/16″ bolts and six 1/2″ nuts.
• Remove all six 7/16″ bolts that secure
metal brackets to the refrigerator.
• Remove the three 1/2″ nuts and washers
from the Freezer side.
• Remove nut from rear wood block
on Freezer side.
• Tilt unit up on Freezer side toward Fresh
Food side.
• Push bolts down, remove metal bracket
from Freezer side. Remove wood block
from Freezer side.
• Slide the appliance dolly underneath the
Freezer side.
• Using corner posts (2 on front corners)
to prevent damage, secure unit to
appliance dolly.
NOTE: If corner posts are too long, cut the
posts to a shorter length.
• Lift the unit off the skid with the appliance
dolly.
• Remove toekick taped to the top of the
unit.
• Set toekick aside for final installation.
CAUTION: DO NOT ATTEMPT
TO ROLL OR DRAG UNTIL UNIT IS OFF SKID.
CAUTION: MAKE SURE THE
WATER LINE IS CLEAR OF APPLIANCE
DOLLY TO AVOID DAMAGE.
Installation Instructions
28
Toekick Taped to
Top of Unit
Metal
Bracket
1/2" Nuts
Bolts

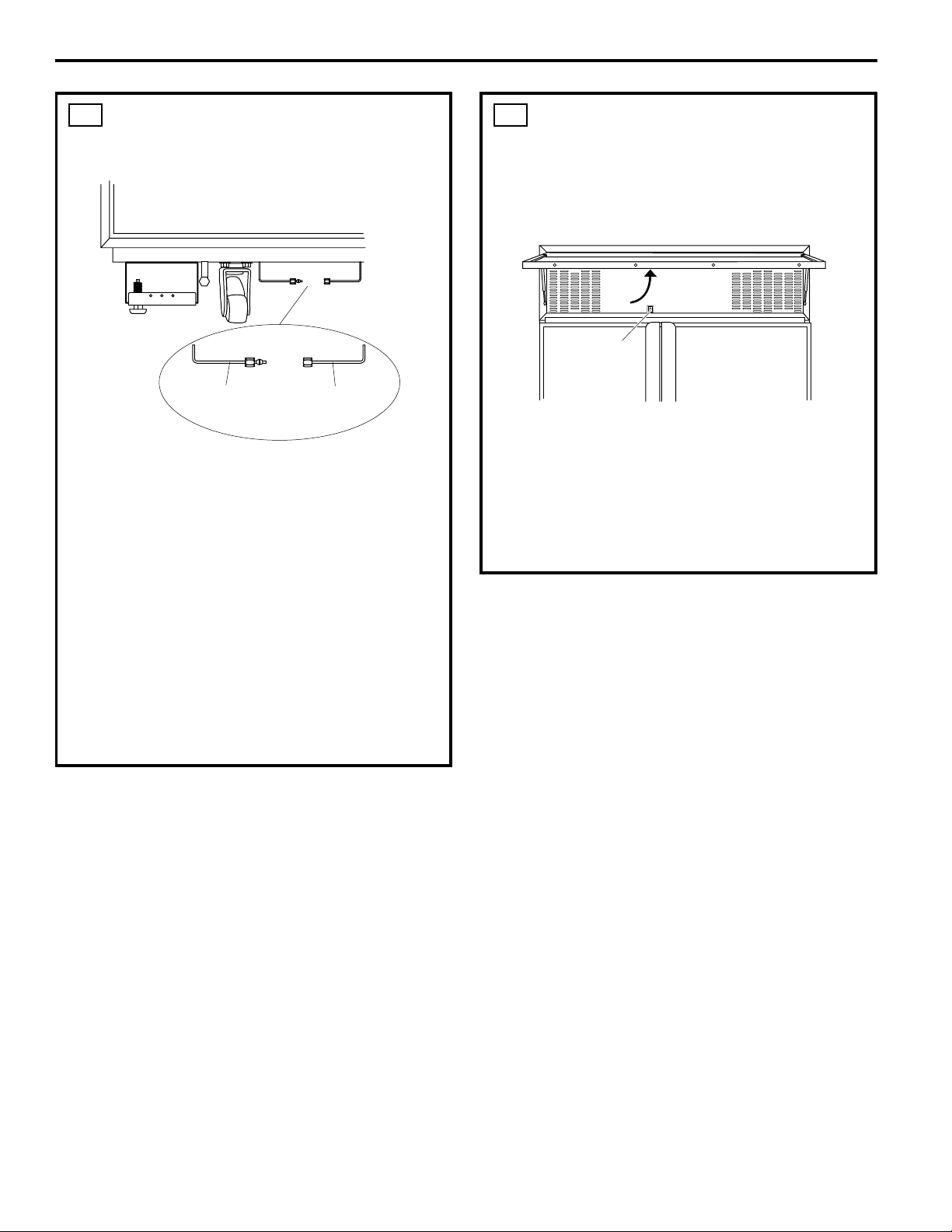

2 INSTALL WATER LINE
• A cold water supply is required for
automatic icemaker operation. The water
pressure must be between 40 and 120 psi.
• Route 1/4″ O.D. copper tubing between
cold water line and the water connection
location.
• Tubing should be long enough to extend
to the front of the refrigerator. Allow
enough tubing to accommodate bend
leading into the water line connection.
NOTE: Certain types of plastic may crack or
rupture with age and cause water damage to
your home.
Shut off the main water supply.
Turn on the nearest faucet long enough
to purge all the water from the line.
• Install a shutoff valve between the
icemaker water valve and cold water pipe
in a basement or cabinet. The shutoff
valve should be located where it will be
easily accessible.
NOTE: It is best to install the valve into a
vertical water pipe. If you install the valve into
a horizontal water pipe, make the connection
at the top or side to avoid drawing off any
sediment from the water pipe.
• Drill a 1/4″ hole in the water pipe.
• Fasten the shutoff valve to the pipe with
pipe clamp.
• Tighten the clamp screws until the
sealing washer begins to swell. Do not
OVERTIGHTEN.
• Place a compression nut and ferrule
(sleeve) for copper tubing onto the end
of the tubing and connect it to the shutoff
valve. Make sure the tubing is fully inserted
into the valve and ferrule is tightened.
• Turn on the main water supply and
flush debris. Run about a quart of water
through the tubing into a bucket. Shut
off water supply at the shutoff valve.
NOTE: Saddle type shutoff valves are
included in many water supply kits. Before
purchasing, make sure a saddle type valve
complies with your local plumbing codes.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR must be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with
your licensed plumber.
Installation Instructions
29
Floor
Copper Tubing
Saddle Type
Shutoff Valve
Packing Nut
Outlet Valve
Compression Nut
Ferrule
(Sleeve)
3 INSTALL SIDE PANELS
SKIP THIS STEP WHEN NOT USING SIDE P ANELS
If you are using 1/4" side panels, they should be
inserted into the case trim. Fasten the panels to
the refrigerator with the 3M Dual Lock adhesive
strips before setting refrigerator in place.
4A ALTERNATE ANTI-TIP
PRECAUTIONS
SKIP THIS STEP WHEN USING ANTI-TIP
BRACKETS
All Profile built-in refrigerators are Top-Heavy.
They must be secured to prevent the possibility
of tipping forward. Use this alternative method
to secure the refrigerator whenever steel wall
studs are encountered.
• Adjust height of refrigerator to match
installation cutout opening 83-1/2″ to
84-1/2″. The refrigerator must be level and
plumb with cabinets. The top case trim at
the front is 2-1/8″ higher than the rear and
will overlap upper cabinets or cabinet trim.
• Open grille panel to access the top case trim.
• Use a 3/16″ bit to drill 4 evenly spaced
clearance holes through the metal top
case trim.
• Use a 1/16″ bit to drill pilot holes through
the metal clearance holes and into wood
soffit. The holes should be centered in the
soffit or a 3/4″ minimum wood brace. The
brace spanning the enclosure must be
securely fastened to cabinets on both sides.
• Install four 1-1/2″ drywall screws into the
pilot holes.
4
INSTALL ANTI-TIP BRACKETS
WARNING:
The refrigerator is T op-Heavy and must be secured
to prevent the possibility of tipping forward.
•
Cut a 2″ x 4″ wood block 36″ long,
and secure the block to
the mounting
brackets
provided,
using #12 or
#14 wood screws.
•
Secure the
brackets with
wood block to the
back wall so that it is
82″ (or the rear installation height) from the
finished floor. Use #12 or #14 wood screws.
•
Screws must penetrate at least 1″ into vertical
wall studs.
ANTI-TIP
PRECAUTIONS
Positioned
Anti-Tip
Bracket
Wall Stud
(Behind
Drywall)
Wood Screws
Mounted into
Vertical
Wood Studs
36"
Installation Instructions
30
3/4"
Min.
Side View
Top Case Trim
Install (4) 1-1/2" Drywall Screws
Through Trim and Into Soffit
or 3/4" Min. Wood Brace
Top Case Trim
7 LEVEL REFRIGERATOR
All models have 4-point leveling. The front and
back are supported by leveling legs. Both are
accessible from the front of the refrigerator.
• To level the back of the refrigerator, turn
the 1/2″ hex nut located above the front
wheels. Turn clockwise to raise or
counterclockwise to lower the refrigerator.
• For front leveling, use a 7/16″ open-end
wrench.
• Adjust height of refrigerator to match
installation cutout opening 83-1/2″ to
84-1/2″. The refrigerator should be level
and plumb with cabinets.
IMPORTANT NOTE: The refrigerator must
be level. If it is not, the doors may not align
evenly at the top. See Step 16.
CAUTION:
The rear leveling legs and front leveling legs
are limited to a maximum height adjustment
of 1″. If the installation requires more than
84-1/2″ height, the installer should elevate the
refrigerator on a sheet of plywood or runners.
Cabinet trim could be added across the top
of the opening to shorten the opening. If you
attempt to raise the refrigerator more than
1″, you will damage the front and rear
leveling legs.
5 CONNECT POWER
• Connect refrigerator power cord plug to
a properly grounded receptacle. Set the
Master Power switch to the I (ON) position.
• Check to make sure power to refrigerator
is on by opening refrigerator door to see if
interior lights are on.
CAUTION:
• After power has been established, turn the
Master Power switch to the O (OFF) position.
6 MOVE INTO
INSTALLATION SPACE
• Slide the unit into the installation space.
• Place excess slack in the power cord on top
of the refrigerator.
• Use care to ensure the power cord is not
pinched behind the unit.
Installation Instructions
31
Raise
Grille
Panel
Master
Power Switch
Height
from
Floor to
Bottom
of Wood
Block
82"
Leveling Leg
Hex Nut Adjusts
Rear Leveling Legs
10 INSTALL GRILLE PANEL
• Raise the grille panel to the stop position.
• Remove 4 screws on bottom trim; retain
all screws.
• Remove bottom trim.
• NOTE: Stainless steel and acrylic panels
are covered with a protective film. Remove
the film before installing the panel.
• Slide panel over the metal backer panel
and under the trim.
• If necessary, tap with a wood block until
panel slips under the top trim piece.
• Reassemble bottom trim. Tighten screws.
8 SECURE REFRIGERATOR
TO CABINETS
Whenever possible, perform this step for
anti-tip security.
The refrigerator must be secured to prevent
tipping.
• Raise the grille panel to access case trim.
• Drive a screw through the trim and into the
adjacent cabinet using holes provided.
• Follow the same procedure on the opposite
side.
9 ADJUST DOOR SWING
NOTE: This refrigerator has a 2-position door
stop. When space does not allow the door to
swing open fully to 130°, you may change the
door swing to a 90° opening.
SKIP THIS STEP IF DOOR OPENING IS
SATISFACTORY FOR YOUR INSTALLATION
SITUATION.
• Open the door to view the bottom hinge.
Note the door stop pin location. The pin is
factory installed in the 130° position.
• Partially close the door. From above, use a
flat-head screwdriver to unscrew the door
stop pin and reinstall into the 90° position.
Installation Instructions
32
Raise Grille Panel
to Stop Position
Drive Screws
Through Case Trim Into
Adjacent Cabinets
Raise
Grille
Panel
Interior
90°
130°
Door
Hinge
11A
Install 1/4″ Decorative Panels:
• Remove Handles
Open door to 90°. Remove 5 Phillips head
screws from the Fresh Food and Freezer
door handles; retain all screws. Lift off
door handles.
• Install Door Panels
NOTE: Stainless steel and acrylic panels are
covered with a protective film. Remove the
film before installing the panel. Carefully
push the Fresh Food panel in until it slides
into the slot behind the trim. Gently push to
opposite side. Repeat procedure for upper
and lower Freezer panels.
• Reinstall Handles
Reinstall Fresh Food door handle with the
original 5 Phillips head screws. Tighten.
Repeat for Freezer door handle.
NOTE: Ensure that the edge of the handle
does not pinch the door gasket.
• 3/4″ Custom Decorative Panels
If you choose to install custom wood
panels, they must be cut to dimensions
shown on pages 23–26. The panels will
slide into the frame on the doors
and grille.
IMPORTANT NOTE: Maximum custom panel
thickness must not exceed 1-1/8″ thick and
70 lb for Fresh Food door, 30 lb total for
Freezer door and 15 lb for Grille panel.
Installation Instructions
33
INSTALL DOOR PANELS ON TRIMMED MODELS
Handle
Fresh Food
Refrigerator
Door
3/4" Custom Panel
if Required
11B
1. Remove handles from cartoning and any other protective packaging.
2. Place handle over pre-installed shoulder bolts (A) that are fastened into door in four locations.
3. While supporting handle and looking at upper end cap, fasten top-most allen set screw (B) with
supplied allen wrench, then fasten bottom allen set screw (C). See Figure 1.
4. Repeat Step 3 with bottom end cap using allen set screws (D and E), once upper section of
handle is firmly secured to door. See Figure 2.
5. All set screws should be tightened and sub-flush (allen set screw should be buried just below
the surface of the end cap) of handle end cap. The end caps should be drawn tight to freezer
and refrigerator doors with no gaps.
Installation Instructions
34
INSTALL DOOR HANDLES ON STAINLESS STEEL MODELS
AA
B
C
AA
D
E
Figure 1
Upper End Cap
Figure 2
Bottom End Cap
13 TURN ON THE POWER
• Set the Master Power switch to the I (ON)
position.
• Check to make sure power to refrigerator is
on by opening refrigerator door to see if
interior lights are on.
• The temperature controls are preset at 37°
for the Fresh Food section and 0° for the
Freezer section.
• Allow 24 hours to stabilize before making
adjustments.
• Dispense water for 2 minutes to remove
trapped air from the water system.
12 CONNECT WATER SUPPLY
Check to make sure that Master Power
switch is in the O (OFF) position.
• Locate and bring tubing to the front of the
cabinet.
• Turn the water on to flush debris from line.
Run about a quart of water through tubing
into a bucket, then shut off water.
Copper Tubing
• Slip a 1/4″ nut and ferrule onto end of
copper tubing. Insert tube into the union
fitting on the unit and tighten nut to union.
• Turn on the water to check for leaks.
Note: Make sure excess tubing length does
not interfere with toekick installation.
Installation Instructions
35
Refrigerator
Water Supply
House
Water Supply
Raise
Grille
Panel
Master
Power Switch
16 DOOR ALIGNMENT
• Stand back from the refrigerator to inspect
the door alignment.
• Shipping or the addition of heavy door
panels may have caused the doors to move
slightly out of alignment.
• If necessary, the Fresh Food door may
be adjusted up or down to align with the
Freezer door.
• Loosen the leveling mechanism.
• Use a 7/32″ wrench to adjust the hinge pin
as shown.
• Tighten the leveling mechanism.
IMPORTANT NOTE: After the unit has been
leveled, if the fresh food door is higher than
the freezer door, adjust the front right leveling
leg lower to align the doors and, if required,
raise the left leveling leg to level the unit side
to side.
14 START ICEMAKER
• Flip the switch to I (ON). The icemaker will
begin operation automatically.
• Make sure nothing interferes with the
sweep of the feeler arm.
• Discard the first full bucket of ice cubes.
• To turn the icemaker off, set the switch to
O (OFF).
15 INSTALL TOEKICK
• Locate the supplied toekick (shipped taped
to the top of the refrigerator). Install with
2 screws provided.
• The vented toekick must remain unobstructed
for proper air flow.
Installation Instructions
36
Power Switch
Feeler Arm
Green Power Light
Bushing
Door Hinge
Case Hinge
7/32" Wrench
Raise
Clockwise
37
Normal operating sounds.
Newer refrigerators sound different from older refrigerators.
Modern refrigerators have more features and use newer
technology.
HUMMM...
WHOOSH...
■
The new high efficiency compressor may run faster
and longer than your old refrigerator and you may
hear a high-pitched hum or pulsating sound while
it is operating.
■
You may hear a whooshing sound when the doors
close. This is due to pressure equalizing within
the refrigerator.
■
You may hear the fans spinning at high speeds.
This happens when the refrigerator is first plugged
in, when the doors are opened frequently or when
a large amount of food is added to the refrigerator
or freezer compartments. The fans are helping to
maintain the correct temperatures.
■
If either door is open for over 3 minutes, you may
hear the fans come on in order to cool the light
bulbs.
■
The fans change speeds in order to provide optimal
cooling and energy savings.
CLICKS , POPS,
CRACKS and CHIRPS
■
You may hear cracking or popping sounds when the
refrigerator is first plugged in. This happens as the
refrigerator cools to the correct temperature.
■
The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
■
The electronic control board may cause a clicking
sound when relays activate to control refrigerator
components.
■
Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
■
After an icemaking cycle, you may hear the ice cubes
dropping into the ice bucket.
WA TER SOUNDS
■
The flow of refrigerant through the freezer cooling
coils may make a gurgling noise like boiling water.
■
Water dropping on the defrost heater can cause a
sizzling, popping or buzzing sound during the
defrost cycle.
■
A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
■
Closing the door may cause a gurgling sound due to
pressure equalization.
Do you hear what I hear? These sounds are normal.
For additional information on normal
icemaker and dispenser operating sounds,
see the About the automatic icemaker
and About the ice and water dispenser
sections.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Troubleshooting tips… ElectroluxUSA.com
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Refrigerator does not Refrigerator in defrost cycle. •Wait about 30 minutes for defrost cycle to end.
operate
Master power control set to OFF. •Set the control to an on setting.
Refrigerator is unplugged. •Push the plug completely into the outlet.
The fuse is blown/circuit •Replace fuse or reset the breaker.
breaker is tripped.
The refrigerator is in •Unplug the refrigerator and plug it back in.
showroom mode.
Vibration or rattling Refrigerator is not level. •See Level refrigerator.
(slight vibration
•See Door alignment.
is normal)
Motor operates for Normal when refrigerator •Wait 24 hours for the refrigerator to completely
long periods or cycles is first plugged in. cool down.
on and off frequently.
Often occurs when large •This is normal.
(Modern refrigerators
amounts of food are
with more storage
placed in refrigerator.
space and a larger
Door left open. •Check to see if package is holding door open.
freezer require more
Hot weather or frequent •This is normal.
operating time. They
door openings.
start and stop often
Temperature controls •See About the temperature controls.
to maintain even
set at the coldest
temperatures.)
setting.
Refrigerator or freezer Temperature control not set •See About the temperature controls.
compartment too warm cold enough.
Warm weather or frequent •Set the temperature control one step colder.
door openings. See About the temperature controls.
Door left open. •Check to see if package is holding door open.
Frost or ice crystals Door left open. •Check to see if package is holding door open.
on frozen food
Too frequent or too long
(frost within package
door openings.
is normal)
Divider between Automatic energy saver •This helps prevent condensation on the outside.
refrigerator and freezer system circulates warm
compartments liquid around front edge
feels warm of freezer compartment.
Automatic icemaker Icemaker power switch •Set the power switch to the on position.
does not work is in the off position.
Water supply turned off or •See Install water line.
not connected.
Freezer compartment •Wait 24 hours for the refrigerator to completely
too warm. cool down.
Piled up cubes in the storage •Level cubes by hand.
bin cause the icemaker
to shut off.
Ice cubes stuck in icemaker. •Turn off the icemaker, remove cubes and turn the
(Green power light on icemaker back on.
icemaker blinking).
38
Troubleshooting tips…
Problem Possible Causes What To Do
Frequent “buzzing” sound Icemaker power switch is in the •Set the power switch to the O (off) position. Keeping it
I (on) position, but the water supply in the I (on) position will damage the water valve.
to the refrigerator has not been
connected.
Ice cubes have odor/taste Ice storage bin needs cleaning. •Empty and wash bin. Discard old cubes.
Food transmitting odor/taste • Wrap foods well.
to ice cubes.
Interior of refrigerator •See Care and cleaning.
needs cleaning.
Small or hollow cubes Water filter clogged. •Replace filter cartridge with new cartridge or with plug.
Slow ice cube freezing Door left open. •Check to see if package is holding door open.
Temperature control not set •See About the temperature controls.
cold enough.
Cube dispenser does not work Icemaker turned off or •Turn on icemaker or water supply.
water supply turned off.
An item is blocking or has fallen into •Remove any item that might be blocking, or has fallen into,
the ice chute inside the top door the chute.
bin of the freezer.
Ice cubes are frozen to •Remove cubes.
icemaker feeler arm.
Irregular ice clumps in •Break up with fingertip pressure and discard remaining clumps.
storage container.
•Freezer may be too warm. Adjust the freezer control to a
colder setting, one position at a time, until clumps do not form.
Dispenser is LOCKED. • Press and hold the LOCK button for 3 seconds.
Water has poor taste/odor Water dispenser has not been • Dispense water until all water in system is replenished.
used for a long time.
Water in first glass is warm Normal when refrigerator •Wait 24 hours for the refrigerator to completely cool down.
is first installed.
Water dispenser has not been •Dispense water until all water in system is replenished.
used for a long time.
Water system has been drained. • Allow several hours for replenished supply to chill.
Water dispenser does Water supply line turned •See Install water line.
not work off or not connected.
Water filter clogged. •Replace filter cartridge or remove filter and install plug.
Air may be trapped in the water system.
•Press the dispenser arm for at least two minutes.
Dispenser is LOCKED. • Press and hold the LOCK button for 3 seconds.
Refrigerator control setting is too cold. •Set to a warmer setting.
Water spurting from Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes (about
dispenser one and a half gallons).
Water is not dispensed Water in reservoir is frozen. •Call for service.
but icemaker is working
Refrigerator control setting is too cold. •Set to a warmer setting.
No water or ice cube production Supply line or shutoff valve is clogged.
•Call a plumber.
Water filter clogged. •Replace filter cartridge or remove filter and install plug.
Dispenser is LOCKED. • Press and hold the LOCK button for 3 seconds.
CUBED was selected but Last setting was CRUSHED. • A few cubes were left in the crusher from the previous
CRUSHED was dispensed setting. This is normal.
39
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
ElectroluxUSA.com
40
Problem Possible Causes What To Do
Orange glow in Defrost heater is on. •This is normal.
the freezer
Refrigerator has odor Foods transmitting •Foods with strong odors should be tightly wrapped.
odor to refrigerator.
•Keep an open box of baking soda in the refrigerator;
replace every three months.
Interior needs cleaning. •See Care and cleaning.
Door not closing properly Door gasket on hinge side •Apply paraffin wax to the face of the gasket.
sticking or folding over.
A door bin is hitting a shelf •Move the door bin up one position.
inside the refrigerator.
Refrigerator is not level. •See Level refrigerator.
•See Door alignment.
Moisture forms on Not unusual during •Wipe surface dry.
outside of refrigerator periods of high humidity.
Moisture collects inside Too frequent or too
(in humid weather, air long door openings.
carries moisture into
refrigerator when doors
are opened)
Interior light does No power at outlet. •Replace fuse or reset the breaker.
not work
Light bulb burned out. •See Replacing the light bulbs.
Water on kitchen floor or Cubes jammed in chute. •Poke ice through with a wooden spoon.
on bottom of freezer
Hot air from top Normal air flow cooling motor.
of refrigerator In the refrigeration process, it is
normal that heat be expelled in
the area above the refrigerator.
Refrigerator never Adaptive defrost keeps •This is normal. The refrigerator will cycle off after the
shuts off, but the compressor running during door remains closed for 2 hours.
temperatures are OK door openings.
Refrigerator beeping Door open. •Close door.
Actual temperature not Unit just plugged in. •Allow 24 hours for system to stabilize.
equal to Set temperature
Door open for too long. •Allow 24 hours for system to stabilize.
Warm food added to refrigerator. •Allow 24 hours for system to stabilize.
Defrost cycle is in process. •Allow 24 hours for system to stabilize.
Consumer Support
Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
40
TERMS AND CONDITIONS:
This warranty applies only for single
family domestic use in Canada when the
Refrigerator has been properly installed
according to the instructions supplied by
Camco and is connected to an adequate
and proper utility service.
Damage due to abuse, accident, commercial
use, and alteration or defacing of the serial
plate cancels all obligations of this warranty.
Service during this warranty must be
performed by an Authorized Camco
Service Agent.
Neither Camco nor the Dealer is liable for
any claims or damages resulting from any
failure of the Refrigerator or from service
delays beyond their reasonable control.
To obtain warranty service, purchaser must
present the original bill of sale. Components
repaired or replaced are warranted through the
remainder of the original warranty period only.
This warranty is in addition to any statutory
warranty .
WHAT IS NOT COVERED:
• Owner is responsible to pay for service
calls related to product installation and/or
teaching how to use the product.
• Damage to finish must be reported within
48 hours following the delivery of the
appliance.
• Service trips to your home to teach you
how to use the product.
• Damage to finish after delivery.
• Improper installation—proper installation
includes adequate air circulation to the
refrigeration system, adequate electrical,
plumbing and other connecting facilities.
• Replacement of house fuses or resetting
of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident,
fire, floods or acts of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed
in the owner’s manual, proper setting of
controls.
• WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
IMPORTANT
Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Camco Service is available coast to coast.
If further help is needed concerning this warranty, contact:
Manager, Consumer Relations, Camco Inc.,
Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
CONSUMER WARRANTY
(for customers in Canada)
Your refrigerator is warranted to be free of defects in material and workmanship.
What is covered How Long Warranted Parts Labour
(From Date of Sale) Repair or Replace
at Camco’s Option
Compressor Twelve (12) Years Twelve (12) Years Five (5) Years
Sealed System (including Twelve (12) Years Twelve (12) Years Five (5) Years
evaporator, condenser
tubing and refrigerant)
All Other Parts One (1) Year One (1) Year One (1) Year
41
42
Warranty Information ElectroluxUSA.com
Consumer Support Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
43
State of California
Department of Health Services
Water Treatment Device
Certificate Number
01 - 1474
Date Issued: April 25, 2001
Replacement Elements
Frigidaire PureSource 2 NGFC-2000 FC-100
Gibson Cool and Clean NGFC-2000 FC-100
Electrolux pure advantage NGFC-2000 FC-100
Manufacturer: Electrolux Home Products
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Microbiological Contaminants and Turbidity Inorganic/Radiological Contaminants
Cysts (protozoan) Lead
Turbidity Mercury
Organic Contaminants
Alachlor
Atrazine
Lindane
2,4-D
Toxaphene
Rated Service Capacity: 400 gallons Rated Service Flow: 0.5 gpm
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems
claiming cyst reduction may be used on water containing cysts.
Trademark/Model Designation
44
Loading...
