Electrolux 1271 VI User Manual

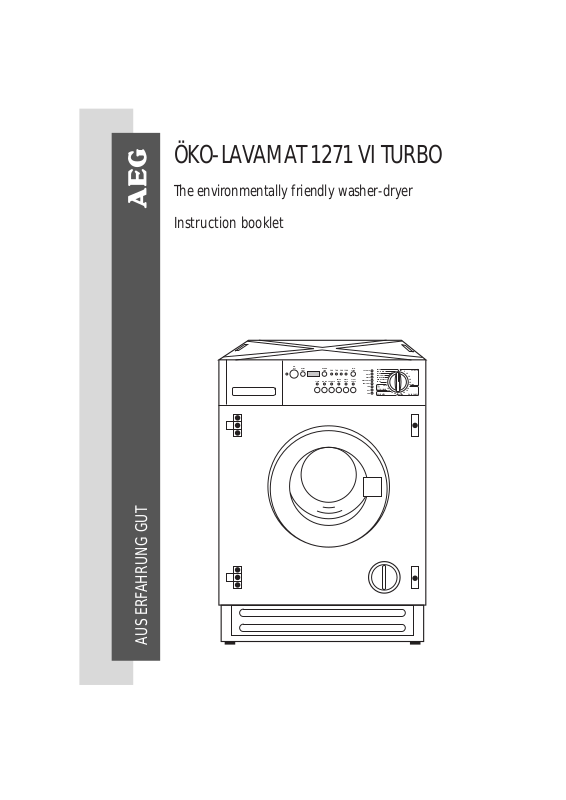

ÖKO-LAVAMAT 1271 VI TURBO
The environmentally friendly washer-dryer
Instruction booklet
AUS ERFAHRUNG GUT
95
E
60
50
40
30
60
50
40
30
40
30
40
30
1200
900
700
QUICK
EXTRA
RINSE
START
PAUSE
PREWASH
WASH
RINSE
RINSE HOLD
SPIN
DRY
ON
OFF
COLD
COTTON
STAIN
500
DELAY
START
RINSE
HOLD
SPIN
SPEED
PREWASH
EASY-CARES
DRYING
END
DRYING
TIME
DRYING
PUMP OUT
WOOLLENS
DELICATES
SOAK
SOFTENERS
PUMP OUT
SPIN
SHORT SPIN
RESET
GENTLE RINSES
Dear customer,
Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct
functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instruc-
tions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the
machine are marked with the clover symbol.
If you require assistance or advice on your appliance, please contact our
customer care department by letter or telephone:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire SL1 1DZ
Tel: 08705 350350
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the
wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute
the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".
Printed on recycled paper.
People who think ecologically, act accordingly....
2
Contents
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tips for environmental protection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Main features of your washer-dryer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Programme selector dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Mains-on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DELAYSTART button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
DRYING TIME button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
EXTRA RINSE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SPIN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Programme progress display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Altering a programme which is running . . . . . . . . . . . . . . . . . . . . . . . . . 17
Opening the door after the programme has started. . . . . . . . . . . . . . . . 17
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Before the first wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Sorting out and preparing the laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Detergents and additives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Which detergent?..... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
WHITES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
NON BIOLOGICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
COLOUREDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DELICATE ITEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
LAUNDRY BLEACH. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
STAIN REMOVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3
And in which form?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TRADITIONAL POWDERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TRADITIONAL LIQUIDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
COMPACT POWDERS AND LIQUIDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FABRIC CONDITIONERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Preparing the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Garments not suitable for drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Drying symbols on garment labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Duration of the drying cycle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Modification of the drying time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fibre residue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Additional drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . . . . 26
How to wash
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Add detergent and additive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Switching the machine on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Selection of the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Selection of the STAIN, PREWASH or QUICK WASH option. . . . . . . . . . . . . 28
Selection of the EXTRA RINSE and/or RINSE HOLD option. . . . . . . . . . . . . . 28
Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
At the end of the programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
How to dry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Drying only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . . . . 31
Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33
Programme chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Drying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
After each wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Periodical cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Water inlet filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4
Contents
Something not working?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Service & Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47
Instructions for installation and electrical connection. . . . . . . . . . . . . . 48
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dimensions of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Front view and side view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Water inlet (cold water connection only). . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
In the interest of the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Bulding-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-58
5
Contents
Safety instructions
Your safety is of paramount importance, please ensure you read this
instruction book before installing or using this appliance.
General safety
• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause injury or
serious malfunctioning. Contact your local AEGService Force Centre.
• Never start the machine if the mains cable is damaged or the control
panel or worktop are damaged allowing inner components to be
accessible.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the mains cable to remove the plug from the socket;
always take hold of the plug itself.
• During high temperature wash programmes and during the drying
cycle, the door glass may get hot.
• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.
Installation
• Follow the installation instructions carefully.
• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.
6
Child safety
• This appliance is designed to be operated by adults. Children should not
be allowed to tamper with the controls or play with the appliance.
• Pets and children have been known to climb into washing machines.
Please check the drum before use.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
• When disposing of the appliance, cut off the mains cable, and destroy
the plug. Disable the door catch to prevent young children being
trapped inside.
During use
• Always unplug the appliance and turn off the water tap after use.
• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur .
• For safety reasons, the appliance must not be modified.
• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.
• Garments which have been in contact with flammable solvents
should not be machine washed.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held liable for
any damage.
7
Safety instructions
Disposal
Packaging materials
The materials marked with the symbol are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in
appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance. Help to keep your
country tidy!
8
Tips for environmental protection
To save water, energy and to help protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is protected too!).
• Use the energy saving programme when washing normally soiled garments.
• The machine works more economically if it is fully loaded (for both
washing and drying cycles).
• When small loads are washed, use only half to two thirds of the rec-
ommended amount of detergent.
• The machine will consume less energy if the laundry is adequately
spun before being dried.
• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.
9
Main features of your washer-dryer
• Programme and temperature setting using the programme selector.
• Stain programme for effectively treating stained washing.
• Energy saving programme for normally soiled cotton items.
• Speed for the final spin can be reduced to 900, 700 or 500 rpm.
• RINSE HOLD: the laundry is left immersed in the final rinse water to
prevent creasing.
• Delay timer: programme start can be delayed by 1 to 19 hours (e.g.
to times with a more economical power rate).
• Programme progress display showing the programme steps selected
and the programme phase which is running.
• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care.
• The drying programmes will enable you to have dry and soft laundry in a short time.
• 3-compartment drawer for detergent and fabric softener.
• Unbalance detection device: to prevent vibration during spinning.
10
Description of the appliance
Front view
11
Detergent drawer
Control panel
Door
Drain filter
Adjustable feet
95
E
60
50
40
30
60
50
40
30
40
30
40
30
1200
900
700
QUICK
EXTRA
RINSE
START
PAUSE
PREWASH
WASH
RINSE
RINSE HOLD
SPIN
DRY
ON
OFF
COLD
COTTON
STAIN
500
DELAY
START
RINSE
HOLD
SPIN
SPEED
PREWASH
EASY-CARES
DRYING
END
DRYING
TIME
DRYING
PUMP OUT
WOOLLENS
DELICATES
SOAK
SOFTENERS
PUMP OUT
SPIN
SHORT SPIN
RESET
GENTLE RINSES
12
Control panel
A = Mains-on light
B = ON/OFF button
C = Delay start button
D = Display
E = Drying time button
F = Option buttons
G = START/PAUSE button
H = Spin speed button
J = Programme progress display
K = Programme selector dial
Programme selector dial
The programme selector determines
the type of washing cycle (e.g. water
level, drum movement, number of
rinses, spin speed), the washing temperature and enables the required
drying programme to be selected
according to the type of laundry.
The selector is divided into 5 sections:
• Cotton
• Easy-cares
• Delicates
• Woollens (hand washing)
• Special programmes
95
E
60
50
40
30
60
50
40
30
40
30
40
30
1200
900
700
QUICK
EXTRA
RINSE
START
PAUSE
PREWASH
WASH
RINSE
RINSE HOLD
SPIN
DRY
ON
OFF
COLD
COTTON
STAIN
500
DELAY
START
RINSE
HOLD
SPIN
SPEED
PREWASH
EASY-CARES
DRYING
END
DRYING
TIME
DRYING
PUMP OUT
WOOLLENS
DELICATES
SOAK
SOFTENERS
PUMP OUT
SPIN
SHORT SPIN
RESET
GENTLE RINSES
AB F H J KG
E
C D
Description of the appliance
95
E
60
50
40
30
60
50
40
30
40
30
40
30
COLD
COTTON
EASY-CARES
DRYING
DRYING
WOOLLENS
DELICATES
SOAK
SOFTENERS
PUMP OUT
SPIN
SHORT SPIN
RESET
GENTLE RINSES
13
The selector dial can be turned either clockwise or anticlockwise.
Position E corresponds to the ENERGY SAVING programme at approx.
67°C for normally soiled laundry, extended washing time (cannot be
combined with STAIN and QUICK).
ON/OFF button
Press this button to switch the machine on. Press it again to switch the
machine off.
Mains-on light
This light comes on when the ON/OFF button is pressed, and goes out
when it is pressed again.
START/PAUSE button
This button has three functions:
a) Start
After having selected the required progr amme, press this button to start
the machine; the corresponding pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the START/PAUSE
button: the corresponding pilot light and the light of the programme
phase which is running will start to flash.
To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.
c) Empty out water
At the end of a programme which ends with water in the drum (RINSE
HOLD option), or after the “soak” programme, press the START/PAUSE
button to empty out the water: after the soak programme, the machine
will empty only; after RINSE HOLD programmes, the machine will empty
and spin.
DELAY START button
The wash programme can be delayed from 1 hour up to a maximum of
19 hours.
The button must be pressed after selecting the programme and
before pressing the START/PAUSE button.
The figures indicating the delay appear for about 2 seconds in the display next to the button. The duration of the selected wash programme
is then displayed. One minute after depressing the START/PAUSE button, the machine starts its hourly countdown.
Description of the appliance
During the last hour, the remaining time is displayed every 5 minutes.
The delayed start function cannot be used with the SPIN or PUMP OUT
programmes.
To alter or cancel the preset delay, press the START/PAUSE button, then
press the DELAY START button until the required time is displayed or, if
you wish to cancel the delay, until the symbol 0 h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash
programme previously selected.
DRYING TIME button
By depressing this button you can select the desired drying time
according to the fabrics (cotton or easy-cares) you have to dry.
To select the drying time you have to push the button until the drying
time you want appears in the display.
For COTTON you can select a drying time from 10 minutes to 2 hours
and 10 minutes (2.10).
For EASY-CARES you can select a time from 10 minutes to 1 hour and
40 minutes (1.40).
Programme Option buttons
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.
When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
If an incorrect option is selected, the pilot lights flash for about 3 seconds
and the message Err is displayed.
STAIN
To treat heavily soiled washing or stained washing with stain remover
(extended main wash with time optimised stain action phase, not selectable for wool or programmes with temperatures lower than 40°C).
QUICK
By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool programme.
14
Description of the appliance
PREWASH
The machine performs a prewash cycle at 40°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Easy-cares, and
with emptying of the water only for Delicates.
This option is not available with the wool programme.
For use when washing heavily soiled laundry.
Important: the STAIN, PREWASH and QUICK WASH options cannot be
selected together: one automatically disables the others.
EXTRA RINSE
Can be used with all programmes except the wool programme. The
machine performs 4 rinses instead of 3.
This option is recommended for people who are allergic to detergents
and in areas where the water is very soft.
RINSE HOLD
When this button is pressed, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the programme has finished,
the corresponding pilot light on the programme progress display flashes
to indicate that the water must be emptied out.
To empty out water:
• press the START/PAUSE button: after emptying, the machine performs
the spin cycle required for the type of wash selected;
• select the PUMP OUT programme to empty out the water without
spinning.
Warning! The programme selector dial must be turned first to RESET
and then to programme “PUMP OUT”.
This option can also be selected for the wool programme: the last
rinse water is emptied out but the machine does not spin.
If the water is not emptied out, the machine automatically empties
itself after 18 hours.
The RINSE HOLD option cannot be selected for the automatic WASHING &
DRYING programme.
SPIN SPEED
Press this button to reduce the maximum speed of the final speed proposed
by the machine for the selected programme.
The maximum spin speed for cotton is 1200 rpm, for easy-cares and
wool 900 rpm and for delicates 700 rpm.
15
Description of the appliance
Display
The display shows the following information:
• if the programme selector dial is on the RESET position, three flashing
dashes appear immediately after pressing the ON/OFF button to indicate
that the machine is ready to receive instructions for the required wash
programme;
• duration of the selected wash programme, calculated automatically
on the basis of the maximum recommended load for each type of fabric.
• Selected drying time (max. 2 hours and 10 minutes for cotton, 1 hour
and 40 minutes for easy-cares).
After the programme has started, the time remaining is updated every
10 minutes, and every 5 minutes during the last 20 minutes.
• When the programme has finished, three flashing zeros are dis-
played;
• delayed start, programmed using the special button (C).
The selected delay (19 hours max.) is indicated in the display. The
countdown is updated every hour, and every 5 minutes during the last
hour.
• Heating phase. A dot to the right of the figures in the display indicates that the machine is heating the water.
• Incorrect option selection. If an option which is not compatible with
the set wash programme is selected, the message Err is displayed.
Programme progress display
By selecting the wash programme, the pilot lights corresponding to the various phases making up the programme come on.
After the machine has started, only the running phase
pilot light stays on. When the programme has finished,
the END pilot light comes on.
16
Description of the appliance
PREWASH
WASH
RINSE
RINSE HOLD
SPIN
DRY
END
PUMP OUT
Cancelling a programme
To cancel a programme which is running, turn the programme selector
dial to the RESET position: three flashing dashes will be displayed.
Warning! After a programme which ends with water in the drum
(RINSE HOLD option), turn the selector dial first to RESET and then to
the PUMP OUT programme.
Altering a programme which is running
To alter a programme, first set the machine to PAUSE by pressing the
START/PAUSE button.
Before the machine starts the heating phase, i.e. within the first 15
minutes for cotton programmes, 1 0 minutes for easy-cares and delicate
programmes and 5 minutes for the wool programme, the selected wash
cycle can be modified.
Warning! If the programme selector dial is turned first to RESET and then
to the new programme, the progr amme which is running is cancelled, the
water is emptied out and the machine re-starts from water filling. To
simply modify the programme which is running, turn the programme
selector dial to the desired position (avoiding the RESETposition): when the
START/PAUSE button is pressed again, the machine restarts with the newly
selected programme from the point at which it was interrupted.
Opening the door after the programme has started
The door can only be opened before the machine starts the heating
phase (within the first 15, 10 or 5 minutes, depending on the programme selected - see paragraph above) and during the rinse phase.
Set the machine to PAUSE (by pressing the START/PAUSE button).
If the door does not open, this means that the machine is already heat-
ing, or that the water level is above the bottom edge of the door.
This prevents water from spilling out when the door is opened.
17
Description of the appliance
Detergent dispenser drawer
Compartment for prewash or soak detergent and stain remover . The prewash
or soak detergent is added at the beginning of the wash programme. The
stain remover is added during the STAIN-Action phase in the main wash.
Compartment for powder or liquid detergent used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric softener, starch).
It is emptied at the last rinse.
The quantity of additives must not exceed the “MAX” mark in the
drawer.
Before the first wash
Before your first wash, we recommend that you run a cotton cycle at
60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.
Pour 1/2 a measure of deter gent into the dispenser dr awer and start the
machine.
Programme chart
18
Description of the appliance
Loading...
