USER’S GUIDE
GUIDE DE L’UTILISATEUR
Thank you for your purchase of this Electrohome product. Please read this instruction
manual carefully before using product to ensure proper use. Keep this manual in a
safe place for future reference.
Merci d’avoir fait l’achat de cet appareil Electrohome. Veuillez lire le présent guide
attentivement avant de faire fonctionner l’appareil pour vous assurer de l’utiliser
correctement. Conservez le présent guide dans un endroit sûr an de pouvoir vous y
référer au besoin.
www.electrohome.ca
EA1409
Classic Music Player
Lecteur Musical Classique
- 2 -
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not t into you outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and point where they exit from the apparatus.
11. Only use attachments / accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of
time.
13. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
14. This appliance shall not be exposed to dripping or splashing water and no object
lled with liquids such as vases shall be placed on the apparatus.
15. Do not overload wall outlet. Use only power source as indicated.
16. Use replacement parts as specied by the manufacturer.
17. The product may be mounted to a wall only if recommended by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician
to perform safety checks.
The lightning ash with
arrowhead symbol within
an equilateral triangle is
intended to alert the user to
the presence of uninsulated
dangerous voltage within
the product’s enclosure
that may be of sufcient
magnitude to constitute
a risk of electric shock to
persons.
The exclamation point
within an equilateral
triangle is intended
to alert the user
to the presence of
important operating and
maintenance (servicing)
instructions in the
literature accompanying
the appliance.
WARNING:TO
REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE
COVER (OR BACK), NO
USER SERVICEABLE
PARTS INSIDE REFER
SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
- 3 -
IMPORTANT NOTES
• Avoid installing this unit in places exposed to direct sunlight or close to heat
radiating appliances such as electric heaters, on top of other stereo equipment
that radiates too much heat, places lacking ventilation or dusty areas, places
subject to constant vibration and/or humid or moist areas.
• Do not attempt to clean this unit with chemical solvents as this might damage the
nish. Use a clean dry cloth.
• Operate controls and switches as described in the manual. Before turning on the
power, make certain that power cord is properly installed.
• Store your CDs in a cool area to avoid damage from heat.
• When moving the set, be sure to rst disconnect the power cord.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
APPAREIL A LASER DE
CLASSE 1
PRODUCTO LASER DE
CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND
INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM
FCC INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT
Since digital circuitry may cause interference to other radio or television tuners nearby, switch this
unit off when not in use or move it away from the affected radio/television tuner.
NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television operation (which can be determined by turning the
equipment off), the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
TABLE OF CONTENTS
- 4 -
Important Safety Instructions 2
Important Notes 3
What’s Included 4
Buttons and Connections 5
Preparation for Use 7
Unpacking and Setup 7
Power Source 7
Raising and Lowering the Lid 8
Protect Your Furniture 8
Headphones 8
Operation 9
Radio Operation 9
Playing a CD 9
Random Playback 10
Repeat Playback 10
Programmed Playback 10
Playing Records 11
Changing the Stylus 12
Electrohome Warranty 13
WHAT’S INCLUDED
• Classic Music Player
- 5 -

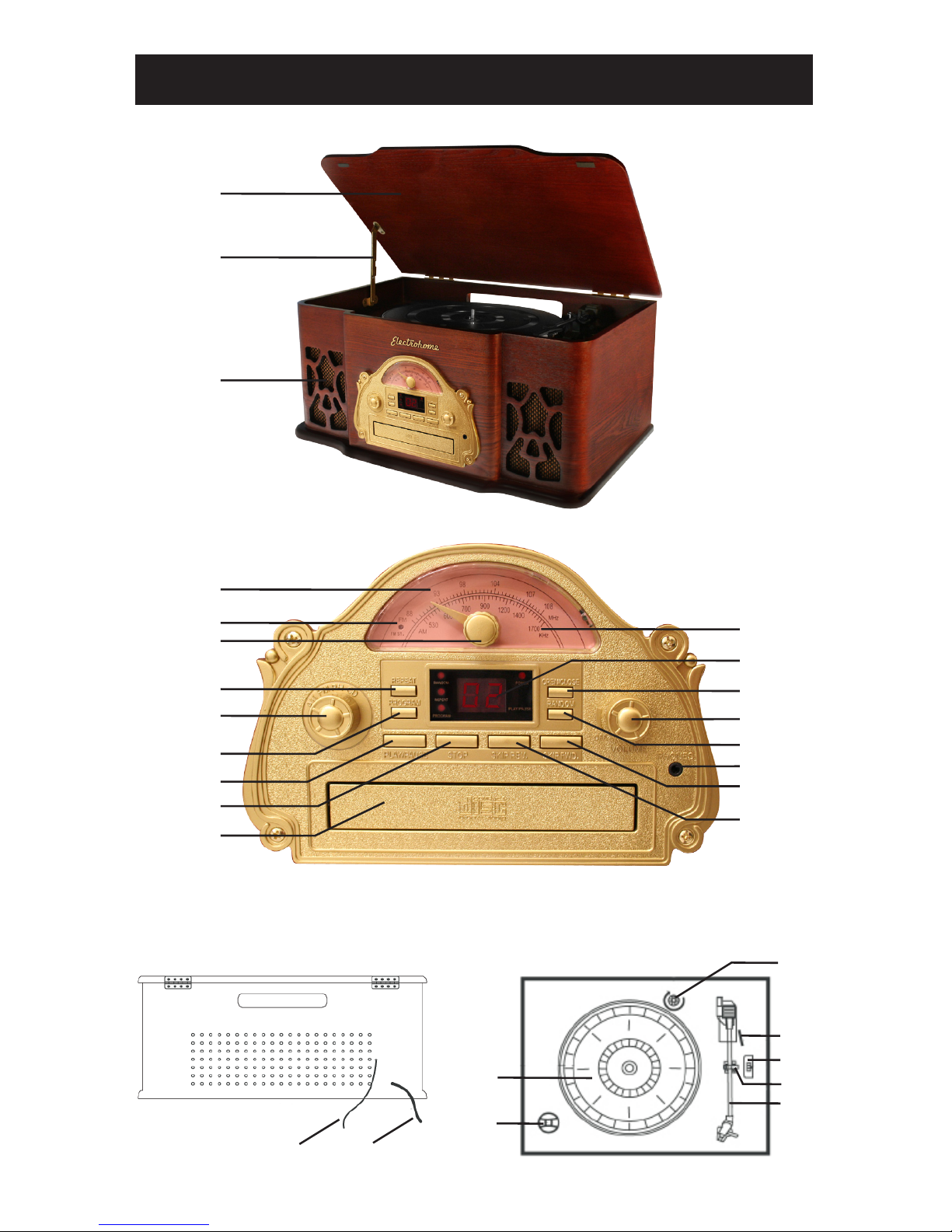

BUTTONS AND CONNECTIONS
Main Unit
Control Panel
Back of Unit Turntable
1
2
3
4
5
6
7
12
8
11
9
10
13
14
15
16
17
20
18
19
23
24
26
21
27
22
28
29
25
- 6 -
1. Phonograph Lid
Lift to reveal turntable
2. Phonograph Lid Support
Stand
Lift and clip into place to hold
up lid
3. Speakers
Plays sounds from radio, cd,
or record
4. FM Dial Scale
Indicates the FM channels
5. FM Stereo Indicator
Indicates FM stereo is ON
6. Tuning Control
Indicates which station is
being played
7. Repeat Button
Repeat 1 or all songs on a CD
8. AM-FM-PH-CD Function
Switch
Changes the player function
9. Program Button
Program a set of songs to play
10. Play/Pause Button
Plays/Pauses playback
11. Stop Button
Stops playback
12. CD Disc Tray
Holds the CD in the unit
13. AM Dial Scale
Shows the AM stations
14. CD Track Display
Displays the track currently
being played
15. Open/Close Button
Opens and closes the CD tray
16. OFF/Volume Control
Control the volume of
playback
17. Random Button
Shufe and play songs
randomly
18. Headphone Jack
Plug your headphones in here
19. Skip Forward Button
Skip to next track
20. Skip Reverse Button
Skip back one track
21. FM Antenna Wire
Improves FM reception
22. AC Power Cord
Plug AC power cord into any
wall outlet
23. Turntable
Place vinyl record here
24. 45 RPM Adapter
Place in centre of turntable to
accomodate 45 RPM records
25. Transit Screw
Tighten during transportation
26. Cue Lever
Raise or lower tone arm
27. Speed Selector (33/45/78
RPM)
Select speed record should be
played at
28. Tone Arm Lock
Locks stylus arm
29. Tone Arm with Stylus
Plays records
BUTTONS AND CONNECTIONS
- 7 -
POWER SOURCE
This system is designed to operate
on normal 120V 60Hz AC only.
Attempting to operate this system
from any other power source may
cause damage to the system, and
such damage is not covered by
your warranty.
Note: This system is equipped with a polarized AC power plug having one
blade wider than the other. This is a safety feature. If this plug does not t into
your existing AC outlet, do not try to defeat this safety feature by altering the
wide blade to make it t into your outlet. If this plug will not t into your outlet,
you probably have an outdated non-polarized AC outlet. Have the obsolete
outlet changed by a qualied licensed electrician.
PREPARATION FOR USE
UNPACKING AND SETUP
• Carefully remove the unit from
the display carton and remove all
packing material from the unit
• Unwind the AC power cord and
extend it to its full length
• Unwind the FM Antenna wire and
extend it to its full length
• Place the unit on a stable, level
surface, close to an AC outlet,
out of direct sunlight, and away
from sources of excess heat,
dust, moisture, humidity, or strong
magnetic elds

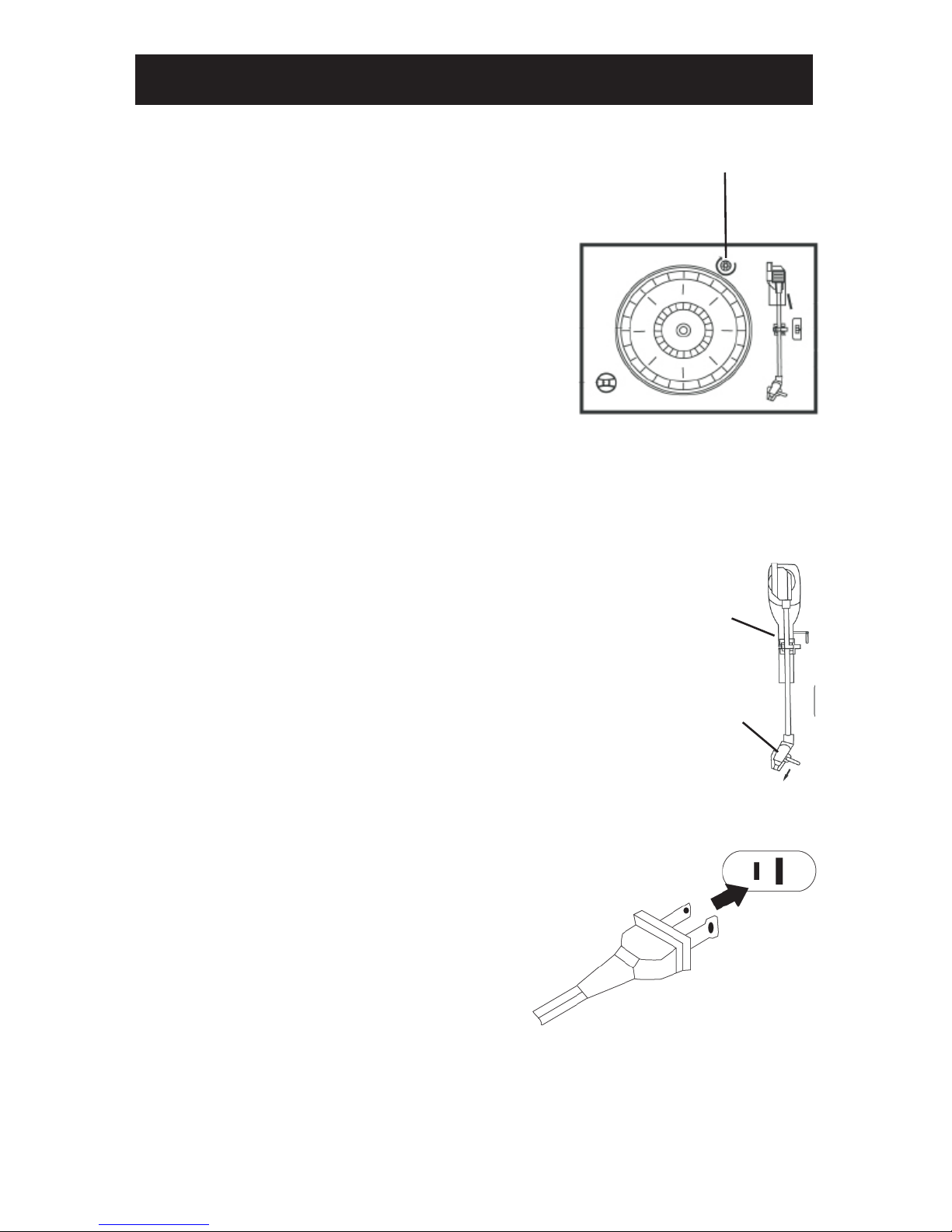

• Raise the lid to expose the phonograph. The phonograph has been
secured for shipment with a transit screw. Use a coin or screwdriver to
TURN THE TRANSIT SCREW CLOCKWISE. This will allow the turntable
to “oat” and turn freely
• Remove the opaque white plastic
stylus cover from the phonograph
stylus by sliding it in the direction of
the arrow.
• Discard the stylus cover.
• Remove the twist-tie that was used to
secure the tone arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to your AC outlet, as
shown below.
Transit Screw
Tone Arm
Lock Lever
Stylus Cover
- 8 -
PREPARATION FOR USE
RAISING AND LOWERING THE LID
IMPORTANT:
To open the lid, raise it as far as it will go until the lid support bracket
‘locks’ in the open position. To close the lid, lift it upward slightly until the
lid support bracket ‘unlocks’ , and then gently lower the lid.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE
THE LID CLOSED. ALWAYS RAISE THE LID TO RELEASE THE LID
SUPPORT BRACKET.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber ‘feet’ to prevent the product
from moving when you operate the controls. These ‘feet’ are made from nonmigrating rubber material specially formulated to avoid leaving any marks
or stains on your furniture. However, certain types of oil based furniture
polishes, wood preservatives, or cleaning sprays may cause the rubber ‘feet’
to soften, and leave marks or a rubber residue on the furniture. To prevent any
damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at hardware stores and home improvement
centers everywhere, and apply these pads to the bottom of the rubber ‘feet’
before you place the product on ne wooden furniture.
HEADPHONES
For private listening, plug headphones into the headphone jack on the front
panel of the player. The speakers will be disconnected when headphones are
plugged in.
Loading...
