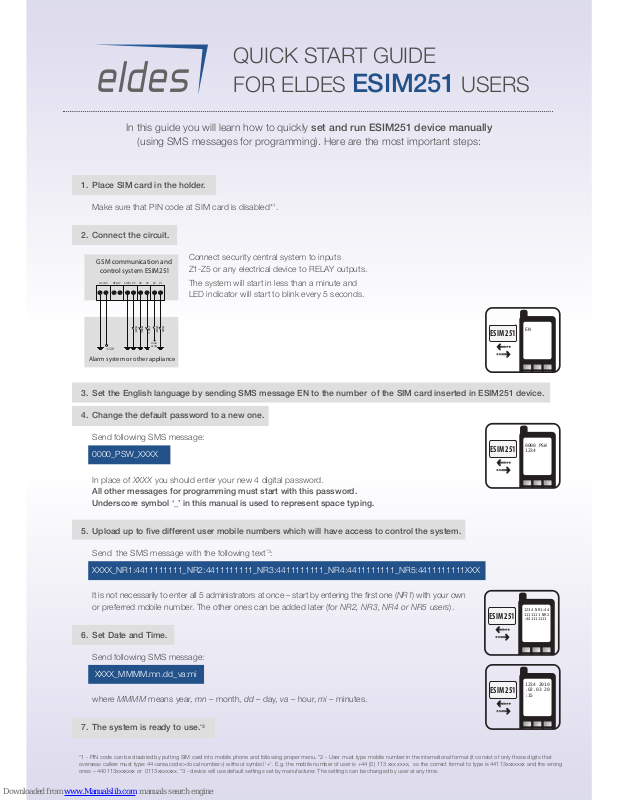

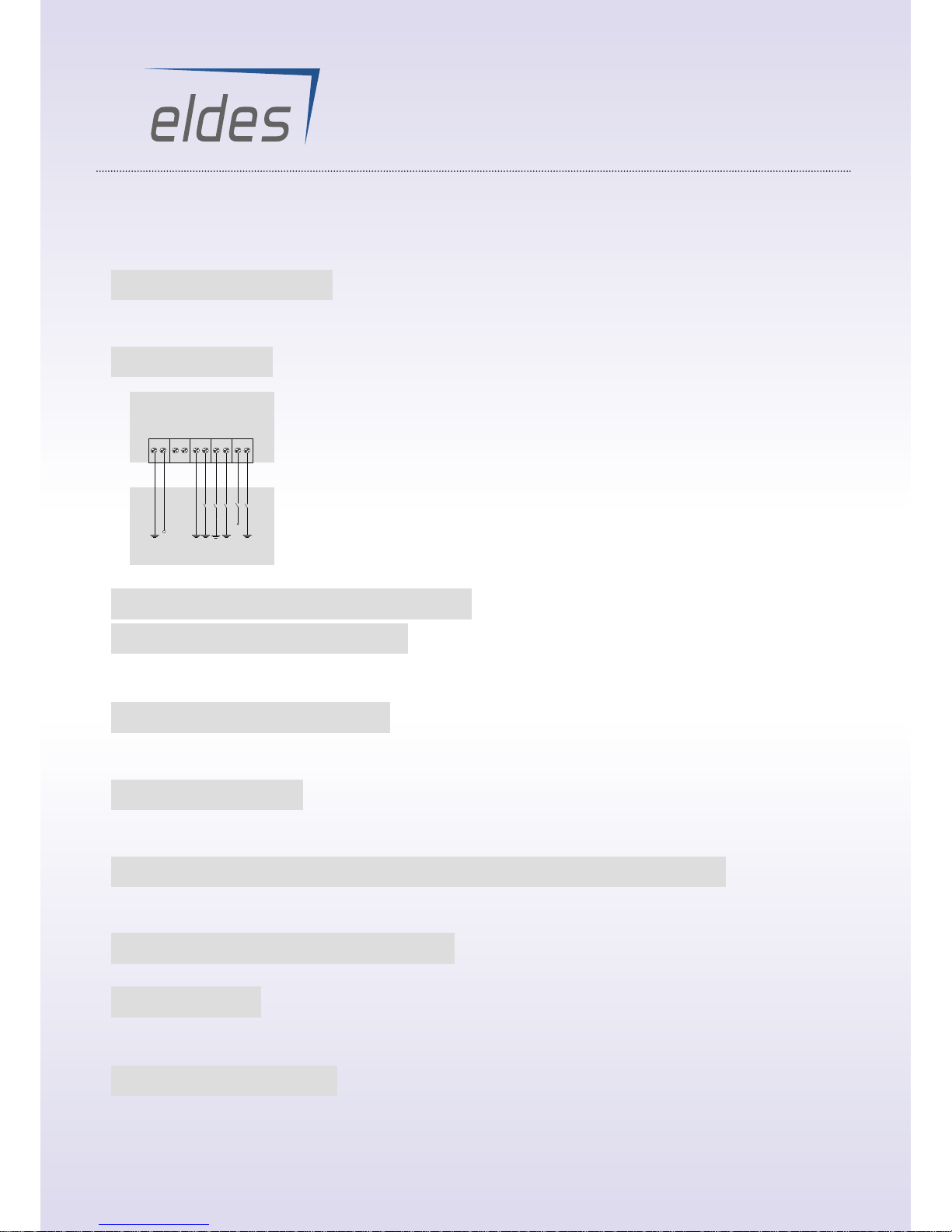

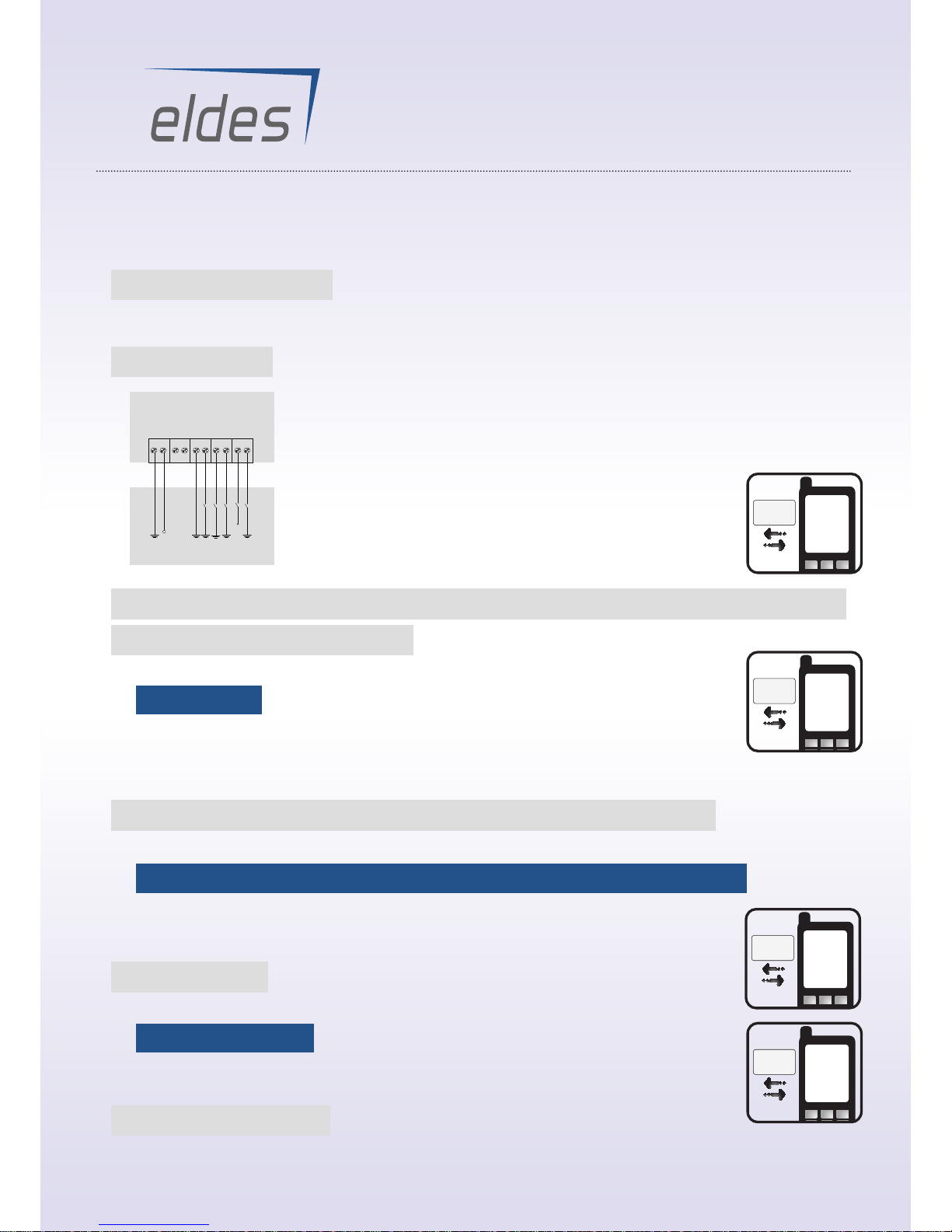

QUICK START GUIDE
FOR ELDES
ESIM251 USERS
1. Place SIM card in the holder.
Make sure that PIN code at SIM card is disabled*1.
2. Connect the circuit.
Connect security central system to inputs
Z1-Z5 or any electrical device to RELAY outputs.
The system will start in less than a minute and
LED indicator will start to blink every 5 seconds.
3. Set the English language by sending SMS message EN to the number of the SIM card inserted in ESIM251 device.
4. Change the default password to a new one.
Send following SMS message:
0000_PSW_XXXX
In place of XXXX you should enter your new 4 digital password.
All other messages for programming must start with this password.
Underscore symbol ‘_’ in this manual is used to represent space typing.
5. Upload up to five different user mobile numbers which will have access to control the system.
Send the SMS message with the following text*3:
XXXX_NR1:4411111111_NR2:4411111111_NR3:4411111111_NR4:4411111111_NR5:4411111111XXX
It is not necessarily to enter all 5 administrators at once – start by entering the first one (NR1) with your own
or preferred mobile number. The other ones can be added later (for NR2, NR3, NR4 or NR5 users).
6. Set Date and Time.
Send following SMS message:
XXXX_MMMM.mn.dd_va:mi
where MMMM means year, mn – month, dd – day, va – hour, mi – minutes.
7. The system is ready to use.
*3
In this guide you will learn how to quickly set and run ESIM251 device manually
(using SMS messages for programming). Here are the most important steps:
*1 - PIN code can be disabled by putting SIM card into mobile phone and following proper menu. *2 - User must type mobile number in the international format (it consist of only those digits that
overseas callers must type: 44<area code><local number>) without symbol ‘+’. E.g. the mobile number of user is +44 (0) 113 xxx xxxx, so the correct format to type is 44113xxxxxxx and the wrong
ones – 440113xxxxxxx or 0113xxxxxxx. *3 - device will use default settings set by manufacturer. The settings can be changed by user at any time.
+12V
HIGH
LEVEL
Z1Z2Z3Z4Z5COMRELAYAC/DC
GSM communication and
control system ESIM251
Alarm system or other appliance
PGM1
PGM3
PGM4
PGM5
PGM2
ESIM 251
0000 PSW
1234
ESIM 251
EN
ESIM 251
1234 2010
.02.03 20
:15
ESIM 251
1234 NR1:44
1111111 NR2
:441111111
