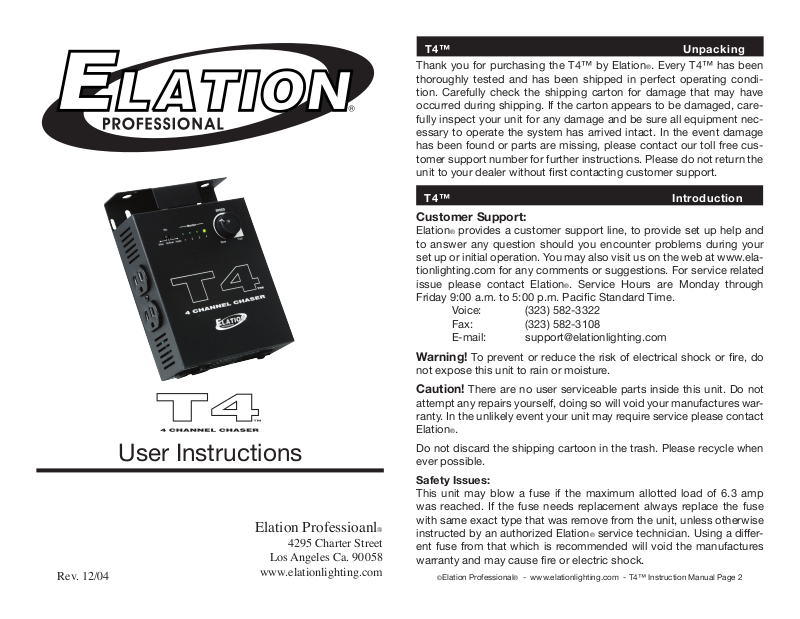

Elation T4 User Manual

T4™ Unpacking

Thank you for purchasing the T4™ by Elation®. Every T4™ has been
thoroughly tested and has been shipped in perfect operating condi­tion. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, care­fully inspect your unit for any damage and be sure all equipment nec­essary to operate the system has arrived intact. In the event damage
has been found or parts are missing, please contact our toll free cus­tomer support number for further instructions. Please do not return the
unit to your dealer without first contacting customer support.

T4™ Introduction

Customer Support:

Elation® provides a customer support line, to provide set up help and
to answer any question should you encounter problems during your
set up or initial operation. You may also visit us on the web at www.ela­tionlighting.com for any comments or suggestions. For service related
issue please contact Elation®. Service Hours are Monday through
Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]

Rev. 12/04

User Instructions

Elation Professioanl®

4295 Charter Street

Los Angeles Ca. 90058

www.elationlighting.com

Warning! To prevent or reduce the risk of electrical shock or fire, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war­ranty. In the unlikely event your unit may require service please contact
Elation®.

Do not discard the shipping cartoon in the trash. Please recycle when
ever possible.

Safety Issues:

This unit may blow a fuse if the maximum allotted load of 6.3 amp
was reached. If the fuse needs replacement always replace the fuse
with same exact type that was remove from the unit, unless otherwise
instructed by an authorized Elation
ent fuse from that which is recommended will void the manufactures
warranty and may cause fire or electric shock.

©Elation Professional® - www.elationlighting.com - T4™ Instruction Manual Page 2

® service technician. Using a differ-

T4™ Operating Instructions

T M

SPEED

FastSlow

Monitor

1 2 3 4

Mic

Normal AudioSlow

T4™ Controls & Functions

Features:

The T4™ is a 4 channel chaser. The T4™ can be set to run in audio
or chase mode. The audio mode will trigger the chase pattern to the
rhythm of the beat. Chase mode will chase without requiring an audio
signal. The T4™ is deigned to run par cans, pin spots, and other
small fixture. You may draw a total of 6.3
channel can draw up to 5

A per a channel. Plug your fixtures into the

Edison sockets on the sides of the T4

A from the controller. Each

.™ After plugging your fixtures
into the T4™ plug the T4™ into a standard grounded wall outlet.
Select your operation mode and turn the T4™ on. Remember that if
you select the audio operation mode the T4™ will not chase until it
receives an audio signal.

T4™ Operating Modes

Slow:

When the Mode switch is in the “SLOW” position the unit will chase
(step from one to channel to the next) at a slow pace.

Normal:
When the Mode switch is in the “NORMAL” position the unit will
chase at a regular pace.

Audio:
When in the “

AUDIO” mode each chase step will be regulated by low
frequencies heard through the built-in microphone.Turning the speed
knob down completely (counter-clockwise) in audio mode will regulate
the chase solely by low frequencies heard through the built-in micro
phone. The audio sensitivity is preset by the manufacture and may be
adjusted.

T4™ Warranty Card

The T4™ carries a 2 Year limited warranty. We recommend you fill out
the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.)

number. If the unit is
under warranty, you must provide a copy of your proof of purchase
invoice. Please contact Elation® customer support for a R.A. number.

1 5432

1. 3-POLE ELECTRICAL OUTLETS -

These are standard Edison 3-pole grounded electrical outlets.

2. INTERNAL MICROPHONE -
The T4™ comes equipped with a built-in microphone to pick-up the
beat of the music. This is used to trigger the controller in the audio
mode. The internal microphone will have no function when chase

-

mode is selected.

3. MODE SELECTOR SWITCH -

This switch is used to select any of the three operating modes; Slow,
Normal, or Audio.

4. LED INDICATORS -

The four channel LED’s will also glow to indicate channel activity.

5. SPEED ADJUSTMENT KNOB -

The T4™ uses a speed control knob to adjust the chase rate of the
built in program. Turning the speed knob in a clockwise direction will
increase the chase rate, turning the speed knob in a counter-clock

-

wise direction will decrease the chase rate.

©Elation Professional® - www.elationlighting.com - T4™ Instruction Manual Page 3
