ELATION
|
SEVEN PAR 7IP
|
user manual
SEVEN PAR 7IP™
user manual
©2018 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams,
Date
Document
Version
Software
Version ≥
DMX
Channel Modes
Notes
05/11/18
1
1.04
CH:03 RGB, CH:07 8Bit,
CH:14 16Bit, CH:15 Master,
CH:04 H S I, CH:10 H S I+
Initial release.
05/14/18
1.2
N/C
NO CHANGE
Updated release.
06/19/18
1.4
1.05
RGB 3CH, RGBSeven 3CH,
8bit 7CH, 16bit 14CH,
Master 15CH, HSI 4CH,
HSI Mast 10CH
Updated System Menu / DMX
modes.
images, and instructions herein are subject to change without notice. ELATION
PROFESSIONAL logo and identifying product names and numbers herein are trademarks of
ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of
copyrightable materials and information now allowed by statutory or judicial law or
hereinafter granted. Product names used in this document may be trademarks or
registered trademarks of their respective companies and are hereby acknowledged. All
non-ELATION brands and product names are trademarks or registered trademarks of their
respective companies.
ELATION PROFESSIONAL and all affiliated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and direct
or indirect economic loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe, insufficient and negligent
assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated
version of this document may be available online.
Please check www.elationlighting.com for the latest revision/update of this
manual, before beginning installation and/or programming.
www.elationlighting.com 2
CONTENTS
General Information
4
Limited Warranty (USA Only)
5
Safety Guidelines
6
Maintenance Guidelines
8

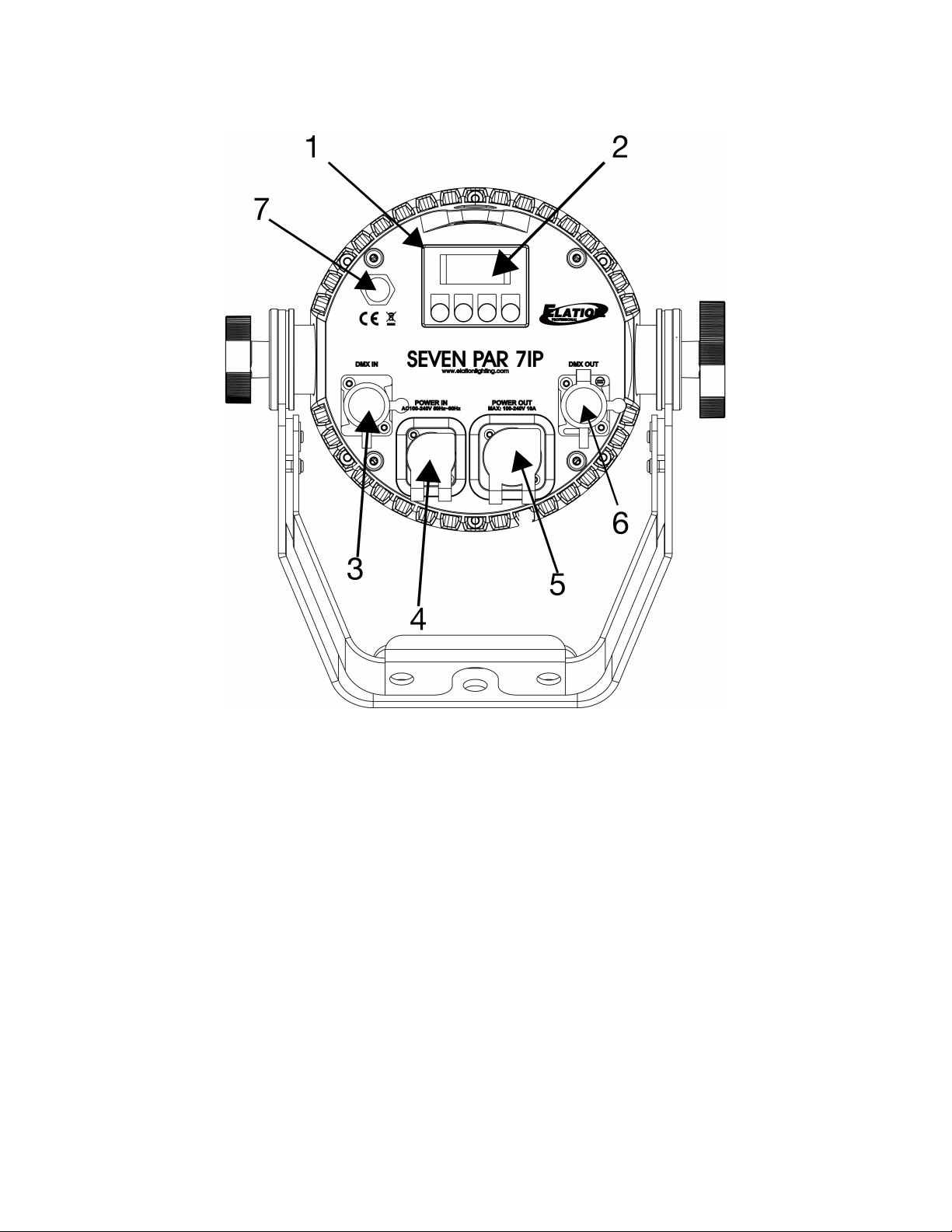

Fixture Overview
9
Installation Guidelines
10
System Menu
14
DMX Channel Functions And Values
17
Tec hnic al S pecifi cati ons
21
Optional Accessories
23
3 www.elationlighting.com
GENERAL INFORMATION
INTRODUCTION
This fixture has been designed to perform reliably for years when the information in this
manual are followed. Please read and understand all the instructions and guidelines carefully
and thoroughly before operating this unit. This manual contains important information
regarding safety, installation, use, and maintenance.
UNPACKING
Each fixture has been thoroughly tested and shipped in perfect operating condition.
Carefully check the outer shipping carton for signs of any damage that may have occurred
during shipping. If the outer carton appears to be damaged, carefully inspect the fixture for
damage and be sure all included accessories have arrived intact. In the event damage has
been found and/or parts are missing, please contact our customer support team for further
instructions. Please do NOT return this fixture to your dealer without first contacting
customer support at the number listed below. Please do NOT discard the outer shipping
carton in the trash. Please recycle whenever possible.
CUSTOMER SUPPORT
Elation Professional provides a customer support line to provide set up help and answer any
set up or operation questions. You may also visit us on the web at www.elationlighting.com
for any comments or suggestions. For service related issue please contact Elation
Professional.
ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST
Voice: 323-582-3322 Fax: 323-832-9142
E-mail: support@elationlighting.com
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: +31 45 546 85 30 Fax: +31 45 546 85 96
E-mail: support@elationlighting.eu
WARRANTY REGISTRATION / RETURNS
Please register online: http://www.elationlighting.com/Login.aspx to validate your purchase.
All returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support.
www.elationlighting.com 4
LIMITED WARRANTY (USA ONLY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to
be free of manufacturing defects in material and workmanship for a period of two years (730 days),
and Elation Professional product rechargeable batteries to be free of manufacturing defects in
material and workmanship for a period of six months (180 days), from the original date of purchase.
This warranty excludes discharge lamps and all product accessories. This warranty shall be valid
only if the product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement) are within
the terms of this warranty, Elation Professional will pay return shipping charges only to a designated
point within the United States. If any product is sent, it must be shipped in its original package and
packaging material. No accessories should be shipped with the product. If any accessories are
shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the
product is modified in any manner which Elation Professional concludes, after inspection, affects the
reliability of the product; if the product has been repaired or serviced by anyone other than the Elation
Professional factory unless prior written authorization was issued to purchaser by Elation
Professional; if the product is damaged because not properly maintained as set forth in the product
instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or
periodic check-up. During the periods as specified above, Elation Professional will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of Elation Professional under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the
sole discretion of Elation Professional. All products covered by this warranty were manufactured
after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance
improvements upon its products without any obligation to include these changes in any products
theretofore manufactured.
F. N o w a r r a n t y , w h e t h er expressed or implied, is given or made with respect to any accessory
supplied with the products described above. Except to the extent prohibited by applicable law, all
implied warranties made by Elation Professional in connection with this product, including warranties
of merchantability or fitness, are limited in duration to the warranty periods set forth above. And no
warranties, whether expressed or implied, including warranties of merchantability or fitness, shall
apply to this product after said periods have expired. The consumer’s and/or dealer’s sole remedy
shall be such repair or replacement as is expressly provided above; and under no circumstances
shall Elation Professional be liable for any loss and/or damage, direct and/or consequential, arising
out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes all
prior warranties and written descriptions of warranty terms and conditions heretofore published.
5 www.elationlighting.com
SAFETY GUIDELINES
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID
YOUR MANUFACTURES WARRANTY. DAMAGES RESULT IN G FRO M
MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF
SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID
THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY
WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY
SEALED WITH A DIELECTRIC GREASE (AVAILABLE AT MOST
ELECTRICAL SUPPLIERS) TO PREVENT WATER CORROSION AND/OR
ELECTRICAL SHORT CIRCUIT.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth
operation, it is important to follow all instructions and guidelines in this manual. Elation
Professional is not responsible for injury and/or damages resulting from the misuse of this
fixture due to the disregard of the information printed in this manual. Only qualified and/or
certified personnel should perform installation of this fixture and only the original rigging
parts (omega brackets) included with this fixture should be used for installation. Any
modifications to the fixture and/or the included mounting hardware will void the original
manufactures warranty and increase the risk of damage and/or personal injury.
www.elationlighting.com 6
SAFETY GUIDELINES
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV
RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH
OF ULTRAVIOLET UV LIGHT FROM THE UV LED. WEAR
PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED
PERIODS OF EXPOSURE TO UV LED. AVOID WEARING WHITE
COLOR CLOTHING AND/OR USING UV PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES LESS THAN 11 feet
(3.3m). DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVERS.
DO NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW UV LIGHT DIRECTLY
WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION
OUTPUT. INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS,
SUNLIGHT EXPOSURE DIS-ORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE
MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET UV
LIGHT EMITTED FROM THE UV LED.
DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow
approximately 15 minutes for the fixture to cool down before serving.
DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the
power cord connectors are damaged and do not insert into the fixture securely with ease.
NEVER force a power cord connector into the fixture. If the power cord or any of its
connectors are damaged, replace it immediately with a new one of similar power rating.
DO NOT block any air ventilation slots.
All fan and air inlets must remain clean and never blocked.
Allow approx. 6” (15cm) between fixture and other devices or a wall for proper cooling.
When installing fixture in a suspended environment, always use mounting hardware that is no less
than M10 x 25 mm, and always install fixture with an appropriately rated safety cable.
Always disconnect fixture from main power source before performing any type of service
and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the
plug by tugging the wire portion of the cord.
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the casing
burning off from the heat associated with the lamp and will decrease gradually over time.
Consistent operational breaks will ensure fixture will function properly for many years.
ONLY use the original packaging and materials to transport the fixture in for service.
7 www.elationlighting.com
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to insure proper function, optimized light output, and
an extended life. The frequency of cleaning depends on the environment in which the
fixture operates: damp, smoky or particularly dirty environments can cause greater
accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every
20 days with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended life.
There are no user serviceable parts inside this fixture, please refer all other service issues
to an authorized Elation service technician. Should you need any spare parts, please order
genuine parts from your local Elation dealer.
Please refer to the following points during routine inspections:
A detailed electric check by an approved electrical engineer every three months, to make
sure the circuit contacts are in good condition and prevent overheating.
Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out
during normal operation resulting in damage or injury as larger parts could fall.
Check for any deformations on the housing, color lenses, rigging hardware and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to
enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture
to fall and seriously injure a person(s).
Electric power supply cables must not show any damage, material fatigue or sediments.
NEVER remove the ground prong from the power cable.
www.elationlighting.com 8
FIXTURE OVERVIEW
1. OLED Menu Control Display
2. Mode/Up/Down/Enter Buttons
3. IP Rated 5pin DMX IN
4. IP65 Power IN
5. IP65 Power OUT
6. IP Rated 5pin DMX OUT
7. Air Valve
BOX CONTENTS
Gel Frame
Gel Frame Holder / Screw Kit
IP65 Power Cable
9 www.elationlighting.com
INSTALLATION INSTRUCTIONS
IP65 RATED
An IP rated lighting fixture is one, which is commonly installed in outdoor environments and
has been designed with an enclosure that effectively protects the ingress (entry) of external
foreign objects such as dust and water. The International Protection (IP) rating system is
commonly expressed as "IP" (Ingress Protection) followed by two numbers (i.e. IP65) where
the numbers define the degree of protection. The first digit (Foreign Bodies Protection)
indicates the extent of protection against particles entering the fixture and the second digit
(Water Protection) indicates the extent of protection against water entering the fixture. An
IP65 rated lighting fixture is one, which has been designed and tested to protect against the
ingress of dust (6) and high-pressure water jets from any direction (5).
MARINE/COASTAL ENVIRONMENT INSTALLATIONS
Please note although this fixture is IP rated, the fixture is NOT suitable for marine and/or
coastal environment installations. Installing this fixture in a marine and/or coastal
environment may cause corrosion and/or excessive wear to the interior and/or exterior
components of the fixture. Damages and/or performance issues resulting from installation
in a marine and/or coastal environment will void the manufactures warranty and will NOT be
subject to any warranty claims and/or repairs.
OPTIONAL CORROSION-RESISTANT COATING
Optional Corrosion-Resistant Coatings may be available for this fixture.
Please contact Elation Professional for more details.
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installations.
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A
NON-CONDUCTIVE DIELECTRIC GREASE (AVAILABLE AT M O ST E L E CT R I CA L
SUPPLIERS) TO PREVENT WATER INGRESS/CONDENSATION AND/OR
CORROSION.
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.
www.elationlighting.com 10
INSTALLATION INSTRUCTIONS
SEAL ALL UNUSED
CONNECTIONCAPS
SEAL ALL UNUSED
CONNECTIONCAPS
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single fixture or multiple interconnected fixtures for custom matrix
designs to any metal truss/structure or placing the fixture(s) on any surface, a professional
equipment installer MUST be consulted to determine if the metal truss/structure or surface
is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Fixture ambient operating temperature range is 14° to 113°F. (-10° to 45°C)
Do not use the fixture under or above this temperature.
Fixture(s) should be installed in areas outside walking paths, seating areas, or away from
areas were unauthorized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable that can hold 10 times the weight of the fixture.
Allow approximately 15 minutes for the fixture to cool down before serving.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING
FIXTURE, ALL UNUSED CONNECTION RUBBER CAPS MUST BE SEALED.
11 www.elationlighting.com
INSTALLATION INSTRUCTIONS
GEL FRAME AND BARN DOORS INSTALLATION
The included Gel Frame Holder / Screw Kit must be attached to the fixture in order to
attach the included Gel Frame and optional Barn Doors (sold separately).
The spring-loaded Gel Frame Holder lock secures both the Gel Frame and Barn Doors.
1. Attach Gel Frame Holder / Screw Kit to fixture, tightening each screw by hand.
DO NOT OVER TIGHTEN SCREWS!
Insert Gel Frame into Gel Frame Holder by pushing the lock back and sliding into place.
2. Insert Barn Doors into Gel Frame Holder by pushing lock back and sliding into place.
Gel Frame (even if not used) must be in Gel Frame Holder when using the Barn Doors.
3. Secure Gel Frame Holder lock to secure both Gel Frame and Barn Doors to fixture.
4. Position Barn Doors as desired.
www.elationlighting.com 12
INSTALLATION INSTRUCTIONS
SAFETY CABLE
RIGGING POINT
CLAMP MOUNTING
This fixture includes an adjustable dual mounting yoke and safety cable rigging point
attached to the fixture (see the illustration below). When mounting this fixture to truss, be
sure to secure an appropriately rated clamp (not included) to the yoke using an M10 screw
and attach a SAFETY CABLE to the safety cable rigging point.
OVERHEAD RIGGING
Overhead rigging requires extensive experience, including amongst others calculating
working load limits, installation material being used, and periodic safety inspection of all
installation material and the fixture. If you lack these qualifications, do not attempt the
installation yourself. Improper installation can result in bodily injury and property damage.
POWER LINKING
USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE
POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX
POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR AMX AMPS.
13 www.elationlighting.com
SYSTEM MENU
The fixture includes an easy to navigate system menu. The OLED control panel display (see
image below) located on the back of the fixture, provides access to the main system menu
and is where all necessary system adjustments are made to the fixture. During normal
operation, pressing MENU button once will access the fixture’s main menu. Once in the
main menu you can navigate through the different functions and access the sub-menus with
the UP and DOWN buttons. Once you reach a field that requires adjusting, press the ENTER
button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing
the ENTER button once more will confirm your setting. You may exit the main menu at any
time without making any adjustments by pressing the MENU button.
LCD CONTROL PANEL LOCKOUT
When Display menu is set to ON, the LCD display backlight will turn OFF after 30 seconds
and the Control Panel will lock and the display will show LOCKED*****.
Press and hold the MODE button for 5 seconds to unlock.
When Display menu is set to ON1, the LCD display backlight will turn OFF after 30 seconds
and the Control Panel will lock and the display will show LOCKED*****.
To unlock the Control Panel follow these steps:
1.! When locked, the display will show: LOCKED*****
2.! Press UP, then the display will change to: LOCKED**** (one * disappears)
3.! Press DOWN, then the display will change to: LOCKED*** (two * disappear)
4.! Press UP, then the display will change to: LOCKED** (three * disappear)
5.! Press DOWN, then the display will change to: LOCKED* (4 * disappear)
6.! Press ENTER, then the display will change to LOCKED and then become unlocked.
www.elationlighting.com 14
S Y S T E M M E N U
Supports Software Versions: ≥ 1.05
Features are subject to change without any prior written notice.
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Address
Set ADDR
001 ~ xxx
DMX Address Setting
Mode
RGB 3CH, RGBSeven 3CH, 8bit 7CH, 16bit
14CH, Master 15CH, HSI 4CH, HSI Mast 10CH
DMX Channel / User Mode
Function
No DMX
Hold / Black / Program
Function If NO DMX Detected
LCD.Set
Display
On / Off
LCD Backlight Shut Off Time
Key Lock
On / On1 / Off
LCD Buttons Key Lock (see page 13 for details)
Flash
On / Off
Display flashes when NO DMX
Inverse
On / Off
Flips LCD Display 180 Degrees
Tem p. C/F
F / C
Tem p er at ur e Sw it ch B etwee n F˚/ C˚
DimCurve
Standard, Stage, TV, Architec, Theatre, Stage2
Set Dimmer Curve Mode
Disp.Set
ADDR, Disp.CH
Select Default Display
Gamma
2.0, 2.2, 2.4, 2.8
Set Gamma Brightness
Frequen
900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz,
1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz,
10Hz, 15Hz, 20Hz, 25Hz
Set LED Refresh Frequency
Defaults
Reset? / Cancel
Restore Factory Settings
Program
Speed
1-99
Set Program Speed from Slow (1) to Fast (99)
Color
STATIC
Strobe 000-255
R, G, B, RG, GB, RB, RGB, BLACK
Select Static Color and Shutter/Strobe Value
CHANG15
Strobe 000-255
Select 15 Color Program + Shutter/Strobe Value
CHANG30
Strobe 000-255
Select 30 Color Program + Shutter/Strobe Value
FADE
Strobe 000-255
Select Fade Color Program + Shutter/Strobe Value
Macros
0-63
Select Color Macro
Slave
OFF, SLAVE
Enable Slave Mode
Info
TimeInfo
Current
XXXX (Hours)
Fixture Run Time from Power ON
To ta l
XXXX (Hours)
Fixture Total Run Time
Last
XXXX (Hours)
Fixture Last Run Time
PassWord
PIN= 050
Enter PIN to Access Clear Last. Menu
Clear
Off / On
Clear Fixture Last Run Time
Tem pInfo
XXX F° / C°
Tem p er at ur e in F ix ture H ea d
ModelInf
SEVEN PAR 7IP
Display Model Name
SoftWare
≥ V1.05
Software Versions (greater than or equal to)
Err.Info
Error Record 1 ~ Error Record 10
Display 10 Recent Error Messages
15 www.elationlighting.com
Supports Software Versions: ≥ 1.05
Features are subject to change without any prior written notice.
MENU
SUB MENU
OPTIONS / VALUES (Default Settings in BOLD)
DESCRIPTION
Manual
Strobe
000 - 255
Set DMX Values Manually
Dimmer
000 - 255
Red
000 - 255
Green
000 - 255
Blue
000 - 255
Amber
000 - 255
White
000 - 255
Lime
000 - 255
UV
000 - 255
Calibrat
Password
050
Enter Password to Access Calibration Menu
NOTE: ONLY QUALIFIED TECHNICIANS
SHOULD PERFORM THIS FUNCTION!
www.elationlighting.com 16
DMX CHANNEL FUNCTIONS AND VALUES
ELATION SEVEN PAR 7IP | DMX Channel Values / Functions (15 DMX Channels)
Supports Software Versions: ≥ 1.05
Features subject to change without any prior written notice.
NOTE: ALL SEVEN COLORS USED IN RGBSeven 3CH Mode
MODE / CHANNEL
VAL UE
FUNCTION
RGB
3CH
RGBSeven
3CH
8Bit
7CH
16Bit
14CH
Master
15CH
HSI
4CH
HIS
Mast
10CH
1 1
SHUTTER / STROBE
0-31
LED OFF
32-63
LED ON
64-95
Strobe Effect SLOW to FAST
96-127
LED ON
128-159
Strobe Pulse Effect In Sequences SLOW to FAST
160-191
LED ON
192-223
Random Strobe Effect SLOW to FAST
224-255
LED ON
2 1 2
MASTER DIMMER / INTENSITY
0-255
0-100%
3 2 3
MASTER DIMMER / INTENSITY FINE
0-255
0-100%
4 4
DIMMING MODES
0-20
STANDARD
21-40
STAGE
41-60
TV
61-80
ARCHITECTURAL
81-100
THEATER
101-120
STAGE 2
121-255
DEFAULT TO UNIT SETTING
5 5
PROGRAM MACROS
0-19
NO FUNCTION
20-39
PROGRAM 01
40-59
PROGRAM 02
60-79
PROGRAM 03
80-99
PROGRAM 04
100-119
PROGRAM 05
120-139
PROGRAM 06
140-159
PROGRAM 07
160-179
PROGRAM 08
180-199
PROGRAM 09
200-219
PROGRAM 10
220-239
PROGRAM 11
240-255
PROGRAM 12
6 6
PROGRAM MACRO SPEED
0-255
Program Macro SPEED SLOW to FAST
7 7
PROGRAM MACRO FADE
0-255
Program Macro FADE SLOW to FAST
17 www.elationlighting.com
Supports Software Versions: ≥ 1.05
Features subject to change without any prior written notice.
NOTE: ALL SEVEN COLORS USED IN RGBSeven 3CH Mode
MODE / CHANNEL
VAL UE
FUNCTION
RGB
3CH
RGBSeven
3CH
8Bit
7CH
16Bit
14CH
Master
15CH
HSI
4CH
HIS
Mast
10CH
8 8
COLOR MACROS
1-4
Color Macro 01
5-8
Color Macro 02
9-12
Color Macro 03
13-16
Color Macro 04
17-20
Color Macro 05
21-24
Color Macro 06
25-28
Color Macro 07
29-32
Color Macro 08
33-36
Color Macro 09
37-40
Color Macro 10
41-44
Color Macro 11
45-48
Color Macro 12
49-52
Color Macro 13
53-56
Color Macro 14
57-60
Color Macro 15
61-64
Color Macro 16
65-68
Color Macro 17
69-72
Color Macro 18
73-76
Color Macro 19
77-80
Color Macro 20
81-84
Color Macro 21
85-88
Color Macro 22
89-92
Color Macro 23
93-96
Color Macro 24
97-100
Color Macro 25
101-104
Color Macro 26
105-108
Color Macro 27
109-112
Color Macro 28
113-116
Color Macro 29
117-120
Color Macro 30
121-124
Color Macro 31
125-128
Color Macro 32
www.elationlighting.com 18
Supports Software Versions: ≥ 1.05
Features subject to change without any prior written notice.
NOTE: ALL SEVEN COLORS USED IN RGBSeven 3CH Mode
MODE / CHANNEL
VAL UE
FUNCTION
RGB
3CH
RGBSeven
3CH
8Bit
7CH
16Bit
14CH
Master
15CH
HSI
4CH
HIS
Mast
10CH
8 8
129-132
Color Macro 33
133-136
Color Macro 34
137-140
Color Macro 35
141-144
Color Macro 36
145-148
Color Macro 37
149-152
Color Macro 38
153-156
Color Macro 39
157-160
Color Macro 40
161-164
Color Macro 41
165-168
Color Macro 42
169-172
Color Macro 43
173-176
Color Macro 44
177-180
Color Macro 45
181-184
Color Macro 46
185-188
Color Macro 47
189-192
Color Macro 48
193-196
Color Macro 49
197-200
Color Macro 50
201-204
Color Macro 51
205-208
Color Macro 52
209-212
Color Macro 53
213-216
Color Macro 54
217-220
Color Macro 55
221-224
Color Macro 56
225-228
Color Macro 57
229-232
Color Macro 58
233-236
Color Macro 59
237-240
Color Macro 60
241-244
Color Macro 61
245-248
Color Macro 62
249-252
Color Macro 63
253-255
Color Macro 64
19 www.elationlighting.com
Supports Software Versions: ≥ 1.05
Features subject to change without any prior written notice.
NOTE: ALL SEVEN COLORS USED IN RGBSeven 3CH Mode
MODE / CHANNEL
VAL UE
FUNCTION
RGB
3CH
RGBSeven
3CH
8Bit
7CH
16Bit
14CH
Master
15CH
HSI
4CH
HIS
Mast
10CH
3 9
HUE - ALL PIXELS
0-255
0-100%
4 10
SATURATION - ALL PIXELS
0-255
0-100%
1 1 1 1 9
RED - ALL PIXELS
0-255
0-100%
2
RED FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
2 2 2 3 10
GREEN - ALL PIXELS
0-255
0-100%
4
GREEN FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
3 3 3 5 11
BLUE - ALL PIXELS
0-255
0-100%
6
BLUE FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
4 7 12
WHITE - ALL PIXELS
0-255
0-100%
8
WHITE FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
5 9 13
AMBER - ALL PIXELS
0-255
0-100%
10
AMBER FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
6
11
14
LIME - ALL PIXELS
0-255
0-100%
12
LIME FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
7
13
15
UV - ALL PIXELS
0-255
0-100%
14
UV FINE - ALL PIXELS
0-255
16-bit FINE Adjustment
www.elationlighting.com 20
TECHNICAL SPECIFICATIONS
SOURCE
7x 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
EFFECTS
Seven Color RGB 3 Channel DMX Mode
Hue, Saturation, and Intensity DMX Modes
Internal Programs and Color Macros with Variable Effect Control
Variable Electronic Strobe Effects and Dimming Curve Modes
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (15 total channels)
DMX and Manual Control
4 Button OLED Menu Control Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management) Protocol Support
IP Rated 3/5pin DMX In/Out
IP65 Power In/Out
SIZE / WEIGHT
Length: 11.24” (286mm)
Width: 10.71” (272mm)
Vertical Height: 7.36” (187mm)
Weight: 11.0 lbs. (5.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
185W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP65
Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
21 www.elationlighting.com
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS
This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device uses and can radiate radio frequency energy and, if not installed
and used in accordance with the included instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following methods:
•! Reorient or relocate the device.
•! Increase the separation between the device and the receiver.
•! Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected.
•! Consult the dealer or an experienced radio/TV technician for help.
www.elationlighting.com 22
DIMENSIONAL DRAWINGS
ORDER CODE
ITEM
QUICK RIG CLAMP
Low Profile Quick Release Clamp
SIXPAR/BD100
Barn Door for SEVEN PAR 7IP
STR514
3 ft. (1m) IP65 Seetronic 5pin XLR Cable
NEU088
3 ft. (1m) powerCON TRUE1 Power Link Cable
Additional Cable Lengths Available
Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
OPTIONAL ACCESSORIES
23 www.elationlighting.com
Loading...
