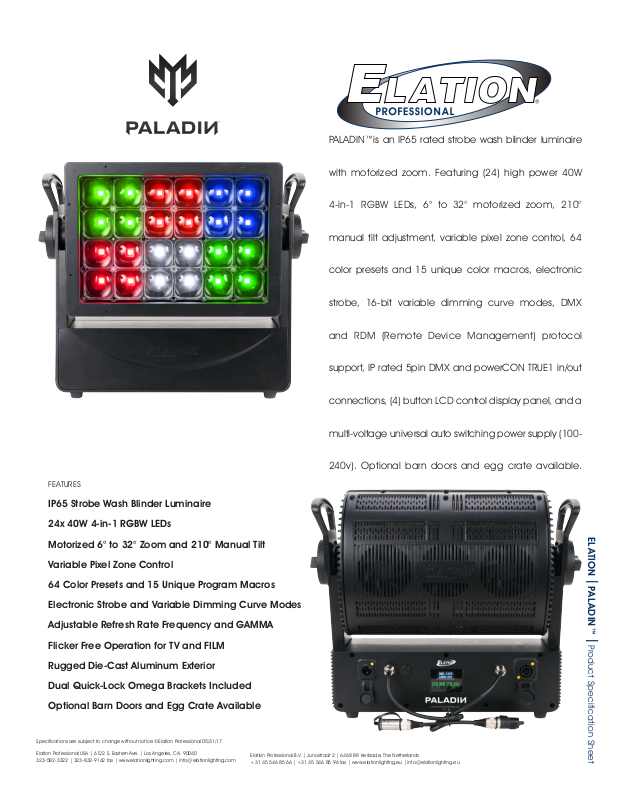

Elation Paladin Hybrid Specifications

PALADIN™is an IP65 rated strobe wash blinder luminaire

with motorized zoom. Featuring (24) high power 40W

4-in-1 RGBW LEDs, 6° to 32° motorized zoom, 210°

manual tilt adjustment, variable pixel zone control, 64

color presets and 15 unique color macros, electronic

strobe, 16-bit variable dimming curve modes, DMX

and RDM (Remote Device Management) protocol

support, IP rated 5pin DMX and powerCON TRUE1 in/out

connections, (4) button LCD control display panel, and a

FEATURES

IP65 Strobe Wash Blinder Luminaire

24x 40W 4-in-1 RGBW LEDs

Motorized 6° to 32° Zoom and 210° Manual Tilt

Variable Pixel Zone Control

64 Color Presets and 15 Unique Program Macros

Electronic Strobe and Variable Dimming Curve Modes

Adjustable Refresh Rate Frequency and GAMMA

Flicker Free Operation for TV and FILM

Rugged Die-Cast Aluminum Exterior

Dual Quick-Lock Omega Brackets Included

Optional Barn Doors and Egg Crate Available

multi-voltage universal auto switching power supply (100-

240v). Optional barn doors and egg crate available.

ELATION

PALADIN™

Product Specification Sheet

Specifications are subject to change without notice ©Elation Professional 05/31/17

specifications

ELATION PALADIN™ I www.elationlighting.com

PRODUCT SPECIFICATIONS PHOTOMETRIC DATA

SOURCE

(24) 40W 4-in-1 RGBW LEDs 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions,

Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

79,252 LUX 7,362 FC @9.8’ (2m) (6° Full ON) 6,848 LUX 636 FC @9.8’ (2m) (32° Full ON)

COLOR

RGBW

EFFECTS

Variable Pixel Zone Control 64 Color Presets and 15 Color Macros High Speed Electronic Strobe 16-bit Variable Dimming Curve Modes

CONTROL / CONNECTIONS

Motorized 9° to 25° Zoom Manual 210° Tilt Movement (3) DMX Channel Modes (33 total channels) Adjustable Refresh Rate (900-1500, 25,000 Hz) Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8) 4 Button Control Panel and LCD Menu Display RDM (Remote Device Management) 5pin DMX In/Out powerCON TRUE1 Power In/Out

SIZE / WEIGHT

Length: 18.8” (478mm) Width: 9.2” (233mm) Vertical Height: 16.0” (407.5mm) Weight: 46.0 lbs. (20.9 kg)

ELECTRICAL / THERMAL

AC 110-240V - 50/60Hz 990W Max Power Consumption 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

Distance (meter)

Distance (feet)

Lux*

6°

Footcandles*

*measured at

center of beam

Beam width (meter)

Beam width (feet)

Distance (meter) Distance (feet)

Lux*

32°

Footcandles*

*measured at

center of beam

Beam width (meter) Beam width (feet)

317007 lx

29450.9 fcd

27391 lx

2544.7 fcd

1 m

3.3 ft

0.1 m

0.4 ft

1 m

3.3 ft

0.6 m

1.9 ft

79252 lx

7362.7 fcd

6848 lx

636.2 fcd

2 m

6.6 ft

0.2 m

0.7 ft

2 m

6.6 ft

1.1 m

3.8 ft

35223 lx

3272.3 fcd

3043 lx

282.7 fcd

9.8 ft

0.3 m

1.1 ft

3 m

9.8 ft

1.7 m

5.6 ft

DIMENSIONAL DRAWINGS

3 m

beam center

19813 lx

1840.7 fcd

1712 lx

159.0 fcd

4 m

13.1 ft

0.4 m

1.4 ft

4 m

13.1 ft

2.3 m

7.5 ft

MANUAL TILT

210°

12680 lx

1178.0 fcd

1096 lx

101.8 fcd

5 m

16.4 ft

0.5 m

1.8 ft

5 m

16.4 ft

2.9 m

9.4 ft

IP65

INCLUDED ITEMS

(2) Omega Brackets Safety Cable powerCON TRUE1 Power Cable

ORDERING INFORMATION

ORDER CODE ITEM

PAL001 PALADIN

DRCPALADIN Quad Road Case for Paladin

PAL120 Paladin Barn Door

PAL540 Paladin Egg Crate

PRO CLAMP Heavy Duty 2 inch Pro Clamp

NEU088 3’ (1m) powerCON TRUE1 Power Link Cable

Additional cable lengths available
