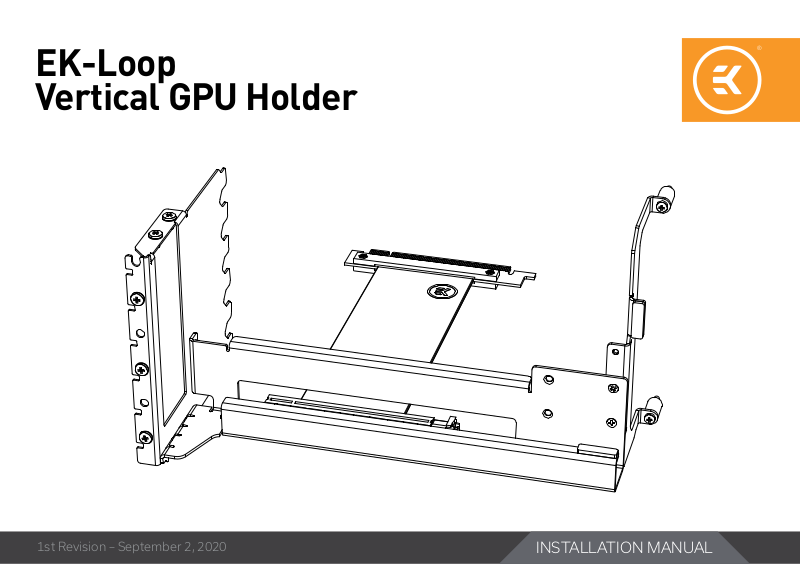

EK-Loop
Vertical GPU Holder
1st Revision – September 2, 2020
INSTALLATION MANUAL
This product is intended for installation by expert users only. Please
consult with a qualified technician since improper installation may
result in damage to the equipment. EK assumes no liability whatsoever,
expressed or implied, for the use of this product, nor its installation. The
following instructions are subject to change without notice. Please visit
our website at www.ekwb.com for updates.
Carefully read the manual before beginning with the
installation process!
SAFETY PRECAUTIONS
1. Keep and store the product away from the reach of children.
2. Check the component list and condition of the product before
installation. In case you encounter a problem, contact the shop where
you have purchased the product to get a replacement or a refund.
3. Before installation of the Vertical GPU Holder, power off your
computer and unplug the power cables.
4. EK is not responsible for any damages due to external causes,
including but not limited to: improper use, problems with electrical
power, accident, neglect, alteration, repair, improper installation, and
improper testing.
5. CPU, GPU, and motherboard are subject to damage if the product is
incorrectly installed.
6. Product design and specifications may be revised to improve quality
and performance.
TABLE OF CONTENTS
WHAT IS ENCLOSED 4
REQUIRED TOOLS 5
DIMENSIONS OF THE VERTICAL GPU HOLDER 6
INSTALLATION GUIDE 7
SUPPORT AND SERVICE 13
SOCIAL MEDIA 13
- 3 -
WHAT IS ENCLOSED
UNC 6-32x1/4” (5x)
Bracket 1 (1x)
PCIE Riser Cable (1x)
M3x5 Countersunk Screw (6x)
Acetal Distancer (2x)
Adhesive Foam - 5 mm (2x)
Adhesive Foam - 2 mm (2x)
M3x4 (3x)
Bracket 2 (1x)
Bracket 3 (1x)
M3x20 (2x)
UNC 6-32x3/4” (2x)
- 4 -
Acetal Distancer (2x)
M3x20 (2x) UNC 6-32x3/4” (2x) UNC 6-32x1/4” (5x)
M3x4 Pan Head Screw (3x) Protective Foam 2mm (2x) Protective Foam 5mm (2x)
M3x5 Countersunk Screw (6x)
REQUIRED TOOLS
Phillips Head Screwdriver
- 5 -
DIMENSIONS OF THE VERTICAL GPU HOLDER
245
20,3
20,3
20,3
121
20,3
124,5
1
1,5
121
20,8
142,6
255
- 6 -
INSTALLATION GUIDE
Bracket 1
M3x5 Countersunk Screw (4x)
Bracket 3
Bracket 2
STEP 1
Assemble the three steel brackets with the six M3x5 countersunk
screws. Depending on how you want to position the GPU holder
inside your PC, you may choose between two options.
M3x5
Countersunk
Screw (2x)
OPTION 1
Lower Position
Bracket 3
Bracket 2
OPTION 2
Upper Position
Bracket 3
STEP 1
In some cases, you may skip the installation of the
»Bracket 3« if it interferes with other components inside
your PC. You should check this before proceeding with
the installation. In most cases, the assembly of »Bracket
1« and »Bracket 2« should provide sufficient load-bearing
capacity, while the »Bracket 3« will provide additional
stiffness and stability for the whole GPU Holder.
Bracket 2
- 7 -
M3x4 Phillips Pan
Head Screw (3x)
Protective Foam
Protective Foam
STEP 2
STEP 2
Stick two protective adhesive foams, as indicated in the diagram.
The »2mm protective foam« should be enough for the protection of
your GPU during installation. In some cases, you may use the »5mm
protective foam« (also enclosed in the package) for the extra support
of your GPU.
STEP 3
Attach the PCIE riser cable to the brackets assembly with three
M3x4 Phillips pan head screws.
STEP 3
Riser Cable
- 8 -
PCIE Latch
STEP 4
Before you mount the GPU, make sure the PCIE latch is not closed – it
must be pushed to the right side.
Carefully mount the GPU onto the GPU Holder, using two UNC
6-32x1/4 screws. Pay special attention not to damage the GPU.
UNC
6-32x1 /4
GPU
PCIE Latch
Secure the GPU by moving the PCIE latch that is positioned
underneath it, to the left. You may use a credit card, screwdriver, or
similar item to move the latch.
STEP 4
- 9 -
Save the
screws
for later
PCIE
Brackets
STEP 5
Check
motherboard’s
screw diameter
Φ 3 mm (M3x20)
STEP 5
Before you start to assemble the Holder with the GPU
to the motherboard, make sure that your computer is
powered off and the PSU power cable unplugged. It is
also recommended that you put your computer with the
motherboard in a horizontal position before you continue
with the installation process.
Remove the six appropriate PCIE brackets from your case. Which
brackets you need to remove depends on the installation option you
chose at STEP 1.
Save all removed screws - you’ll need them later.
STEP 6
Remove the two screws at the bottom right side of the motherboard.
Compare one of the removed screws with the M3x20 and UNC
6-32x3/4 from the package to determine which have the same
thread diameter. Later on, you will have to use the correct type of
screws to attach the GPU Holder.
Motherboard
Screws
Φ 3,5 mm (UNC
6-32 x 3/4”)
STEP 6
- 10 -
STEP 7
During the following Steps of the installation process, be
especially careful not to hit or scratch your motherboard
or any other PC component while you’re mounting the
GPU Holder to the motherboard. Pay special attention
that the »Bracket 3« of the GPU Holder (the right side)
doesn’t hit the motherboard.
Carefully connect the Riser cable from the GPU Holder to the PCIE
slot on the motherboard.
STEP 7
- 11 -
STEP 8
Use three or more screws to attach the GPU Holder to the left side of
the PC case.
PCIE Bracket
Screws (3x)
or
UNC 6-32x1/4”
(3x)
GPU Holder
STEP 8
Acetal Distancer
(2x)
M3x20 (2x)
or UNC
6-32x3/4” (2x)
GPU Holder
Motherboard
Use the PCIE bracket screws that you’ve saved earlier or UNC 6-32x1/4
screws from the package.
STEP 9
Put the two acetal distancers under the »Bracket 3« of the GPU Holder.
Use those two screws that you picked in Step 6 (M3x20 or UNC
6-32x3/4) to attach the right side of the GPU holder to the PC case
through the acetal distancers and the motherboard.
STEP 10
Finally, connec t the GPU cable s (as instructed by th e GPU manufac turer)
to complete the installation.
STEP 9
- 12 -
SUPPORT AND SERVICE
In case you need assistance, please contact:
http://support.ekwb.com/
EKWB d.o.o.
Pod lipami 18
1218 Komenda
Slovenia - EU
