Before installation, visit our web site at
http://www.eizo.com to confirm the applicable EIZO
LCD monitor and the installation requirements of
this attachment.

Thank you very much for choosing the EIZO product.
This product helps you to quickly attach or detach an EIZO LCD monitor from its arm (or
the wall mount bracket).

Please read this User’s Manual carefull
procedures.

Please retain this manual for future reference.

to familiarize yourself with safe and effective usage

PRECAUTIONS

To ensure personal safety and proper maintenance, please read this section.

WARNING

 Attach the applicable EIZO LCD monitors only.

Not doin
equipment damage.

 Do not attach this product on a stand.

Doing so may cause the stand to fall or drop and result in injury or equipment
damage.

 Attach this product securely to the LCD monitor.

Install the attachment securely with using the enclosed screws in this product
package. Follow the instructions on this User’s Manual. Not doin
cause the monitor to come unattached, which may result in injury or equipment
damage.

 Do not disassemble.

The spring mechanism inside of this product may result in in
damage when disassembling.

so may cause the monitor to drop, which may result in injury or

so may

or equipment

CAUTION

 Work with another person when attaching or detaching.

Not doing so may result in injury or equipment damage.

 Be careful not to pinch a finger when attaching or detaching.

Package Contents

Check that all the following items are included in the packaging box. If any items are missing
or damaged, contact your local dealer.

 5 x Attachments

 1 x User’s Manual (this manual)

 1 x Sheet (Compatible Screws List)

 5 x Mounting Screws

− 4 x Long Flat Head Screws

− 4 x Short Flat Head Screws

− 4 x Washer Screws

For the compatible screws and monitors, refer to the “Compatible Screws List”.

How to Install

When attaching this product to the monitor, lay the LCD monitor on a soft cloth spread
over on a stable surface with the panel surface facing down. For more information, refer
to “Attaching an Arm” of the User’s Manual of the monitor on the “EIZO LCD Utility Disk”
(CD-ROM, enclosed).

1. Separate the monitor mount and the arm/wall mount.

Slide the attachment lock lever to the left to unlock then separate the mounts.

Lock Lever

Monitor Mount

Arm/Wall Mount

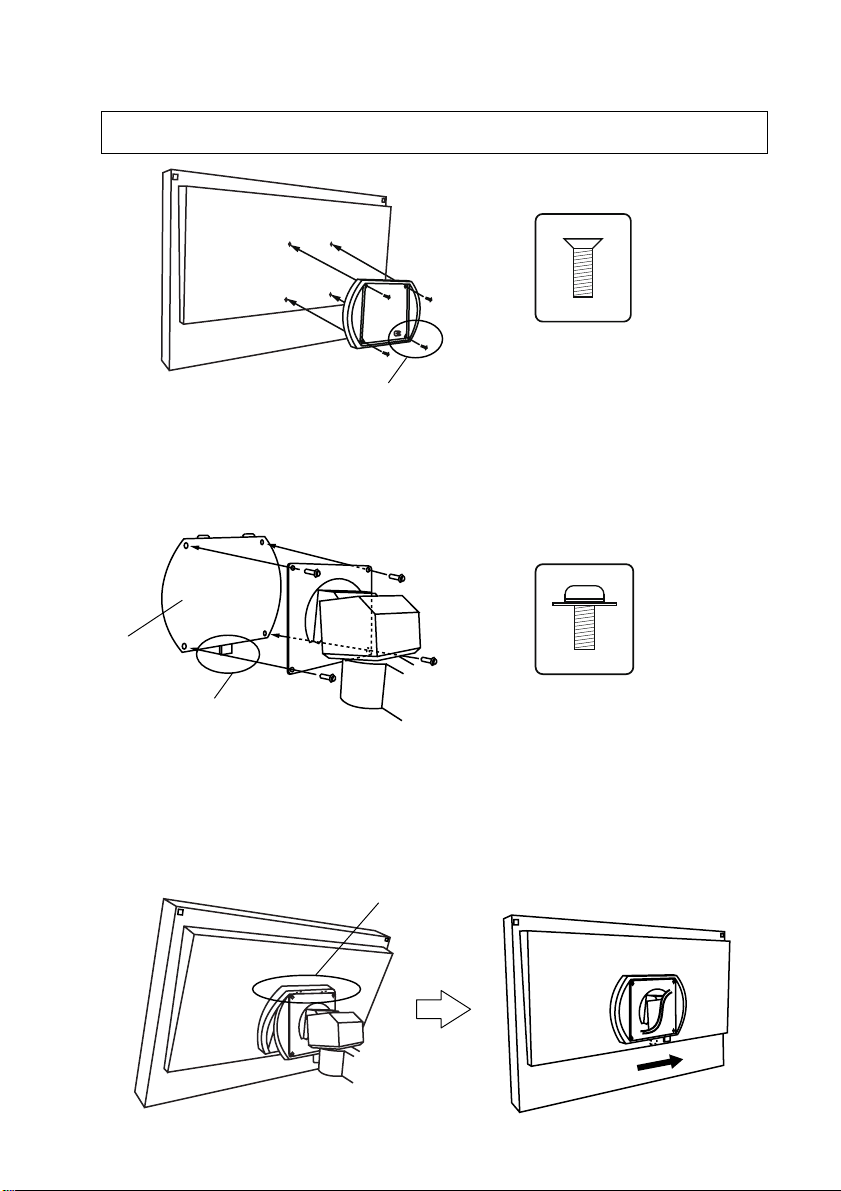

2. Attach the monitor mount to the monitor using the screws (4 locations).

Attach the mount with the cutout on the bottom.

The proper screw size depends on the particular monitor model. Refer to the
“Compatible Screws List”.

Cutout

Flat Head Screws

3. Attach the arm/wall mount to the arm or the wall mount bracket using the screws (4

locations).
Attach it with the lock lever on the bottom.

Arm/Wall
Mount

Lock Lever

Washer Screws

(M4 x 10 mm)

4. Ensure that the lock lever is on the left and the lock is released when attaching.

Insert the projection that is at the top of the arm/wall mount into the groove of the
monitor mount.
Slide the lock lever to the right until it clicks into place. Make sure that the lock is
latched.

Projection

How to Detach

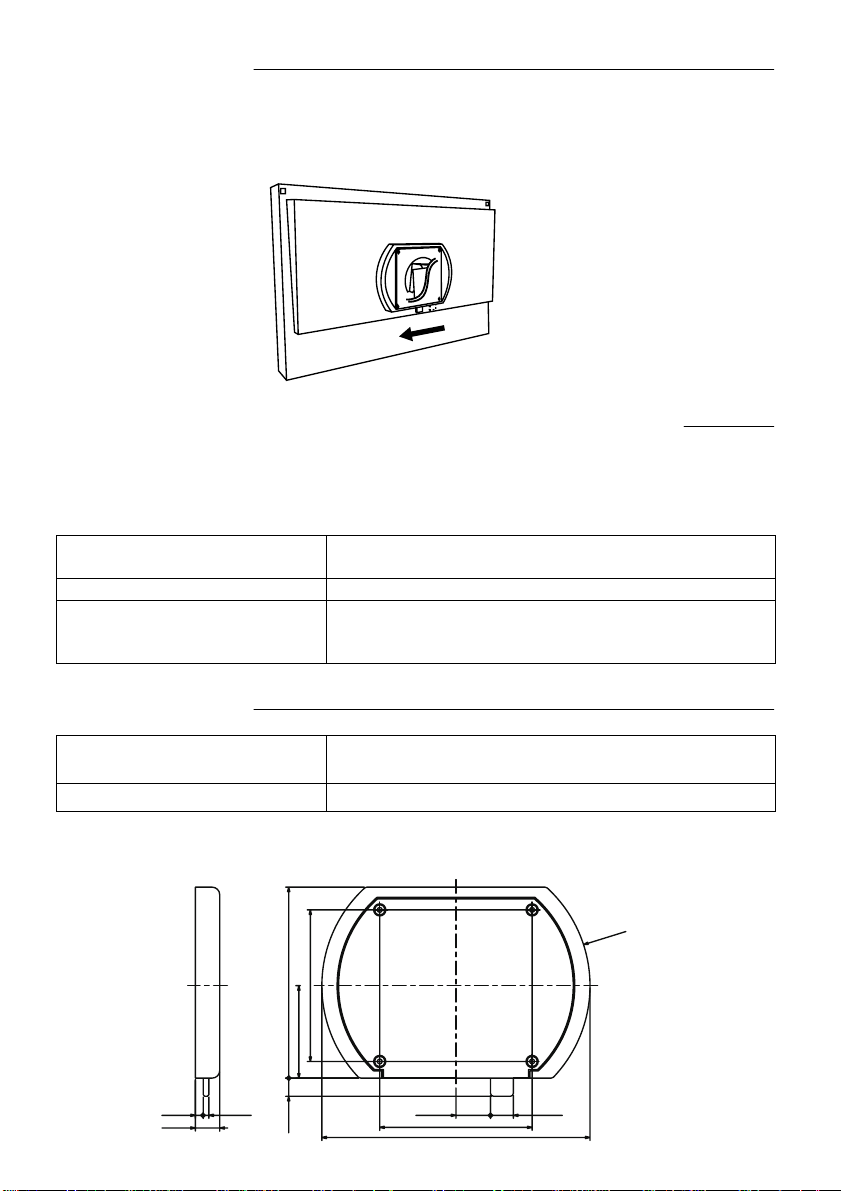

1. Slide the attachment lock lever to the left to release the lock then detach the mount.

If the lock lever is stiff, slide the lever while lightly pressing the bottom part of the
monitor against the arm/wall mount.

Using the Arm or Wall Mount of Other Manufactures

If you will use the arm or wall mount other manufacturers, select VESA compliant arm with
confirming the followings to the manufacturers before selecting. Use enclosed washer screws
(M4 x 10mm) at the installation.

Hole spacing on the arm
mounting
Pad thickness 2.6 (0.102) mm (inch)
Supportable Weight Total weight of the monitor (without stand) and

100 (3.937) x 100 (3.937) mm (inch)

attaching equipment such as the quick mount
attachment and a cable.

Specifications

Dimensions (Width) x (Height) x
(Depth)

Mass 0.7 kg (1.54 lbs.)

Dimensions

5.2(0.2) 3.7(0.15) 22.7(0.89)

16(0.63)

176 (6.9) x 126 (5.0)* x 16 (0.63) mm (inch)

126(5)12(0.47)

100(3.9)

61(2.4)

100(3.9)
176(6.9)

* Excluding the projection

Unit: mm (inch)

R88(3.46)

15(0.59)
