Eizo DuraVision, MDF4601WT User Manual

Important

Please read this “User’s Manual”, and “Setup Manual” (separate volume) carefully to familiarize yourself with safe and effective usage.

• Refer to the “Setup Manual” for information on the installation / connection of the monitor.

• For the latest product information including the “User’s Manual”, refer to our web site :

http://www.eizoglobal.com

Touch Panel Color LCD Monitor

User’s Manual

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.

EIZO Corporation is under no obligation to hold any submitted material or information condential unless

prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO

monitor specications are subject to change without notice.

Notice for This Monitor

This product may not be covered by warranty for uses other than those described in the Setup Manual.

The specications noted in this manual are only applicable when using power cords and signal cables specied by us.

Only use optional products manufactured or specied by us with this product.

It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more

after the monitor power has been turned on, and then adjust the monitor.

Monitors should be used with “Backlight” set to relatively low brightness to minimize degradation of luminosity caused by long-term use, and to maintain a stable display.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time. Depending on the image, an afterimage may appear even if it was displayed for a short period of time. To remove such a phenomenon, change the image or keep the power turned off for several hours.

If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Do not splash detergent or hot water on the surface of the LCD panel, or bring any open ames close to it.

Doing so may cause the coating on the monitor surface to peel off and leave distinguishing traces.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to “Cleaning” (page 4)).

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994 % or higher.

The backlight of the LCD panel has a xed lifetime. Depending on the usage pattern, such as usage for

long continuous periods, the lifespan of the backlight may run out sooner, requiring replacement. When the

screen becomes dark or begins to icker, please contact your local EIZO representative.

Do not scratch or press on the surface of the LCD panel with any sharp objects, as this may result in surface

damage. Rubbing the surface using tissues may also scratch the surface.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

(Cautions for the Use of the Touch Panel) Be sure to note the following points. Otherwise, damage or a malfunction may result.

• Do not place any objects on the touch panel.

• Do not apply excessive pressure to, scratch, or poke the touch panel.

• Do not touch the touch panel with hard objects such as ball point pens or metals.

Notice for This Monitor

Cleaning

The stains on the cabinet and panel surface can be removed by using the provided cleaning cloth.

Attention

• If water or other kinds of liquid are on the surface of the LCD panel, promptly wipe it off as it may disrupt touch operations.

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or LCD panel, and also quality deterioration of the image.

• Never use thinner, benzine, wax, or abrasive cleaner as they may damage the cabinet or LCD panel surface.

To Use the Monitor Comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor

according to the environmental conditions.

• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Notice for This Monitor ......................................... 3

Cleaning .................................................................... 4

To Use the Monitor Comfortably ............................ 4

CONTENTS ............................................................. 5

Chapter 1 Introduction ....................................... 6

1-1. Features ......................................................... 6

1-2. EIZO LCD Utility Disk.................................... 7

●

Disk contents and software overview ............. 7

1-3. Controls and Functions ............................... 7

●

Front view / Rear view ..................................... 7

●

Side view ......................................................... 8

Chapter 2 Adjusting Screens .......................... 10

2-1. Adjust the Brightness .................................10

2-2. Switching Input Signals ..............................10

2-3. ConguringAdvancedAdjustments/

Settings ......................................................... 11

●

Basic adjustment menu operations ................ 11

●

Adjustment item lists ......................................12

Chapter 3 Troubleshooting .............................. 16

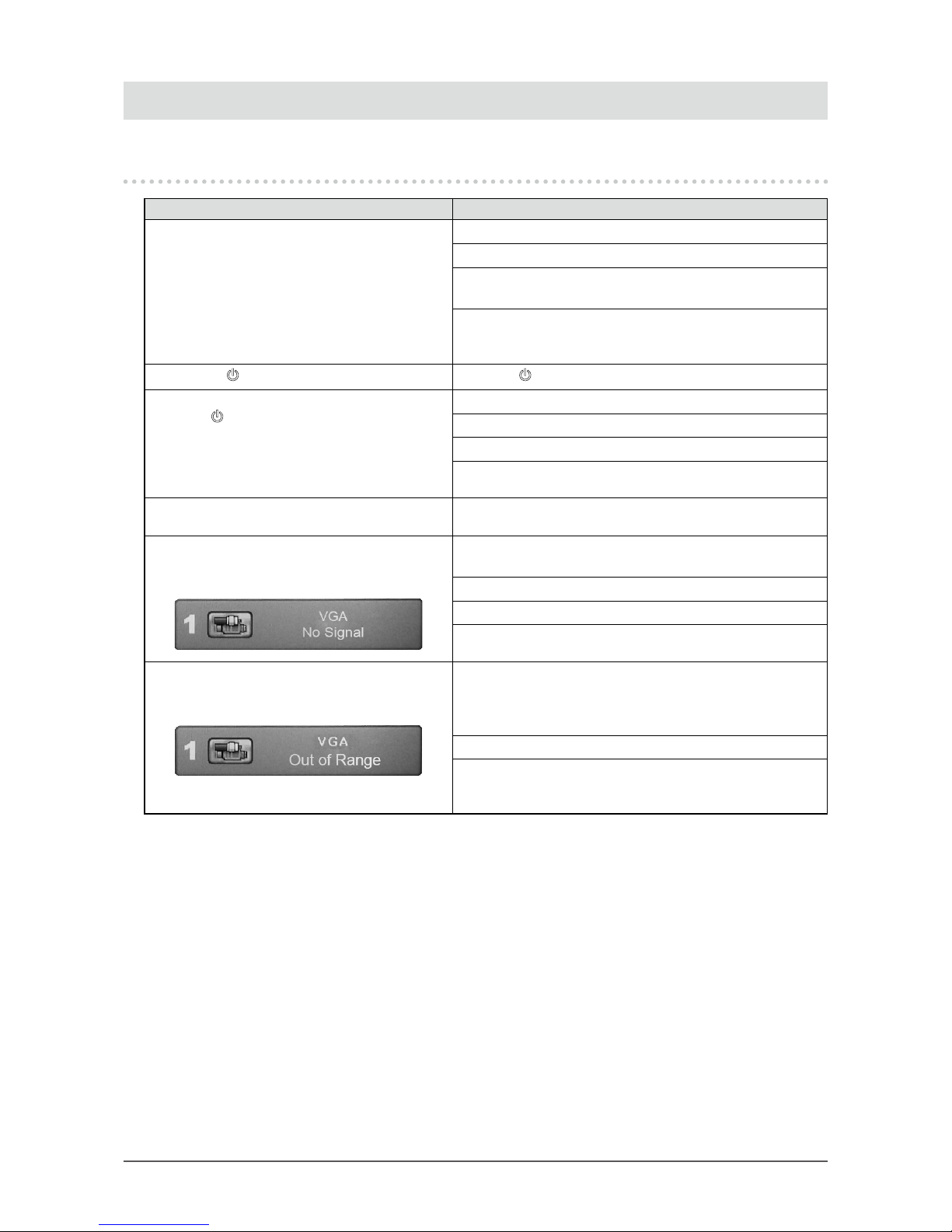

3-1. No Picture .....................................................16

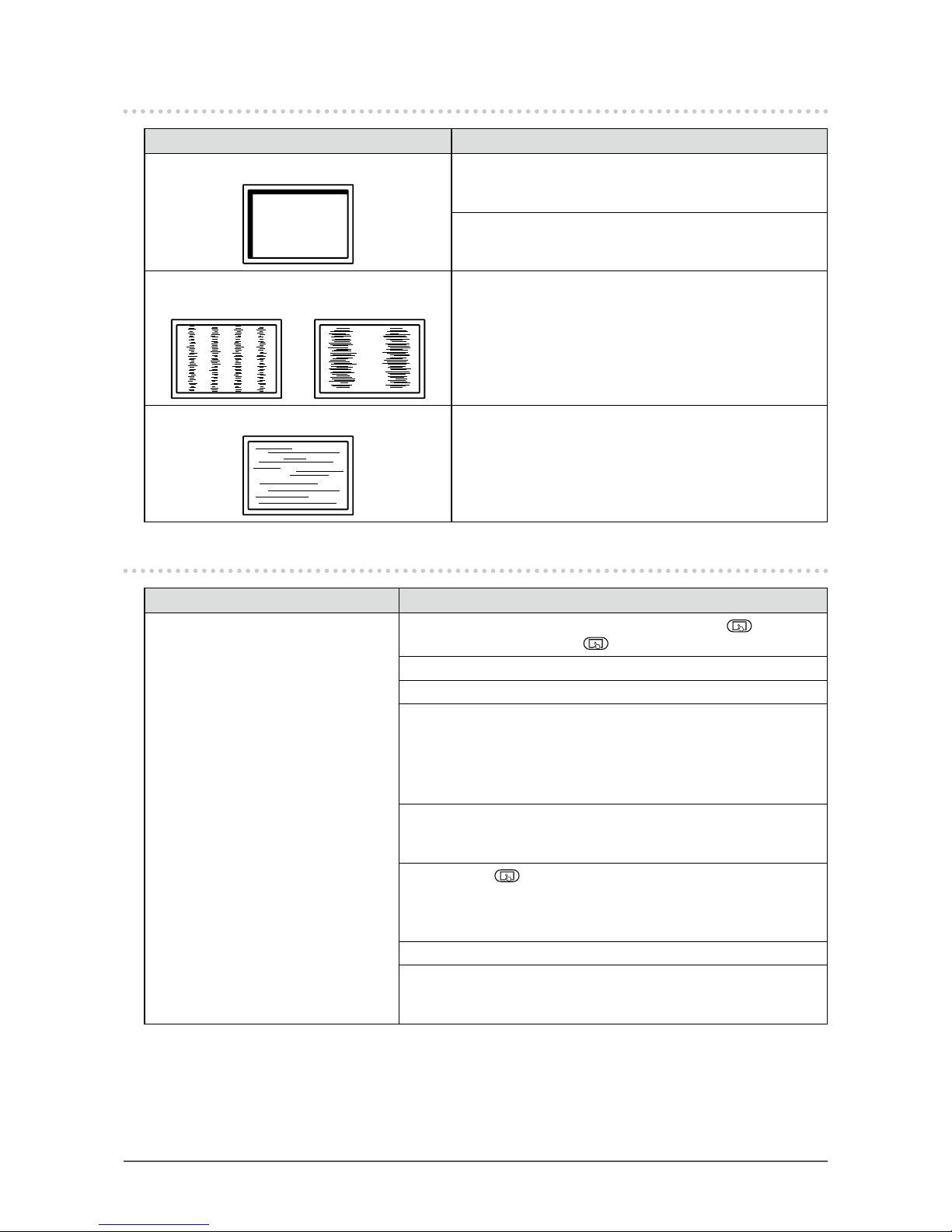

3-2. Imaging Problems (for Both Digital and

Analog) ..........................................................17

3-3. Imaging Problems (for Analog Only) .........18

3-4. Touch Panel Problems ................................18

3-5. Other Problems ........................................... 20

Chapter 4 Maintenance .................................... 21

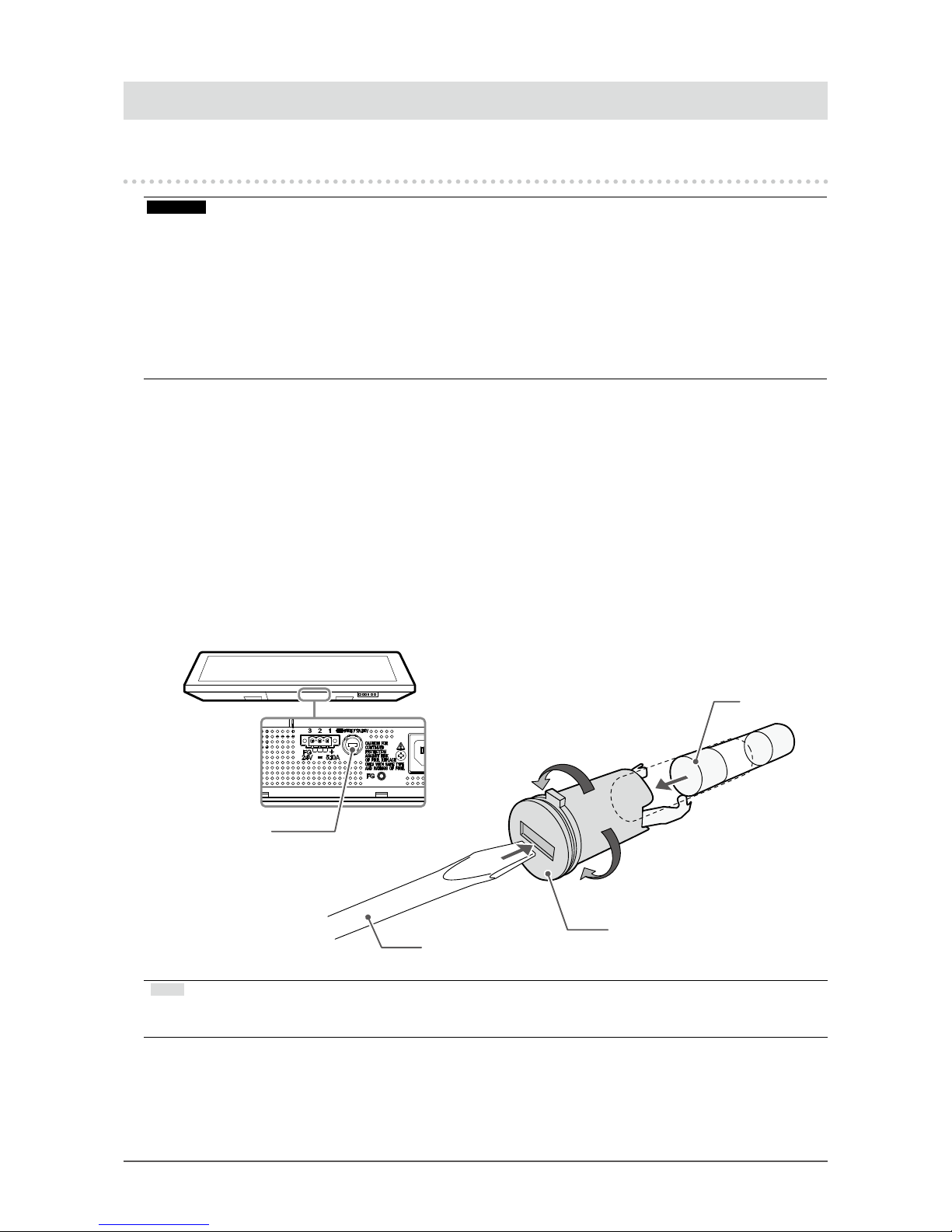

4-1. How to Replace the DC Power Fuse ..........21

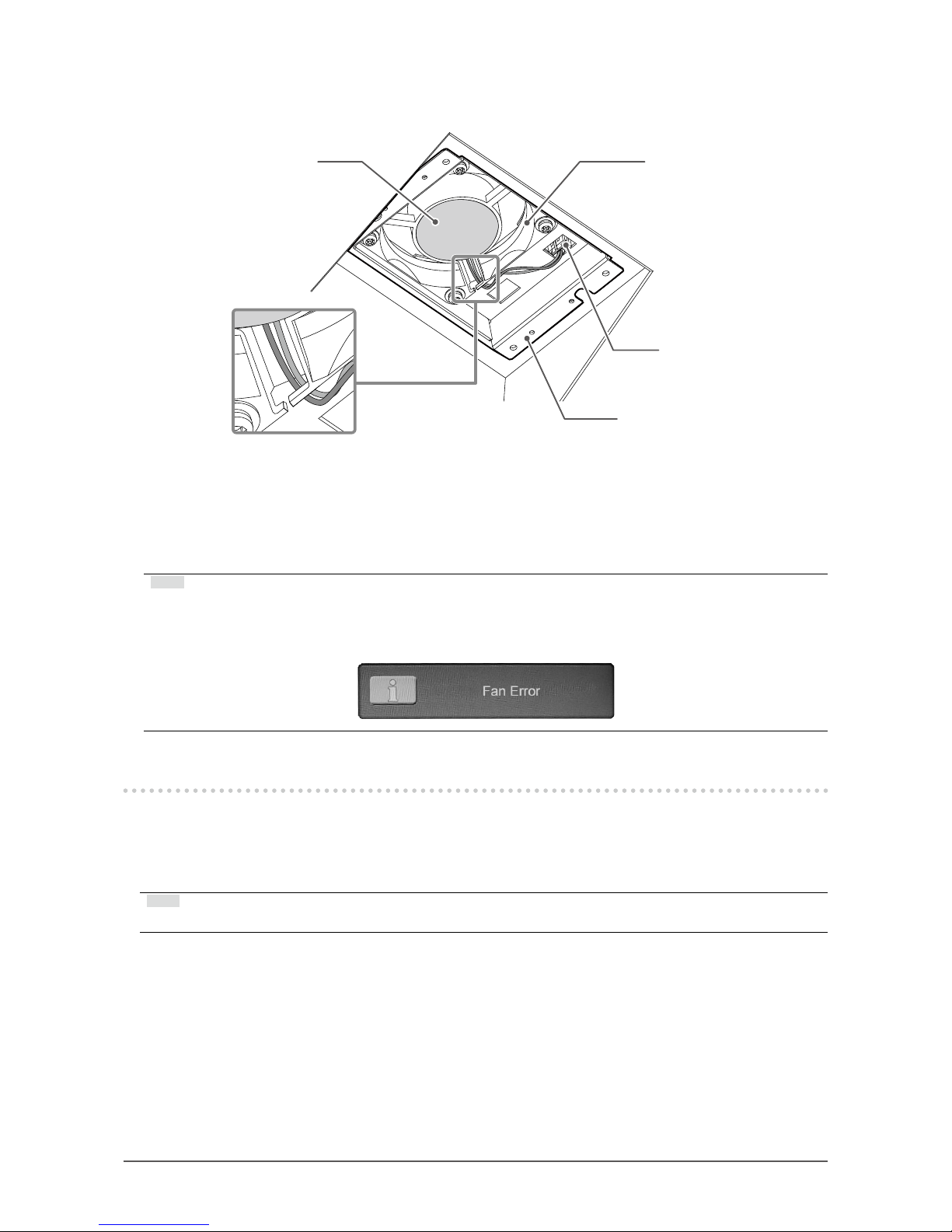

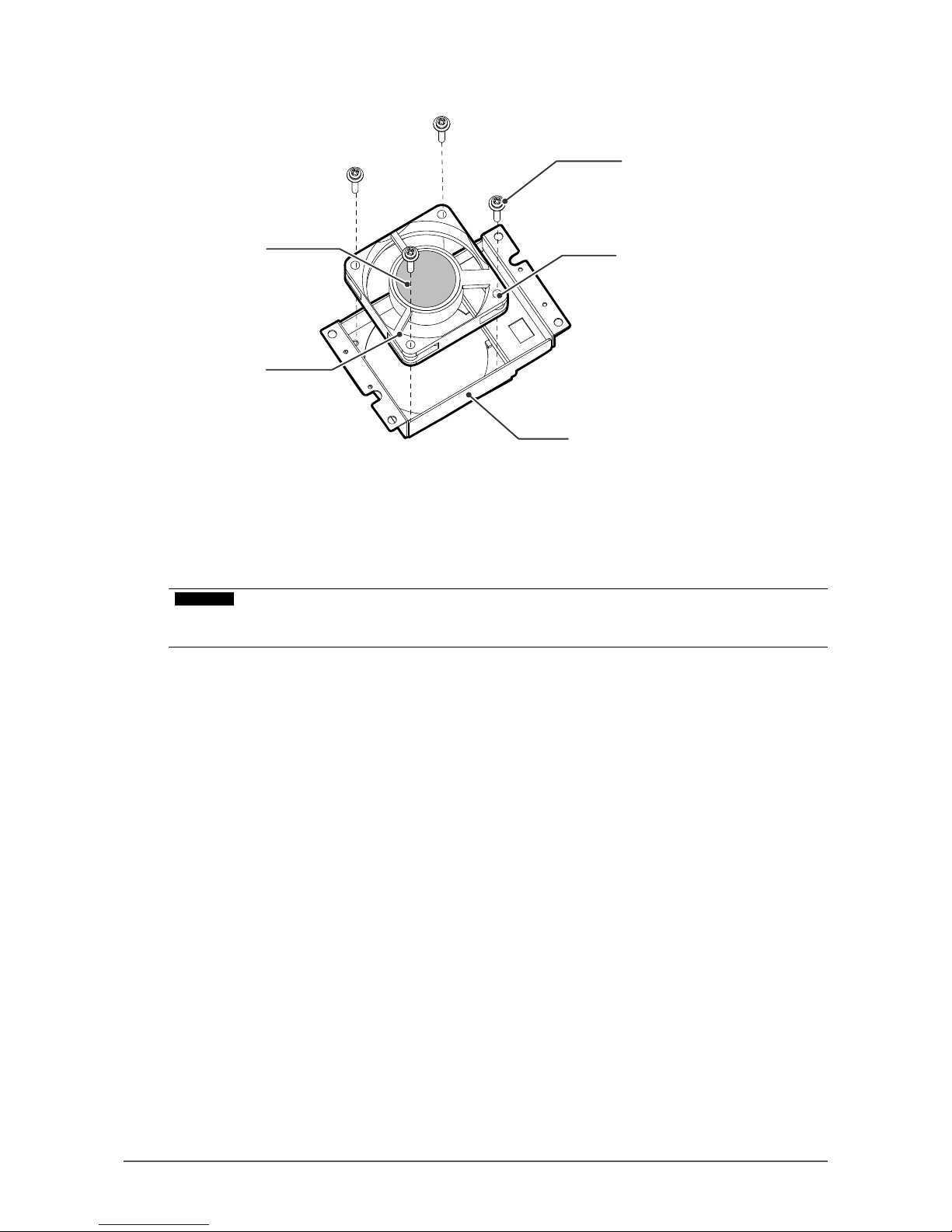

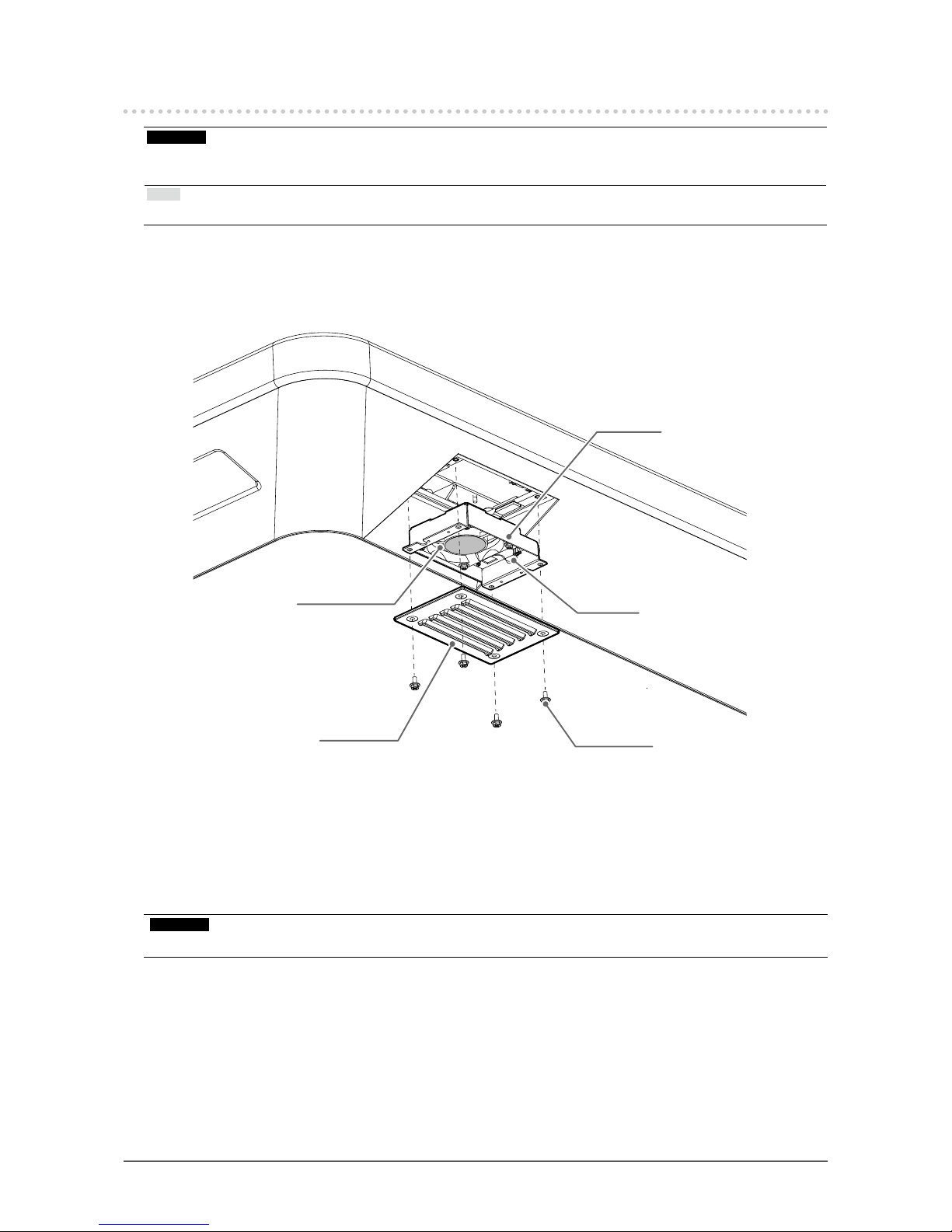

4-2. How to Replace the Cooling Fan ............... 22

4-3. Periodical Check of Buzzer Alarm ............ 24

Chapter 5 Reference ........................................ 25

5-1. Checking Firmware Version ...................... 25

5-2. Specications ............................................. 25

●

Main default settings ..................................... 26

5-3.

Compatible Resolutions / Signal Formats

... 27

●

For PC inputs (DVI-1, DVI-2/RGB-2, VGA) ... 27

●

For video input (CVBS) ................................. 27

Appendix .............................................................. 28

Trademark ............................................................... 28

Testing Standard .................................................... 29

Typeapprovalofshipclassication .................... 29

CE ............................................................................. 29

LIMITED WARRANTY ............................................. 30

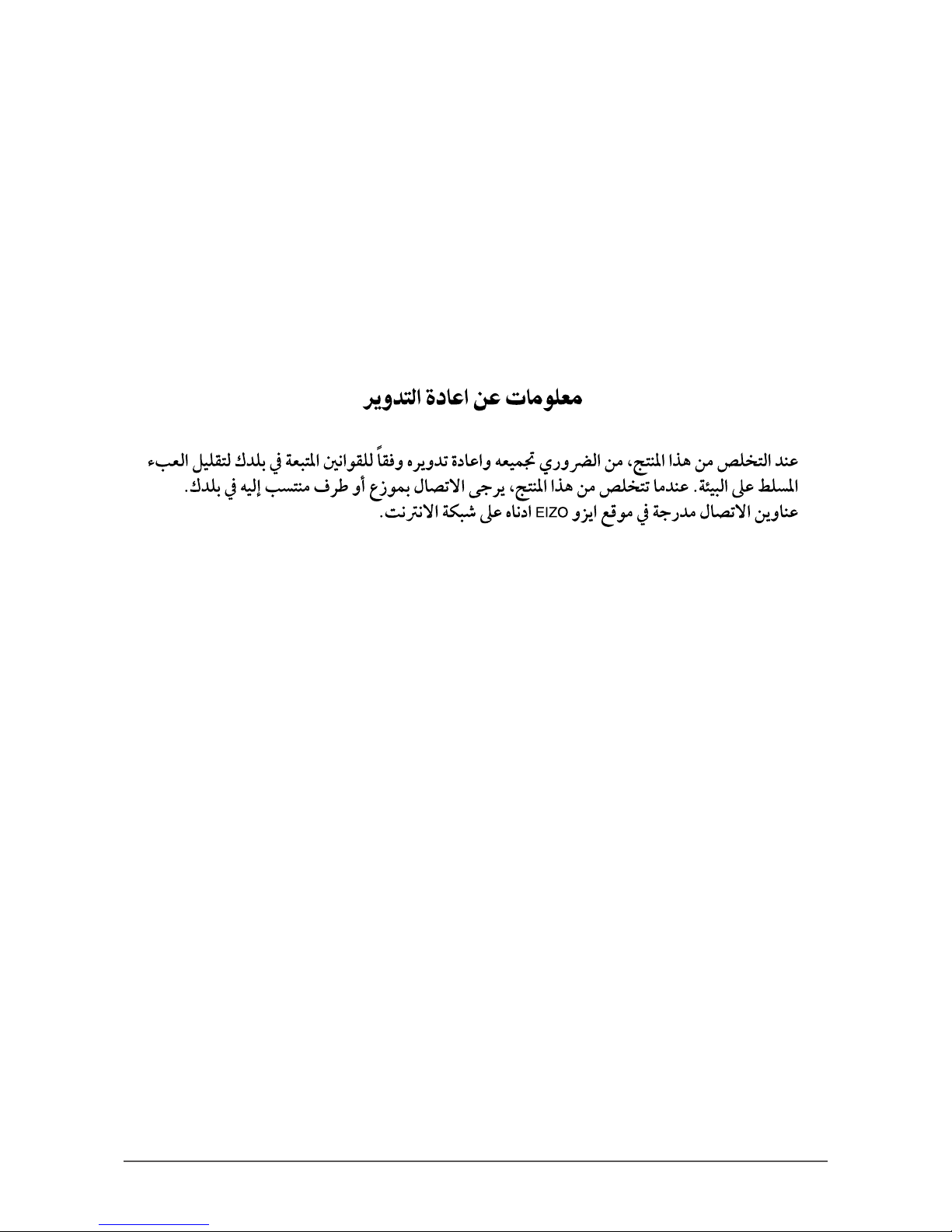

Recycling Information ............................................31

Chapter 1 Introduction

Thank you very much for choosing an EIZO color LCD monitor with the touch panel.

1-1. Features

• The 46" LCD enables you to view electronic marine charts as if you are looking at paper marine charts.

• It can be used in table format.

• The touch panel is provided. You can operate the screen by touching it.

- A "Palm Rejection Function" has been introduced to prevent erroneous entries caused by the

screen being touched with a pointer or object larger than the size of your nger, such as your

palm.

- A "Water Detection Function" has been introduced to disable the touch operation while water or other foreign substances are being detected.

• PinP (Picture in Picture) function is included. Multiple images can be displayed at the same time.

Switch operation

PinP (Picture in Picture) function

Monitor in table format

Attention

• When using the monitor in table format, do NOT:

- Place a coffee cup or container with hot liquid, or

- place a cigarette or ashtray on the monitor.

Chapter 1 Introduction

1-2. EIZO LCD Utility Disk

An "EIZO LCD Utility Disk" (CD-ROM) is supplied with this product. The following table shows the disk contents and an overview of the software programs.

●

Disk contents and software overview

The disk includes adjustment software, touch panel software, and user manuals. Refer to Readme.txt le on the disk for software startup procedures or le access procedures.

Contents Overview

Touch Panel Driver Touch panel driver supplied by EIZO (DMT-DD)

* 1

TPOffset Software used to adjust the sensitivity of the touch panel

* 1

Use this software when touch operations are not registered or if they are only registered after pressing down hard.

User’s Manual of this monitor (PDF le) Outline Dimensions (PDF le) Readme.txt le

*1 Only for Windows. Refer to the corresponding User’s Manual on the CD-ROM for details on installation

and use.

1-3. Controls and Functions

●

Front view / Rear view

1. ECDIS Indicator When the monitor brilliance is set to the ECDIS adjustment value, the

letters "ECDIS" light up green.

Note

• Shipment adjustment for ECDIS of this product is carried out while

the monitor is positioned vertically.

• The ECDIS indicator works only during DVI-1 or DVI-2 input.

2. Power lamp Indicates the operation status of the monitor.

Green: Screen display When turned off: Power off

3. Cooling fan Cooling fans are installed.

4. Buzzer An alarm buzzer is installed.

Chapter 1 Introduction

●

Side view

5. Handle Handles for transportation

button

Enables or disables touch panel operation. The button lights up blue when touch panel operation is enabled.

Note

• Two buttons are provided. You can use either one of them according to the installation position of the monitor.

• Touch panel calibration (sensitivity adjustment) can be carried out by holding down the button for two seconds with touch panel operation enabled.

button

Displays the Adjustment menu, or cancels adjustment / setting.

button

Displays the signal name that is currently input, or determines an item

of the Adjustment menu and saves adjusted values.

buttons

Adjusts the brightness, or selects an Adjustment menu item and adjusts

/ sets functions.

10.

button

Turns the power on or off. To turn the power off, hold down

for ve seconds or more. The

progress bar is shown on the screen, then the power is turned off.

11. CVBS connector (BNC) Inputs video signal.

12. USB downstream port Connects to a peripheral USB 2.0 device.

Chapter 1 Introduction

13. USB upstream port Connect a USB cable to this port to:

• Use the touch panel,

• control the monitor via USB, or

• use USB hub function.

14. VGA (D-Sub) connector Inputs analog signal of a PC.

15. DVI-2 / RGB-2 (DVI-I) connector

Inputs DVI signal (digital, analog) of a PC.

16. DVI-1 (DVI-D) connector Inputs DVI signal (digital) of a PC.

17. RS232C port D-Sub 9-pin (female) connector:

Use this connector to control the monitor via RS-232C communication.

18. Banding band holder Holds a banding band used to secure the cable.

19. Ethernet port

Connect a network cable to this port to control a monitor via Ethernet.

a b

a) Link LED

Green

Network connection is established.

When turned off

Network connection is not established.

b) Status LED

Blinking orange

Data communication in process.

20. RS485 port Use this connector to control the monitor via RS-485 communication.

21. OSD port Use this port to control the control buttons from outside.

22. DC power connector Installs the DC power terminal block.

23. DC power fuse A DC power fuse is installed.

24. Functional earth terminal The tapped hole is M4 (4 mm nominal diameter), 6 mm depth.

25. AC power connector Connects the power cord.

The insulation cover is attached to the AC power connector at factory shipment.

26. AC main power switch Turns the AC main power on or off.

| : On,

○

: Off

Chapter 2 Adjusting Screens

2-1. Adjust the Brightness

The brightness of the screen can be adjusted to suit the installation environment and/or personal

preference.

Adjustable Range

0 to 100

2-2. Switching Input Signals

When a monitor has multiple signal inputs, the signal to display on-screen can be changed.

Procedure

1. Press

The connector name of the currently displayed signal appears at the bottom right of the screen.

2. Press

to switch signals.

3. Press

to apply the change.

DVI-1

DVI-2

RGB-2

VGA

CVBS

(Autoadjust)

Chapter 2 Adjusting Screens

2-3. ConguringAdvancedAdjustments/Settings

The Adjustment menu enables you to congure advanced adjustments / settings.

●

Basic adjustment menu operations

Note

• The language is set to English in the default settings. To change the language, change the “Language” (page

14) setting in the Adjustment menu.

Displaying the Adjustment menu

1. Press to display the Adjustment menu.

Adjusting / setting

1. Choose a menu tab to adjust / set with , and then press .

2. Choose an item to adjust / set with

, and then press .

3. Adjust / set the value with

, and then press .

Exiting

1. Press a few times. The Adjustment menu nishes.

Settings

Menu selection.

adjustment / setting

Apply

Menu display, cancel

Menu tab

Item
