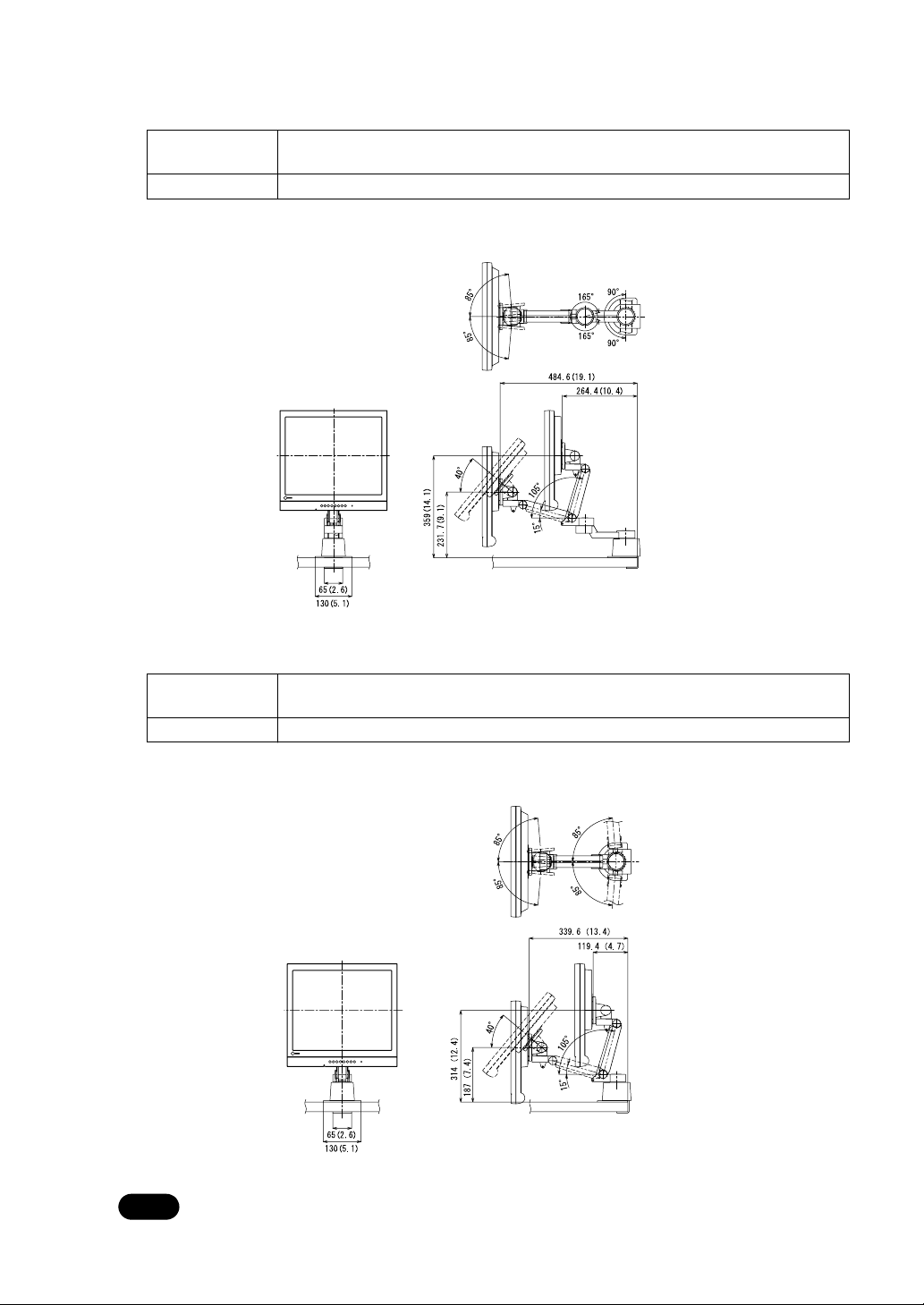

Eizo LA-130-D, LA-120-D User Manual

Thank you very much for choosing the EIZO product.

y

pp

g

jury

Please read this User’s Manual carefully to familiarize yourself with safe and effective usage procedures.
Please retain this manual for future reference.

PRECAUTIONS

[Location of the Caution Statements]

zTo ensure personal safety andproper maintenance,please read this

section and the caution statements on the unit.

WARNING

zAttach the arm to the LCD monitor that weights between 2.5 kg and 5.5 kg.

Not doing so ma
equipment damage.

zAffix the arm securely on the base.

Not doing so may cause the monitor to fall and result in injury or equipment damage.

zAffix the arm on an appropriate base.

Do not affix the arm on such a base as shown below or on a weak base which cannot

ort the monitor or arm. Affixing the arm on these bases may cause the monitor to

su
fall and result in injury.

Not hooking enough On tapered desk On Pole On Wall

cause the arm or monitor to fall, which may result in injury or







zClamp the screws of the arm tightly.

If the arm becomes unstable, clamp the hex-head screws of the arm securely again.
Loose clamping may cause the monitor to fall and result in injury or equipment damage.

zDo not hang from or lean on the arm.

zWhen moving the arm, be sure not to pinch a finger between the moving parts.

zWhen rotating the monitor for portrait display, make a space enough between a

zDo not disassemble.

zAttach the arm with another person.

so maycause the monitor to tumble or fall and result in injury or equipment

Doin
damage.

desk and a monitor not to pinch a finger.

The spring mechanism inside of the stand may result in in
when disassembling.

Do not attach it alone. Doing so may result in injury or equipment damage.

or equipment damage













Package Contents

t

________________________________

Please contact your local dealer for assistance if any of the listed items are missing or damaged. Use specified
screws for tightening up between arm, fitting and monitor referring to the back of this manual.

zArm

zUser's Manual

zFitting

zArm Cover x 2 pcs

zStand Mounting Cover

zHex-head wrench

zMounting Screws M4 x 8 (black) x 4 pcs

zMounting Screws M4 x 12 (silver/long) x 4 pcs

zMounting Screws M4 x 8 (silver/short) x 4 pcs*

*Screws for attaching the monitor with fitting to arm when the monitor’s hole spacing is 100 mm x 100 mm.

Compatible Monitors and Desks

zMonitors

Weight Capability* 2.5 kg to 5.5 kg

Hole Spacing 75 mm x 75 mm / 100 mm x 100 mm

(VESA compatible)

____________________

M4

M4

75mm

75mm

100mm

100mm

*Weight : Total weight of the monitor including the weight of the

cables and optional peripherals.

zDesks

Weight Capability 50 kg min. (recommended)

Thickness and Depth Refer to right figure

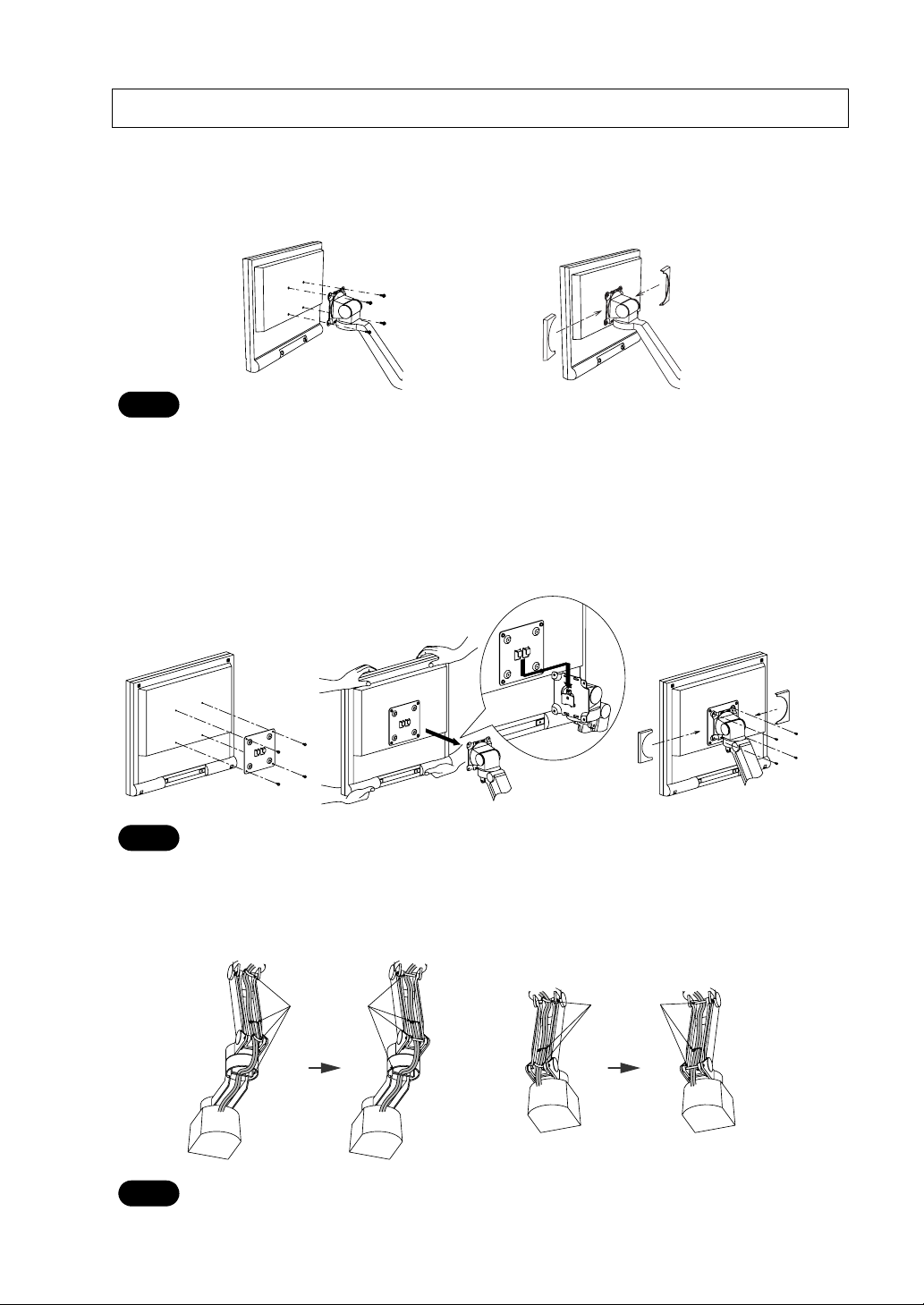

How to attach the monitor

_________________________

20~55mm

Desk

More than 38mm

1. Unfold the arm before affixing the arm to the base.

[LA-130-D] [LA-120-D]

(For packing) (For mounting) (For packing) (For mounting)

2.

Clamp the arm to the edge of the desk.
(1) Press the desk clamp against the edge of

the desk.

(2) Fit the holes on the base of arm to

hex-threaded-hole.

(3) Drive two screw holes by turns with

Desk

Press agains
the desk

hex-head wrench. After clamping the
arm, covering the screw holes with Stand
Mounting cover.



NOTE

zThe arm may not affix firmly to the base if driving either screw in tightly.
zIf attaching the LA-120-D, bend the arm slightly forward in advance. Not doing so may scratch the

arm by a hex-head wrench.

Fit the holes
