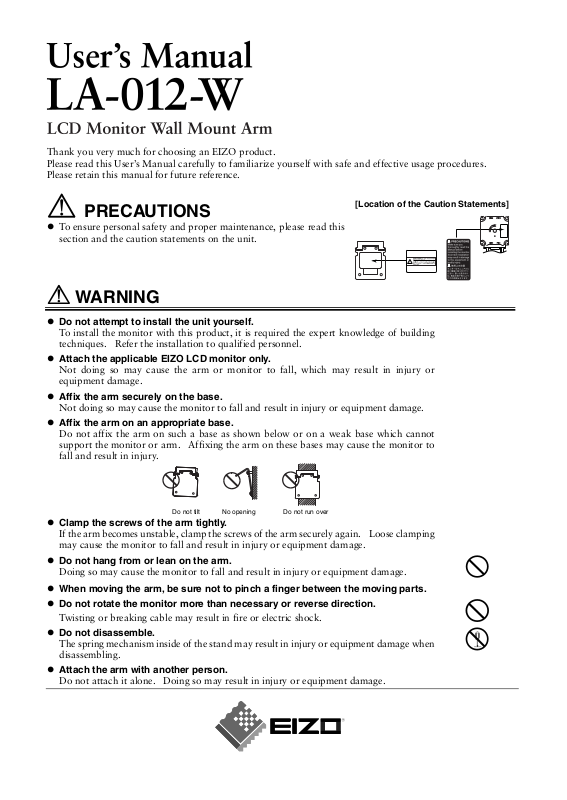

Eizo LA-012-W User Manual

p

pp

ping

jury

Thank you very much for choosing an EIZO product.
Please read this User’s Manual carefully to familiarize yourself with safe and effective usage procedures.
Please retain this manual for future reference.

[Location of the Caution Statements]

PRECAUTIONS

 To ensure personal safety and proper maintenance, please read this

section and the caution statements on the unit.

WARNING

 Do not attempt to install the unit yourself.

To install the monitor with this
techniques. Refer the installation to qualified personnel.

 Attach the applicable EIZO LCD monitor only.

Not doing so may cause the arm or monitor to fall, which may result in injury or
equipment damage.

 Affix the arm securely on the base.

Not doing so may cause the monitor to fall and result in injury or equipment damage.

 Affix the arm on an appropriate base.

Do not affix the arm on such a base as shown below or on a weak base which cannot

ort the monitor or arm. Affixing the arm on these bases may cause the monitor to

su
fall and result in injury.

roduct, it is required the expert knowledge of building

Do not tilt No opening Do not run over

 Clamp the screws of the arm tightly.

If the arm becomes unstable, clamp the screws of the arm securely again. Loose clam
may cause the monitor to fall and result in injury or equipment damage.

 Do not hang from or lean on the arm.

Doing so may cause the monitor to fall and result in injury or equipment damage.

 When moving the arm, be sure not to pinch a finger between the moving parts.

 Do not rotate the monitor more than necessary or reverse direction.

Twisting or breaking cable may result in fire or electric shock.

 Do not disassemble.

The spring mechanism inside of the stand may result in in
disassembling.

 Attach the arm with another person.

Do not attach it alone. Doing so may result in injury or equipment damage.

or equipment damage when

Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or damaged.

 Arm

 Wall Anchor

 Arm Cover, 2 pcs

 User's Manual

 Sheet (Compatible Screws List)

 Mounting Screws

 Mounting Screws, 4 pcs each

(For the compatible screws and monitors, refer to the ‘Compatible Screws List’.)

*Screws for attaching the monitor with arm to the Wall Anchor.

* (M4 x 8 flat head screws), 3 pcs

Compatible Monitors and Wall

 Monitors

Supported Weight* Less than 5.5 kg

Hole Spacing 100 mm x 100 mm

*Total weight of the monitor including the weight of the cables and optional peripherals.

 Wall

Dimensions (W) x (H) Larger than 70(2.76) x 87.8(3.46) mm

Weight Capability* More than 130 kg

*Pull-out strength of screws.

How to attach the monitor

________________________________

______________________

Unit: mm (inch)

(VESA compatible)

(Refer to right figure)

________________________

1. Attach the wall anchor of the arm on the wall.

Fix them with screws (4 pcs).

Wall

Screws (4 pcs)

NOTE

 Screws for fixing wall anchor on the wall are not enclosed. Prepare appropriate screws in

advance.
