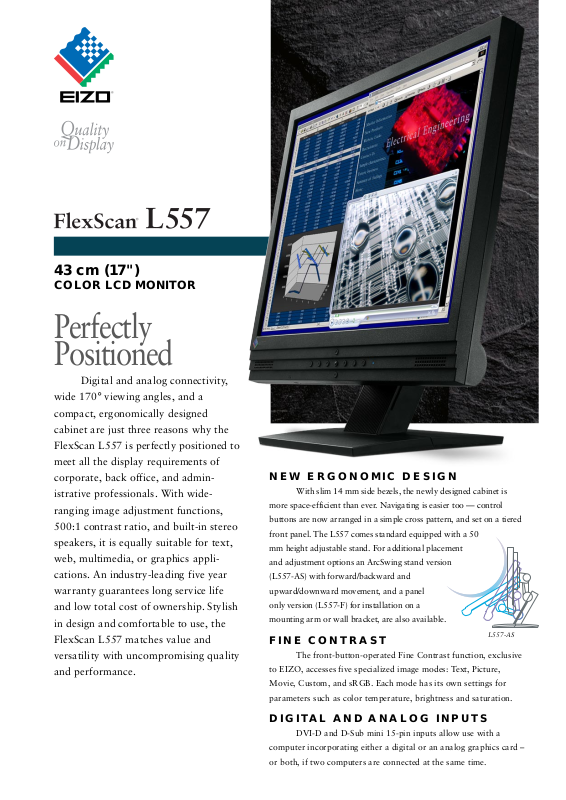

Eizo L557-AS User Manual

43 cm (17")

COLOR LCD MONITOR

Perfectly
Positioned

Digital and analog connectivity,

wide 170° viewing angles, and a

compact, ergonomically designed
cabinet are just three reasons why the
FlexScan L557 is perfectly positioned to
meet all the display requirements of
corporate, back office, and admin­istrative professionals. With wide­ranging image adjustment functions,
500:1 contrast ratio, and built-in stereo
speakers, it is equally suitable for text,
web, multimedia, or graphics appli­cations. An industry-leading five year
warranty guarantees long service life
and low total cost of ownership. Stylish
in design and comfortable to use, the
FlexScan L557 matches value and
versatility with uncompromising quality
and performance.

NEW ERGONOMIC DESIGN

With slim 14 mm side bezels, the newly designed cabinet is
more space-efficient than ever. Navigating is easier too — control
buttons are now arranged in a simple cross pattern, and set on a tiered
front panel. The L557 comes standard equipped with a 50
mm height adjustable stand. For additional placement
and adjustment options an ArcSwing stand version
(L557-AS) with forward/backward and
upward/downward movement, and a panel
only version (L557-F) for installation on a
mounting arm or wall bracket, are also available.

FINE CONTRAST

The front-button-operated Fine Contrast function, exclusive
to EIZO, accesses five specialized image modes: Text, Picture,
Movie, Custom, and sRGB. Each mode has its own settings for
parameters such as color temperature, brightness and saturation.

L557-AS

DIGITAL AND ANALOG INPUTS

DVI-D and D-Sub mini 15-pin inputs allow use with a
computer incorporating either a digital or an analog graphics card –
or both, if two computers are connected at the same time.

43 cm (17")

COLOR LCD MONITOR

Additional Features

GAMMA CORRECTION

Internal circuitry automatically converts 8-bit data from the
PC to 10-bit and back to 8-bit, producing smooth, accurate
color tones.

COLOR MANAGEMENT

Support for the sRGB color space provides color matching
with other sRGB compliant peripherals.

REGULATORY STANDARDS

Compliance with current international standards relating to
safety, ergonomics, and power management as well as
“EIZO Eco Products 2002,” an in-house label covering such
environmental issues as manufacture with lead-free solder
and chrome-free steel plates.

Accessories

A variety of accessories are available for enhancing conve­nience and flexibility, such as a panel protector, flexible
arms and dual height adjustable stands that hold two
monitors. For more information please see
http://www.eizo.com/products/accessories/

Support

EIZO and its authorized distributors offer a five
year limited warranty for the FlexScan L557.

The usage time is limited to 30,000 hours or less, and the warranty period of the
LCD panel and backlight is limited to three years from the date of purchase.

Dimensions

L557 (basic stand)

135

~

85

368

339.8

62

180

(Unit: mm)

425

272.2

~

343

375

82

13

8.7

~

32

5˚

29 2

20.5

30˚

52

133.5

34

63.5

198

140.5

Specifications

Models

Panel Size and Type

Available Cabinet Colors

Pixel Pitch

Display Colors

Viewing Angles (H, V)

Scanning Frequency (H, V)

Recommended Resolution

Brightness / Contrast Ratio

Response Time

Dot Clock

Input Signals

Sync Format

Input Terminals

Active Display Size (H × V)

Viewable Image Size

Plug & Play

Screen Control

Power Requirements

Power Management

Power Consumption

Power Save Mode

OSD Languages

Height Adjustment Range

Dimensions (W × H × D)

Net Weight

Audio

Tilt / Pivot

Certifications and Standards

Supplied Accessories

Warranty

Specifications are subject to change without notice.

Copyright© 2003 Eizo Nanao Corporation. All rights reserved. All product names are

trademarks or registered trademarks of their respective companies. FlexScan, EIZO, and

ScreenManager are registered trademarks of Eizo Nanao Corporation.

EIZO NANAO CORPORATION

153 Shimokashiwano, Matto, Ishikawa 924-8566 Japan

Phone [phone] Fax: [phone]

www.eizo.com

L557 (basic stand), L557-AS (ArcSwing stand),

L557-F (panel only)

43 cm (17") TFT color LCD panel

Gray, Black

0.264 × 0.264 mm

16.77 million from a palette of 1.06 billion
170°, 170°

Analog: 24.8 – 80 kHz, 55 – 75 Hz

Digital: 31 – 64 kHz, 59 – 61 Hz (VGA Text: 69 – 71 Hz)
1280 × 1024

250 cd/m2 / 500:1

25 ms (typical)

Analog: 135 MHz, Digital: 108 MHz

RGB Analog, DVI Standard 1.0

Separate

D-Sub mini 15 pin, DVI-D 24 pin (switchable)
338 × 270 mm

432 mm (diagonal)

VESA DDC 2B

ScreenManager®,

One Touch Auto Adjustment Function

AC 100 – 120V, 200 – 240V: 50 / 60 Hz

VESA DPMS, DVI DMPM

45 watts

Less than 2 watts

English, French, German, Italian, Japanese, Spanish, Swedish

L557: 50 mm, L557-AS: 100 mm
With Stand (L557): 368 × 375 – 425 × 198 mm
With Stand (L557-AS): 368 × 256 – 419 × 245 mm
Without Stand: 368 × 343 × 52 mm

With Stand (L557): 5.6 kg, (L557-AS): 7 kg

Without Stand: 4.2 kg

Dual 1W built-in speakers, input/headphone jacks
(L557): 30° Up, 5° Down

Tilt

(L557-AS): 60° Up, 1° Down / 90° Right, 3° Left

TCO’03 (gray), TCO’99 (black), TÜV/Ergonomics

(including ISO 13406-2), TÜV/GS, c-Tick CE, CB,

UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian

ICES-003-B, TÜV/S, VCCI-B, EPA ENERGY STAR®,

CCC, EIZO Eco Products 2002

AC power cord, signal cable (D-Sub mini 15 pin),

audio cable, setup guide, EIZO LCD Utility Disk

(ICC profile, HTML user’s manual), 4 screws for

mount option, warranty registration card

Five Years
