User’s Manual

Touch Panel Color LCD Monitor

It shall be assured that the system finally complies with IEC60601-1-1 requirements.

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious injury and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

Copyright© 2003 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark. VGA is a registered trademark of International Business Machines Corporation. DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association. Windows is a registered trademark of Microsoft Corporation. PowerManager is a trademark of EIZO NANAO COROPRATION. ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO CORPORATION.

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

PRECAUTIONS ...................................................................................4

1. INTRODUCTION .....................................................................................9

1-1. Features ........................................................................................................9

1-2. Package Contents..........................................................................................9

1-3. Controls & Connectors ..............................................................................10

2. CABLE CONNECTION .........................................................................12

2-1. Before connecting .......................................................................................12

2-2. Connecting the signal cable ........................................................................13

2-3. Connecting two PCs to the monitor............................................................15

2-4. Sound Connections.....................................................................................15

3. ScreenManager.................................................................................... 16

3-1. How to use the ScreenManager ..................................................................16

3-2. Adjustments and Settings............................................................................17

3-3. Useful Functions .........................................................................................18

English

4. ADJUSTMENT ......................................................................................20

4-1. Screen Adjustment ......................................................................................20

4-2. Color Adjustment .......................................................................................24

4-3. Power-save Setup........................................................................................26

5. ATTACHING AN ARM ...........................................................................28

6. TROUBLESHOOTING........................................................................... 29

7. CLEANING............................................................................................ 33

8. SPECIFICATIONS.................................................................................34

9. GLOSSARY........................................................................................... 37

APPENDIX/ANHANG/ANNEXE ..................................................................i

TABLE OF CONTENTS

English

PRECAUTIONS

IMPORTANT!

x This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications.

x To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

[Symbols on the unit]

Symbol Location This symbol indicates

4 PRECAUTIONS

Front Control panel

Rear Name Plate Rear Name Plate

Rear Name Plate

Power button Press to turn the monitor’s power on or off.

Alternating current

Alerting electrical hazard

Caution Refer to SAFETY SYMBOLS section in this

manual.

WARNING

If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice.

Attempting to use a malfunctioning unit can be dangerous.

Do not dismantle the cabinet or modify the unit.

Dismantling the cabinet or modifying the unit may result in electric shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet or spillage into the cabinet may result in fire, electric shock, or equipment damage.

If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit checked by a qualified service engineer before using it again.

English

Place the unit on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or equipment damage.

When the unit is dropped, please ask your dealer for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may cause damage and could result in fire or electric shock.

Do not place outdoors.

Do not place in the transportation system (ship, aircraft, trains, automobiles, etc.)

Do not place in a dusty or humid environment.

Do not place in a location where the steam comes directly on the screen.

Do not place near heat generating devices or a humidifier.

Do not place in an inflammable gas environment.

AUTOAUTO ENT.ENT.

S I G .S I G .

PRECAUTIONS

English

WARNING

To avoid danger of suffocation, keep the plastic packing bags away from babies and children.

Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord.

Not doing so may cause in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and could result in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric shock, or other damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects. * Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

PRECAUTIONS

WARNING

When attaching an arm stand, please refer to the user’s manual of the arm stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to come unattached, which may result in injury or equipment dama for advice. Do not continue usin result in fire or electric shock. When reattaching the tilt stand, please use the same screws and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth.

If any part of the skin or body comes in direct contact with the panel, please wash thoroughly. If some physical symptoms result, please consult your doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

e. When the unit is dropped,please ask your dealer

a damaged unit. Using a damaged unit ma

English

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables when movin with the cord attached is dangerous. It may result in injury or equipment damage.

When handling the unit, grip the bottom of the unit firmly with both hands ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots. * Do not install the unit in a closed space. * Do not use the unit lying down or upside down.

Using the unit in these ways blocks the ventilation slots and prevents proper airflow, leading to fire or other damage.

the unit. Moving the unit

AUTOAUTO ENT.ENT.

S I G .S I G .

PRECAUTIONS

English

CAUTION

Do not touch the plug with wet hands.

Touching them may result in electric shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a problem.

Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric shock.

If you plan to leave the unit unused for an extended period, disconnect the power cord from the wall socket after turning off the power switch for the safety and the power conservation.

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in lower brightness is recommended.

The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This is due to the characteristics of the panel itself, and not the product.

The backlight of the LCDpanel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer.

Do not scratch or press on thepanel with any sharp objects, such as a pencil or pen as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

PRECAUTIONS

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

x Dual inputs compliant x DVI (p.37) Digital input (TMDS (p.38)) compliant. x Horizontal scanning frequency: Analog input 24 - 61 kHz

Digital input 31 - 49 kHz Vertical scanning frequency: Analog input 55 - 75 Hz Digital input 59 - 61 Hz (VGA text: 70 Hz) Resolution: 0.8 M pixels (1024 dots x 768 lines)

x Auto Adjustment compliant x Support to sRGB (p.38) standard x Built-in speaker system x Touch Panel provided

English

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or damaged.

x LCD Monitor x Power Cord x Signal Cable (MD-C87/100) x Touch Panel Cable (FD-C38) x Stereo mini-jack Cable x User’s Manual x ScreenManager Quick Reference x LIMITED WARRANTY x Mounting Screws: M4 x 12 (mm) x 4 pcs x CD-ROM for Touch Panel (Contents: Touch Panel Driver, User’s Manual)

NOTE

x Please retain the packing materials for future transference. x Regarding the installing the touch panel driver, please follow the instructions in the

CD-ROM.

1. INTRODUCTION

English

1-3. Controls & Connectors

Front

AUTOAUTO

ENT.ENT.

S I G .S I G .

Control Panel

(1)

(2)

AUTO

ENT.

(4) (5)

(6)

(1) ScreenManager (2) Speaker

SIG.

(3)

Volume Control Press the Right and Left Buttons. Mute Press the Up or Down Button for a while after

pressing the Right or Left Button to display the volume control bar.

Press the Right or Left Button to mute off.

(3) Input Signal Selection Button (4) Auto Adjustment Button (5) Enter Button (6) Control Buttons (Left, Down, Up, Right) (7) Power Switch (8) Power Indicator

Blue Operation Yellow Power saving Flashing yellow (2

times for each) Flashing yellow

slowly

Power save mode Digital only

Power off

(7)

(8)

Regarding the sound connection, see page 15.

Regarding the power indicator for the off timer, see page18.

10 1. INTRODUCTION

Rear

English

(15)

POWERINPUTPOWERINPUT

DVI

Bottom

(9)

(10)

(11)

(9) Power Connector (10) RS-232C port (Mini DIN 6 pin) (11) External line in (stereo mini-jack) (12) DVI-D Connector (SIGNAL 1) (13) D-Sub mini 15 pin Connector (SIGNAL 2) (14) Security Lock Slot (15) 4 Holes for Mounting an Arm (16) Stand (Detachable)

D-SUB

(12)

(14)

(16)

(13)

Allows for connection of a security cable. This lock supports Kensington’s MicroSaver security system.

For further inforamation, please consult: Kensington Technology Group

2855 Campus Drive, San Mateo, CA 94403 USA Tel: 800-650-4242, x3348 Intl: 650-572-2700, x3348 / Fax: 650-572-9675 http://www.kensington.com

The LCD monitor can be used with an optional arm stand by removing the stand (see page 28).

1. INTRODUCTION

English

2. CABLE CONNECTION

2-1. Before connecting

Before connecting your monitor to the PC, change the display screen settings (resolution (p.37) and frequency) in accordance with the charts below.

NOTE

x The lower display modes like 640x 480, automatically enlarge to the maximum

display mode (1024 x 768), and some lines of the characters may become fuzzy. In this case, use <Smoothing> function (p.22) to make the lines clear.

x When your computer and display support VESA DDC, the suitable resolution and

the refresh rate are set by just plugging your display into the computer without any manual settings.

Analog Input

Resolution Frequency Dot Clock Remarks

320 x 200 70 Hz VGA 640 x 480 ~75 Hz VGA, VESA 720 x 400 70 Hz VGA TEXT 800 x 600 ~75 Hz VESA

1024 x 768 ~75 Hz

79 MHz

(Max)

VESA

Digital Input

Resolution Frequency Dot Clock Remarks

640 x 480 60 Hz VGA 720 x 400 70 Hz VGA TEXT 800 x 600 60 Hz VESA

1024 x 768 60 Hz

66 MHz

(Max)

VESA

12 2. CABLE CONNECTION

2-2. Connecting the signal cable

NOTE

x Be sure that the power switches of both the PC and the monitor are OFF.

1. Plug the signal cable into the connector at the rear of the monitor

and the other end of the cable into the video connector on the PC.

After connecting, secure the connection with the screw-in fasteners.

English

Digital Signal Input Connecter

Analog Signal Input Connecter

3. Power Cord

2.Touch Panel Cable

Analog Input

Signal Cable Connector of PC PC

Signal Cable (enclosed, MDC87/100)

Digital Input

Signal Cable Connector of PC PC

FD-C39 (Optional) Video Output

Video Output Connector/ D-Sub mini 15 pin

Input Connecor (monitor)/ D-Sub mini 15 pin

Connector DVI-I Input Connecor

(monitor)/ DVI

1. Signal Cable

xStandard graphics card

xDigital Graphics card

2. CABLE CONNECTION

English

2. Plug the enclosed touch panel cable into the RS-232C port of the

monitor. Then, plug the other end of the cable into the COM port of the computer.

NOTE

x When using the monitor without the touch panel cable, please uninstall the

touch panel driver from the computer. Not doing so may cause hang-up of the computer.

3. Plug the power cord into the power connector on the rear of the

monitor. Then, plug the other end of the cord into a power outlet.

WARNING

Use the enclosed power cord and connect to the standard power outlet of your country.

Be sure to remain within the rated voltage of the power cord. Not doing so may cause in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

4. Turn on the monitor’s main power and then switch on the PC's

power.

The monitor’s power indicator will light up (blue). If an image does not appear, refer to the “6. TROUBLESHOOTING” (p.29) for

advice. Whenever finished, turn off the PC and the monitor.

NOTE

x Adjust brightness of the screen depending on the brightness of your environment.

Too dark or too bright of a screen can cause eyestrain.

x Be sure to take adequate rests. A 10-minute rest period each hour is suggested.

14 2. CABLE CONNECTION

2-3. Connecting two PCs to the monitor

Two PCs can be connected to the monitor through the DVI and the D-Sub mini 15 pin connector on the back of the monitor.

Selecting the active input

The Input Signal Selection Button on the control panel can be used to select either Signal 1 or Signal 2 as the active input at any time. Every time the button is pressed, the input changes. When switching the signal, the kind of the input signal (Signal1 or 2/Analog or Digital) is displayed for a few seconds on the right top corner of the screen.

Input Signal Selection Button

AUTO

SIG.

ENT.

2-4. Sound Connections

NOTE

x Always switch the monitor and audio devices or computers off whenever connecting

or disconnecting any audio devices (computer or CD player) to the monitor.

x Use the enclosed stereo mini-jack cable for connecting audio devices or computers

to the monitor.

English

1. Connect the stereo mini-jack cable to the external line in of the

monitor.

2. Connect the other side of stereo mini-jack cable to the line out of

audio devices.

POWERINPUTPOWERINPUT

DVI

D-SUB

Computer or CD Player

Volume control

Mute

Mute off

NOTE

x <Sound> menu of the ScreenManager also controls the sound.

Press the Right and Left Buttons.

Press the Up or Down Button for a while after pressing the Right or Left Button to display the volume control bar.

Press the Right or Left Button.

2. CABLE CONNECTION

English

3. ScreenManager

3-1. How to use the ScreenManager

ScreenManager Main Menu

Control Buttons Left, Down, Up, Right

AUTOAUTO

ENT.ENT.

S I G .S I G .

SIG.

AUTO

ENT.

Auto Adjustment Button

Enter Button

1. Entering the ScreenManager

Press the Enter Button once to display the main menu of the ScreenManager.

2. Making Adjustments and Settings

(1) Select the desired sub menu icon using the Control Buttons and press the Enter

Button. The sub menu appears.

(2) Use the Control Buttons to select the desired setting icon and press the Enter

Button. The setting menu appears.

(3) Use the Control Buttons to make all required adjustments and press the Enter

Button to save the settings.

3. Exiting the ScreenManager

(1) To return to the main menu, select the <Return> icon or press the Down

Button twice, followed by the Enter Button.

(2) To exit the ScreenManager, select <Exit> icon or press the Down Button twice,

followed by the Enter Button.

NOTE

x Double clicking the Enter Button at any time also exits the ScreenManager menu.

16 3. ScreenManager

3-2. Adjustments and Settings

The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only.

Main menu Sub menu Reference

Screen

Color

PowerManager

Others

Information Information Review the ScreenManager’s settings,

Language English, German,

Due to the inspection on the factory, the usage time may not “0 hour” at shipping.

Clock * Phase * Position * Range Adjustment * Smoothing Brightness Color Mode

Custom

Temperature Gamma Saturation Hue Gain Reset

sRGB

Volume Control the sound volume. Sound Mute Mute the sound. DVI DMPM ** VESA DPMS * Sound Input Signal Set the input signal selection of

Off Timer Set the power save (p.18) VGA Selection Select the display mode. (p.30) Menu Position Adjust the menu position. Translucent Set the transparency of the menu. Menu Off Timer Set the menu displaying time. Reset Return to the factory default settings.

French, Spanish, Italian and Swedish

4-1. Screen Adjustment (p.20)

4-2. Color Adjustment (p.24)

4-3. Power-save Setup (p.26)

automatic or manual (p.19)

(p.35)

model name, serial number and usage time

Select the ScreenManager’s language.

English

3. ScreenManager

English

3-3. Useful Functions

Adjustment Lock

Use the “Adjustment Lock” function to prevent any accidental changes.

Locked function

Unlocked function

[To lock]

(1) Switch off the monitor’s power by the power switch on the control panel. (2) Press on the Auto adjustment button while switching on the monitor’s power.

[To unlock]

(1) Switch off the monitor’s power by the power switch on the control panel. (2) Hold down the Auto adjustment button once again and turn the power back on.

xAuto Adjustment Button adjustments and settings in the

ScreenManager.

xAdjustment of brightness by the Control Buttons. xSound control by the Control Buttons. xInput Signal Selection Button

Off Timer

The off timer function causes the monitor to automatically enter a power off state after a predetermined amount of time has lapsed. This function was created to reduce afterimage (p.37) characteristics that are particular to LCD monitors when the monitor screen is left on for a long period without use.

[Procedure]

(1) Select <Off Timer> in the ScreenManager <Others> menu. (2) Select “Enable” and press the Right and Left Buttons to adjust the “On Period” (1

to 23 hours).

[Off timer system]

PC Monitor Power Indicator

On Period (1H - 23H) Operation Blue Last 15 min. in “On period” Advance Notice “On period” expired Power off Flashing yellow slowly

Advance notice (Power Indicator flashing blue) will be given 15 minutes before the monitor automatically enters the “Power Off” mode. To delay entering the “Power Off” mode, press the power switch during the advance notice period. The monitor will continue to operate for an additional 90 minutes.

[Power Resumption Procedure]

Press the power switch.

Blue Flashing

NOTE

x The off timer function works while the PowerManager is active, but there is no

advance notice before the monitor’s power is switched off.

18 3. ScreenManager

English

EIZO Logo disappearing function

When switching on the Power Switch on the control panel, the EIZO logo is displyed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.)

[To undisplay]

(1) Switch off the monitor’s power by the Power switch on the control panel. (2) Hold down the Enter button once again and turn the power back on.

[To display again]

(1) Switch off the monitor’s power by the Power switch. (2) Hold down the Enter button once again and turn the power back on.

Automatically selecting the input signal function

The monitor will automatically detect the inputted signal of either the connection for display.

Connecting two PCs to the monitor

When the one computer is switched off or entering the power saving mode, the monitor will automatically dislay the other signal.

Use the ScreenManager to switch the input selection to manual.

[Procedure]

(1) Select <Input Signal> in the <Others> menu. (2) Select “Manual”.

3. ScreenManager

English

4. ADJUSTMENT

The monitor displays the digital input image correctly based on its pre-setting data. Adjust the brightness (p.23).

4-1. Screen Adjustment

Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for adjusting the screen to its proper position. There is only one correct position for each display mode. It is also recommended to use the ScreenManager function when first installing the display or whenever changing the system.

Adjustment Procedure

NOTE

x Allow the LCD monitor to stabilize for at least 20 minutes before making image

adjustments.

1. Press the Auto Adjustment Button on the control panel.

The message “Your setting will be lost, if you press again now.” appears and remains on the screen for 5 seconds. While the message is on the screen, press the Auto Adjustment Button again to automatically adjust the clock, phase, and screen position. If you do not wish to do adjust the screen, do not press the Auto Adjustment Button again.

NOTE

x The Auto Adjustment function is intended for use on AT-compatible PC running

Windows. It may not work properly in either of the following cases. When running an AT-compatible PC on MS-DOS (Not windows). The background color for the “wall paper” or “desktop” pattern is set to black.

If the appropriate screen can not be made by using the Auto Adjustment Button, adjust the screen through the following procedures. If the appropriate screen can be made, proceed to step 4.

20 4. ADJUSTMENT

English

2. We recommend setting the desktop pattern to that as shown in the

diagram below.

NOTE

x More precise adjustment is available for using the “Screen Adjustment

program” utility software. It can be downloaded from the EIZO homepage (http://www.eizo.com/).

3. Adjust by using <Screen> menu in the ScreenManager.

(1) Vertical bars appear on the screen

Select the <Clock> and eliminate the vertical bars by using the Right and Left of the Control Buttons.

Do not continuously press the Control Buttons, as the adjustment value will change quickly and make it difficult to locate the most suitable adjustment point. If the horizontal flickering, blur or bars appear, proceed to <Phase> adjustment as follows.

Use the <Clock> (p.37) adjustment.

(2) Horizontal bars appear on the screen.

o Use the <Phase> (p.38)adjustment.

Select the <Phase> and eliminate the horizontal flickering, blurring or bars by using the Right and Left Buttons.

NOTE

x Horizontal bars may not completely disappear from the screen depending on

the PC.

4. ADJUSTMENT

English

(3) The screen position is incorrect.

The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The “Position” adjustment moves the image to the correct position.

Select <Position> and adjust the position by using the Up, Down, Right and Left Buttons.

If vertical bars of distortion appear after finishing the <Position> adjustment, return to <Clock> adjustment and repeat the previously explained adjustment procedure. Clock

Use the <Position> adjustment.

o Phaseo Position

4. To adjust the output signal range (Dynamic Range) of the signal.

o Use the <Range Adjustment> (p.38) of <Screen> menu.

This controls the level of output signal range to display the whole color gradation (256 colors).

[Procedure]

Press the Auto Adjustment Button on the control panel while displaying the <Range Adjustment> menu to automatically adjust the range. The screen blanks for a moment, and adjusts the color range to display the whole color gradation of the current output signal.

To smooth the blurred texts of the enlarged screen of the lower resolutions.

o Switch the <Smoothing> setting.

<Smoothing> is clear-cut the letters or lines. Select <Smoothing> in the screen menu and select the suitable level from 1 ~ 5.

NOTE

x The “Smoothing” is disabled in the resolution 1024 x 768. x Since the displayed image is enlarged, the blurred texts may not be

necessarily lost completely.

4. ADJUSTMENT

6. To Set the Brightness of the screen.

o Use the < Brightness > adjustment.

The brightness of the entire screen is controlled by changing the brightness of the backlight.

Select < Brightness > in the screen menu and adjust by using the Up and Down Buttons.

NOTE

x Directly pressing the Up and Down Buttons also adjusts the brightness. Press

the Enter Button to save and exit the settings after the adjustment.

English

4. ADJUSTMENT

English

4-2. Color Adjustment

The <Color> menu in the ScreenManager enables to change the color of the screen. By using the <Color Mode>, the adjustment mode can be selected from <Custom mode> (to adjust the color settings according to your preference) and <sRGB> mode.

In the analog input, perform the “Range Adjustment” (p.22) before making the color adjustments.

NOTE

x Allow the LCD monitor to stabilize for at least 20 minutes before making image

adjustments. (Allow the monitor to warm up for at least 20 minutes before making adjustments.)

x Performing the <Reset> of the <Color> menu returns the color settings to the

default settings

x The values shown in percentages represent the current level within the specific

adjustment. They are available only as a reference tool. (To create an uniform white or black screen, the percentages for each will probably not be the same.)

Adjustment Contents

Color ModeMenu

Custom sRGB

Brightness



Function Descriptions Adjustable range

To set the brightness of the screen

0a 100%

Temperature (p.37)

Gamma (p.38)



To set the color temperature

NOTE

4,000a 10,000 K in 500 K increments

(including 9,300 K). Default setting is off (normal white)

xThe values shown in the Kelvin are available only as a

reference tool.

xSetting the temperature under 4,000 K or over 10,000

K invalidates the color temperature setting. (The color temperature’s setting turns “OFF”.)



To set the gamma value

NOTE

1.8 a 2.6

xIf setting the gamma value, the using the monitor in

the digital signal input is recommended. If using the monitor in the analog input signal, set the gamma value from 1.8 to 2.2.

24 4. ADJUSTMENT

English

Saturation

Hue

Gain (p.37)

Reset

Color ModeMenu

Custom sRGB



Function Descriptions Adjustable range

To change the saturation

NOTE

-128a 127 Setting the minimum level (-128) turns the image to the monochrome.

xThe <Saturation> adjustment may cause

undisplayable color tone.

To change the flesh color, etc.

NOTE

-32a 32

xThe <Hue> adjustment may cause undisplayable color

tone.

To change each color (red, green and blue)

NOTE

0a 100% By adjusting the red,

green and blue color tones for each mode, custom colors can be defined. Display a white or gray background image and adjust the <Gain>.

xThe values shown in the percentage are available only

as a reference tool.

xSetting the <Temperature> (p.37) invalidates the

<Gain> adjustment. <Gain> setting returns to the defaul.

To return the color settings to the default settings

Select the “Reset”.

4. ADJUSTMENT

English

4-3. Power-save Setup

The <PowerManager> menu in the ScreenManager enables to set the power-save setup.

NOTE

x Do your part to conserve energy, turn off the monitor when you are finished using it.

Disconnecting the monitor from the power supply is recommended to save energy completely.

Analog Input

This monitor complies with the VESA DPMS (p.38).

[Procedure]

(1) Set the PC’s power saving settings. (2) Select “VESA DPMS” from the <PowerManager> menu.

[Power saving system]

PC Monitor Power Indicator

Operation Operation Blue

STAND-BY

Power saving

Operate the mouse or keyboard to return to a normal screen.

SUSPEND

OFF

Power saving Yellow

Digital Input

This monitor complies with the DVI DMPM (p.37).

[Procedure]

(1) Set the PC’s power saving settings. (2) Select “DVI DMPM” from the < PowerManager > menu.

[Power saving system]

PC Monitor Power Indicator

Operation Operation Blue

Power saving Power saving Yellow

Off mode Power saving

Power saving through the PC’s off mode is only supported when “Manual” is selected on the ScreenManager’s <Input Signal>.

Operate the mouse or keyboard to return to a normal screen from the Power save mode of the PC.

Power on the PC to return a normal screen from the Off mode of the PC.

Flashing yellow

(2 times for each)

26 4. ADJUSTMENT

Power save for speaker

When the monitor is in the power-saving mode, sound of speaker also erases simultaneously can be performed.

[Procedure]

(1) Set the PC’s power saving settings. (2) Select <Sound>. (3) Select “Disable”. (“Enable” is selected to leave sound.)

English

4. ADJUSTMENT

English

5. ATTACHING AN ARM

The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor.

Using our optional arm or stand is recommended. (Ask your local dealer for information.)

NOTE

x If you will use the arm or stand of other manufacturers, confirm the followings to the

manufacturers before selecting.

- Hole spacing on the arm mounting: 75 mm x 75 mm (VESA compliant)

- Supportable Weight: Total weight of the monitor (without stand) and attaching

equipment such as a cable

- TÜV/GS approved arm or stand

x Please connect cables after attaching an arm stand.

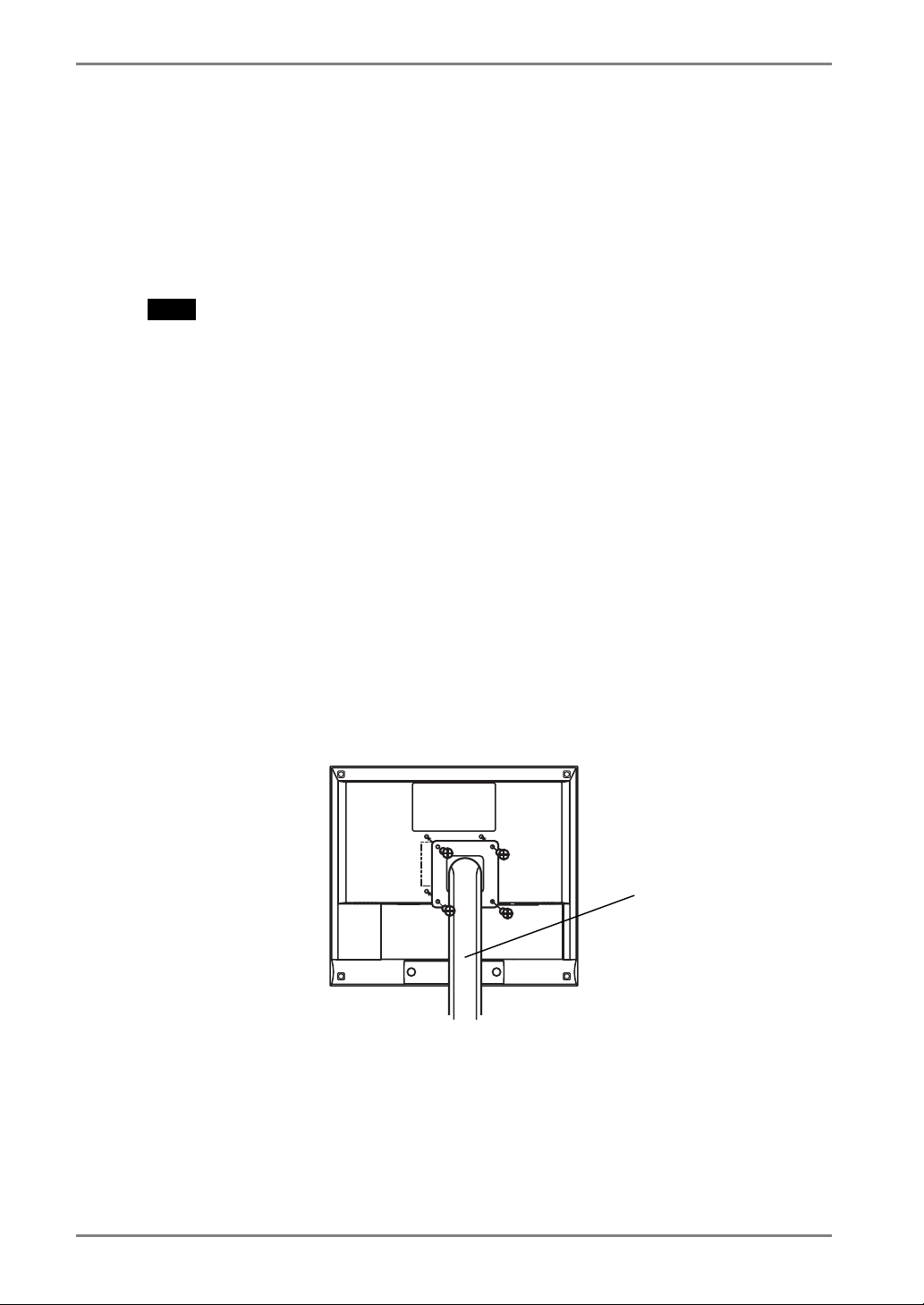

Setup Procedure

1. Lay the LCD monitor down. Do not scratch the panel.

2. Remove the tilt stand by loosening the screws (2 pcs of M4 x 10

mm).

3. Attach an arm stand to the LCD monitor securely.

Arm-stand

4 Mounting Screws (enclosed): M4 x 12 mm

5. ATTACHING AN ARM

6. TROUBLESHOOTING

If a problem persists even after applying the suggested remedies, contact an EIZO dealer.

x No picture problems : See No.1 ~ No.2 x Imaging problems : See No.3 ~ No.9 x Other problems : See No.10 ~ No.13 x Touch Panel Problems: See No. 14 ~ No.17

Problems Points to check with possible solutions

1. No picture

xIndicator status: Off

xIndicator status: Blue

xIndicator status: Yellow

xIndicator status: Flashing Yellow

(twice for each)

2. Following messages appear. (Error messages shown below will remain on the screen for 40 seconds.)

xWhenever an error signal message

appears, the signal frequency will be displayed in red.

Check that the power cord is correctly

connected. If the problem persists, turn off the monitor power for a few minutes, then turn it back on and try again.

Check the “Brightness” setting. Switch the signal input by pressing the Input

Signal Selection Button on the front control panel.

Try pressing a key on the keyboard, or clicking

the mouse. (p.26)

Try pressing the power of the computer.

These message appear when the signal is not inputted correctly, even if the monitor functions properly.

When the image is displayed correctly after a

short time, there is no problem with the monitor. (Some PCs do not output the signal soon after powering on.)

Check that the PC is turned ON. Check that the signal cable is properly

connected to the PC or graphics board.

Switch the signal input by pressing the Input

Signal Selection Button on the front control panel.

Use the graphics board’s utility software to

change the frequency setting. (Refer to the manual of the graphics board.)

English

6. TROUBLESHOOTING

English

Problems Points to check with possible solutions

3. Display position is incorrect.

4. Vertical bars of distortion appear.

Adjust the image position using the <Position>

(p.22)

The two display modes, VGA 720 x 400 (70

Hz) and 320 x 200 (70 Hz), have the same signal timings. Using this adjustment selects the appropriate display mode. (This function effects only when the resolution is VGA 720 x 400 (70 Hz) or 320 x 200 (70 Hz).

If the problem persists, use the graphics board’s

utility software to change the display position if available.

Decrease the vertical bars using the <Clock>.

(p.21)

5. Horizontal bars of distortion appear.

6. Letters and lines appear blurred.

7. The screen is too bright or too dark.

8. Afterimages appear.

9. The screen has defective pixels (e.g. slightly light or dark).

Decrease the horizontal bars using the <Phase>.

(p.21)

Switch the <Smoothing> mode. (p.22) Adjust the <Contrast and brightness> (The

baklight of the LCD monitor has a fixed life span. When the screen becomes dark or begins to flicker, please consult your dealer.)

When the screen image is changed after

displaying the same image for a long period, an afterimage may appear. The “Afterimage” can be removed gradually by changing the displayed image.Use the “Off Timer” function and avoid keeping the screen on all the time.(p.18)

This is due to the characteristics of the panel

itself, and not the LCD product.

30 6. TROUBLESHOOTING

Problems Points to check with possible solutions

10. The <Smoothing> cannot be selected.

11. The Enter Button does not operate.

12. The Auto Adjustment Button does not operate.

13. The signal Selection Button does not operate.

English

<Smoothing> is disabled when the screen is

displayed in the 1024 x768.

The adjustment lock is probably on. To unlock:

switch the LCD monitor off. Then, while pressing the Auto Adjustment Button switch, the power on. (p.18)

The adjustment lock is probably on. To unlock:

switch the LCD monitor off. Then, while pressing the Auto Adjustment Button switch, the power on. (p.18)

The Auto sizing function is intended for use on

the AT-compatible PC running Windows. It may not work properly in either of the following cases.

xWhen running an AT-compatible PC on MS-

DOS (Not windows).

xThe background color for the “wall paper”

or “desktop” pattern is set to black.

Some signals from a graphics board may not

function properly.

The computer with digital may be in the off

mode (power indicator flashing yellow). Try to press the monitor’s power switch and press the Input Signal Selection Button again.

6. TROUBLESHOOTING

English

x Touch Panel problems

Problems Points to check with possible solutions

14. Cursor is jittery. / Drawing lines are not straight and smooth.

15. Cursor position is not correct. / Cursor jumps.

16. Cursor does not work.

17. Computer is hang-up when using the monitor without touch panel.

Locate the monitor where no influence of the

metal.

Run the Stabilize Cursor option from the

TouchWare (Touch Panel driver).

The drawing touch for a long time may cause

cursor jump or incorrect cursor position.

Keep metals away from the panel surface. Point and touch with one finger only. Keep

other fingers away from the touch screen. Do not rest the hand in the monitor or bezel while touching the screen.

Do not touch the screen while the computer is

starting. Touch the screen after disappearing TouchWare starting window.

The spray for preventing static electricity may

influences the sensibility of the touch panel. Do not use it on cleaning.

Do not keep touching a point for more than 15

seconds.

When using the monitor without touch panel

cable, please uninstall the touch panel driver from the computer.

32 6. TROUBLESHOOTING

7. CLEANING

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime.

NOTE

x Never use thinner, benzene, ethanol, abrasive cleaners, or other strong solvents, as

these may cause damage to the cabinet or panel.

x Never use spray for preventing static electricity, as it may influence the sensibility of

the touch panel.

Cabinet

To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent. Do not spray wax or cleaner directly into the cabinet. (For details, refer to the manual of the PC.)

Panel

x The Panel surface can be cleaned with a soft cloth, such as cotton or lens paper. x If necessary, stubborn stains can be removed by moistening part of a cloth with water

or isopropyl alcohl to enhance its cleaning power.

English

7. CLEANING

English

8. SPECIFICATIONS

LCD Panel 38 cm (15.0 inch), TFT color LCD panel with Anti-Glare

Hard Coating, Viewing Angle: H: 170q, V: 170q

Response Time: approx. 55 ms Dot Pitch 0.297 mm Horizontal Scan Frequency Analog: 24 ~ 61 kHz (Automatic)

Digital: 31 ~ 49 kHz Vertical Scan Frequency Analog: 55 ~ 75 Hz (Automatic)

Digital: 59 ~ 61 Hz, (VGA Text : 70Hz) Resolution 0.8 M pixels (1024 dots x 768 lines) Dot Clock (Max.) Analog: 79 MHz

Digital: 66 MHz Display Colors 16 million colors (max.) Display Area 304.1 mm (H) ×228.1 mm (V) (11.9” (H) x 8.9” (V))

(Viewable image size: 381 mm (15.0”)) Touch Panel

Power Supply

Power Consumption Max.: 40 W (with speaker)

Input Connector D-Sub mini 15 pin, DVI-D Analog Input Signal (Sync) Separate, TTL, Positive/Negative Analog Input Signal (Video) Input Signal (Digital) TMDS (Single Link) Signal registration Analog: 45 (Factory preset: 12) Plug & Play VESA DDC 2B Amplifier Output (max.) 1 W + 1 W Line input

Dimensions 346 mm (W) x 369 mm (H) x 157 mm (D)

Dimensions (without stand) 346 mm (W) x 301 mm (H) x 54.5 mm (D)

Weight 5.0 kg (11.2 lbs.) Weight (without stand) 4.1 kg (9.0 lbs.)

OS Microsoft Windows 2000/XP

(Not compatible with MacOS)

Communication protocol

Detective method Analog capacitive digitizer technology, finger touch

RS-232C serial

100-120/200-240 VACr10%, 50/60 Hz,

0.7-0.6 A/0.4-0.35 A

Power Saving Mode: Less than 3 W

0.7Vp-p/75: Positive

Input impeadance 11 k: (min.)

Input sensitivity: 500 mV

(13.4”(W) x 14.5”(H) x 6.2”(D))

(13.4”(W) x 11.6”(H) x 1.9”(D))

34 8. SPECIFICATIONS

English

Environment conditions

Temperature

Operating: 0 qC ~ 35 qC (32 qF ~ 95 q F) Storage: -20 qC ~ 60 qC (-4 qF ~ 140 q F)

Humidity 30% to 80% R.H. Non-condensing

Pressure 860 to 1,060 hPa Certifications and Standards 100-120 VAC 200-240 VAC

CB, NRTL/C-TÜV, FCC-B, EPA ENERGY STAR Program, CE(93/42/EEC), CB, TÜV Rheinland/GM, EPA ENERGY

STAR Program

Classification of Equipment Type of protection against electric shock: Class I

EMC class: EN60601-1-2 2001 Group1 Class B Classification of medical device (MDD 93/42/EEC): Class I

Default settings

Analog input Brightness 100% Smoothing

3 Temperature Off (Normal white) PowerManager VESA DPMS DVI DMPM Input Signal Auto Off Timer Disable Language English

Digital input

Dimensions Unit mm (inches)

23.3 (0.9)

54.5 (2.15)

1 (0.04)

157 (6.2)

346 (13.6) 306 (12.0)

135 (5.3)

230 (9.1)

120 (4.7)

68 (2.7)

32.7 (1.29)

369 (14.5)

235 (9.3)

8. SPECIFICATIONS

English

Pin Assignment

D-Sub mini 15 pin connector

1314

No.

1 Red video 6 Red ground 11 Ground Shorted 2 Green video 7 Green ground 12 Data (SDA) 3 Blue video 8 Blue ground 13 H. Sync 4 Ground 9 No pin 14 V. S ync 5 No pin 10 Ground Shorted 15 Clock (SCL)

DVI-D Connector

18 22 23

2117

14 15

No.

1 TMDS Data2- 9 TMDS Data1- 17 TMDS Data02 TMDS Data2+ 10 TMDS Data1+ 18 TMDS Data0+ 3 TMDS Data2/4

4 NC* 12 NC 20 NC 5 NC 13 NC 21 NC 6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield 7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+ 8 Analog Vertical

Signal Pin

No.

Signal Pin

No.

11 TMDS Data1/3

Shield

16 Hot Plug Detect 24 TMDS Clock-

Sync

Signal Pin

No.

Signal Pin

No.

19 TMDS Data0/5

Shield

Signal

Shield

(*NC: No Connection)

RS-232C Port (Mini DIN 6 pin)

Pin No. Signal

1 NC* 2 NC 3 TXD

4 RXD 5 NC 6 GND

(*NC: No Connection)

36 8. SPECIFICATIONS

9. GLOSSARY

Afterimage

The Afterimage is particular to LCD monitors when the monitor screen is left on for a long period without use. The “Afterimage” can be removed gradually by changing the displayed image.

Clock

With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry. To convert the signal correctly, the LCD monitor needs to produce the same number clock pulse as the dot clock of the graphics system. When the clock pulse is not correctly set, some vertical bars of distortion are displayed on the screen.

Color Temperature (Temperature)

Color Temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. At high temperatures the white tone appears somewhat blue, while at lower temperatures it appears somewhat red. Computer monitors generally give best performance at high temperature settings.

5,000 K: Slightly reddish white. 6,500 K: Warm-white tone, similar to white paper or daylight. 9,300 K: Slightly bluish white.

English

DVI

(Digital Visual Interface) A digital flat panel interface. DVI can transmit digital data from the PC directly

without loss with the signal transition method “TMDS”. There are two kinds of DVI connectors. One is DVI-D connector for digital signal

input only. The other is DVI-I connector for both digital and analog signal inputs.

DVI DMPM

(DVI Digital Monitor Power Management) The Power management system for the digital interface. The “Monitor ON” status

(operation mode) and the “Active Off” status (power-saving mode) are indispensable for the DVI-DMPM as the monitor’s power mode.

Gain Adjustment

Adjusts each color parameter for red, green and blue. The color of the LCD monitor is displayed through the color filter of the LCD panel. Red, green and blue are the three primary colors. The colors on the monitor are displayed by combining these three colors. The color tone can change by adjusting the illumination amount passed through each color’s filter.

9. GLOSSARY

English

Gamma

Generally, the relationship that the light intensity values of a monitor change nonlinearly to the input signal level is called “Gamma Characteristic”. On the monitor, low gamma values display the whitish images and high gamma values display the high contrast images.

Phase

The phase adjustment decides the sampling timing point for converting the analog input signal to a digital signal. Adjusting the phase after the clock adjustment will produce a clear screen.

Range Adjustment

The Range Adjustment controls the level of output signal range to display the whole color gradation.

Resolution

The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO L362T display panel consists of 1024 horizontal pixels and 768 vertical pixels. At a resolution of 1024 x768, all pixels are displayed as a full screen.

sRGB (Standard RGB)

“International Standard for Red, Green, and Blue color space” A color space was defined with the aim of the color matching between applications and hardware devices, such as monitors, scanners, printers and digital cameras. As a standard default space, sRGB allows Internet users to closely match colors.

TMDS

(Transition Minimized Differential Signaling) A signal transition method for the digital interface.

VESA DPMS

(Video Electronics Standards Association - Display Power Management Signaling) The acronym VESA stands for “Video Electronics Standards Association”, and

DPMS stands for “Display Power Management Signaling.”DPMS is a communication standard that PCs and graphics boards use to implement power savings on the monitor side.

38 9. GLOSSARY

APPENDIX/ANHANG/ANNEXE

Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique

Based on the signal diagram shown below 12 factory presets have been registered in the monitor's microprocessor.

Der integrierte Mikroprozessor des Monitors unterstützt 12 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).

12 signaux ont été enregistrés en usine dans le microprocesseur du moniteur, conformément au diagramme de synchronisation ci-dessous.

Mode

VGA Mode13 320 × 200

VGA 640 × 480

VGA 720 × 400

VESA 640 × 480

VESA 800 × 600

VESA 1024 × 768

Dot Clock

MHz

25.2 Nega. Nega. 31.47 59.94

28.3 Nega. Posi. 31.47 70.09

31.5 Nega. Nega. 37.86 72.81

31.5 Nega. Nega. 37.50 75.00

36.0 Posi. Posi. 35.16 56.25

40.0 Posi. Posi. 37.88 60.32

50.0 Posi. Posi. 48.08 72.19

49.5 Posi. Posi. 46.88 75.00

65.0 Nega. Nega. 48.36 60.00

75.0 Nega. Nega. 56.48 70.07

78.8 Posi. Posi. 60.02 75.03

Sync Polarity Frequencies

H V H kHz V Hz

APPENDIX/ANHANG/ANNEXE

For U.S.A, Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.

5710 Warland Drive, Cypress, CA 90630 Phone: (562) 431-5011

declare that the product Trade name: EIZO

Model: FlexScan L362T

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

* Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable

- Stereo mini-jack cable

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.

Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH.Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden. Um einen Abholtermin zu vereinbaren und die aktuellen Kosten zu erfahren, benutzen Sie bitte folgende Rufnummer: 02153-73 35 00. Weitere Informationen finden Sie auch unter der Internet-Adresse: www.eizo.de.

Recycling Information for customers in Switzerland: All recycling information is placed in the SWICO’s website. http://www.swico.ch

Recycling-Information für Kunden in der Schweiz: Alle Informationen zum Thema Recycling finden Sie auf der Homepage des Brancheverbandes SWICO. http://www.swico.ch

Renseignements de recyclage pour les clients en Suisse: Vous trouvez tous les renseignements pour le sujet de recyclage sur la page WEB de I’UNION DE BRAN CHE SWICO. http://www.eizo.com/cotact/index.html

Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/contact/index.html

Återvinnings information för kunder i Sverige:

All information om återvinning finns på Eizo Nordics hemsida: www.eizo.se

Eizo L362T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

PRECAUTIONS

1. INTRODUCTION

1-1. Features

1-2. Package Contents

1-3. Controls & Connectors

2. CABLE CONNECTION

2-1. Before connecting

2-2. Connecting the signal cable

2-3. Connecting two PCs to the monitor

2-4. Sound Connections

3. ScreenManager

3-1. How to use the ScreenManager

3-2. Adjustments and Settings

3-3. Useful Functions

4. ADJUSTMENT

4-1. Screen Adjustment

4-2. Color Adjustment

4-3. Power-save Setup

5. ATTACHING AN ARM

6. TROUBLESHOOTING

7. CLEANING

8. SPECIFICATIONS

9. GLOSSARY

For U.S.A, Canada, etc. (rated 100-120 Vac) Only
