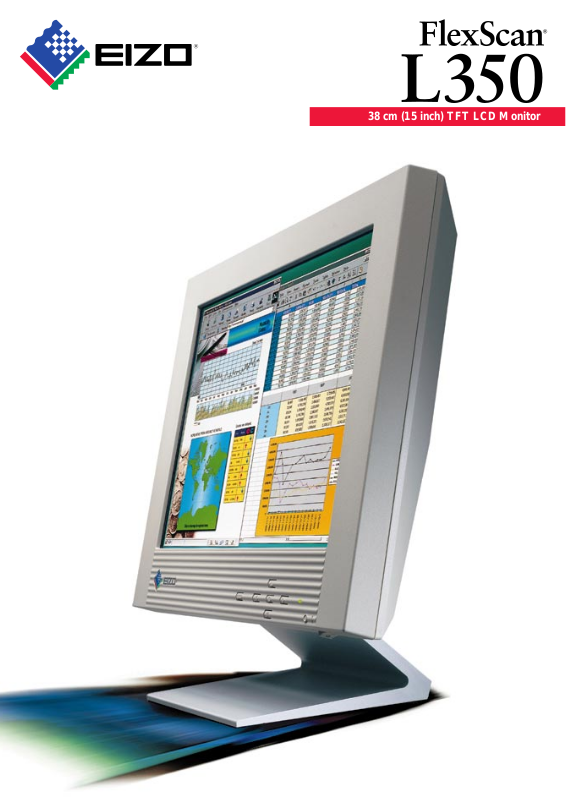

Eizo L350 User Manual

38 cm (15 inch) TFT LCD Monitor

The L350 offers a high quality, low energy consuming LCD monitor ideal for the
office environment. To increase its functionality, the L350 incorporates a new
ergonomic design which allows the panel to be removed from the base for mounting
on an arm or a wall.

38 cm (15 inch) TFT LCD Monitor

15" TFT Panel (XGA Compliant)

The L350 utilizes a color TFT panel
with a recommended resolution of
XGA 1024 × 768 at a refresh rate
of 75 Hz and a pixel pitch of 0.297
mm for precise text and image
reproduction. D3 [D-cubed], EIZO's
own ASIC (Application Specific
Integrated Circuit), gives the L350
such advantages as high brightness
and interpolation control, full color
capability through a frame rate
control (FRC) circuit, and the ability
to scale resolutions less than the
panel's capacity to a full screen mode.

Smoothing Function

The L350 incorporates a smoothing
function to correct focus and sm ear­ing of the displayed image which may

result in the scaling process. The
smoothing function includes adjust­ments in five gradations from soft to
sharp in order to lessen focus prob­lems for text applications and jagged
edges for graphics applications.

Flexible Design

A new design with an easily detachable
base facilitates mounting the panel
of the L350 on an arm or a wall.
The L350 saves further desktop
space with a power unit located
inside the panel to eliminate the bulky
external units
seen with many
mountable LCDs.

(Rear panel is VESA compliant)

Low Power Consumption

At only 35 watts, the L350 con­sumes approximately 65% less
energy than a 17 inch CRT moni­tor. For further energy conserva­tion, the L350 contains two power
saving features, PowerManager
and an off timer function. Power­Manager reduces power consump­tion during idle periods, while the
off timer causes the L350 to enter
a secondary power-off state after
a period of time determined by the
user. Both features lower energy
consumption to less than 3 watts,
the lowest in the industry.

Ergonomics and the Environment

EIZO seeks to provide a comfortable
viewing environment through an
ergonomic design that reduces eye
fatigue and stress. The L350 complies
with the most stringent ergonomic
standards in the world such as
TCO'99 and TÜV Rheinland/
Ergonomie Geprüft, and has also
obtained the CE Mark.

Advanced Functions

• Auto contrast level function to
automatically adjust the input signal
for proper display of color gradations.

• Auto adjustment button to cen­ter the displayed image, adjust the
clock and phase level, and elim­inate the need for preset timings.

• A slot to support Kensington's
MicroSaver security system is
included on the panel.

FlexScan® L350 Specifications

LCD Panel

Pixel Pitch
Display Colors

Viewing Angle

Scanning Frequency

Brightness
Contrast Ratio
Input Signals
Input Terminal
Active Display Size
Viewable Image Size
Recommended Resolution

∗

Plug & Play
Screen Control

Power Management System
Power Consumption
Power Save Mode
Dimensions

Net Weight

Safety Standards

Ergonomic/Environmental
Standards

∗ Only valid when computer system supports all Plug & Play
functions (personal computer, graphics board, Windows
For more details, please refer to the Windows 95/98, personal
computer, and graphics board manuals or contact the
manufacturers.

325

230

386.2

38 cm (15 inch)
TFT Color LCD Panel

0.297 mm
260,000 colors (16 million
colors with FRC Circuitry)
Horizontal: 140 degrees
Vertical: 120 degrees
H: 31 - 61 kHz, V: 50 - 75 Hz
(Up to 75 Hz at 1024
200 cd/m
350:1 (typical)
RGB Analog
D-Sub mini 15 pin
304 mm
Diagonal: 380 mm
1024 dots
VESA DDC 1/2B
ScreenManager
Auto Adjustment Function
VESA DPMS
30 W (normal operation)
Less than 3 W
384 mm (W)
171 mm (D) (with base)
384 mm (W)
69 mm (D) (panel only)

5.6 kg (with base)

4.1 kg (panel only)
TÜV Rheinland/GS, CB,
CE Mark
TÜV Rheinland/Ergonomie
Geprüft (including ISO 9241-3,

-7 [Positive/Class I, Negative/
Class I]. and -8 and MPR-II),
EPA ENERGY STAR
gram, Energy 2000, TCO'99

384

306

5

170

37.2

39

57.8

2

× 228 mm

× 768 lines

®

& One Touch

× 386 mm (H) ×

× 325 mm (H) ×

23

°

25

°

3

(Unit : mm)

× 768)

®

Pro-

®

95/98).

69

171.4

EIZO NANAO CORPORATION

655 Fukudome, Matto, Ishikawa 924-8533 Japan
Phone : [phone] Fax : [phone]
http://www.eizo.co.jp/

Specifications are subject to change without notice.

®

ENERGY STAR
that this product meets the ENERGY STAR
Copyright© 1999 Eizo Nanao Corporation. All rights reserved. All product names are trademarks of their respective
companies. PowerManager, is a trademark, and FlexScan, EIZO, ScreenManager, are registered trademarks of Eizo
Nanao Corporation.

is a U.S. registered mark. As an ENERGY STAR® Partner, Eizo Nanao Corporation has determined

®

guidelines for energy efficiency.
