Eizo HD2441W User Guide

Important

Please read this User’s Manual and Setup
Manual (separate volume) carefully to
familiarize yourself with safe and effective
usage.

PRECAUTIONS

Chapter 1 Features and Overview

1-1 Features
1-2 Names of Switches
1-3 Functions

Chapter 2 Basic Operation

2-1 Operation Switch Usage
2-2 Menu Operation
2-3 Resumption of Default Settings
2-4 Locking Switche

s

Chapter 3 Settings and Adjustment

3-1 Input Signal Switching
3-2 Screen Adjustmen
3-3 Color Adjustmen
3-4 Sound Adjustmen
3-5 PinP (Picture in Picture) Displa
3-6 Screen Size Changing
3-7 Off Timer Settin
3-8 Monitor Power-saving Mode Settin
3-9 Power Indicator/EIZO Logo Display Settin
3-10 Beeper Settin
3-11 Information Checkin
3-12 Language Setting to be Displaye

t

t

t

y

g

g

g

g

g

d

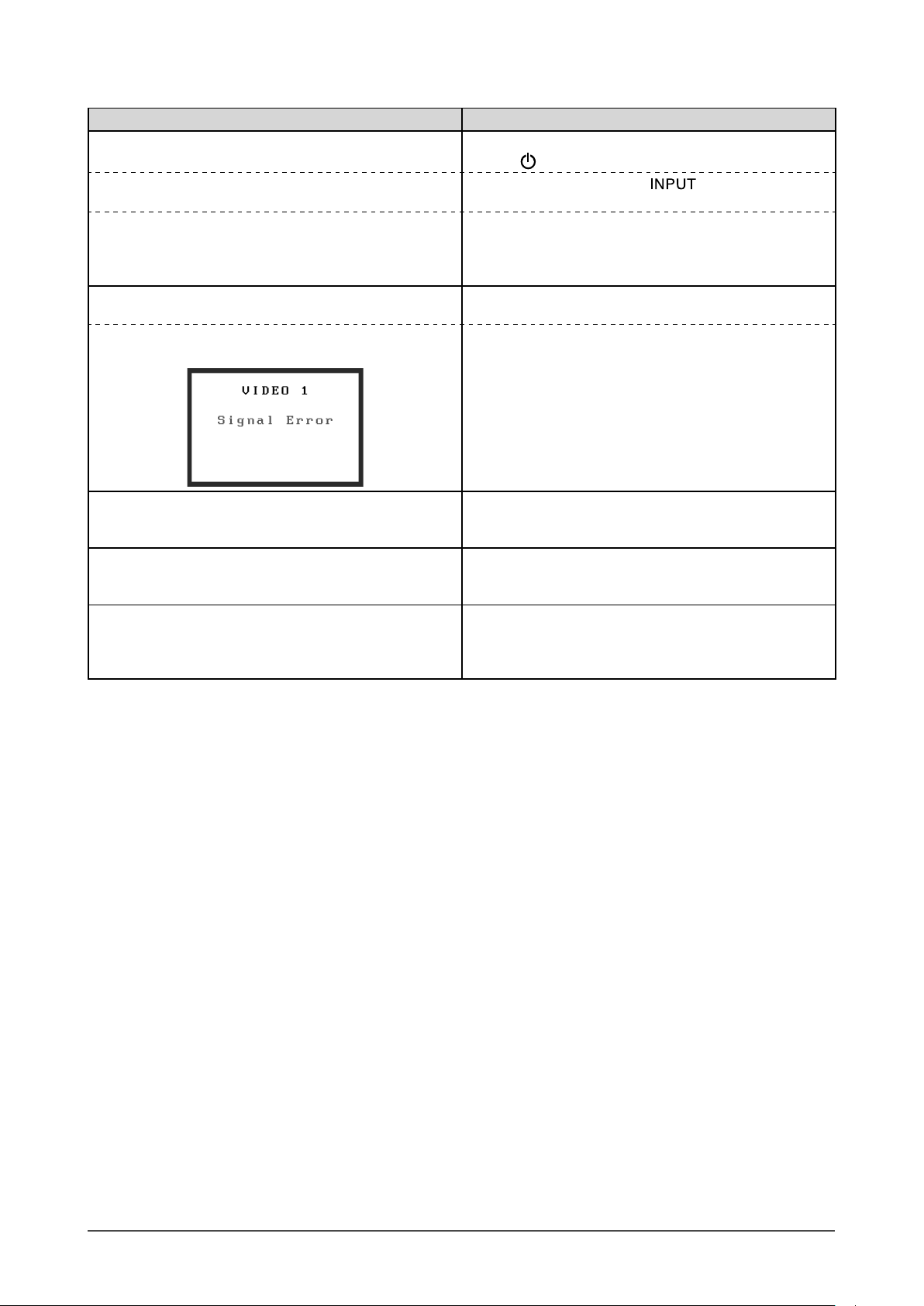

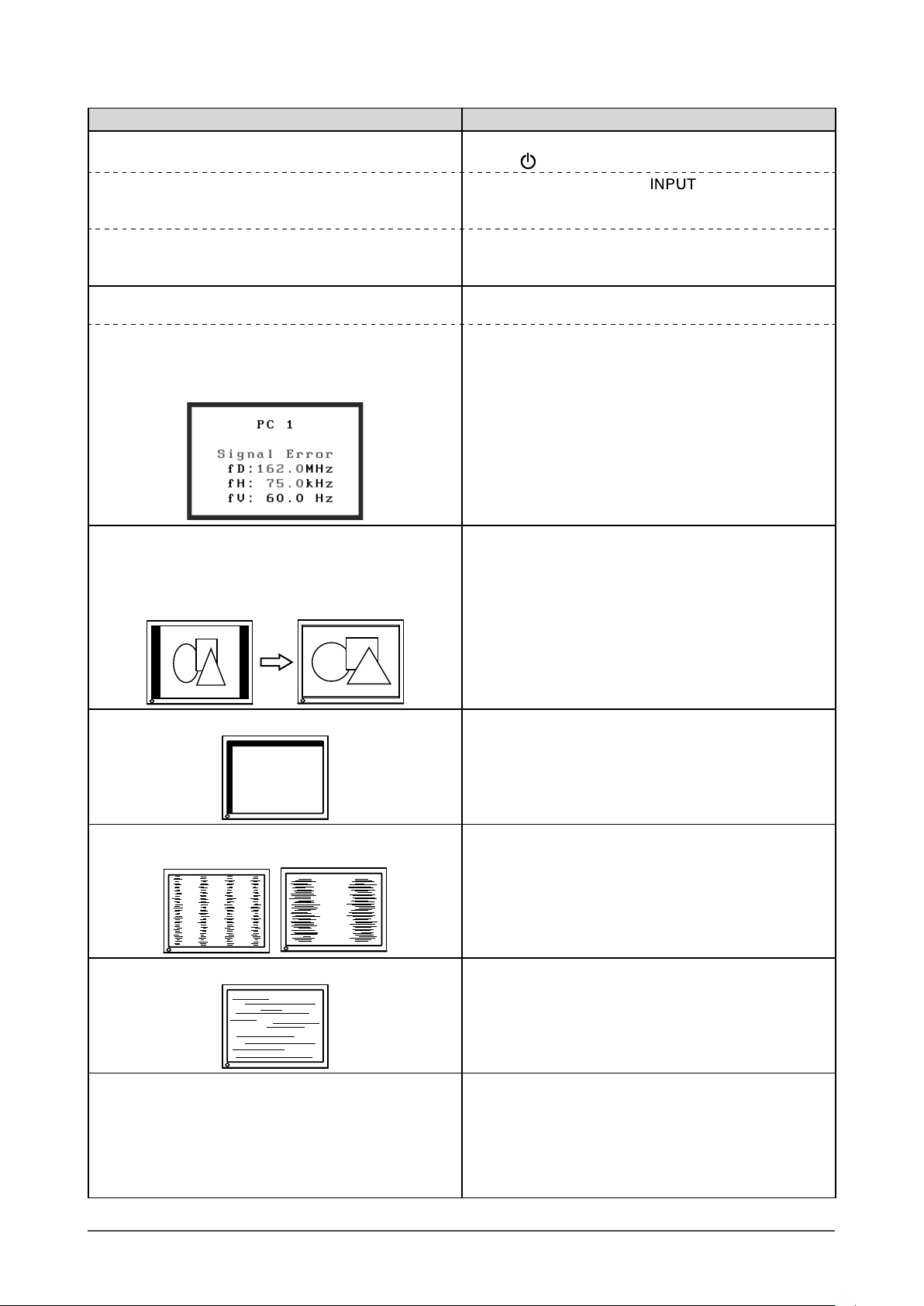

Chapter 4 Troubleshooting

Chapter 5 Referenc

5-1 Attaching an Arm
5-2 Cleanin
5-3 Specification
5-4 Glossary
5-5 Preset Timin

e

g

s

g

How to Setup

Please read the Setup Manual (separate volume)

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them
carefully.

WARNING

Failure to abide by the information in a WARNING
may result in serious injury and can be life threatening.

Indicates a prohibited action.

Indicates a mandatory action that must be followed.

Copyright© 2007 EIZO NANAO CORPORATION All rights reserved.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means,
electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.
EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential
unless prior arrangements are made pursuant to EIZO NANAO CORPORATION’s receipt of said information.
Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO
monitor specifications are subject to change without notice.

CAUTION

Failure to abide by the information in a CAUTION
may result in moderate injury and/or property or
product damage.

ENERGY STAR is a U.S. registered mark.
Apple and Macintosh are registered trademarks of Apple Inc.
VGA is a registered trademark of International Business Machines Corporation.
DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association.
Windows is a registered trademark of Microsoft Corporation.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
PowerManager is a trademark of EIZO NANAO CORPORATION.
FlexScan, ScreenManager and EIZO are registered trademarks of EIZO NANAO CORPORATION in Japan and other countries.

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that this product
meets the ENERGY STAR guidelines for energy efficiency.

Using the special functions, such as screen size change (ex. changing the horizontal and vertical ratio of images input)
for commercial purposes or for the purpose of showing in public may violate copyright laws.

Product specification may vary with sales areas.
Confirm the specification in the manual written in language of the region of purchase.

PRECAUTIONS

IMPORTANT

• This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is
used outside the region, it may not operate as specified in the specifications.

• To ensure personal safety and proper maintenance, please read carefully this section and the caution statements on
the monitor.

[Location of Caution Statement]

WARNING

If the unit begins to emit smoke, smells like something is burning, or makes
strange noises, disconnect all power connections immediately and contact
your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment
damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire, electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers may result in
fire, electric shock, or equipment damage.

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet or spillage into
the cabinet may result in fire, electric shock, or equipment damage.
If an object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit
checked by a qualified service engineer before using it again.

PRECAUTIONS

1

2

PRECAUTIONS

WARNING

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in injury or equipment damage.
If the unit falls, disconnect the power immediately and ask your dealer for advice. Do not
continue using a damaged unit. Using a damaged unit may result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

• Do not place outdoors.

• Do not place in the transportation system (ship, aircraft, trains, automobiles, etc.)

• Do not place in a dusty or humid environment.

• Do not place in a location where the steam comes directly on the screen.

• Do not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing bags away from
babies and children.

Use the enclosed power cord and connect to the standard power outlet of your
country.

Be sure to remain within the rated voltage of the power cord.
Not doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Failure to do so may result in fire or electric shock.

Use the correct voltage.

• The unit is designed for use with a specific voltage only. Connection to another voltage
than specified in this User’s Manual may cause fire, electric shock, or equipment damage.

• Do not overload your power circuit, as this may result in fire or electric shock.

WARNING

Handle the power cord with care.

• Do not place the cord underneath the unit or other heavy objects.

• Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord may result in fire
or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s manual of the arm
stand and install the unit securely.

Not doing so may cause the unit to become unattached, which may result in injury or
equipment damage. When the unit is dropped, please ask your dealer for advice. Do not
continue using a damaged unit. Using a damaged unit may result in fire or electric shock.
When reattaching the tilt stand, please use the same screws and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal that may leak from the panel is poisonous if it enters the eyes or mouth.
If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.
If some physical symptoms result, please consult your doctor.

Lamps contain mercury, dispose according to local, state or federal laws.

PRECAUTIONS

3

4

PRECAUTIONS

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit. Moving the unit with the cord
attached is dangerous. It may result in injury.

When handling the unit, grip the bottom of the unit firmly with both hands
ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

• Do not place any objects on the ventilation slots.

• Do not install the unit in a closed space.

• Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may result in fire, electric shock, or
equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a problem.

Do not set the sound volume too high when using a headphone.

Doing so may damage your hearing ability.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric shock.

If you plan to leave the unit unused for an extended period, disconnect the
power cord from the wall socket after turning off the power switch for the
safety and the power conservation.

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a monitor in
lower brightness is recommended.

The LCD panel is manufactured using high-precision technology. However, note that the appearance of any missing
pixels or lit pixels does not indicate damage to the LCD monitor.
Percentage of effective pixels: 99.9994% or higher.

The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact
your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in damage to the screen. There will be prints
left on the screen if the pressed image is dark or black. If pressure is repeatedly applied to the screen, it may deteriorate
or damage your LCD panel. Leave the screen white to decrease the prints.

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in damage to the
panel. Do not attempt to brush with tissues as this may scratch the LCD panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation
may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until dew condensation
disappears, otherwise it may cause damage to the monitor.

To use the monitor comfortably

An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the
environmental conditions.

Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

PRECAUTIONS

5

6

CONTENTS

CONTENTS

PRECAUTIONS ...................................................... 1

LCD Panel ................................................................... 5

To use the monitor comfortably ...............................

Chapter 1 Features and Overview ..................... 7

1-1 Features ............................................................ 7

1-2 Names of Switches .......................................... 9

1-3 Functions ........................................................ 10

Chapter 2 Basic Operation ............................... 12

2-1 Operation Switch Usage ............................... 12

2-2 Menu Operation ............................................. 13

● Basic operation of the Input Selection menu .... 13

● Basic operation of the Setting menu ................ 13

2-3 Resumption of Default Settings ................... 14

● To reset the color adjustment [Reset] ............... 14

● To reset all settings [Reset] .............................. 14

2-4 Locking Switches ..........................................

● To lock the available functions

[Operation Lock] ............................................... 14

14

3-5 PinP (Picture in Picture) Display .................. 24

● To display the PC input signal screen (Main

Window) and the VIDEO input signal screen (Sub-

5

Window) simultaneously [PinP] ........................ 24

● To change the Sub-Window position

[Sub-Window Position] ..................................... 26

● To set the translucent level for Sub-Window

[Translucent] .....................................................

● To select the Sub-Window display size

[Sub-Window Size] ........................................... 26

3-6 Screen Size Changing ................................... 27

● To change the screen image/projected image

size appearing on the screen [Screen Size] ..... 27

3-7 Off Timer Setting ............................................

● To set monitor power-off time [Off Timer] ......... 29

3-8 Monitor Power-saving Mode Setting ............

● To set the resume conditions from the

power-saving mode [Signal Detection] ............. 29

3-9 Power Indicator/EIZO Logo Display

Setting ............................................................. 30

● To turn off the power indicator while a screen is

displayed [Power Indicator] .............................. 30

● To set EIZO logo display/no EIZO logo display

when the monitor turns on

[EIZO Logo Appearing Function] ......................

26

29

29

30

Chapter 3 Settings and Adjustment ................ 15

3-1 Input Signal Switching .................................. 15

● To switch the input signal for the desired

image sent from the equipment

[Input Selection]. ............................................... 15

3-2 Screen Adjustment

input signal sent from a PC) ......................... 16

3-3 Color Adjustment ...........................................

Simple Adjustment ..............................................

●

To select the color mode [Color Mode] ............. 19

Advanced Adjustment .........................................

●

To adjust/set Color Mode .................................. 20

●

Adjustment items .............................................. 21

●

To adjust the brightness automatically

[BrightRegulator] .............................................. 22

3-4 Sound Adjustment .........................................

● To adjust [Volume/Treble/Bass/Balance/

Sound Level]. ................................................... 23

(Only for analog

19

19

20

23

3-10 Beeper Setting ...............................................

● To set the beeper [Beep] .................................. 30

3-11 Information Checking ....................................

● To check settings, usage time, etc.

[Information] ..................................................... 31

3-12 Language Setting to be displayed ..............

● To set the language displayed in the menu

[Language] ....................................................... 31

30

31

31

Chapter 4 Troubleshooting ............................... 32

Chapter 5 Reference .........................................

5-1 Attaching an Arm ........................................... 37

5-2 Cleaning ..........................................................

5-3 Specifications ................................................

5-4 Glossary ......................................................... 43

5-5 Preset Timing .................................................

37

38

39

45

Chapter 1 Features and Overview

Thank you very much for choosing an EIZO color LCD monitor.

1-1 Features

• 24” wide format LCD with Video signal input connector

• Resolution 1920 dots × 1200 lines

• Equipped with the ContrastEnhancer and OutlineEnhancer functions

• Equipped with PinP (Picture in Picture) function

• Enable to adjust the screen brightness automatically corresponding to the
brightness of the image and the environment.

• Employing the slide bar and realizing the excellent operability.

• The ArcSwing 2 Stand enables to adjust the monitor height and monitor angle
freely

• Equipped with the Utility Software, “ScreenManager Pro for LCD
(Windows)”, which is operated via a keyboard or a mouse.

[Applicable to PC signal input]

• DVI-D connector
connectors)

• Horizontal scan frequency and Vertical scan frequency are as follows:

Horizontal scan
frequency

Vertical scan
frequency

* For some AV equipment

• Compliance with frame synchronization mode (49.60 - 50.40Hz, 59.50 -

60.50Hz)

• Equipped with USB ports (Upstream × 2, Downstream × 2)

• Compliance with DVI digital input signal (HDCP)

• Equipped with USB audio function

• Enable to use connected USB devices on two PCs

× 1, D-Sub mini 15-pin connector × 1 (two input

Digital input signal 31.5 - 76kHz: each preset signal ±1kHz
Analog input signal 31.5 - 80kHz: each preset signal ±1kHz
Digital input signal 59 - 61Hz: each preset signal ±1Hz

Analog input signal 55 - 76Hz: each preset signal ±1Hz

(VGA TEXT: 69
(49 - 51Hz is also available@720p/1080p*)

(49 - 51Hz is also available@720p/1080p*)

- 71Hz)

NOTE

• The stand of the unit can be replaced
with an arm or another stand. (Refer
to “5-1 Attaching an Arm” on page

37.)

[Applicable to Video signal input]

• HDMI connector × 2 (two input connectors)

Chapter 1 Features and Overview

7

Connecting to peripheral devices equipment

Speakers

(with built-in amplifier)

Allows you to enjoy sound from a
connected PC or AV equipment, etc.

NOTE

• Enables you to adjust the speaker
volume connected to the monitor
using the volume adjustment function

of the monitor. ....................... page 23

• Enables you to enjoy sound by
connecting a headphone to the
headphone jack.

HD2441W

Enables you to use as a monitor by connecting to
a Windows PC or a Macintosh.

Attention

• The [USB] setting is required to change

PC

depending on a PC used. ......page 15

USB devices

Keyboard

(Also available to connect a printer or a
scanner, etc.)

Attention

• Use a PC/OS applicable to USB devices.
[Applicable OS]

- Windows 2000/XP/Vista

- Mac OS 8.5.1 or later

Mouse

AV equipment

HDMIconnector

DVDplayer,etc.

Game,etc.

Enables you to display projected images by
connecting a DVD, Video, game, etc.

Chapter 1 Features and Overview

8

1-2 Names of Switches

1 2 3 4 5 6

Setting menu (ScreenManager® *)

Switch

1. Sensor (Detects the environmental brightness.)

2. Input Signal Selection switch ( )

3. Slide bar

4. Menu switch ( )

5. Power switch ( )

6. Power indicator

Indicator status Operation status

Blue The screen is displayed

Orange Power saving

Off Power off

* ScreenManager ® is an EIZO’s nickname of the Setting menu.

(In this manual, the setting/adjustment item names in the Setting menu are put in angle brackets
< >. ex.: <Color>)

NOTE

• As well as touching , if you touch
the , or slide bar, the
monitor turns on.

• While the screen is displayed, the
power indicator that is lighting
blue can be turned off (see “Power
Indicator/EIZO Logo Display
Setting,” on page 30).

Chapter 1 Features and Overview

9

10

Chapter 1 Features and Overview

1-3 Functions

Page 16

Page 19

Page 20

Page 24

Page 23

Switching the Input Signal

Single display

Input Selection menu (As for the menu operation, refer to page 13.)

●

To switch the input signal for the desired display

sent from the equipment [Input Selection] … see page 15

Setting/Adjusting the Monitor

(Only for analog input signal from PC: PC 2 Input)

Screen Adjustment

1

Screen menu

●

Adjusting the screen automatically

[Auto Screen Adjust]

Advanced Screen Adjustment

2

●

To eliminate vertical bars

[Clock] ……………………………… see page 17

●

To remove flickering or blurring

[Phase] ……………………………… see page 17

●

To correct screen position
[Hor.Position] ………………………
[Ver.Position] …………………………

●

To set when the image is not displayed with

proper resolution [Resolution]

●

To adjust color gradation automatically

[Auto Range Adjust] ………………

●

To set when noise appears on the screen

[Signal Filter] ……………………… see page 33

see page 18
see page 18

……… see page 33

see page 18

PinP (Picture in Picture) display

●

To switch the input signal for the Main Window/

Sub-Window ………………………… see page 25

●

To hide the Sub-Window display with its sound

being heard [Sub-Window Off] ……

Setting menu
(As for the menu operation, refer to page 13.)

see page 25

PinP (Picture in Picture) Display

PinP Settings menu

●

To display the PC input signal screen

(Main Window) and Video input signal screen
(Sub-Window) on the monitor simultaneously
[PinP] ………………………………… see page 24

●

To change the Sub-Window position

[Sub-Window Position] …………… see page 26

●

To set the translucent level for Sub-Window

[Translucent] …………………………

●

To select the Sub-Window display size

[Sub-Window Size] ………………… see page 26

see page 26

Color Adjustment
(Simple Adjustment)

Color menu

●

To select the color mode [Color Mode]

Color Adjustment
(Advanced Adjustment)

●

[Brightness / Black Lebel / Contrast / Saturation

/ Hue / Temperature / OutlineEnhancer /
ContrastEnhancer / Gain / Gamma / Noise Filter
/ I/P Conversion] can be set for each mode.
Settable functions vary with the display mode.

Resumption of Default Settings

●

To reset the color adjustment

[Reset] ……………………………… see page 14

Sound Adjustment

Sound menu

●

To adjust [Volume / Treble / Bass / Balance /

Sound Level]

●

[ ] stands for the function name.

●

Settable functions differ depending on the input

signal.

Setting/Adjusting the Monitor (Continued)

Page 14

Page 15

Page 27

Page 31

Page 29

Resumption of Default Settings

●

To reset all settings [Reset]

Setting menu
(As for the menu operation,
refer to page 13.)

Information Checking

Monitor Settings menu

Language Setting to be displayed

●

To set the language displayed in the menu

[Language] ………………………… see page 31

Adjusting the Brightness automatically

●

To adjust the screen brightness automatically

corresponding to the brightness of the image
and the environment
[BrightRegulator] …………………… see page 22

Monitor Power-saving Mode Setting

●

To set the resume conditions from the power-

saving mode [Signal Detection] …… see page 29

Power Indicator Setting

●

To turn off the Power indicator while a screen is

displayed [Power Indicator] ……… see page 30

Beeper Setting

●

To set the beeper [Beep] …………… see page 30

Changing the Screen Size automatically

●

To change the screen size automatically

according to the aspect information of the input
signal [Auto Screen Size] ………… see page 27

Color Space Setting

●

To set when the image color is not displayed

correctly [Color Space] …………… see page 35

Field Rate Setting

●

To select the setting according to the area where

the monitor is used [Field Rate] … see page 35

●

To check settings, usage time, etc. [Information]

Off Timer Setting

●

To set monitor power-off time [Off Timer]

EIZO Logo Display Setting

●

Information menu

Off Timer menu

Page 30

To set EIZO logo display/no EIZO logo display

when the monitor turns on
[EIZO Logo Appearing Function]

Changing the USB Setting

USB menu

●

To change the setting according to the PC used

(when USB is connected) [USB]

Screen Size Changing

Screen Size menu

●

To change the screen image/projected image

size appearing on the screen [Screen Size]

Locking Switches

●

To lock the available functions [Operation Lock]

●

[ ] stands for the function name.

●

Settable functions differ depending on the input

signal.

Chapter 1 Features and Overview

Page 14

11

12

Chapter 2 Basic Operation

Chapter 2 Basic Operation

2-1 Operation Switch Usage

■

Turning the power On/Off

PowerOn:Touchanyofthekeystoturnonthemonitor.

PowerOff:Touch .

■

Displaying/Quitting a menu

InputSelectionmenu Settingmenu

Touch .

Volumemenu

Taptheslidebar.

(Whenthemenuisnotdisplayedonthescreen)

■

Selecting a menu item

Setting and Adjusting

Tracetheslidebarleftandright.

*Theincrease/decreasespeedofthe

adjustmentvaluemaychange
dependingonthetracingspeedof
theslidebar.

Atfineadjustment

Tapeitherendoftheslidebar,markedwith and .

*

Tappingoncechangestheadjustmentvaluetoonestepupordown.
Touchingtheslidebarcontinuouslymaychangethevalueserially.

■

Fixing an item

Deciding the setting and adjusting value

Touch .

NOTE

• There are three methods of operation:

• Touching the switch

• Tapping the slide bar

• Tracing the slide bar

Taptheslidebar.

2-2 Menu Operation

●

Basic operation of the Input Selection menu

[Displaying the Input Selection menu and selecting the input signal]

(1) Touch

The Input Selection menu appears.

(2) Trace the slide bar left and right to select the input signal and tap the slide

bar.

The screen image appears.

[Quitting the Input Selection Menu]

(1) Touch

The Input Selection menu quits.

●

Basic operation of the Setting menu

[Displaying the Setting menu and selecting function]

(1) Touch

The Main menu appears.

(2) Trace the slide bar left and right to select the function and tap the slide bar.

The Sub menu appears.

(3) Trace the slide bar left and right to select the function and tap the slide bar.

The setting/adjustment menu appears.

(4) Trace the slide bar left and right to set/adjust the monitor and tap the slide

bar.

The setting/adjustment value is saved.

on the operation panel.

.

on the operation panel.

NOTE

• Some menus may not have a
sub-menu.

[Quitting the Setting Menu]

(1) Touch

The Setting menu quits.

.

Chapter 2 Basic Operation

13

14

Chapter 2 Basic Operation

2-3 Resumption of Default Settings

●

To reset the color adjustment [Reset]

Only the hue in the color mode currently set will revert to the default settings
(factory settings).

[Procedure]

(1) Choose the <Color> icon in the Setting menu and tap the slide bar.
(2) Choose the <Reset> icon in the <Color> menu and tap the slide bar.

“Your current color data will be lost.” appears on the screen.

(3) Trace the slide bar left and right to select “Reset” and tap the slide bar.

The reset operation is completed.

●

To reset all settings [Reset]

Reset all the settings/adjustments status except for [Field Rate], [USB] and
[Volume] to the default settings (factory settings).

[Procedure]

(1) Choose the <Reset> icon in the Setting menu and tap the slide bar.

“All settings except for the field rate and USB are reset.” appears on the screen.

(2) Trace the slide bar left and right to select “Reset” and tap the slide bar.

The reset operation is completed.

NOTE

• For default settings, refer to “Main
default settings (factory settings)” on
page 42.

2-4 Locking Switches

●

To lock the available functions [Operation Lock]

This function enables you to lock the switches to retain the setting/adjustment
set once and restrict the available functions.

[Locking]

(1) Touch
(2) Touch for approx. three seconds.

The operation lock is performed (“Operation Lock: ON” is displayed) and the screen
is displayed with the operation lock.

[Unlocking]

(1) Touch
(2) Touch for approx. three seconds.

The operation lock is released (“Operation Lock: Off” is displayed) and the screen is
displayed with the operation unlock.

to turn off the monitor.

to turn off the monitor.

NOTE

• The following operations are available
in the locked status.

- Power ON/OFF by touching

- Power ON by touching

or the slide bar.

- Operation lock function ON/OFF

- EIZO Logo appearing function

ON/OFF (Page 30)

.
,

Chapter 3 Settings and Adjustment

3-1 Input Signal Switching

●

To switch the input signal for the desired image sent from
the equipment [Input Selection]

[Procedure]

(1) Touch

The Input Selection menu appears.

.

(2) Trace the slide bar left and right to select the input signal for the desired

image sent from the equipment or tap the slide bar.

The desired image appears.

■

When connecting a PC with USB connection [USB]

Switch the [USB] setting according to the input signal of the PC used.

Settings Using status

PC 1 (Digital signal) When using PC 1.
PC 2 (Analog signal) When using PC 2.

[Procedure]

(1) Choose the <USB> icon in the Setting menu and tap the slide bar.

The <USB> menu appears.

(2) Trace the slide bar left and right to select either “PC 1” or “PC 2” and tap

the slide bar.

The USB setting is completed.

[When the following message appears]
When the following message appears, “If the USB setting is changed, the USB
connection to the selected PC will be lost. Do you change the setting?” confirm on
the right (for switching the USB setting) to proceed the step 3.

(3) Trace the slide bar left and right to select “Yes” and tap the slide bar.

The USB setting is completed.

NOTE

• When “PinP” is selected, the monitor
display changes to PinP (Picture in
Picture) mode.

• When switching the input signal in
the PinP mode, refer to page 25.

Attention

• If the [USB] setting is not set
properly, the USB devices connected
to the monitor may not work or
no sound may come out from the
speakers.

• Please note the following when
switching the setting.

- When connecting a memory device

such as a USB memory to the
monitor, the data may be lost and
damaged. Be sure to change the
USB setting after removing the
memory device.

- When an application such as a

sound playback, etc. works, the
sound may not output if the setting
is returned to the original. Be sure
to change the USB setting after
exiting from the application.

Chapter 3 Settings and Adjustment

15

16

Chapter 3 Settings and Adjustment

3-2 Screen Adjustment

from a PC)

The monitor screen adjustment is used to suppress flickering of the screen or
to adjust the screen position and screen size correctly according to the PC to be
used. To use the monitor comfortably, adjust the screen when the monitor is set
up for the first time or when the settings of the PC in use are updated.

The Auto Screen Adjust function works in the following cases:

• When a signal is input into the monitor for the first time.

• When a signal is input into the monitor for the first time after the

resolution or refresh rate of input signals is changed.

[Adjustment Procedures]

Choose the <Screen> icon in the Setting menu and tap the

1

slide bar.

The <Screen> menu appears.

(Only for analog input signal

NOTE

• When digital input signals are used,
images are displayed correctly based
on the preset data of the monitor.
No screen adjustment is required.

Attention

• The Auto Screen Adjust function does
not work for the input signal of low
resolution, such as VGA, etc.

• Wait 30 minutes or more from
monitor power on before starting the
color adjustment.

NOTE

• Use the “Screen Adjustment Program”
on the supplied EIZO LCD Utility
Disk.

Choose the <Auto Screen Adjust> icon in the <Screen> menu

2

and tap the slide bar.

“Your current setting will be lost, if you perform “Auto Screen Adjust”.
Do you continue?” appears on the screen.

Trace the slide bar left and right to select “Yes” and tap the

3

slide bar.

The Auto Screen Adjust function is activated and the clock, phase and
screen position are adjusted automatically.

If satisfactory adjustment cannot be obtained with the Auto Screen

Adjust function, perform the adjustment following the procedure

below. When the screen is displayed correctly, go to step 6 “Auto

Range Adjust”.

Attention

• This function works correctly when
an image is fully displayed over the
Windows or Macintosh display area.
It does not work properly when an
image is displayed only on a part of
the screen (DOS prompt window, for
example) or when a black background
(wallpaper, etc.) is in use.

• The Auto Adjust function may not
work properly with some graphics
boards.

NOTE

• When the screen image is not
displayed with the proper resolution
even after Auto Screen Adjust is
performed, set the resolution of
the input signal manually. If the
resolution is set, the [Auto Screen
Adjust] is performed again. (Refer to
Chapter 4, “Troubleshooting” on page

33.)

● Advanced Screen Adjustment

Run the Screen Adjustment Program.

4

Load the EIZO LCD Utility Disk on the PC, and start the Screen
Adjustment Program compatible with the PC in use.
After the program starts up, perform the adjustment in step 5 following the
instructions of the program.

Perform the advanced adjustment using the <Screen> menu in

5

the Setting menu.

● To eliminate vertical bars [Clock]

(1) Choose the <Clock> icon in the <Screen> menu and tap the slide

bar.

The <Clock> menu appears.

(2) Trace the slide bar left and right to eliminate the vertical bars and

tap the slide bar.

The adjustment is completed.

● To remove flickering or blurring [Phase]

(1) Choose the <Phase> icon in the <Screen> menu and tap the slide

bar.

The <Phase> menu appears.

(2) Trace the slide bar left and right to remove the flickering or

blurring and tap the slide bar.

The adjustment is completed.

NOTE

• For how to start the Screen
Adjustment Program, refer to the
“Readme.txt” or the “Readme” file.

When you are using a Windows PC,

you can run the program directly from
the start menu of the disk.

• If no adjustment program is available
for your PC, display a checkerboard
pattern on the screen (see below) and
go to the following steps.

NOTE

• Trace the slide bar slowly to adjust
since the adjustment point is easily
missed.

• When blurring, flickering or bars
appear on the screen after adjustment,
proceed to [Phase] to remove
flickering or blurring.

Attention

• The flickering or blurring may not
be eliminated perfectly depending on
your PC or graphics board.

NOTE

• When vertical bars appear on the
screen after adjustment, go back
to “To eliminate the vertical bars
[Clock]” and perform again. (Clock

→ Phase → Position)

Chapter 3 Settings and Adjustment

17

18

Chapter 3 Settings and Adjustment

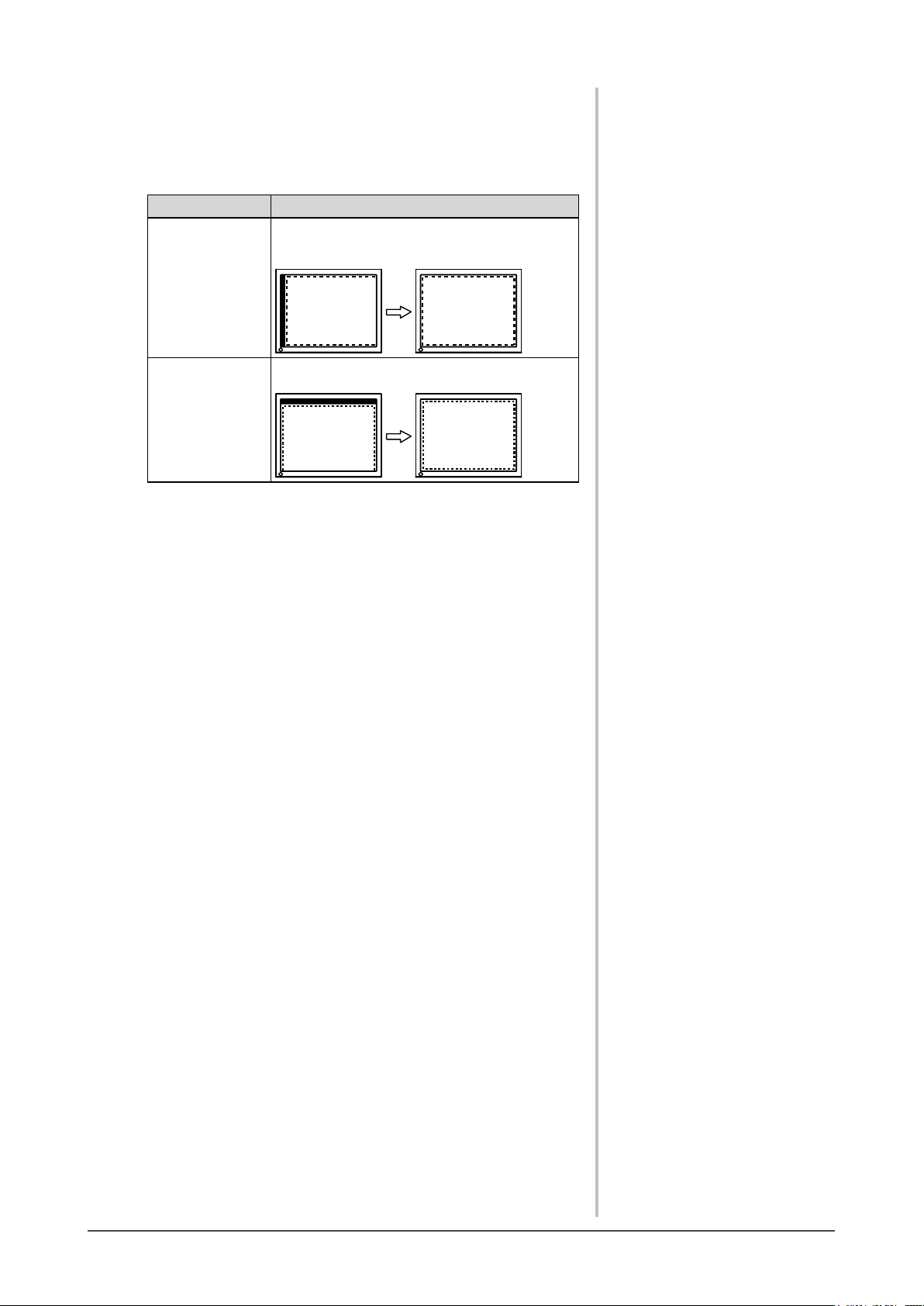

● To correct screen position [Hor.Position/Ver.Position]

Since the number of pixels and the pixel positions are fixed on
the LCD monitor, only one position is provided to display images
correctly. The position adjustment is made to shift an image to the
correct position.

Settings Screen status

Hor.Position

When the screen position on the monitor is
shifted horizontally, perform the screen position
adjustment.

Ver.Position When the screen position on the monitor is

(1) Choose the <Hor.Position>/<Ver.Position> icon in the <Screen>

menu and tap the slide bar.

The <Hor.Position>/<Ver.Position> menu appears.

(2) Trace the slide bar left and right to adjust so that the whole display

area, drawn by the dotted line frame, appears on the screen. Then
tap the slide bar.

The adjustment is completed.

Adjust the signal output range.

6

● To adjust color gradation automatically [Auto Range Adjust]

Every color gradation (0 to 255) can be displayed by adjusting the
signal output level.

(1) Choose the <Auto Range Adjust> icon in the <Screen> menu and

tap the slide bar.

“Your current setting will be lost, if you perform “Auto Range Adjust”.
Do you continue?” appears on the screen.

(2) Trace the slide bar left and right to select “Yes” and tap the slide

bar.

The output range is adjusted automatically.

shifted vertically, perform the screen adjustment.

When using the “Screen Adjustment Program”, the program is finished.

3-3 Color Adjustment

Simple Adjustment

●

To select the color mode [Color Mode]

Switching the color mode enables you to set the monitor to the appropriate
display mode.

[PC Input Signal]

An appropriate display mode is selectable out of five modes.

Modes Status

Text


Movie Suitable for playing back animated images.

Custom (PCx*) Available for making desired settings.

sRGB

* The input signal selected at that time is displayed.

Suitable for displaying text for word processing or
spreadsheets.

Suitable for displaying images such as photos or picture
images.

Suitable for color matching with sRGB compatible
peripherals.

[VIDEO Input Signal]

An appropriate display mode is selectable out of four modes.

Modes Status

Standard Standard video display.

Soft Suitable for cinema effect, etc.

Dynamic Suitable for a clearly outlined image.

Custom (VIDEOx*) Available for making desired settings.

* The input signal selected at that time is displayed.

NOTE

• The adjustment status of the Color
Mode may be changed. (Refer to
“Advanced Adjustment” on page 20.)

[Procedure]

(1) Choose the <Color> icon in the Setting menu and tap the slide bar.
(2) Choose the <Color Mode> icon in the <Color> menu and tap the slide bar.

The <Color Mode> menu appears.

(3) Trace the slide bar left and right to select the desired mode and tap the slide

bar.

The color mode setting is completed.

Chapter 3 Settings and Adjustment

19

20

Chapter 3 Settings and Adjustment

Advanced Adjustment

●

To adjust/set Color Mode

Independent adjustments/settings and saving of the Color adjustment are
available for each mode.

[PC Input Signal]

Icon Function

Brightness

Black Level

Contrast

Saturation

Hue

Temperature

Advanced Settings

OutlineEnhancer

ContrastEnhancer

Gain

: Adjustment available

✓

Text

Picture Movie

✓ ✓ ✓ ✓ ✓

− − −

−

✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

−

−

✓ ✓ ✓

✓ ✓ ✓

− − −

−: Adjustment unavailable

Color mode

Custom

(PCx*)

✓

✓

sRGB

Attention

• Perform [Auto Range Adjust]
before starting color adjustment for
analog input signals sent from a PC.
Refer to “To adjust color gradation
automatically” on page 18.

• Wait 30 minutes or more from
monitor power on before starting the
color adjustment.

• Choose <Reset> in the <Color> menu
to revert to the default settings (factory

−

−

−

−

−

−

−

settings) of hue of the color mode
selected.

• The same image may be seen in
different colors on multiple monitors
due to their monitor-specific
characteristics. Make fine color
adjustment visually when matching
colors on multiple monitors.

NOTE

• The adjustment functions differ
depending on the mode. For details,
refer to the tables at left.

−

Gamma

Reset

[VIDEO Input Signal]

Icon Function

Brightness

Black Level

Contrast

Saturation

Hue

Temperature

Advanced Settings

OutlineEnhancer

ContrastEnhancer

− − −

✓ ✓ ✓ ✓ ✓

: Adjustment available

✓

Standard Soft Dynamic

−: Adjustment unavailable

Color mode

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓ ✓ ✓ ✓

✓

−

Custom

(VIDEOx*)

Gamma

Noise Filter

I/P Conversion

Reset

* The input signal selected at that time is displayed.

− − −

− − −

− − −

✓ ✓ ✓ ✓

✓

✓

✓

●

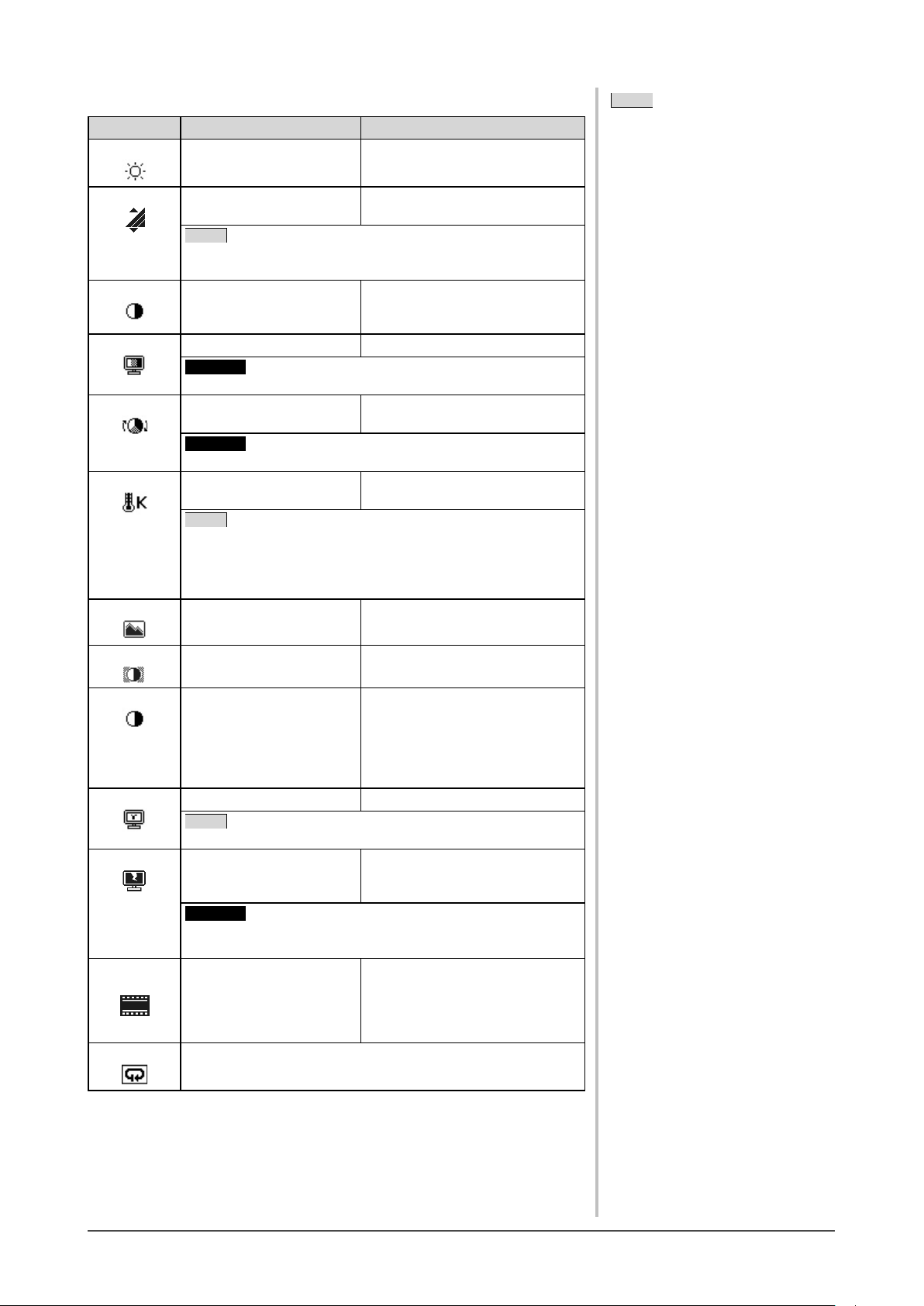

Adjustment items

Menu Description Adjustment range

Brightness

To adjust the full screen

0 to 100%

brightness as desired

NOTE

• The values shown in the “%” are
available only as reference.

Black Level To adjust the black level as

0 to 100%

desired

NOTE

• RGB (Red, Green, Blue) is adjusted respectively for PC input
signal, and RGB is adjusted together for VIDEO input signal.

Contrast To adjust the contrast of the


0 to 100%
Every color gradation can be
displayed when setting to 50%.

Saturation To adjust color saturation -50 to 50

Attention

• This function may not display every color gradation.

Hue To produce a desired skin

-50 to 50

color, etc.

Attention

• This function may not display every color gradation.

Temperature

To select the color
temperature

NOTE

4000K to 10000K, for every 500K
as a unit. (Including 9300K)

• Setting the value to “Off” presents the natural color
temperature of the panel.

• The values shown in the Kelvin (K) are available only as
reference.

OutlineEnhancer

This emphasizes the outline

-5 to 5

of images by shading

ContrastEnhancer

This can change the feeling

Enable/Disable

of contrast in the image

Gain To adjust red, green, and

blue to a desired color tone
respectively

0 to 100%
Adjust the respective brightness of
red/green/blue to make a desired
color tone. Display an image with
white or gray background for
adjustment

Gamma To adjust the gamma value 1.8/2.0/2.2/2.4

NOTE

• Digital input signal is recommended for gamma value setting.

Noise Filter To reduce a precise

High/Low/Disable
noise or a noise at MPEG
compression

Attention

• The screen image may be degraded depending on the

setting.

I/P

Conversion

To set the I/P (Interlace
progressive) conversion’s
processing methods

Auto/Cinema/Moving Image/Still


Select one of the above according

to the screen image displayed on

the monitor.

Reset To reset the color settings of the selected Color mode to the

default settings

Chapter 3 Settings and Adjustment

21

22

Chapter 3 Settings and Adjustment

[Procedure]

(1) Choose the <Color> icon in the Setting menu and tap the slide bar.
(2) Choose the <Color Mode> icon in the <Color> menu and tap the slide bar.
(3) Select the desired color mode in the <Color Mode> menu and tap the slide

bar.

(4) Select the desired function to adjust/set in the <Color> menu and tap the

slide bar.

The selected function menu appears.

(5) Trace the slide bar left and right to adjust/set the values and tap the slide

bar.

The adjustment/settings are completed.

● To adjust the brightness automatically [BrightRegulator]

The screen brightness is automatically adjusted corresponding to both the
brightness of the image and the environmental brightness detected by the sensor
at the lower side of the monitor.

[Procedure]

(1) Choose the <Monitor Settings> icon in the Setting menu and tap the slide

bar.

(2) Choose the <BrightRegulator> icon in the <Monitor Settings> menu and

tap the slide bar.

The <BrightRegulator> menu appears.

(3) Trace the slide bar left and right to select either “High”, “Standard” or

“Disable” and tap the slide bar.

The BrightRegulator setting is completed.

NOTE

• Do not cover the sensor.

• Set to “High” if you feel a little
brighter with “Standard” setting
status.

3-4 Sound Adjustment

●

To adjust [Volume/Treble/Bass/Balance/Sound Level].

Menu Description Adjustment range

Volume

Treble

Bass

Balance

Sound Level

To adjust the volume 0 to 30

To adjust the sound
strengths/weaknesses in the
high sound area

To adjust the sound
strengths/weaknesses in the
low sound area

To adjust the volume balance
on left and right sides

To adjust the input sound
level

-15 to 15

-15 to 15

-32 to 32

-3 to 3

NOTE

• The sound adjustments other than
[Sound Level] are available to
perform for speakers and headphones
respectively. When adjusting the
headphone sound, connect the
headphone to the monitor.

• The volume difference may occur
depending on the kinds of input
signals, since the average sound level
of the external equipment differs. For
example, if the volume difference of
VIDEO 1 and VIDEO 2 input signals
becomes large, you can reduce the
volume difference between them by
raising the [Sound Level] of the lower
volume side.

[Procedure]

(1) Choose the <Sound> icon in the Setting menu and tap the slide bar.
(2) Choose the desired function to adjust in the <Sound> menu and tap the slide

bar.

The selected function menu appears.

(3) Trace the slide bar left and right to adjust the value and tap the slide bar.

The adjustment is completed.

NOTE

• The <Volume> menu can be displayed
by tapping the slide bar when no
menu is displayed on the screen.

Attention

• Depending on the volume setting,
sound distortion may occur. In such
a case, turn the volume down. The
sound distortion may be diminished.

Chapter 3 Settings and Adjustment

23

24

Chapter 3 Settings and Adjustment

3-5 PinP (Picture in Picture) Display

●

To display the PC input signal screen (Main Window)
and the VIDEO input signal screen (Sub-Window)
simultaneously [PinP]

When a PC and an AV equipment are connected to the monitor, the monitor
allows you to display both screen images on the Main Window and the Sub­Window.

PC (PC input
signal screen)

Main Window
(PC input
signal screen)

Sub-Window
(VIDEO input

AV equipment
(VIDEO input
signal screen)

[Procedure]

(1) Choose the <PinP Settings> icon in the Setting menu and tap the slide bar.
(2) Choose the <PinP> icon in the <PinP Settings> menu and tap the slide bar.

The <PinP> menu appears.

(3) Trace the slide bar left and right to select “On” and tap the slide bar.

The setting is completed.

signal screen)

NOTE

• When the <PinP> is set to “On”, the
monitor displays the images for the
PC input signal currently selected and
the VIDEO input signal previously
selected in dual screen.

• In PinP display mode, both sounds for
Main Window and Sub-Window are
heard simultaneously.
The sound level of the Sub-Window
effects on that of the Main Window.

• Touching
seconds enables you to change the
display mode to PinP mode.

• Touching
Selection menu enables you to change
the display mode to PinP mode. (Refer
to page 15.)

Attention

• When selecting the VIDEO input
signal, the PinP function is not
available.

• The Main Window is not used for
VIDEO input signal display and the
Sub-Window is not used for PC input
signal display.

for approx. two

and using the Input

■

To return to the normal display mode (Single display) from PinP

display mode

[Procedure]

(1) Choose the <PinP Settings> icon in the Setting menu and tap the slide bar.
(2) Choose the <PinP> icon in the <PinP Settings> menu and tap the slide bar.

The <PinP> menu appears.

(3) Trace the slide bar left and right to select “Off” and tap the slide bar.

The PinP display mode is canceled.

NOTE

• Touching for approx. two
seconds in PinP display mode also
allows you to return to the single
display mode.

■

To switch the input signal for Main Window/Sub-Window

[Procedure]

(1) Touch

The Input Selection menu appears.

.

(2) Trace the slide bar left and right to select <Main Window>/<Sub-Window>

and tap the slide bar.

The Input Selection menu for <Main Window>/<Sub-Window> appears.

(3) Trace the slide bar left and right to select the input signal and tap the slide

bar.

The input signal is changed.

[Input selection for Main Window]
Ex.: PC 1→PC 2 for Main Window

PC 1

PC 2

Attention

• The setting items of the Input
Selection menu in PinP display mode
is different from those in the single
display mode.

• When changing the Main Window
input signal (PC input signal), [USB]
setting should be changed. (Refer to
page 15.)

VIDEO 1

[Input selection for Sub-Window]
Ex.; VIDEO 1→VIDEO 2 for Sub­Window

■

To hide the Sub-Window display with its sound being heard

PC 1

VIDEO 1

VIDEO 1

PC 1

VIDEO 2

[Sub-Window Off]

In PinP display mode, this function allows you to hide the Sub-Window display
with its sound heard.
If you want to show the PC screen display temporarily, this function is
available.

[Procedure]

(1) Touch

The Input Selection menu appears.

.

(2) Trace the slide bar left and right to select “Sub-Window Off ” and tap the

slide bar.

Only the Sub-Window display disappears temporarily.

NOTE

• Touch to display the Sub­Window display again.

Chapter 3 Settings and Adjustment

25

26

Chapter 3 Settings and Adjustment

●

To change the Sub-Window position [Sub-Window
Position]

You can select the Sub-Window position either “Upper Left”, “Upper Right”,
“Lower Left” and “Lower Right”.

Upper Left Upper Right

Lower Left Lower Right

[Procedure]

(1) Choose the <PinP Settings> icon in the Setting menu and tap the slide bar.
(2) Choose the <Sub-Window Position> icon in the <PinP Settings> menu and

tap the slide bar.

The <Sub-Window Position> menu appears.

(3) Trace the slide bar left and right to select either “Upper Left”, “Upper

Right”, “Lower Left” or “Lower Right” and tap the slide bar.

The Sub-Window position setting is completed.

●

To set the translucent level for Sub-Window [Translucent]

In PinP display mode, the Sub-Window is available to set in translucent. So you
can see the Main Window through the Sub-Window.

[Procedure]

(1) Choose the <PinP Settings> icon in the Setting menu and tap the slide bar.
(2) Choose the <Translucent> icon in the <PinP Settings> menu and tap the

slide bar.

The <Translucent> menu appears.

(3) Trace the slide bar left and right to select either “0”, “1”, “2” and “3” and

tap the slide bar.

The translucent setting is completed.

●

To select the Sub-Window display size [Sub-Window Size]

The Sub-Window display size is automatically changed according to the aspect
information from the input signal of an AV equipment (Auto Screen Size).
However, the Sub-Window display size may be changed manually in the <Sub­Window Size> menu.

[Procedure]

(1) Choose the <PinP Settings> icon in the Setting menu and tap the slide bar.
(2) Select the <Sub-Window Size> icon in the <PinP Settings> menu and tap

the slide bar.

The <Sub-Window Size> menu appears.

(3) Trace the slide bar left and right to select either “4:3” and “16:9”, and tap

the slide bar.

The Sub-Window size setting is completed.

NOTE

• If you set the translucent setting
to “0”, the Sub-Window is not
transparent at all. (The transparency is
as shown below. “0”: 0%, “1”: 25%,
“2”: 50%, “3”: 75%)

Attention

• When using 1080i/720p/1080p input
signal, the display size of the Sub­Window display is fixed to 16:9.

NOTE

• If you do not want to change the Sub­Window size automatically, set the
<Auto Screen Size> in the <Monitor
Settings> to “Disable”.

3-6 Screen Size Changing

●

To change the screen image/projected image size
appearing on the screen

[PC Input Signal]

If you set the resolution other than recommended resolution on the monitor, the
monitor shows the image automatically enlarged on the whole screen. The
<Screen Size> menu allows you to change the screen display size.

Settings Status

Full Screen Displays an image in full screen. Images are distorted in some

cases because the vertical rate is not equal to the horizontal
rate.

Enlarged Displays an image in full screen. In some cases, a blank

horizontal or vertical border appears to equalize the vertical
rate and the horizontal rate.

Normal Displays images with the specified resolution.

Ex.: 1280 × 1024 display

Full Screen

(default setting)

Enlarged Normal

[Screen Size]

(1920 × 1200) (1500 × 1200) (1280 × 1024)

[Procedure]

(1) Choose the <Screen Size> icon in the Setting menu and tap the slide bar.

The <Screen Size> menu appears.

(2) Trace the slide bar left and right to select either “Full Screen”, “Enlarged”,

or “Normal” and tap the slide bar.

The screen size setting is completed.

[VIDEO Input Signal]

The screen display size is automatically changed according to the aspect
information from the input signal of an AV equipment (Auto Screen Size).
However, the screen size may be changed manually in the <Screen Size> menu.

Settings Status

4:3 Displays the image in 4:3 size. The borders are shown on both

sides of the screen. 16:9 sized images from the input signal
are compressed horizontally and spread vertically.

Letterbox The black borders on the upper and lower sides of the

image are cut and the images are displayed on the whole
screen. Except for Letterbox, the upper and lower parts of the
projected image are cut.

16:9 Displays the image in 16:9 size with the left and right parts of

the projected image slightly cut off.
In this mode, 4:3 sized image from the input signal are slightly
compressed vertically and spread horizontally.

16:9 Full Displays the entire image in 16:9 size on the whole screen

without cutting any part. The borders appear on the top and
bottom sides of the screen.
(Selectable only when receiving 1080i/720p/1080p input
signal)

NOTE

• If you do not want to change the
screen display size automatically,
set the <Auto Screen Size> in
the <Monitor Settings> menu to
“Disable”.

Chapter 3 Settings and Adjustment

27

28

Chapter 3 Settings and Adjustment

The screen sizes and kinds are shown below.
The available setting value differs depending on the input signal.

Input signal:Aspect ratio

(Format)

Screen size

4:3

Letterbox

16:9

16:9 Full

* Letterbox shows a 4:3 screen display keeping the vertical and horizontal ratio of 16:9.

4:3

(480i/480p/

576i/576p)

Letterbox*

(480i/480p/

576i/576p)

− − −

(480i/480p/

576i/576p)

16:9

(1080i/720p/1080p)

−

−

[Procedure]

(1) Choose the <Screen Size> icon in the Setting menu and tap the slide bar.

The <Screen Size> menu appears.

(2) Trace the slide bar left and right to select either “4:3”, “Letterbox”, “16:9”

or “16:9 Full” and tap the slide bar.

The screen size setting is completed.

NOTE

• Select “16:9” when the noise appears
around the peripheral portions of
the screen image with “16:9 Full”
selected.

3-7 Off Timer Setting

●

To set monitor power-off time [Off Timer]

This function allows the monitor to automatically turn off after a specified time
has passed.

[Procedure]

(1) Choose the <Off Timer> icon in the Setting menu and tap the slide bar.

The <Off Timer> menu appears.

(2) Trace the slide bar left and right to set the monitor power-off time in 15

minutes increments (15 to 180 minutes) and tap the slide bar.

The setting is completed.

[Checking/Changing the remaining power-off time]

(1) Choose the <Off Timer> icon in the Setting menu and tap the slide bar.

The current remaining time is displayed.

(2) When changing the remaining power-off time, while the remaining time is

displayed, trace the slide bar left and right to change the remaining time.
Then tap the slide bar.

3-8 Monitor Power-saving Mode Setting

●

To set the resume conditions from the power-saving mode
[Signal Detection]

This function sets the power-saving mode condition when no input signal is
detected on the current selected input signal and the resume conditions from the
power-saving mode.

Attention

• “The power will turn off soon. To
cancel Off Timer, touch the slide bar.”
appears on the screen one minutes
before the monitor turns off.

NOTE

• If it is set to “Disable”, the off-timer
setting is released.

Settings No input signal Resume conditions from

power-saving mode

All Input
Signals

After 5 seconds have passed

Current Input
Signal

Disable After 45 seconds with no input

with no input signal detected,
the monitor enters the power­saving mode.

signal status, the monitor
enters power off status.

All input signals are watched
and if any signal is detected
in the no-signal status, the
monitor resumes to display
the projected image with the
detected input signal.

The signal selected when
entering the power-saving
mode is watched and if any
signal is detected in no signal
status, the monitor resumes
to display the projected image
with the current input signal
selected.

[Procedure]

(1) Choose the <Monitor Settings> icon in the Setting menu and tap the slide

bar.

(2) Choose the <Signal Detection > icon in the <Monitor Settings> menu and

tap the slide bar.

The <Signal Detection > menu appears.

(3) Trace the slide bar left and right to select either “All Input Signals”, “Current

Input Signal” or “Disable” and tap the slide bar.

The signal detection setting is completed.

Attention

• The monitor watches the input signal
status. If the input signal is detected
before entering the power-saving
mode, the signal detection is not
recognized as a resume condition.

• When displayed in PinP, the monitor
does not shift to power-saving mode.

• If it is set to “All Input Signals”, the
monitor may not resume from the
power-saving mode depending on
the connected external equipments or
some conditions. When the monitor
does not resume, change the setting or
touch the slide bar and then select the
input signal for the desired image sent
from the equipment.

Attention

• Unplugging the power cord
completely shuts off power supply to
the monitor.

• Even if the monitor enters the sleep
mode, all the devices connected
to the USB ports (upstream and
downstream) work.

(Therefore the monitor power

consumption varies with connected
devices even in the power-saving
mode.)

Chapter 3 Settings and Adjustment

29

30

Chapter 3 Settings and Adjustment

3-9 Power Indicator/EIZO Logo Display

Setting

●

To turn off the power indicator while a screen is displayed
[Power Indicator]

This function enables you to turn off the Power indicator (blue) while a screen
is displayed.

[Procedure]

(1) Choose the <Monitor Settings> icon in the Setting menu and tap the slide

bar.

(2) Choose the <Power Indicator> icon in the <Monitor Settings> menu and tap

the slide bar.

The <Power Indicator> menu appears.

(3) Trace the slide bar left and right to select “Off” and tap the slide bar.

The power indicator setting is completed.

●

To set EIZO logo display/no EIZO logo display when the
monitor turns on [EIZO Logo Appearing Function]

When the unit is turned on, the EIZO logo appears at the center of the screen.
This function enables you to select Logo display/No logo display.

[Setting Methods]

(1) Touch
(2) Touch for approx. three seconds.

The EIZO logo does not appear on the screen.

to turn off the monitor.

NOTE

• The Power indicator lights up at
power on with the default setting.

NOTE

• The logo appears with the default
setting.

[Resetting]

(1) Touch

to turn off the monitor.

(2) Touch for approx. three seconds.

The logo appears again.

3-10 Beeper Setting

●

To set the beeper [Beep]

Set the beeper on/off for operation tone of the switches, connection error, etc.

Sound type Status

Short beep • Sounds whenever a basic switch operation is

performed.

Long beep • Sounds when “On” or “Off” in the operation lock

function is selected.

• Sounds when “On” or “Off” in the EIZO logo
appearing function is selected.

• Sounds when “On” or “Off” in PinP display function is
selected by touching

• Sounds when the setting and/or adjustment value is
decided by the slide bar.

Consecutive beeps • Sounds when the monitor is not connected correctly.

• Sounds when a PC or an AV equipment does not turn
on.

• Sounds when the signal frequency beyond
specification is received.

for approx. two seconds.

[Procedure]

(1) Choose the <Monitor Settings> icon in the Setting menu and tap the slide

bar.

(2) Choose the <Beep> icon in the <Monitor Settings> menu and tap the slide

bar.

The <Beep> menu appears.

(3) Trace the slide bar left and right to select either “On” or “Off” and tap the

slide bar.

The beep setting is completed.

3-11 Information Checking

●

To check settings, usage time, etc. [Information]

This function allows you to check settings, model name, serial number, and
usage time of the monitor.
(1) Choose the <Information> icon in the Setting menu and tap the slide bar.

The <Information> menu appears.

(2) Tap the slide bar to check the settings, etc.

3-12 Language Setting to be displayed

●

To set the language displayed in the menu [Language]

NOTE

• The usage time is not always “0”
when you purchase the monitor due
to factory inspection.

This function enables you to select the Setting menu language.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese/Simplified Chinese/
Traditional Chinese

[Procedure]

(1) Choose the <Monitor Settings> icon in the Setting menu and tap the slide

bar.

(2) Choose the <Language> icon in the <Monitor Settings> menu and tap the

slide bar.

The <Language> menu appears.

(3) Trace the slide bar left and right to select the language and tap the slide bar.

The language setting is completed.

Chapter 3 Settings and Adjustment

31

32

Chapter 4 Troubleshooting

Chapter 4 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

• No picture problems→See No. 1 and 2 in [PC Input Signal], No. 1 and 2 in [VIDEO Input Signal]

• Imaging problems→See No. 1 - 6 in [Common], No. 3 - 7 in [PC Input Signal], No.3 in [VIDEO Input Signal]

• Other problems→See No. 7 - 11 in [Common], No. 8 in [PC Input Signal], No. 4 and 5 in [VIDEO Input Signal]

• USB problems→See No. 9 in [PC Input Signal]

[Common]

Problems Possible cause and remedy

1. The screen is too bright or too dark. • Adjust <Brightness> or <Contrast> from the <Color>

menu.
(The LCD monitor backlight has a fixed life span. When
the screen becomes dark or begins to flicker, contact
your local dealer.)

2. Afterimages appear. • Use a screen saver or off timer function for a long-time
image display.

• Afterimages are particular to LCD monitors. Avoid
displaying the same image for a long time.

3. Green/red/blue/white dots or defective dots remain
on the screen.

4. Interference patterns or fingerprints remain on the
screen.

5. Noise appears on the screen. • When utilizing [ContrastEnhancer] and/or

6. Characters are pigmentized. • When [OutlineEnhancer] is set excessively, the

7. No sound/Volume control is not available. • Check whether the audio cable is connected properly.

8. Sound volume varies depending on the equipment
connected.

9. The monitor turns off suddenly. • Check whether the [Off Timer] function is set. Check the

10. Unselectable menu items • The selectable menu items differ depending on the input

11. Switches do not operate. • Check whether the switches are locked. (Refer to page

• This is due to LCD panel characteristics and is not a
failure.

• Leave the monitor with a white screen. The symptom
may disappear.

[OutlineEnhancer] function, the normal images may not
be displayed since the display gradation abnormality or
noise may occur on the screen depending on the display
pattern.

characters on the screen may be affected by color.

• Check whether a headphone is connected to the
headphone jack.

• Adjust the sound volume. (Refer to page 23.)

• Adjust the volume difference between the equipment
connected by the <Sound Level> in the <Sound> menu.
(Refer to page 23.)

[Off Timer] setting. (Refer to page 29.)

• Check whether “Disable” is set in the <Signal Detection>
of the <Monitor Settings> menu. (Refer to page 29.)

signal. So, please check the menu list.
(Refer to the menu list on page 41.)

14.)

[PC Input Signal]

Problems Possible cause and remedy

1. No Picture

• Power indicator does not light up.

• Power indicator lights in orange. • Switch the input signal with

• Power indicator lights in blue. • Check whether the PC is properly connected to the

2. The message below appears.

• The message below shows that the input signal is
out of the specified frequency range. (Such signal
frequency is displayed in red.)

Example:

• Check whether the power cord is correctly connected.

• Touch

• Press a key on the keyboard or click the mouse.

• Turn on the PC.

monitor.

• Check the gain setting.

These messages appear when the input signal is incorrect
even if the monitor is functioning.

• Change the mode appropriately using the graphics
board’s utility software. Refer to the manual of the
graphics board for details.

.

.

3. The image is not displayed in correct resolution

even if Auto Screen Adjust is performed.

• The resolution of the input signal is not recognized
correctly and the image is displayed shrunk or
distorted.

4. The screen position is shifted.

5. Vertical bars appear on the screen or a part of the

image is flickering.

6. Whole screen is flickering or blurring. • Adjust <Phase> from the <Screen> menu. (Refer to

• Adjust <Resolution> from the <Screen> menu so that
the input signal resolution equals the resolution in the
<Resolution> menu.
If the resolution is set, the [Auto Screen Adjust] is
performed again automatically.

• Adjust <Hor.Position/Ver.Position> from the <Screen>
menu. (Refer to page 18.)

• If the problem persists, use the graphics board’s utility
software if available to change the display position.

• Adjust <Clock> from the <Screen> menu. (Refer to page

17.)

When the resolution is set to 1920 × 1200, the symptom

may not be improved depending on the input signal used
even if the [Clock] adjustment is performed. In this case,
change the resolution to 1600 × 1200, 1920 × 1080, etc.

page 17.)

7. Noise appears on the screen. • When entering the signals of analog input, change the
setting in <Signal Filter> from the <Screen> menu. The
symptom may not be improved depending on the input
signal used. It is recommended that you change the
analog input signal to digital.

• When receiving HDCP signals, the normal images may
not be displayed immediately.

Chapter 4 Troubleshooting

33

34

Chapter 4 Troubleshooting

Problems Possible cause and remedy

8. No sound/Volume control is not available. • Check whether the [USB] setting is corresponding to the

input signal from the PC.

9. The USB devices connected to the monitor do not

work.

• Check whether the USB cable is connected correctly.

• Check whether the [USB] setting is in conformance with
the input signal sent from the PC. (Refer to page 15.)

• Change the USB port to another one (downstream
port). If the PC or peripheral devices work correctly by
changing the USB port, contact your local dealer. (Refer
to the manual of the PC for details.)

• Please perform the following to check the status.

- Reboot the PC.

- Connect the PC and peripheral devices directly.

- If the PC or peripheral devices work correctly without

connecting via the monitor (working as a USB hub),
please contact your local dealer.

• Check whether the PC and OS are USB compliant. (For
USB compliance of the respective devices, consult their
manufacturers.)

• Check the PC’s BIOS setting for USB when using
Windows. (Refer to the manual of the PC for detail.)

[VIDEO Input Signal]

Problems Possible cause and remedy

1. No Picture

• Power indicator does not light up.

• Power indicator lights in orange. • Switch the input signal with

• Power indicator lights in blue. • Check whether the AV equipment is properly connected

2. The message below appears. These messages appear when the input signal is incorrect

• The frequency of the signal is outside the specification.
Example:

3. The color shown on the display is not correct. • Change the color space of the video input signal using

4. The video images are out of control by the FF/REW

operation when a video equipment is connected to
the monitor.

5. No sound/Volume control is not available. • Check whether the applicable format of the equipment

• Check whether the power cord is correctly connected.

• Touch

• Turn on the AV equipment.

to the monitor.

• Switch the setting using the <Field Rate> in the <Monitor
Settings>.

even if the monitor is functioning.

• Confirm the digital signal format by referring to the
instruction manual of the equipment connected. (Refer to
page 39.)

<Color Space> in the <Monitor Settings> menu.

(Normally, select “Auto”.)

• The monitor mechanism causes the image out of control
status a little. This is not a malfunction.

connected is correct.
Refer to page 39 for the sound input format of the
monitor.

.

.

Chapter 4 Troubleshooting

35

●

Messages List

The meanings of the main messages appearing on the screen are described below.

Messages Description

“Your current setting will be lost, if you perform “Auto
Screen Adjust”. Do you continue?”

“Your current setting will be lost, if you perform “Auto
Range Adjust”. Do you continue?”

“Your current color data will be lost.”

“If the field rate is changed, no picture may be displayed on
screen. Do you change the setting?”

“If the USB setting is changed, the USB connection to the
selected PC will be lost. Do you change the setting?”

“The power will turn off soon. To cancel Off Timer, touch
the slide bar.”

“All settings except for the field rate and USB are reset.”

“Volume adjust does not support this sound signal.” Appears when selecting <Volume> menu or performing

Appears when performing [Auto Screen Adjust].

Appears when performing [Auto Range Adjust].

Appears when performing <Reset> in the <Color> menu.
Returns the color mode setting currently selected to the
default settings.

Appears when changing the settings of [Field Rate].

Appears when changing the settings of [USB].

• Do not switch the settings in the following cases.

- When connecting a memory device such as a USB

memory to the monitor
The data may be lost and damaged. Be sure to change
the USB setting after removing the memory device.

- When an application such as a sound playback, etc.

works
The sound may not output if the setting is returned to
the original. Be sure to change the USB setting after
exiting from the application.

Appears on the display from one minute before the power
turns off to the power-off time when the Off Timer is set.
Touching the slide bar while the message appears will
release the Off Timer setting and the message disappears.

Appears when performing [Reset] in the Setting menu. Set
all the settings except for [Field Rate], [USB] and [Volume]
to the default settings.

the shortcut menu of the volume while receiving the sound
signal not corresponding to the monitor. In this case, no
sound is output.

Chapter 4 Troubleshooting

36

Chapter 5 Reference

5-1 Attaching an Arm

The stand can be removed and replaced with an arm (or another stand) to be
attached to the monitor. Use an arm or stand of EIZO option.

[Attaching]

Lay the LCD monitor on a soft cloth spread over on a stable

1

surface with the panel surface facing down.

Remove the stand. (Prepare a screwdriver.)

2

Unscrew the four screws securing the unit and the stand with the
screwdriver.

Attach the monitor to the arm or stand.

3

Secure the monitor to the arm or stand using the screws specified in the
user’s manual of the arm or stand.

Arm

Attention

• When attaching an arm or stand,
follow the instructions of their user’s
manual.

• When using another manufacturer’s
arm or stand, confirm the following in
advance and select one conforming to
the VESA standard. Use M4 × 12 mm
screws supplied with this monitor.
– Clearance between the screw holes:

100 mm × 100 mm
– Thickness of plate: 2.6 mm
– Strong enough to support weight of

the monitor unit (except the stand)

and attachments such as cables.

• Attach an arm or stand to meet the
following tilt angles of the monitor.
Do not use the monitor with the tilt
angle beyond the values shown below.

- Upper: 60° Lower: 45°

• Do not turn the monitor lengthwise.

• Connect the cables after attaching an
arm.

Chapter 5 Reference

37

38

Chapter 5 Reference

5-2 Cleaning

Clean the monitor periodically to keep the monitor clean and extend its life.

Cabinet

Clean the cabinet with a soft cloth dampened with a little mild detergent.

LCD Panel

• Clean the LCD panel with a soft cloth such as cotton cloth or lens cleaning
paper.

• Remove persistent stains gently with a cloth dampened with a little water, and
then clean the LCD panel again with a dry cloth for better finishing.

Attention

• Never use any solvents or chemicals,
such as thinner, benzene, wax,
alcohol, and abrasive cleaner, which
may damage the cabinet or LCD
panel.

NOTE

• Optional ScreenCleaner is
recommended for cleaning the panel
surface.

5-3 Specifications

Panel LCD Panel 24.1-inch (610 mm) TFT color LCD with anti-glare hard coating

Dot Pitch 0.270mm

Resolution 1920 dots × 1200 lines

Max. Display
Color

Display Area
(H × V)

PC Input Signal

Digital Input
Signal (PC 1)

Analog Input
Signal (PC 2)

Viewing angle: Vertical 178°, Horizontal 178° (CR: 10 or more)

Approx. 16.77 million colors: Applicable to 8 bit (1048.77 million colors)

518.4mm × 324.0mm

Input Signal Connector DVI-D × 1

Horizontal Scan Frequency 31.5 - 76kHz: each preset signal ±1kHz

Vertical Scan Frequency

Max. Dot Clock 162 MHz

Signal Transmission System

Input Signal Connector D-Sub mini 15-pin × 1

Horizontal Scan Frequency 31.5 - 80kHz: each preset signal ±1kHz

Vertical Scan Frequency

Max. Dot Clock 162MHz

59 - 61Hz: each preset signal ±1Hz
(VGA TEXT: 69 - 71Hz)
(49 - 51Hz is also available@720p/1080p

TMDS (Single Link)

55 - 76Hz: each preset signal ±1Hz
(49 - 51Hz is also available@720p/1080p

1

*

)

1

*

)

Input Signal (Sync) Separate, TTL, positive/negative

Input Signal (Video)

Video Signal Memory

Audio Input USB communication

Plug and Play VESA DDC2B

VIDEO Input
Signal

Audio Output Audio Output Terminal Ø3.5 stereo mini jack × 1

USB Standard USB Specification Revision 2.0

USB Port Upstream port × 2, Downstream port × 2

Power Supply 100 - 120 VAC±10%, 50/60Hz, 1.1A

HDMI Input

2

*

Signal
(VIDEO 1/2)

Input Signal Connector HDMI Type A × 2

Applicable Format Video signal

Headphone Jack Ø3.5 stereo mini jack × 1

200 - 240 VAC±10%, 50/60Hz, 0.55A

Analog, positive (0.7Vp-p/75Ω)

50 (preset: 34)

- 525i (480i)/525p (480p)/1125i (1080i)/750p (720p)/
1125p (1080p) :60Hz

- 625i (576i)/625p (576p)/1125i (1080i)/750p (720p)/
1125p (1080p) :50Hz

Audio signal

- 2ch linear PCM (32kHz/44.1kHz/48kHz/88.2kHz/
96kHz/176.4kHz/192kHz)

Power Consumption Max.: 110W (with USB load)

Min.: 100W (normal mode) (without USB load)
Power-saving mode:

• When <Signal Detection> setting is set to “All Input Signals”:
7W or less (at no input signal, without USB load)

• When <Signal Detection> setting is set to “Current Input Signal”:
2W or less (at PC input signal selection, at no input signal, without USB load)

Power switch Off: 1W or less

Chapter 5 Reference

39

40

Chapter 5 Reference

Dimensions (Main unit) 566 mm (22.3”) (W) × 362.5 - 480mm (14.3 - 18.9”) (H) × 230mm (9.1”) (D)

566(22.3)

372(14.6)

293.5(11.6)

11.1(0.44)

363.5(14.3)

365.6(14.4)

60

˚

60.5(2.38)

23.5(0.93)

522(20.6)

24(0.94)

520.4(20.5)

326(12.8)

22.8(0.9)

25(0.98)

116(4.6)

14.5(0.57)

80(3.15)

TI

LT

ARCSWING

479.4(18.9)

5

˚

25

˚

Dimensions (without Stand) 566mm (22.3”) (W) × 396mm (15.6”) (H) × 92.3mm (3.6”) (D)

Weight (Main unit)

Weight (without Stand)

10.3kg (22.7 lbs)

7.9kg (17.4 lbs)

Environmental Conditions Operating temperature : 0°C - 35°C

Storage temperature : -20°C - 60°C
Relative humidity: 30% - 80% R.H. (no condensation)

*1 For some AV equipment
*2 The monitor is in compliance with the HighDefinition Multimedia Interface Specification Version 1.2. The monitor is not in compliance with the

input signal from a PC and CEC (Consumer Electronics Control).
The monitor is not applicable to the xvYCC standard for the color space.

Outside Dimensions

Unit: mm (inch)

Setting menu list

Item PC 1 PC 2 VIDEO 1 VIDEO 2 PinP

Screen

Color

Sound

PinP Settings

Monitor Settings

USB

Screen Size

Off Timer

Information

Reset

* When the Main Window uses PC 2 at PinP display

Auto Screen Adjust

Auto Range Adjust

Clock

Phase

Hor.Position

Ver.Position

Resolution

Signal Filter

Color Mode

Brightness

Black Level

Contrast

Saturation

Hue

Temperature

Advanced Settings

Reset

Volume

Treble

Bass

Balance

Sound Level

PinP

Sub-Window Position

Translucent

Sub-Window Size

Language

BrightRegulator

Signal Detection

Power Indicator

Beep

Auto Screen Size

Color Space

Field Rate

OutlineEnhancer

ContrastEnhancer

Gain

Gamma

Noise Filter

I/P Conversion

−

−

−

−

−

−

−

−

✓
✓
✓
✓
✓
✓
✓
✓

− −

− −

− −

− −

− −

− −

− −

− −

✓
✓
✓
✓
✓
✓
✓

✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓

− −

✓

✓ ✓ ✓ ✓ ✓

− −

− −

✓ ✓

✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓

− −

✓ ✓

− − − −

− − − −

− − − −

✓ ✓

− −

✓
✓
✓

✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓

− −

− −

− −

✓ ✓
✓ ✓

✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓
✓ ✓ ✓ ✓ ✓

*

*

*

*

*

*

*

*

−

−

−

−

−

−

Chapter 5 Reference

41

42

Chapter 5 Reference

Main default settings (factory settings)

PC Input Signal VIDEO Input Signal

Color Mode Custom

Volume

PinP Off −

Language English

BrightRegulator Standard

Signal Detection Current Input Signal

Power Indicator On

Beep On

Auto Screen Size − Enable

Color Space − Auto

USB PC 1

Screen Size Full Screen [480i/480p/576i/576p signal]

Off Timer

Speaker 30

Headphone 10

4:3

[1080i/720p/1080p signal]

16:9 Full

Disable

Option list

Cleaning Kit EIZO ScreenCleaner

Arm LA-011-W (wall mount arm [1-axis])

LA-030-W (wall mount arm [3-axes])

LA-131-D (flexible arm [3-axes])

5-4 Glossary

Clock

The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in
use, when the analog input signal is converted to a digital signal for image display.
This is called clock adjustment. If the clock pulse is not set correctly, some vertical bars appear on the screen.

Color Space

Color space is a method to specify and express the color. There are YUV and RGB, etc. YUV expresses the color by
using the luminance (Y), the color difference of R (U) and the color difference of blue (V). RGB does it by using the
gradation of 3 colors of Red (R, Green (G) and Blue (B).

ContrastEnhancer

ContrastEnhancer functions to reproduce images with a taste of contrast by compensating the gamma value as well as
controlling the backlight brightness and the gain level according to the image status.

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC’s digital data without loss.
This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is
a DVI-D connector for digital input signal only. The other is a DVI-I connector for both digital and analog input
signals. The monitor is not applicable to the DVI-I input signal.

Field Rate

This is the number of times the monitor screen is redrawn in 1 second. The number of times differs depending on the
Video standard.

Gain

This is used to adjust each color parameter for red, green and blue. An LCD monitor displays the color by the light
passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen
are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume)
passing through each color’s filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma
Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value produces a high­contrast image.

HDCP (High-bandwidth Digital Contents Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps
to transmit the digital contents safely by coding the digital contents sent via DVI terminal on the output side and
decoding them on the input side.
Digital content cannot be reproduced if both the devices on the output and input sides are not applicable to the HDCP
system.

Chapter 5 Reference

43

HDMI (High-Definition Multimedia Interface)

HDMI is a digital interface standard, developed for consumer electrical appliance or AV equipment. This standard is
issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC
and a monitor. The projected image, sound and control signal without compressed enable to be sent/received with one
cable. Only the input signal of this product corresponds to the standard.

I/P (Interlace Progressive) Conversion

This enables to convert the scanning process of the screen from I (Interlace) to P (Progressive non interlace).
This is used to create a higher quality screen to reduce blur, etc. with video input signal digital processed through
DVD, etc.

OutlineEnhancer

OutlineEnhancer functions to emphasize outline of the images by emphasizing the color difference between pixels
composing the images. This may improve the texture of the material and its feel of the images.
On the contrary, it also functions to reproduce the images smoothly by gradating its outline.

Phase

Phase means the sampling timing to convert the analog input signal to a digital signal. Phase adjustment is made to
adjust the timing. It is recommended that phase adjustment be made after the clock is adjusted correctly.

Range Adjustment

Range adjustment controls the signal output levels to display every color gradation. It is recommended that range
adjustment be made before color adjustment.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor
consists of 1920 horizontal pixels and 1200 vertical pixels. At a resolution of 1920 x 1200, all pixels are illuminated
as a full screen (1:1).

sRGB (Standard RGB)

International standard for “color reproduction and color space” among peripheral devices (such as monitors, printers,
digital cameras, scanners). sRGB allows Internet users to closely match colors as a simple color matching means for
the Internet use.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen
becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.
5000K: Slightly reddish white
6500K: Warm white like paper white
9300K: Slightly bluish white

Chapter 5 Reference

44

5-5 Preset Timing

The following table shows factory preset video timing. (for analog signal only)

Frequency

Mode Dot clock

NEC PC-9821
640×400@70Hz

VGA 640×480@60Hz

VGA 720×400@70Hz

Macintosh
640×480@67Hz

Macintosh
832×624@75Hz

Macintosh
1152×870@75Hz

Macintosh
1280×960@75Hz

VESA 640×480@73Hz

VESA 640×480@75Hz

VESA 720×480@60Hz

VESA 800×600@56Hz

VESA 800×600@60Hz

VESA 800×600@72Hz

VESA 800×600@75Hz

VESA 848×480@60Hz

VESA 1024×768@60Hz

VESA 1024×768@70Hz

VESA 1024×768@75Hz

VESA 1152×864@75Hz

VESA CVT 1280×768

VESA CVT 1280×768

VESA CVT RB 1280×768

VESA 1280×960@60Hz

VESA 1280×1024@60Hz

VESA 1280×1024@75Hz

VESA 1360×768@60Hz

VESA 1600×1200@60Hz

VESA CVT
1680×1050

25.2 MHz

25.2 MHz

28.3 MHz

30.2 MHz

57.3 MHz

100.0 MHz

126.2 MHz

31.5 MHz

31.5 MHz

28.3 MHz

36.0 MHz

40.0 MHz

50.0 MHz

49.5 MHz

33.8 MHz

65.0 MHz

75.0 MHz

78.8 MHz

108.0 MHz

79.5 MHz

102.3 MHz

68.3 MHz

108.0 MHz

108.0 MHz

135.0 MHz

85.5 MHz

162.0 MHz

146.3 MHz

Horizontal: kHz
Vertical: Hz

Horizontal 31.48 Negative

Vertical

Horizontal 31.47 Negative

Vertical

Horizontal 31.47 Negative

Vertical

Horizontal 35.00 Negative

Vertical

Horizontal 49.72 Negative

Vertical

Horizontal 68.68 Negative

Vertical

Horizontal 74.76 Positive

Vertical

Horizontal 37.86 Negative

Vertical

Horizontal 37.50 Negative

Vertical

Horizontal 31.47 Negative

Vertical

Horizontal 35.16 Positive

Vertical

Horizontal 37.88 Positive

Vertical

Horizontal 48.08 Positive

Vertical

Horizontal 46.88 Positive

Vertical

Horizontal 31.02 Positive

Vertical

Horizontal 48.36 Negative

Vertical

Horizontal 56.48 Negative

Vertical

Horizontal 60.02 Positive

Vertical

Horizontal 67.50 Positive

Vertical

Horizontal 47.78 Negative

Vertical

Horizontal 60.29 Negative

Vertical

Horizontal 47.40 Positive

Vertical

Horizontal 60.00 Positive

Vertical

Horizontal 63.98 Positive

Vertical

Horizontal 79.98 Positive

Vertical

Horizontal 47.71 Positive

Vertical

Horizontal 75.00 Positive

Vertical

Horizontal 65.29 Negative

Vertical

70.10 Negative

59.94 Negative

70.09 Positive

66.67 Negative

74.55 Negative

75.06 Negative

74.76 Positive

72.81 Negative

75.00 Negative

59.94 Negative

56.25 Positive

60.32 Positive

72.19 Positive

75.00 Positive

60.00 Positive

60.00 Negative

70.07 Negative

75.03 Positive

75.00 Positive

59.87 Positive

74.89 Positive

60.00 Negative

60.00 Positive

60.02 Positive

75.03 Positive

60.02 Positive

60.00 Positive

59.95 Positive

Polarity

Attention

• Display position may deviate
depending on the PC connected,
which may require screen adjustment
using the Setting menu.

• If a signal other than those listed in
the table is input, adjust the screen
using the Setting menu. However, the
screen display may still be incorrect
even after the adjustment.

• When interlace signals are used, the
screen cannot be displayed correctly
even after screen adjustment using the
Setting menu.

Chapter 5 Reference

45

46

Chapter 5 Reference

VESA CVT RB
1680×1050

VESA CVT RB
1920×1200

119.0 MHz

154.0 MHz

Horizontal 64.67 Positive

Vertical

Horizontal 74.04 Positive

Vertical

59.88 Negative

59.95 Negative

(The signal specified below is also applicable for the use of some AV
equipment.)

Frequency

Mode Dot clock

720@50Hz 1280×720p 74.3 MHz

720@60Hz 1280×720p 74.3 MHz

1080@50Hz 1920×1080p 148.5 MHz

1080@60Hz 1920×1080p 148.5 MHz

Horizontal 37.50 Positive

Vertical

Horizontal 45.00 Positive

Vertical

Horizontal 56.25 Positive

Vertical

Horizontal 67.50 Positive

Vertical

Horizontal: kHz
Vertical: Hz

50.00 Positive

59.94 Positive

50.00 Positive

59.94 Positive

Polarity

Applicable to White/Silver and Black cabinet only.

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This
means that your display is designed, manufactured and tested according to
some of the strictest quality and environmental requirements in the world.
This makes for a high performance product, designed with the user in focus
that also minimizes the Impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

● Good visual ergonomics and image quality in order to improve the working environment for the user
and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.

Energy

● Energy-saving mode after a certain time - beneficial both for the user and environment

● Electrical safety

Emissions

● Electromagnetic fields

● Noise emissions

Ecology

● The products must be prepared for recycling and the manufacturer must have a certified environmental
management system such as EMAS or ISO 14000

● Restrictions on

● chlorinated and brominated flame retardants and polymers

● heavy metals such as cadmium, mercury and lead.

The requirements includes in this label have been developed by TCO Development in co-operation with scientists,
experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in
influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays
in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Chapter 5 Reference

47

48

Chapter 5 Reference

For U.S.A. , Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.

5710 Warland Drive, Cypress, CA 90630
Phone: [phone]

declare that the product Trade name: EIZO

Model: FlexScan HD2441W

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

Note

Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the
limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (DVI - DVI, D-Sub mini 15-pin - D-Sub mini 15-pin, the enclosed signal cable)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.

Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor
